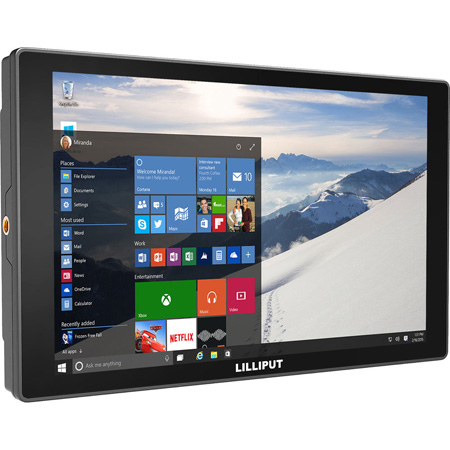

Lilliput FA1016-NP/C 10.1 Inch IPS HDMI/VGA IPS LCD Monitor

ITEM #: LIL-FA1016-NP-C MFG #: FA1016-NP/C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$259.00

Our Price:

$239.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FA1016-NP/C - Overview

    The Lilliput FA1016-NP/C is a 10.1 inch 16:9 LCD monitor with HDMI and VGA video inputs. As Lilliput's highest resolution HDMI 10" monitor, it has a 1920 x 1200 pixel panel, and 1000:1 contrast ratio - allowing for the clearest image for installation into either an industrial or camera based

    With full lamination technology you can see every detail in massive Full HD visual quality. The Lilliput FA1016-NP/C also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the clearest view possible and allows for a bright, tidy visual experience in an industrial or low light environment.

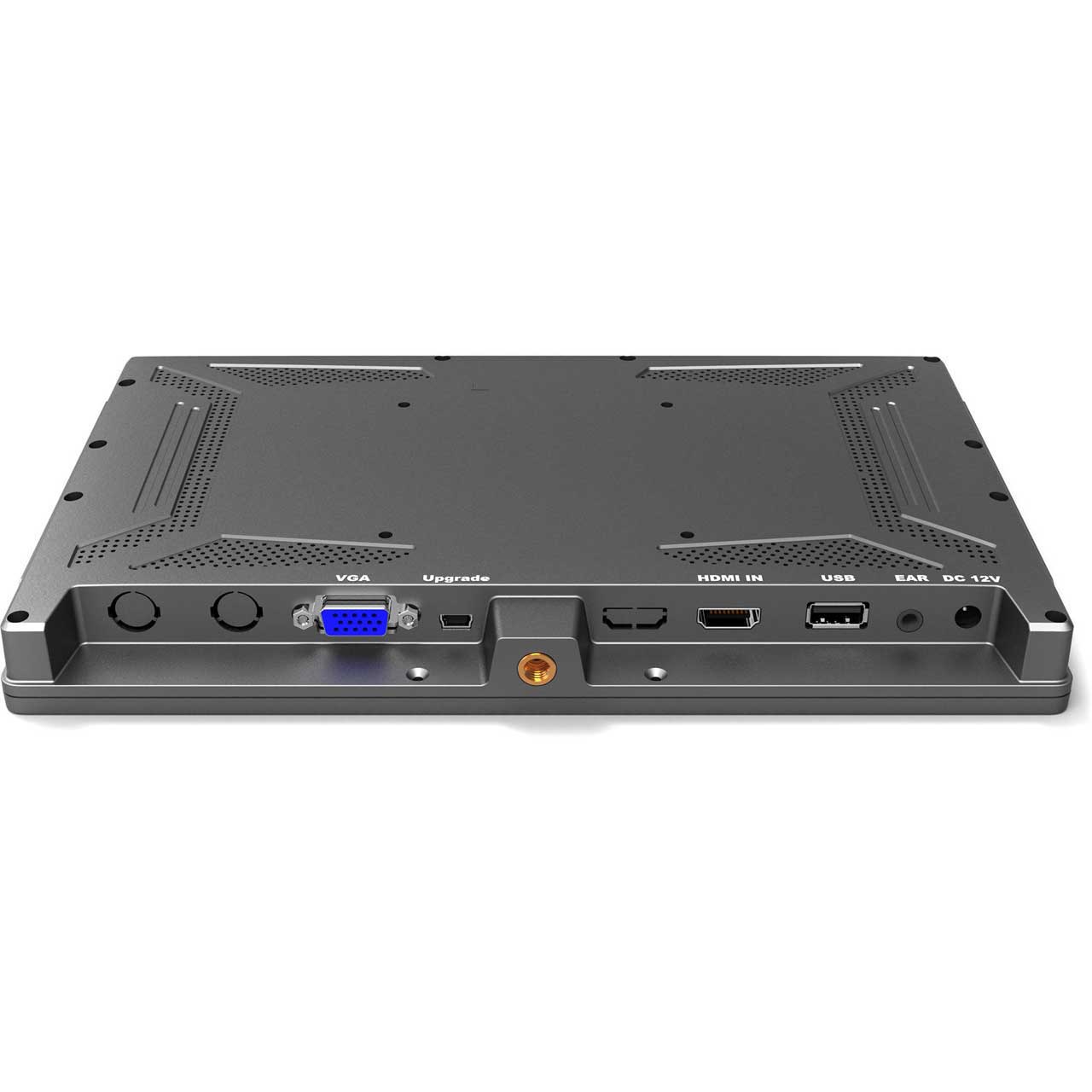

    HDMI+VGA Interfaces
    The FA1016 is compatible with both HDMI and VGA signals, designed to be used with legacy VGA as well as current HDMI video input feeds. Perfect for Home Security systems, industrial machinery monitoring, and camera confidence monitoring. Wide Voltage Power - Features high level components to support 7 to 24V power supply voltage, allowing the monitor to be installed in more varied and different installation locations (PSV vehicles, trucks etc).

    • Features:

      • HMDI and VGA Interfaces - Compatible with HDMI and VGA signals
      • Wide Voltage Power - Built-in high level components to support 7 to 24V power supply voltage
      • Low power consumption

    • Specifications:

      • Monitor
      • Screen Size (diagonal): 10.1 inch
      • Aspect Ratio: 16:10
      • Native Resolution: 1920 x 1200 (native) - 10.1" 8 Bit IPS
      • Maximum Resolution: 1920x1080 (maximum)
      • Viewing Angle (degrees): 170° x, 170° y
      • Brightness Ratio (cd/m2): 320
      • Contrast Ratio: 1000:1
      • Backlight: LED
      • Video Inputs: HDMI, VGA
      • Audio Outputs: Internal Speaker, Earphone Jack
      • Touchscreen Technology: None
      • Input Power: DV 7-24V (12V 1.5A DC Plug provided)

        Dimensions
      • Height (mm): 157
      • Width (mm): 252
      • Depth (mm): 25
      • Weight (g): 560

        Environment
      • Storage Temperature: -20°c to 60°c
      • Operating Temperature: 0°c to +50° degrees
      • Mounting Options: VESA 75, 1/4 inch BSW thread, vertical slot mount mechanism

    • Item Includes:

      • 1x FA1016-NP/C monitor
      • 1x HDMI A-A cable, 1x VGA cable
      • 1x DC 12V plug

    • GTIN:

      6950821601624
