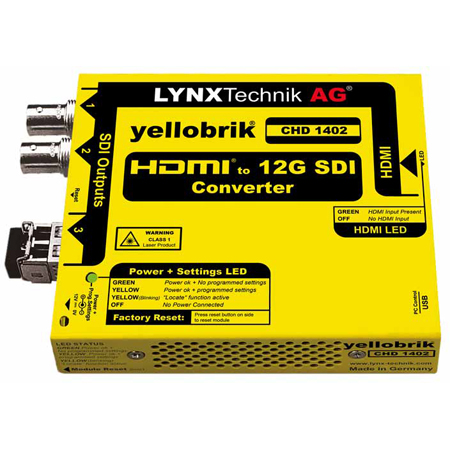

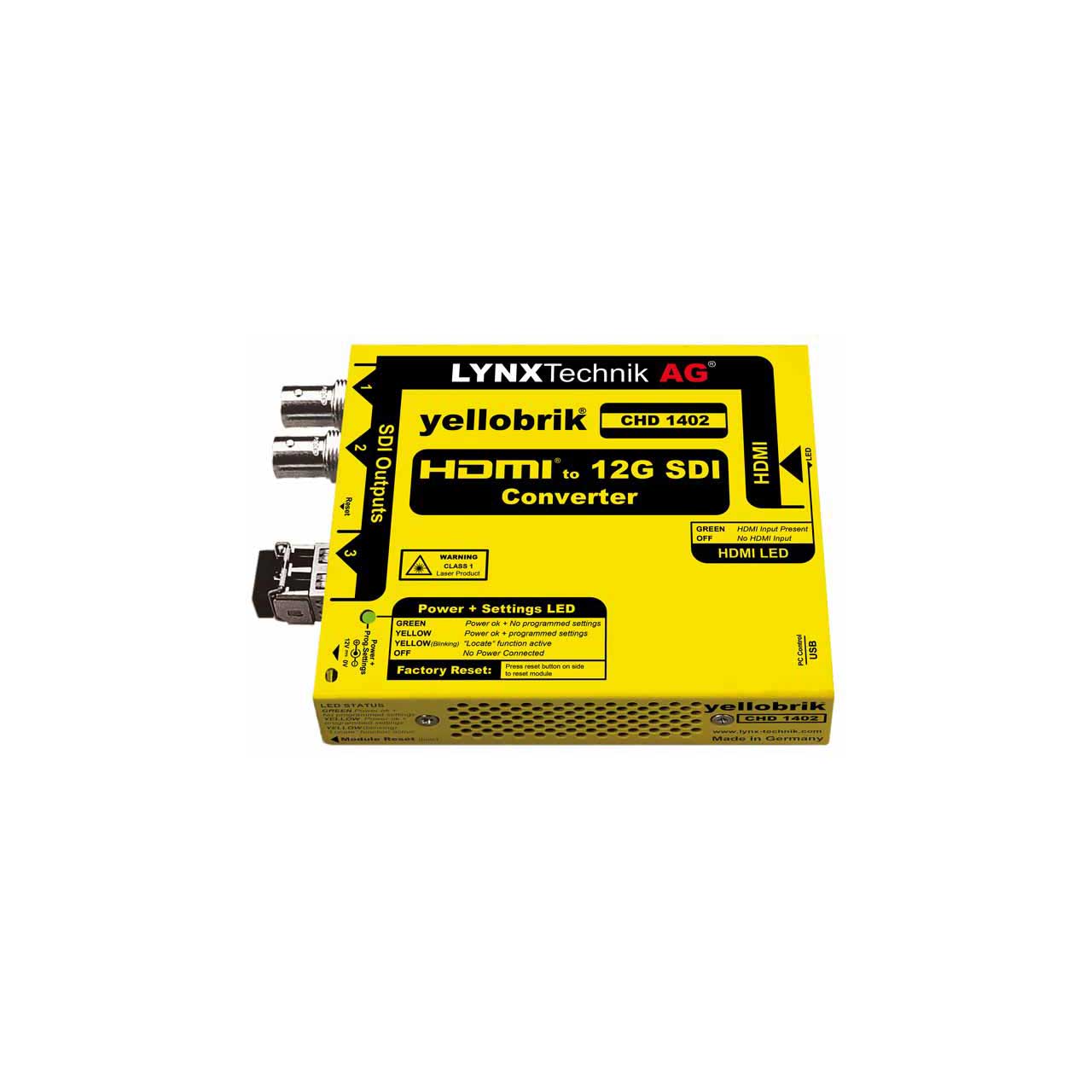

LYNX Technik Yellobrik CHD 1402 12G HDMI to SDI Converter

ITEM #: LNX-CHD-1402 MFG #: CHD 1402

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    CHD 1402 - Overview

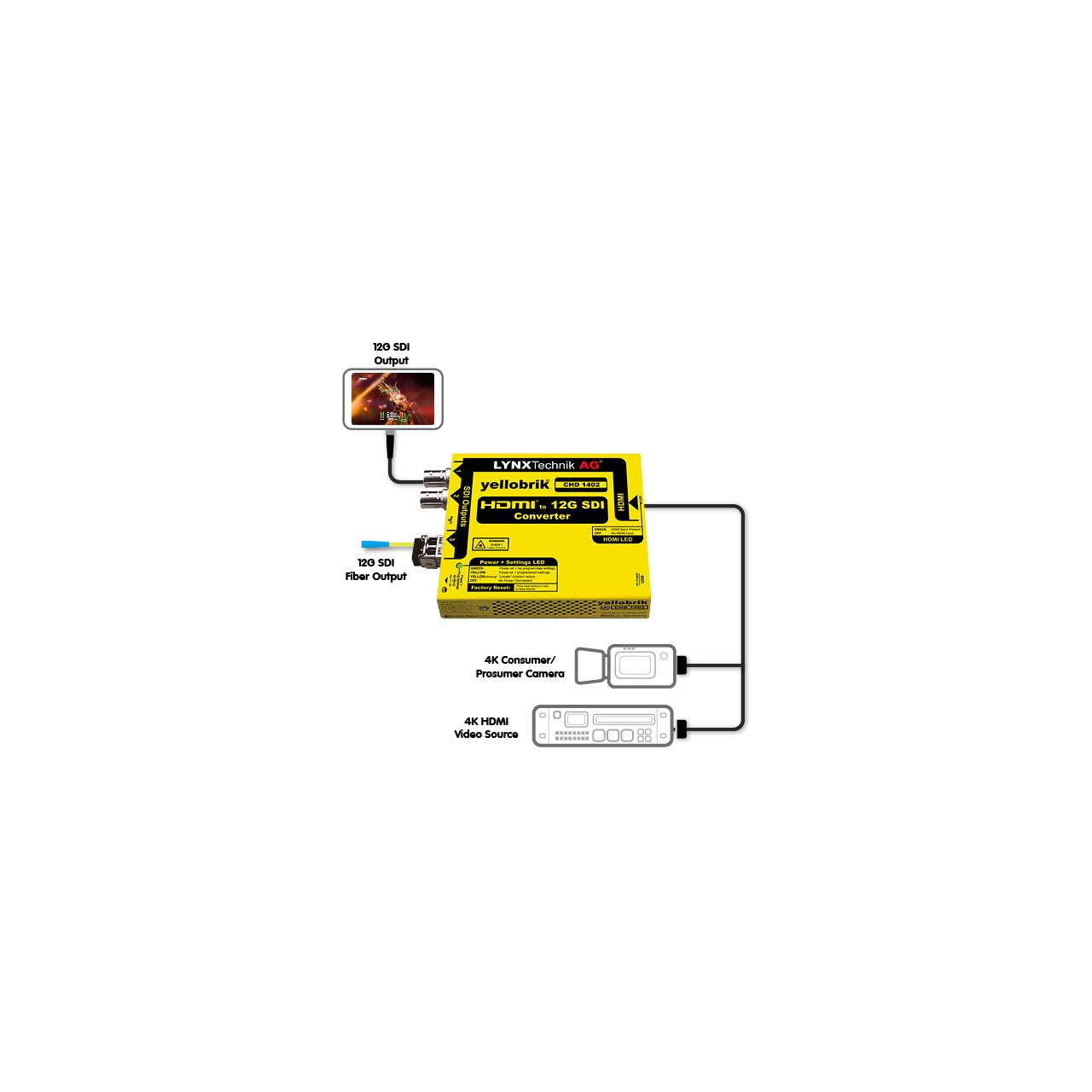

    The LYNX Technik CHD 1402 is a compact HDMI to SDI converter. It is an ideal solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output.

    The module is also compatible with the yelloGUI and LynxCentraal control software, which provides access to additional internal settings.

    An SDI fiber output is also provided with a selection of optional SFPs.

    • Features:

      • SDI video output formats up to 12G (2160p60)
      • 3G SDI Level A and Level B support
      • 2 x SDI outputs
      • Optional SDI fiber output
      • HDMI embedded audio passed transparently
      • HDMI present LED indication
      • LynxCentraal and yelloGUI compatible for internal settings
    • Specifications:

      • HDMI Input:
        Type A 2.0b connector for up to 2160p60
        Up to 8 channels embedded audio in HDMI is passed transparently
      • SDI Outputs:
        2 x SDI video, 75 Ohm BNC (both have the same signal - NOT dual link)
        SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
        Electrical Return Loss: to 1.5GHz >15dB; to 3GHz >10dB; to 6GHz >7dB; to 12GHz >4dB
      • Fiber Output: Optional plug in SFP for optical SDI output (see fiber options table)
      • Power: +12V DC @ 9.3W nominal - (supports 10 - 24V DC input range)
      • Physical Size (incl. connectors): 123 x 90 x 22mm (4.84 x 3.54 x 0.86")
      • Weight: 186g (6.56oz)
      • Ambient: 5° to 40°C (41° to 104°F)
      • Humidity (non-condensing): 90%
    • Item Includes:

      • 1x CHD 1402 Module
      • 1x AC power supply
      • 1x HDMI + USB cable
