LYNX Technik yellobrik CQS 1462 4x3G-SDI Bi-Directional 2SI/SQD Quad Link to 12G SDI Single Link Converter

ITEM #: LNX-CQS-1462 MFG #: CQS 1462

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,300.00

Our Price:

$1,235.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

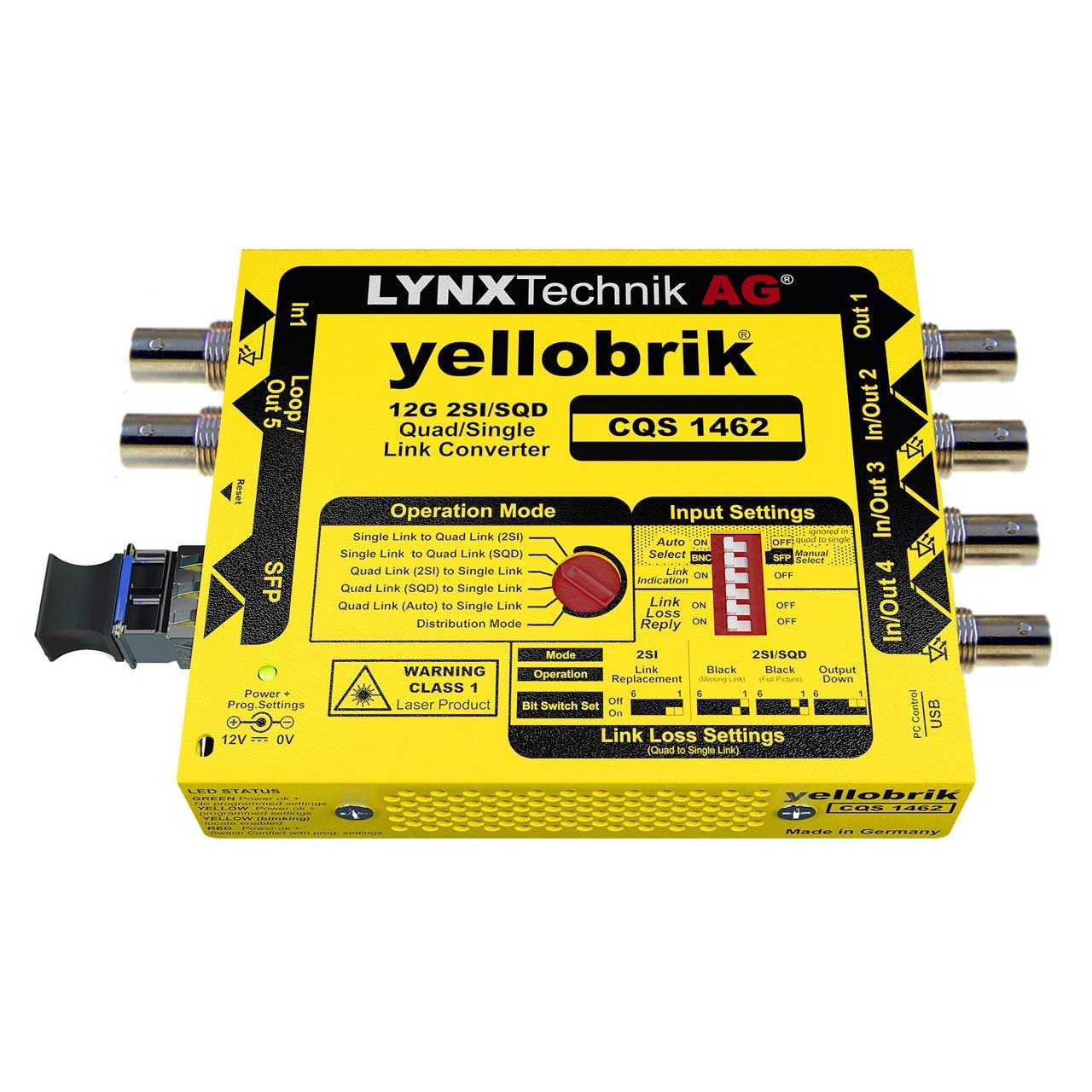

    CQS 1462 - Overview

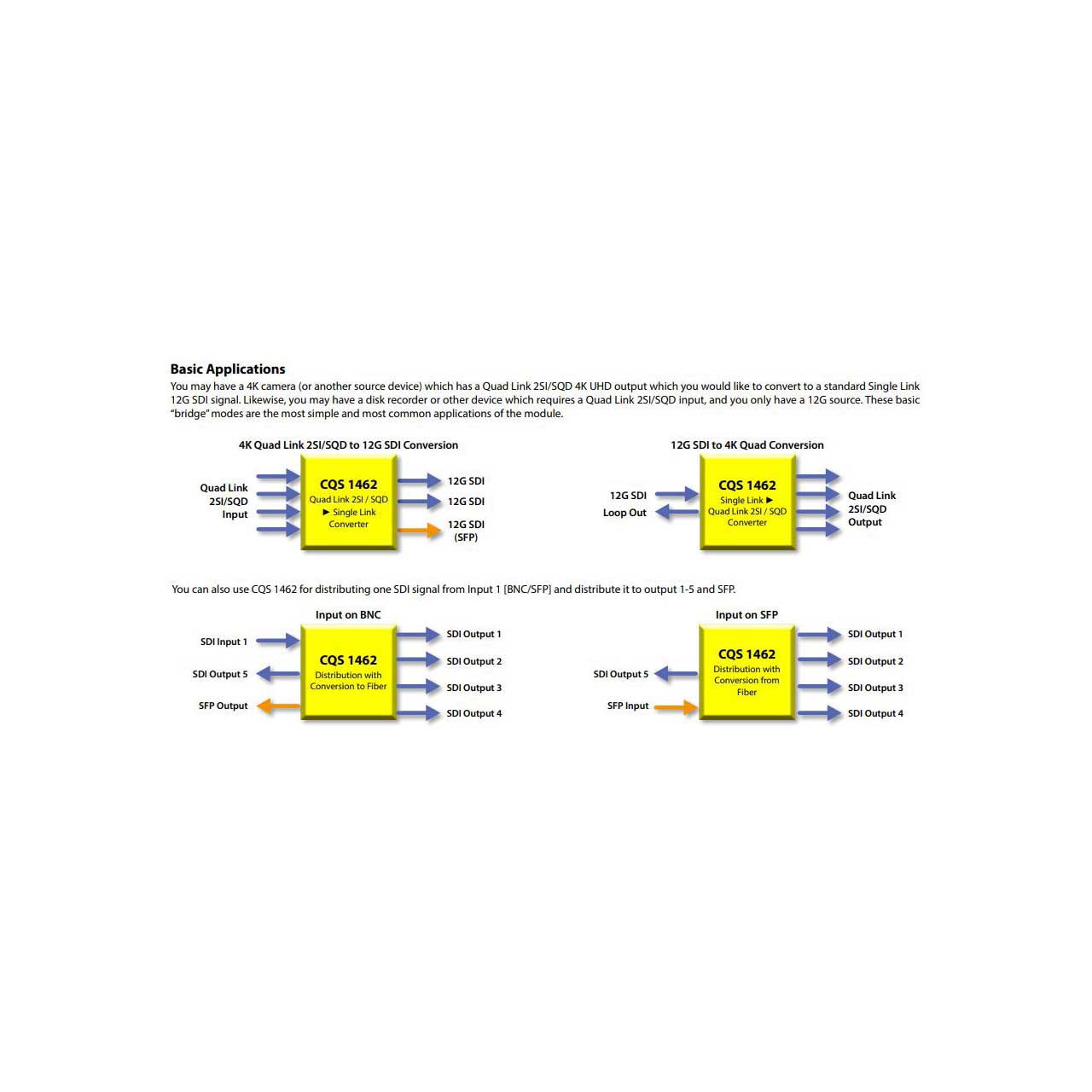

    The CQS 1462 is a compact solution designed to bridge 6G/12G SDI Quad Link 2SI/SQD devices and Single Link 1.5G/3G/6G/12G SDI devices. Conversion modes include:

    -Single Link to Quad Link (2SI) [1x12G-SDI > 4x3G-SDI Level A / 1x6G-SDI > 4x1.5G-SDI]
    -Single Link to Quad Link (SQD) [1x12G-SDI > 4x3G-SDI Level A / 1x6G-SDI > 4x1.5G-SDI]
    -Quad Link (2SI) to Single Link [4x3G-SDI Level A > 1x12G-SDI / 4x1.5G-SDI > 1x6G-SDI]
    -Quad Link (SQD) to Single Link [4x3G-SDI Level A > 1x12G-SDI / 4x1.5G-SDI > 1x6G-SDI]
    -Auto Quad Link to Single Link
    -Distribution Amplifier mode (1>5+1) [1.5G / 3G / 6G / 12G -SDI]

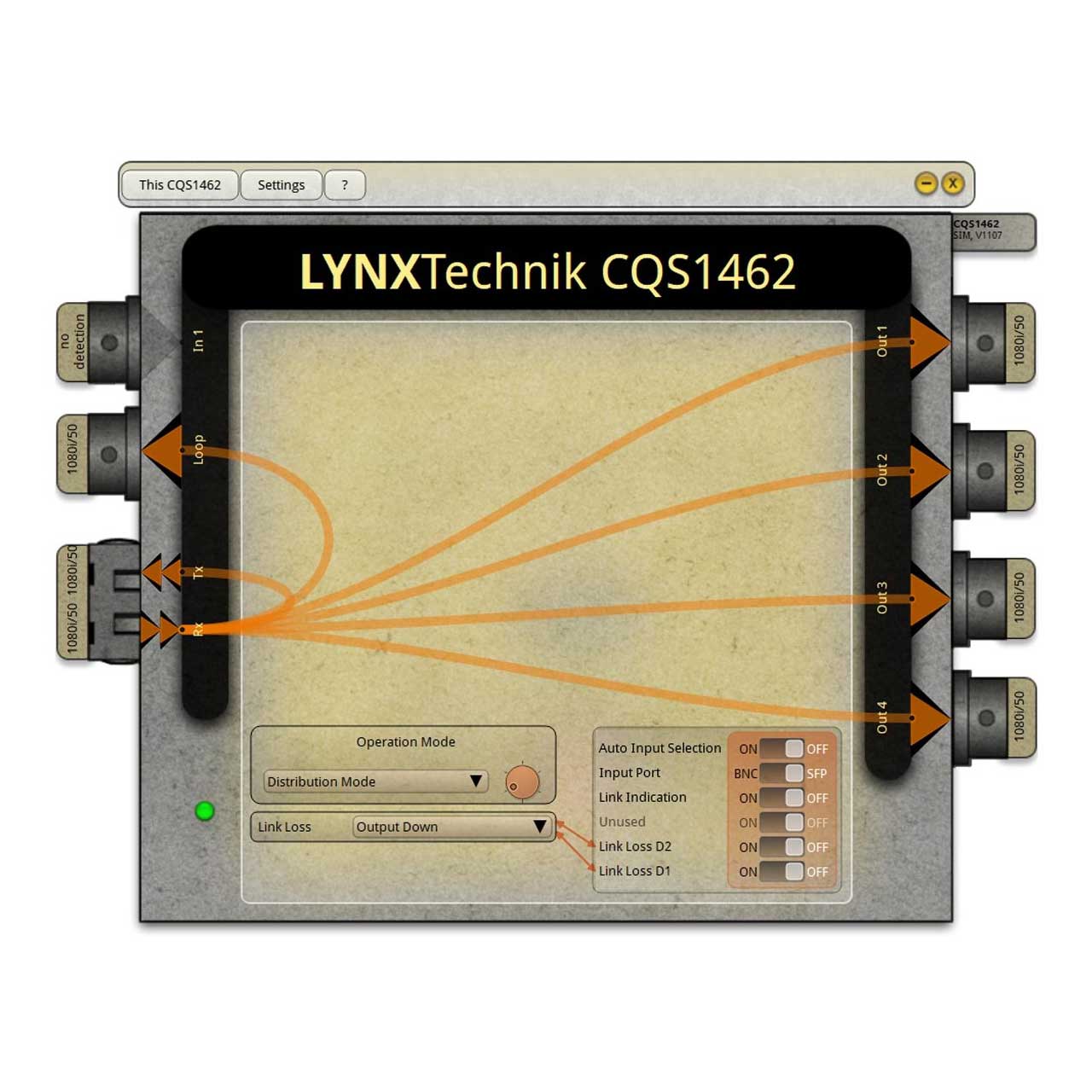

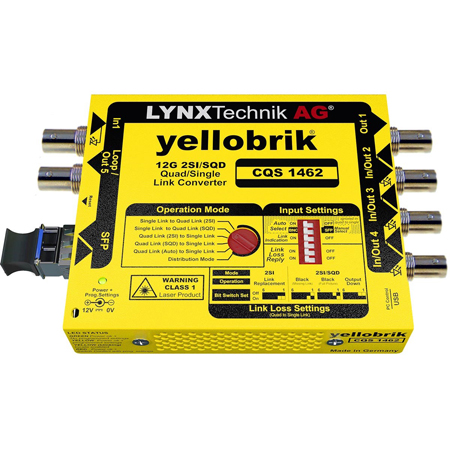

    -Operational mode can be selected from the local rotary switch or via the Lynx Centraal or yelloGUI control software. The CQS 1462 can also be used as a 1> 5+1 distribution amplifier if needed. Link identification is possible through on-screen overlays which can be helpful for connectivity problems or link loss.

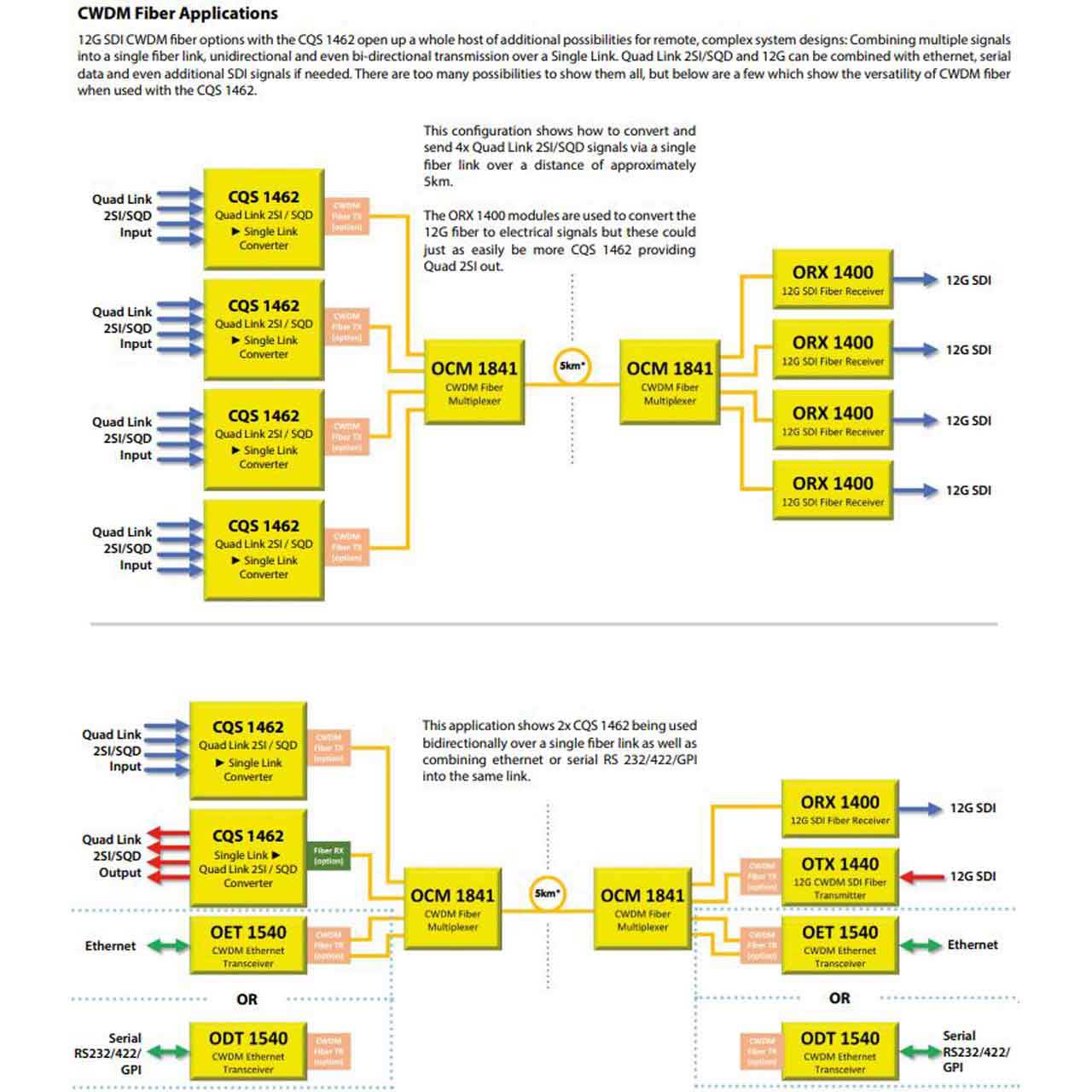

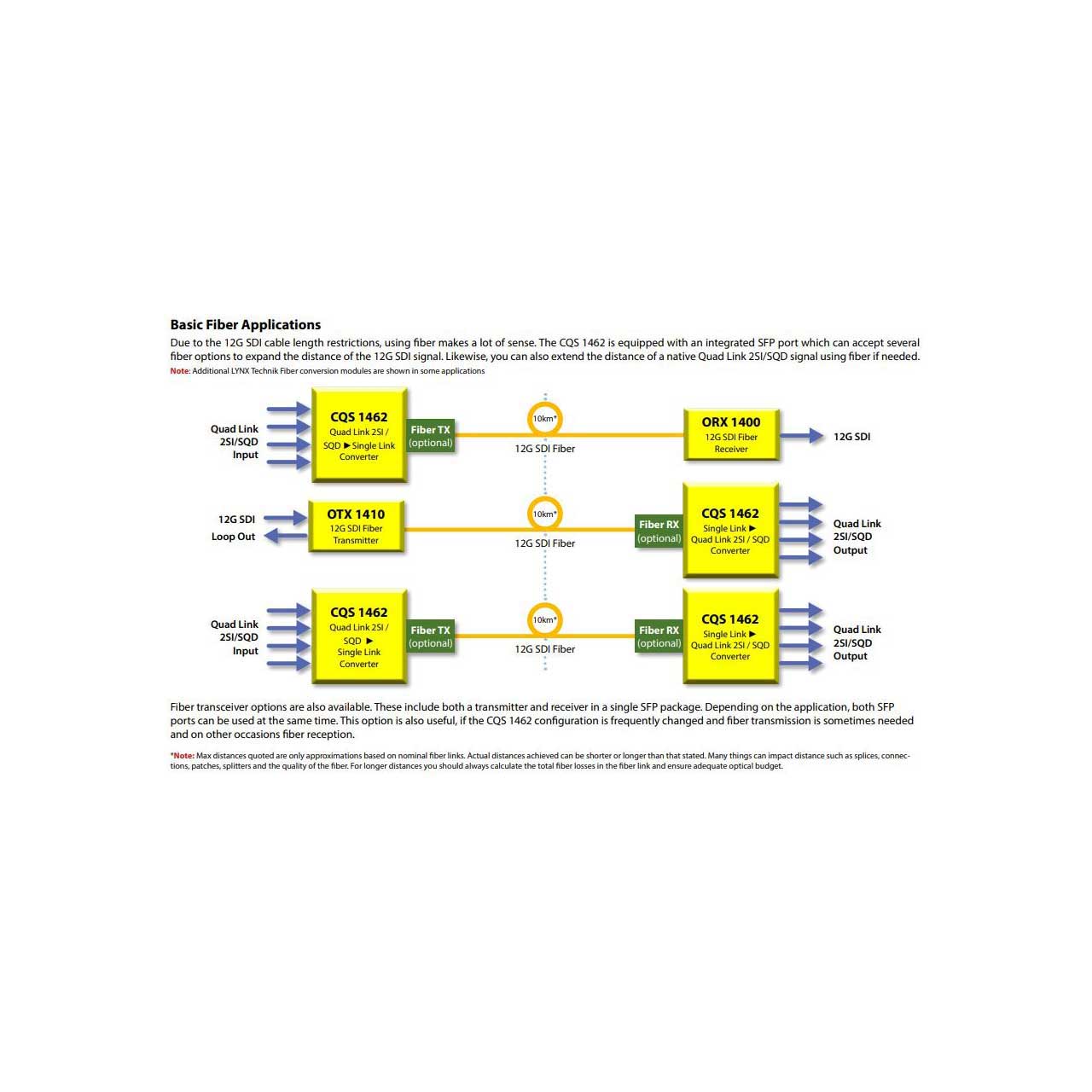

    The module is suitable for all SMPTE standard signals from 1.5G-SDI to 12G SDI (SMPTE 292M, 424M, 2081 and 2082). For optical inputs and outputs, we offer optional SDI SFPs, in both CWDM and non-CWDM variants.

    • Features:

      • Support for 12G/6G/3G/1.5G-SDI Video Formats
      • 12G-SDI 2SI/SDQ and 6G-SDI Conversion in both directions
      • [Single > Quad Link / Quad > Single Link]
      • 12G/6G/3G/1.5G Distribution Mode 1>5+1
      • [BNC > 5xBNC + 1xSFP* / SFP* > 5xBNC]
      • Automatic Link Loss Reply Options for 2SI/SQD
      • Quad Link 12G-SDI to Single Link Fiber*
      • Single Link Loopback Output
      • 5x BNC and 1x Fiber Output*
      • 4x BNC and Fiber Input*
      • Lynx Centraal & yelloGUI compatible for additional internal settings


    • Specifications:

      • SDI I/O
      • 1 x dedicated SDI video input on BNC connector
      • 2 x dedicated SDI video output on BNC connector (1 x Loop/Processed output)
      • 3 x switchable SDI video in-/outputs on BNC connector
      • SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
      • Multi-standard operation from 1.5G to 12G:
        720p (23.98/24/25/29.97/30/50/59.94/60 Hz)**
        1080psf (23.98/24/25/29.97/30 Hz)**
        1080i (50/59.94/60 Hz)**
        1080p (23.98**/24**/25**/29.97**/30**/50/59.94/60 Hz)
        2160p (23.98/24/25/29.97/30/50/59.94/60 Hz)
      • Electrical Return Loss: to 1.5GHz >15dB, to 3GHz >10dB, to 6GHz >7dB, to 12GHz >4dB
      • Automatic cable EQ: 1.5Gbit/s 200m, 3Gbit/s 150m, 6Gbit/s 90m, 12Gbit/s 85m - Belden 1694A / Belden 4794R

      • Fiber I/O: 1 x fiber optic input and output ( optional, see table ), SMPTE 297M - 2006
      • Power: +12VDC @ 13.24W nominal (incl. SFP) - ( 7-24VDC input range )
      • Physical Size (incl. connectors): 4.96" x 3.54" x 0.86"
      • Weight (excl. SFP): 7.05oz
      • Ambient: 41 - 104°F, 90% Humidity (non condensing)


    • Item Includes:

      • 1x Module
      • 1x AC power supply


    • GTIN:

      4250479327832
