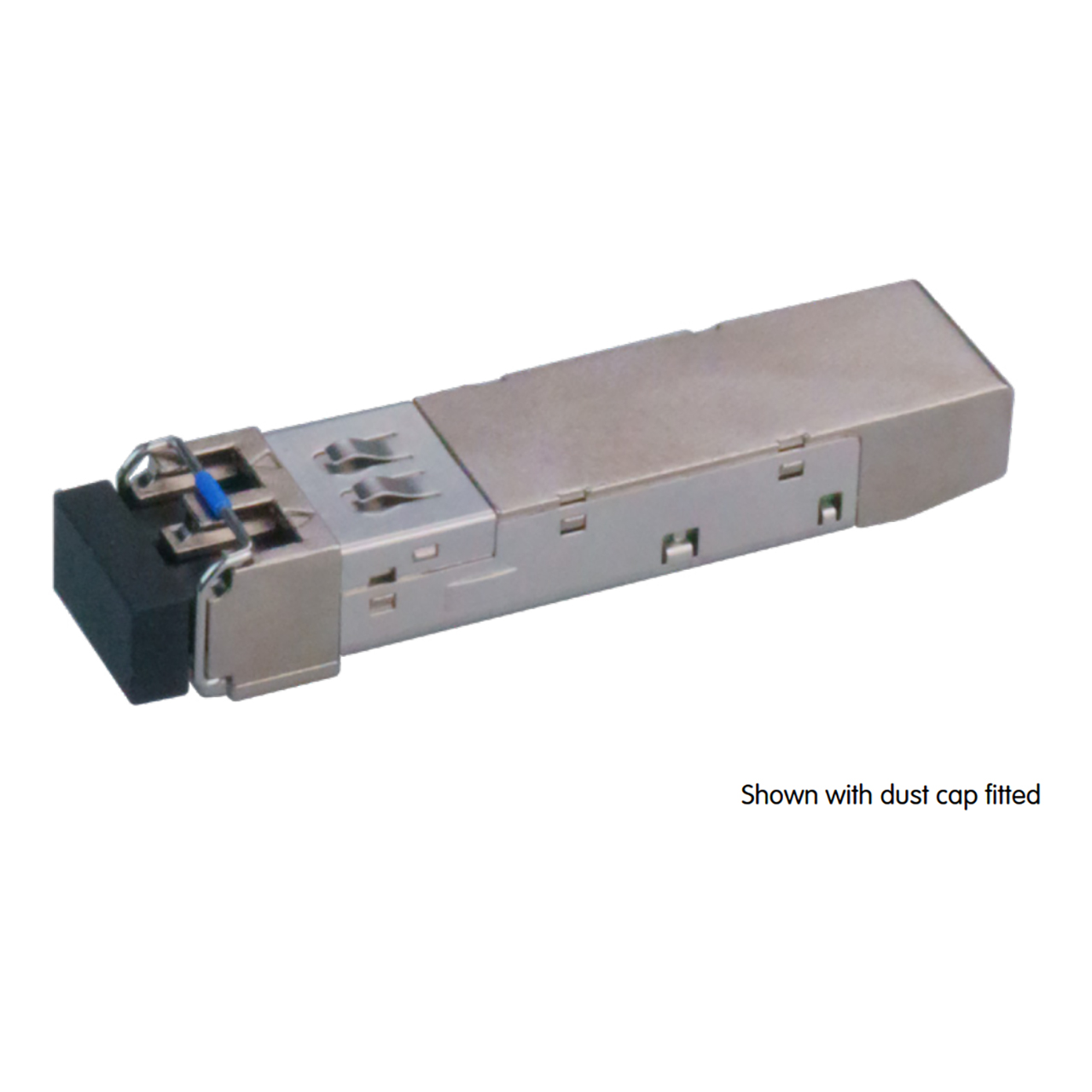

LYNX Technik OH-TR-10G-LC 10GbE Duplex Singlemode Fiber Transceiver SFP - LC Connectors

OH-TR-10G-LC - Overview

• Features:

  • 10GbE/1GbE fiber Transceiver
  • Duplex LC connector
  • Singlemode
  • 1310nm TX wavelength
  • 1260nm to1620nm RX wavelengths
  • TX Distances up to 12 miles (20km)
  • Pluggable and hot swappable
  • Lead free and RoHS compliant


• Specifications:

  Transmitter
  • Transmitting Optical Power: -3dBm - 1dBm
  • Wavelength:
    - Min: 1270nm
    - Typ: 1310nm
    - Max: 1355nm
  • Linear Extinction Ratio: 3.5dBm

    Receiver
  • Sensitivity: -14.4dBm
  • Wavelength: 1260nm - 1565nm
  • Overload: 0.5dBm
  • Loss of Signal Assert: -28dBm
  • Loss of Signal De-Assert: -16dBm

    Mechanical
  • Size (Not Including Connector): 2.24" x 0.53" x 0.49" (57mm x 13.4mm x 12.4mm)
  • Weight: 0.11lbs (50g)
  • SFP Connector Pinning: MSA
  • Fiber Connections: LC/Duplex - Singlemode
  • Operating Temperature Range: 41° - 104°F (5°C - 40°C)
  • Power Supply Voltage: 3.3VDC
  • Power Consumption: 400mA max


• Item Includes:

  • 1x 10GbE Duplex Single-mode Fiber Transceiver SFP


• Warranty:

  • 3 Year Limited Warranty
