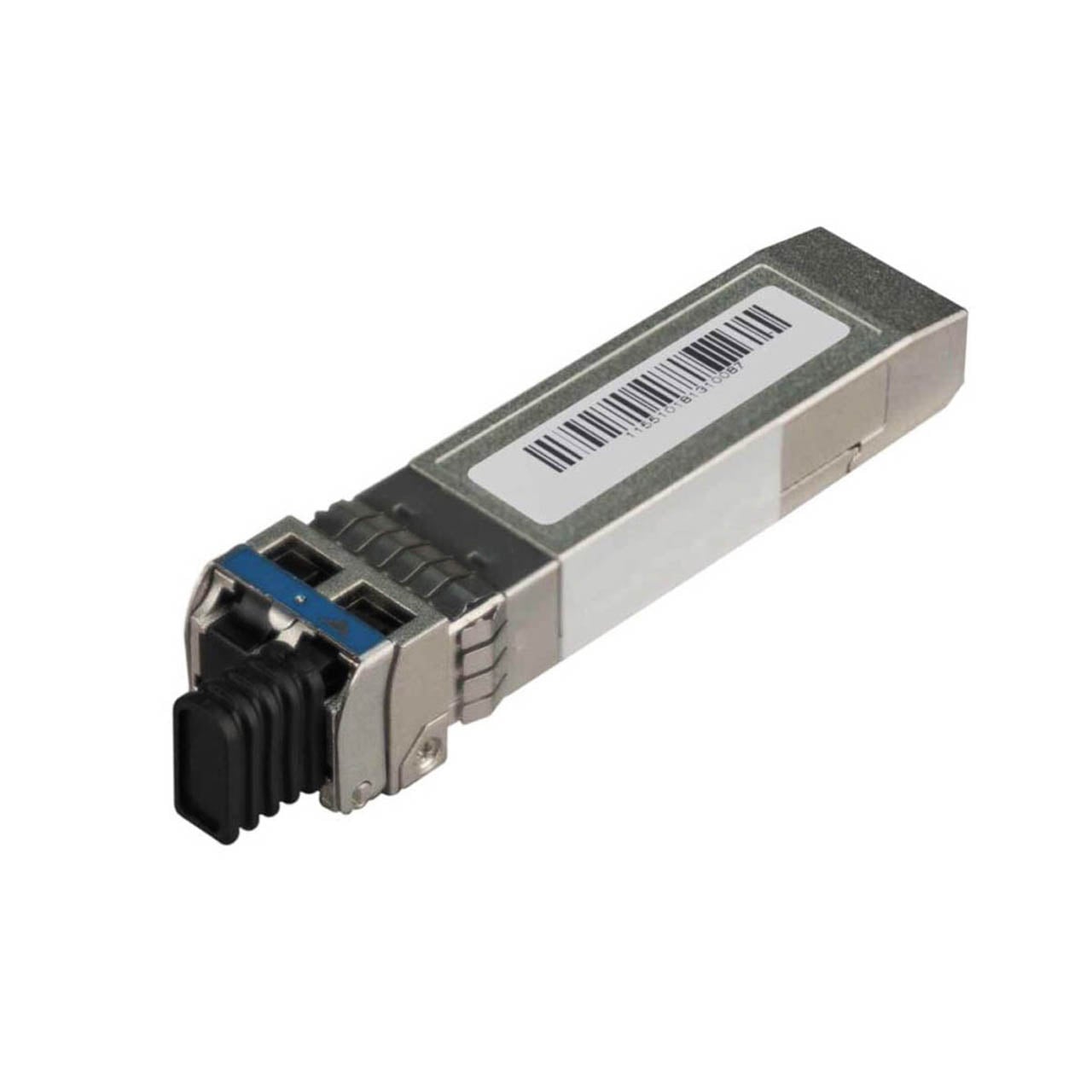

Lynx Technik OH-RX-0-850-MM 3G-SDI Multimode Fiber Optic Receiver

Name: Lynx Technik OH-RX-0-850-MM 3G-SDI Multimode Fiber Optic Receiver
Brand: LYNX Technik Inc
SKU: LNX-OHRX0850MM
Price: 385.70 USD
Availability: Backorder

ITEM #: LNX-OHRX0850MM MFG #: OH-RX-0-850-MM

LYNX Technik Inc

List Price:

$406.00

Our Price:

$385.70

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OH-RX-0-850-MM - Overview

The Lynx OH-RX-0-MM SDI optical receiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products.

This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. This module if for use with Multimode fiber and wavelengths of 850nm. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

It is recommended to use 62.5/125µm Multimode fiber cable with this SFP module.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Features:
- Simplex LC connector
- 3G/1.5G/270M SDI Fiber Receiver
- Multimode
- RX wavelength 850nm
- Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Pluggable and hot swappable
- Lead free and RoHS compliant
Specifications:
- Wavelength:
  - Min: 780nm
  - Typ: 850nm
  - Max: 880nm
- Overload: 0dBm (Max)
- Loss of Signal Asserted: -28dBm (Min)
- Loss of Signal De-Asserted: -16dBm (Max)
- Optical Hysteresis:
  - Min: 1dBm
  - Max: 6dBm
- Operating Temperature Range: 41°F - 104°F (5°C - 40°C)
- Power Supply Voltage:
  - Min: 3.13VDC
  - Typ: 3.3VDC
  - Max: 3.47VDC
- Power Consumption:
  - Typ: 120mA
  - Max: 160mA
- Humidity (non condensing): 90% (Max)
- Size (not including connector - typ): 2.24" x 0.527" x 0.488" (57mm x 13.4mm x 12.4mm)
- Weight: 1lb (0.4kg)
- SFP Connector Pinning: MSA
- Fiber Connections: LC/Simplex - Multimode
Item Includes:
- 1x OH-RX-0-850-MM
Warranty:
- 1 Year Limited Warranty
