LYNX Technik OH-TR-MADI-1310-MM Optical Transceiver with 1310nm Transmitter Wavelengths for LYNX Yellowbrik/GreenMachine

ITEM #: LNX-OHTRMADI1310 MFG #: OH-TR-MADI-1310-MM

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$75.00

Our Price:

$71.25

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OH-TR-MADI-1310-MM - Overview

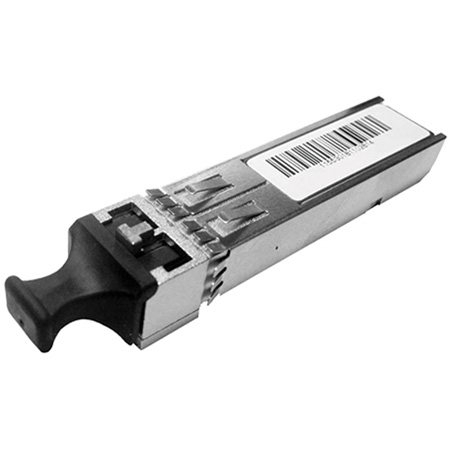

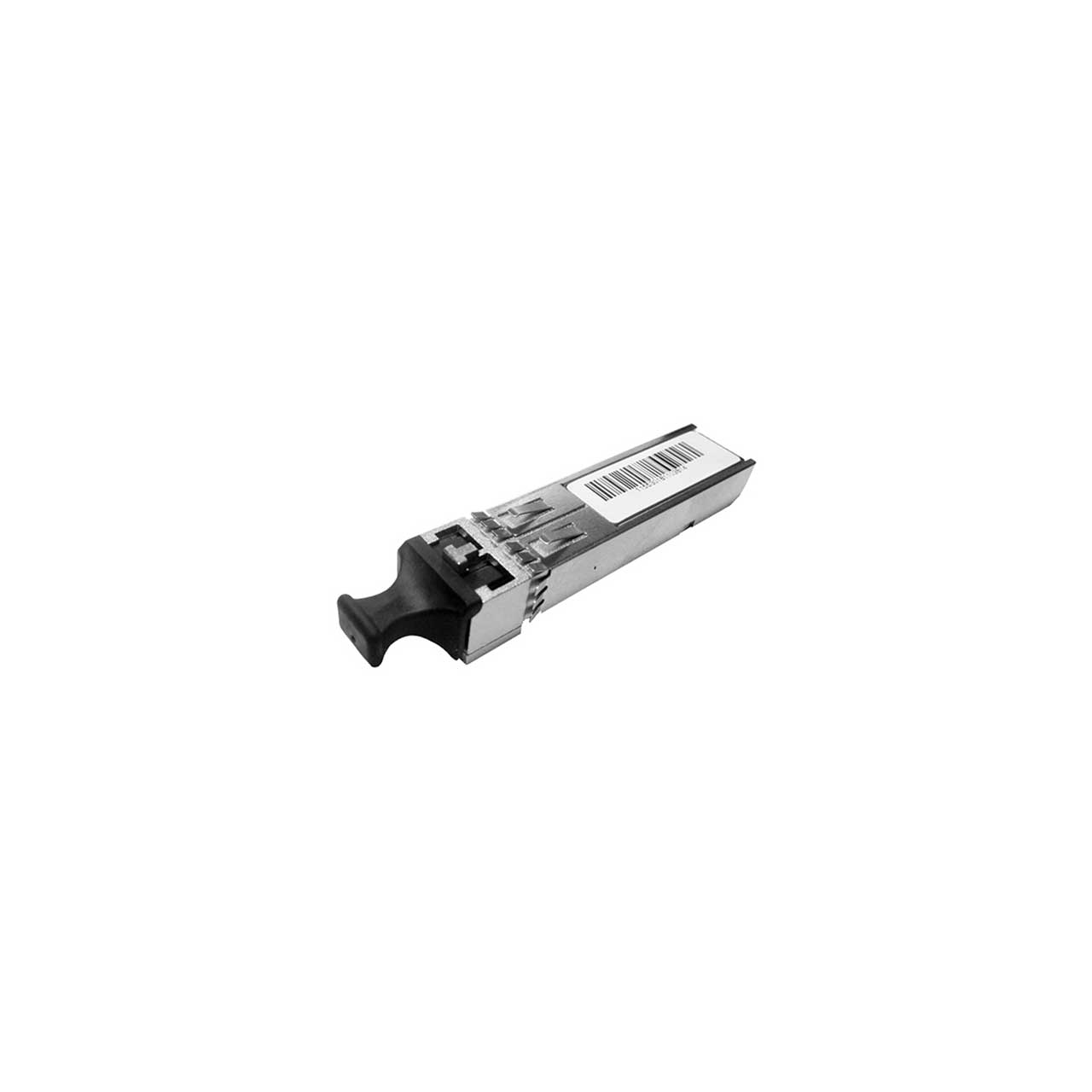

    The OH-TR-MADI-1310-MM optical transceiver is a plug in option for select LYNX Technik yellobrik and greenMachine products. Specifically this option is intended to convert the LYNX OTR 1210 MM MADI Transceiver module from the standard 850nm to 1310nm wavelength. This is also a plug in option for greenMachine when using the MADI audio APP. TX Wavelength is a fixed 1310nm, and suitable for distances up to 2km.

    A socket, or "cage" is provided for the SFP in the supporting LYNX Technik product for easy installation or upgrade. The SFP is hot swappable.

    • Features:

      • Optical multimode transceiver for MADI audio applications
      • Receiver and transmitter in single package
      • 1310nm TX Wavelength - Multimode
      • Receive wavelengths 1270 to 1620nm according to ITU-T G694.2
      • TX Distances up to 2km**
      • For use with yellobrik and greenMachine product lines
      • Pluggable and hot swappable
      • LC Duplex fiber connections
      • Lead free and RoHS compliant


    • Specifications:

      • TX
      • Center Wavelength: 1260nm - 1360nm
      • Spectral Width: 10nm
      • Optical Power: -20dBm - -14dBm
      • Linear Extinction Ratio: 8.2dB

        RX
      • Receiver Sensitivity: - 30dBm
      • Wavelength: 1270nm - 1620nm
      • Overload: -3dBm
      • Loss of Signal Asserted: -45dBm
      • Loss of Signal De-Asserted: -31dBm
      • Optical Hysteresis: 0.5dB - 2dB

        Mechanical
      • Size (not including connector - typ): 57mm x 13.4mm x 12.4mm
      • Weight: 50g
      • SFP Connector pinning: MSA
      • Fiber connections: LC / Duplex - Multimode
      • Operating Temperature Range: 5°C - 40°C
      • Power Supply Voltage: 3.3VDC
      • Power Consumption: 200mA typical 300mA max


    • GTIN:

      4250479325975
