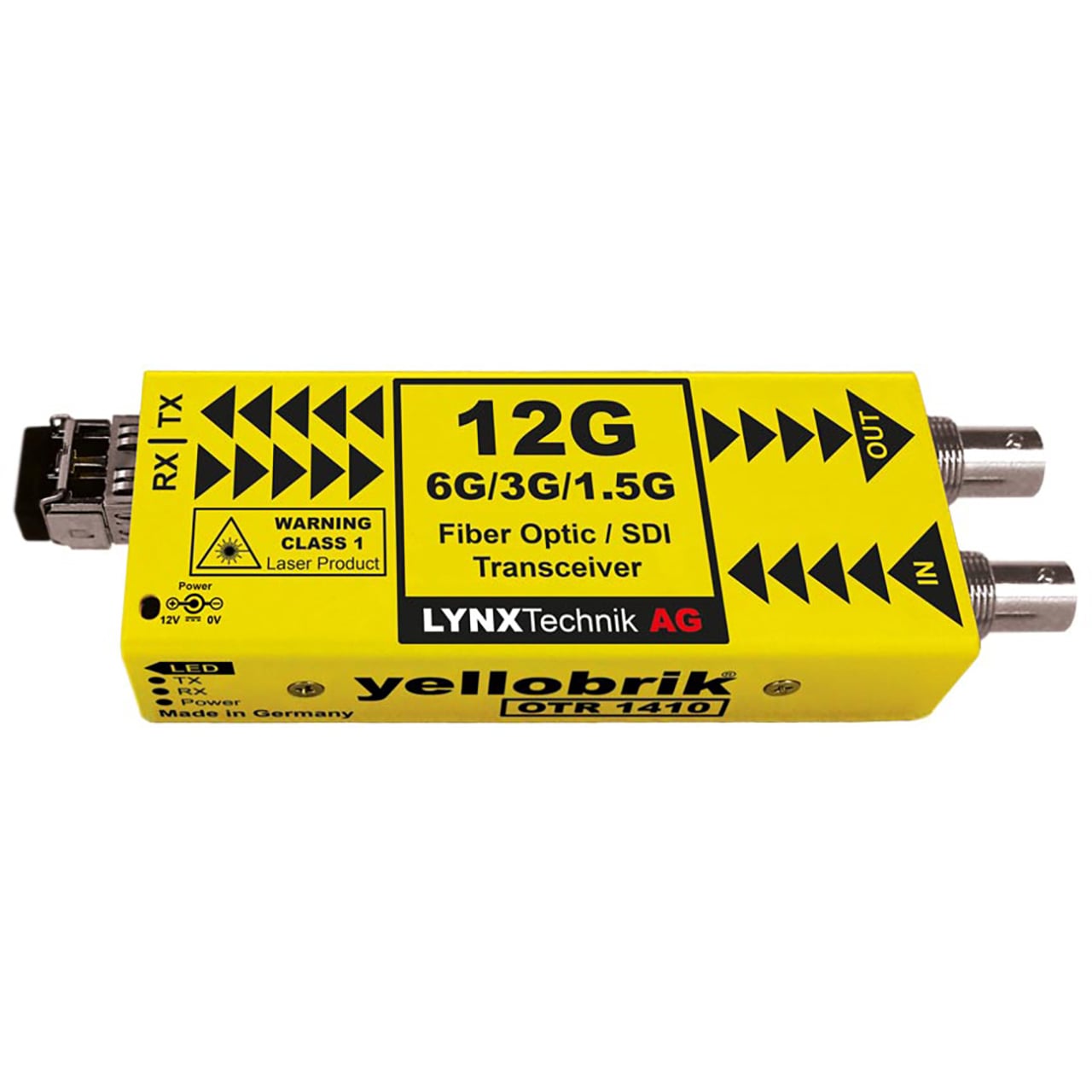

The LYNX Technik OTR 1410 CW is a Fiber/SDI transmitter and receiver combined in a single self contained package that does require a CWDM SFP. It is a convenient and cost-effective solution to overcome the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances.
Each OTR 1410 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any 12G-SDI signal up to 4096x2160 60Hz. Operation of the receiver and transmitter is automatic. For transmission, the 12G-SDI video format is automatically detected, reclocked and then transmitted over the fiber TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the 12G-SDI output.
The OTR 1410 supports 12G/6G/3G/1.5G/SD-SDI video standards. CWDM SFPs are sold separately and must be ordered with the required operating wavelength. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Please Note: This unit does not come with an SFP. A CWDM SFP is required.
