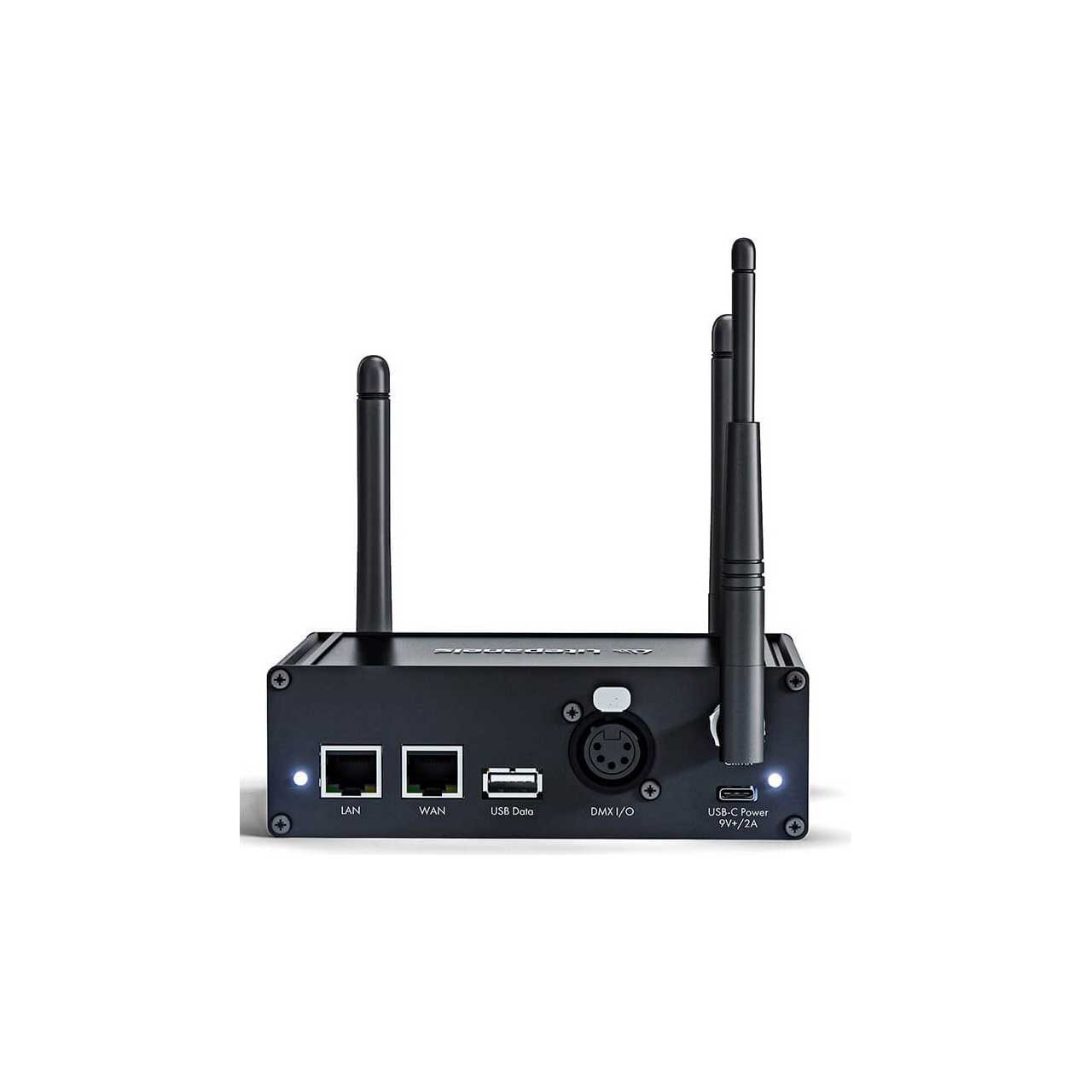

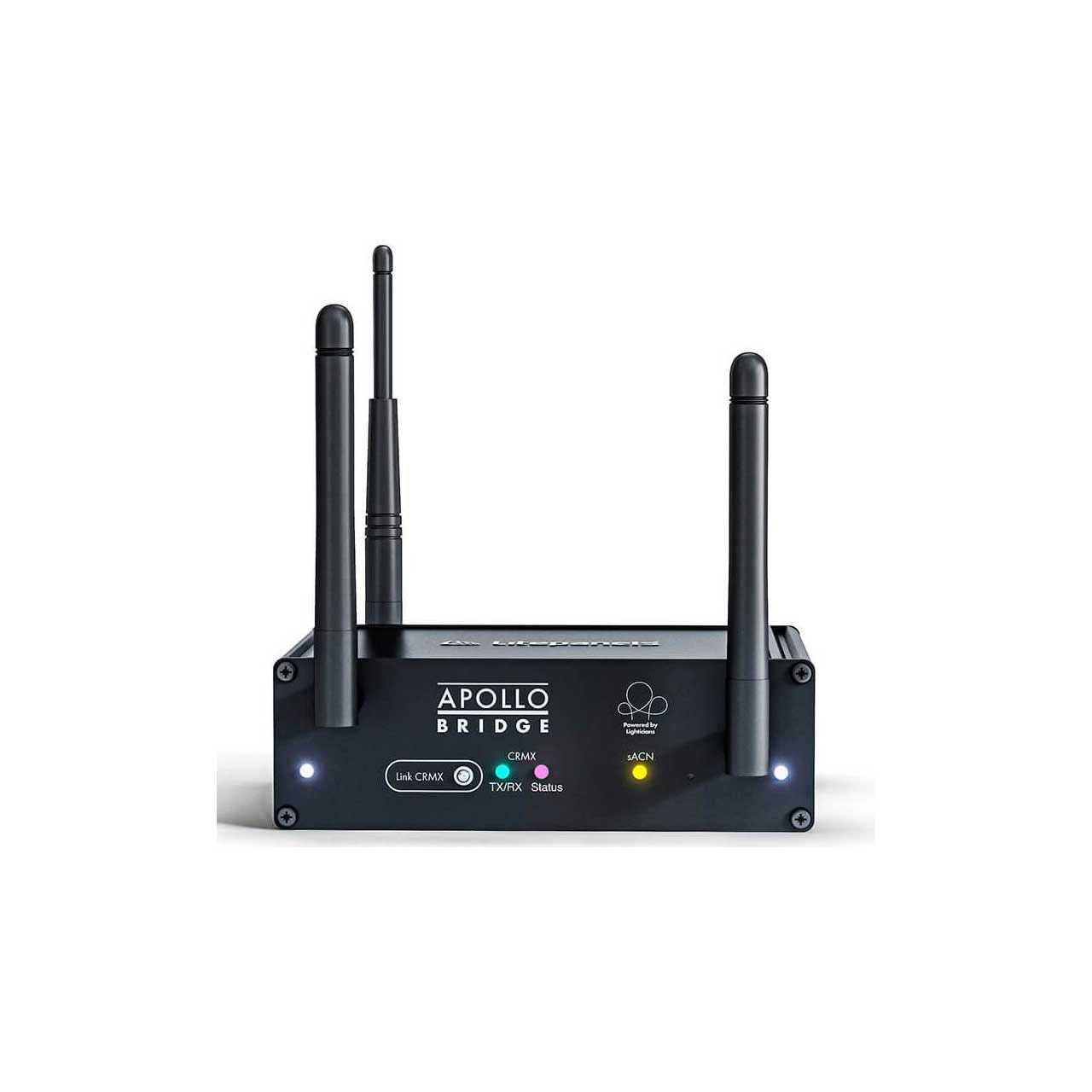

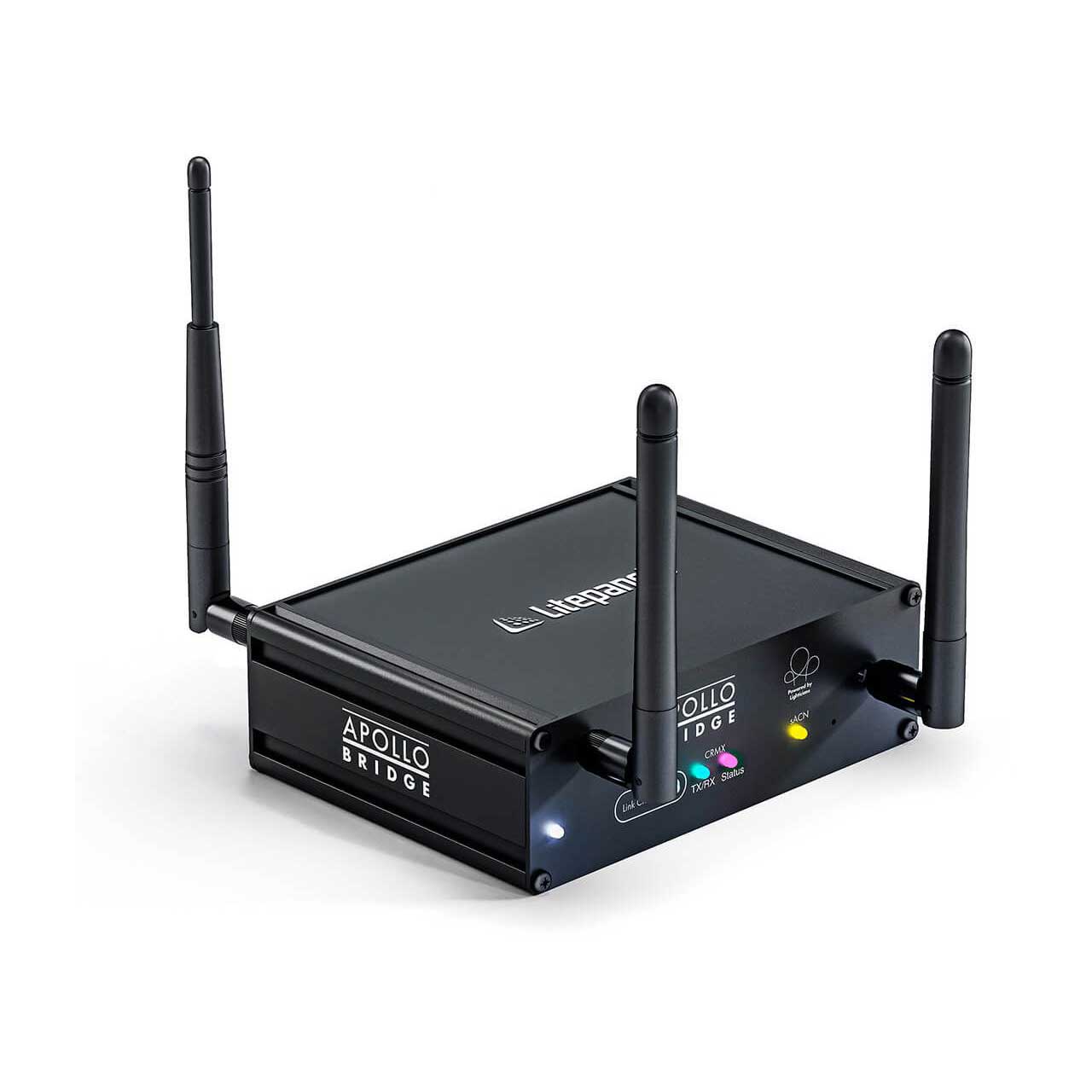

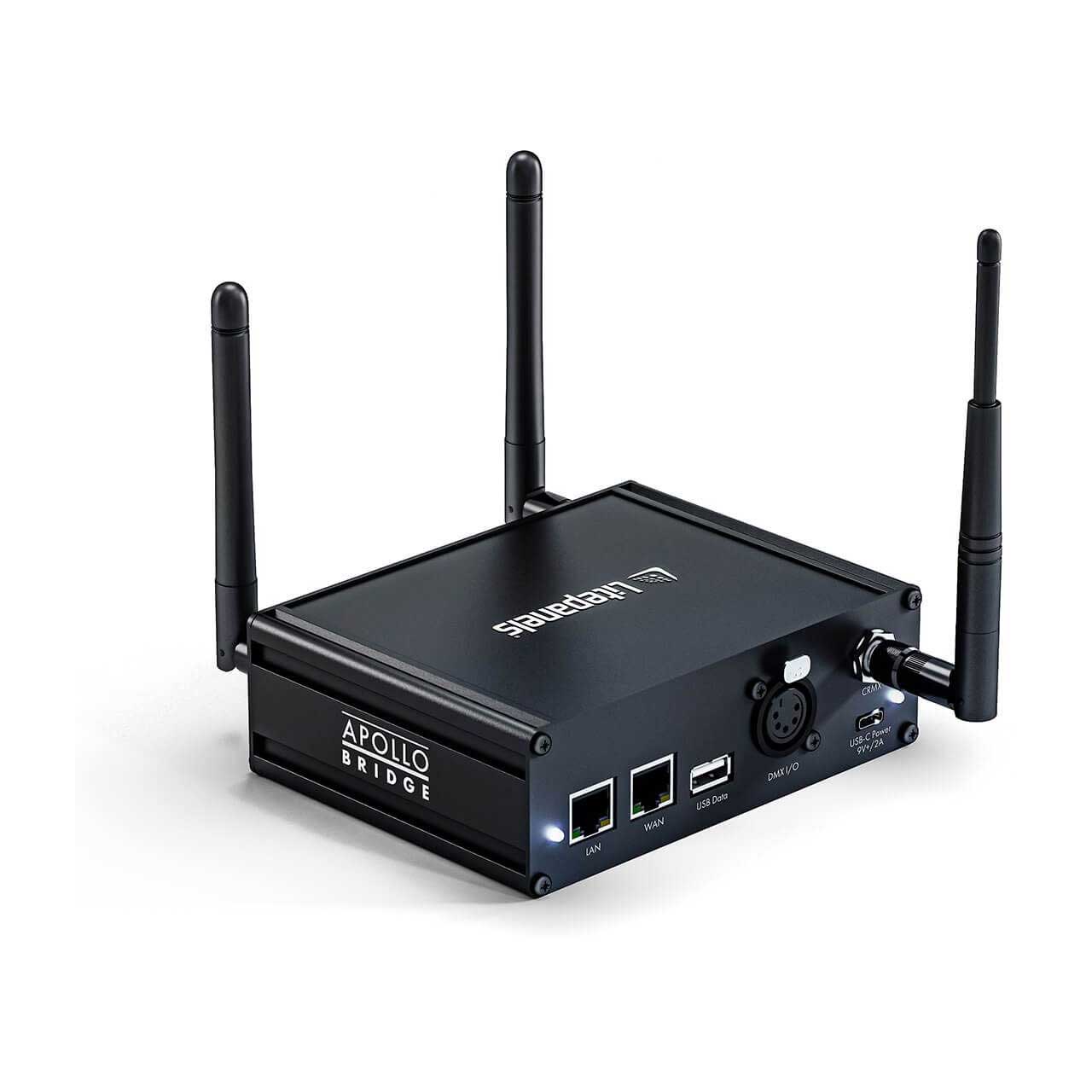

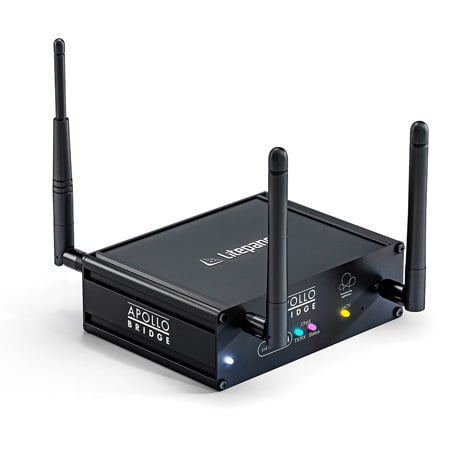

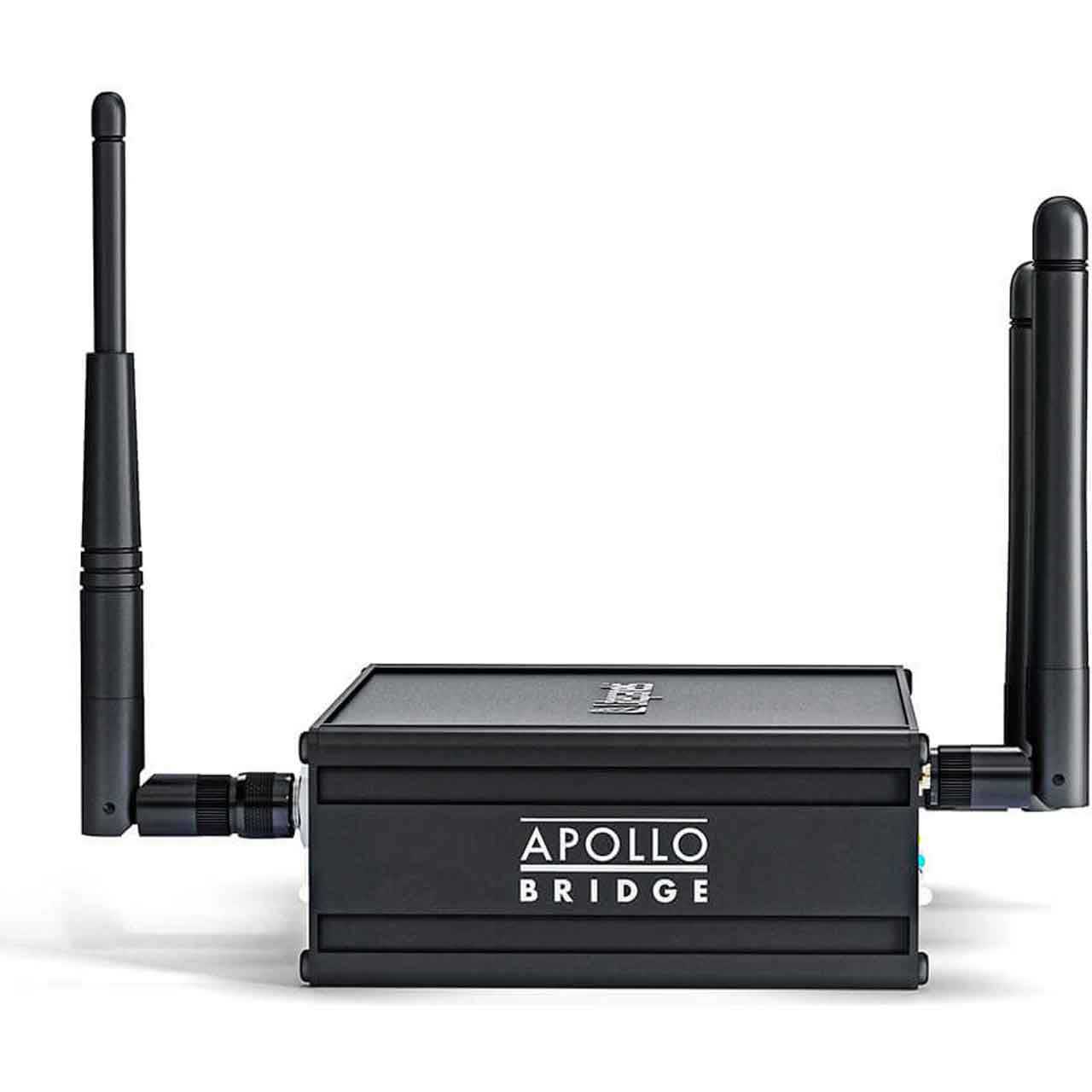

Litepanels 900-4014 Apollo Wireless DMX Bridge Light Control with Antennas and Power Supply

ITEM #: LPAN-900-4014 MFG #: 900-4014

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,330.00

Our Price:

$2,213.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    900-4014 - Overview

    Ultimate Lighting Control in the Palm of Your Hand
    Precision control from the palm of your hand with the industry's most powerful and reliable wireless DMX system. The Litepanels 900-4014 Apollo Bridge uses dynamic frequency hopping technology to create a robust wireless DMX network in an instant. Optimized for use with Litepanels Gemini, Apollo is designed to work with a wider range of lighting fixtures than any other system, giving you complete choice and control. With the Apollo Control app in your hand - on any iOS device - your vision comes to life; the intuitive graphic interface delivers effortless real time control of every aspect of your lighting from a single light fixture to the largest productions. Lighting control has never been easier.

    Complete Wireless DMX Control in an Instant
    When time and resources are shot, Apollo delivers fast and stable wireless DMX control, configured and running in minutes. Change lighting settings, DMX address and control modes on the fly for precision lighting control not previously possible on time-short productions.

    Freedom to Move, Power to Create
    Move around large sets freely knowing you're always connected to your lighting and in control with Apollo's industry leading signal range and reliability. See your light settings on screen and adjust in real time for a streamlined workflow with instant results. Run the Apollo bridge and your lighting directly from batteries and control everything with your phone or tablet for complete wireless control with instant response.

    One Intuitive App to Enable your Creative Vision
    Artistic control of lighting comes naturally with the Apollo Control app. Take control of all lighting features in a visual way for ultimate clarity, direction and precision. Simple enough to pick up and start painting with light immediately, and advanced enough to create multiple, complex lighting setups, Apollo is the fastest wireless system to realize your creative vision.

    Ultra-reliable Connectivity with Instant Response
    No interruptions and no fixture drop-offs. Built-in dynamic RF transmission automatically avoids network interference and creates a signal level you can depend with no latency for complete reliability.

    Universal Compatibility, Infinite Scalability
    Apollo has been designed to operate with any fixture with a DMX input, as well as existing DMX networking and wireless DMX equipment. Run just one system and centralize control of your lighting, with no compromise on which lights you choose use. With full sACN capabilities, add multiple Apollo bridges to provide wireless DMX control to as many lights and universes as you need perfect for even the largest productions.

    • Features:

      • Modern Quad Core ARM CPU and custom Router SoC with
      • Enterprise Grade WiFi and Ethernet to support low latency high performance networking.
      • WiFi 5 (802.11ac Wave2 with MIMO) with full support for all related security and encryption standards.
      • Simultaneous Dual Band 2.4/5 GHz WiFi.
      • Dual 1Gbps Ethernet Ports supporting two separate networks, WAN/LAN routing functionality, or bridged as a switch.
      • LumenRadio TimoTwo CRMX transceiver.
      • Web based configuration and advanced provisioning features.
      • Multiple physical and virtual ports for DMX distribution: E1.11 DMX on 5-Pin XLR / LumenRadio CRMX / E1.31 sACN over Ethernet and WiFi / USB 3.0 on USB-A connector for external expansion.
      • Firmware updates over Ethernet and WiFi using the Web GUI.
      • USB-C Power Input.
      • Rugged design.
      • 1/4"-20 threaded mount for rigging hardware.
      • Highly visible indicator LEDs for power, mode, LumenRadio, and device status.
      • Compatible with any E1.31 sACN control application or lighting console.
      • Compatible with any LumenRadio CRMX wireless receiver.

    • Specifications:

      • Wireless Networking: Enterprise Grade WiFi 5 (802.11ac Wave2) Access Point
      • Wired Networking: Dual Gigabit Ethernet with Routing Features
      • Wireless DMX Module: Integrated LumenRadio TimoTwo CRMX
      • WiFi Frequency Bands: Simultaneous Dual Band 2.4 GHz and 5 GHz
      • WiFi Standard: 802.11ac Wave2 with MIMO
      • Range (line-of-sight): CRMX up to 500 m / 1,640 ft WiFi up to 100 m / 263 ft
      • Lighting Control Protocols: E1.11-2008 DMX-512 (on XLR-5) E1.31 sACN (supported on all thernet an WiFi interfaces)
      • DMX Connector: XLR 5-Pin Female
      • Power Supply: USB Type C (9V/2A)
      • Platform Compatibility: Apollo App, Luminair App, ETC (including Nomad), GrandMA, Strand DMX, sACN consoles and controllers Cinetenna, Evalux, Skynode and any other LumenRadio/CRMX receivers
      • Weight: 1.3 lbs

    • Item Includes:

      • 1x Litepanels 900-4014 Apollo Wireless DMX Bridge Light Control
      • 1x Power Supply
      • 3x Antennas

    • GTIN:

      5060520688985
