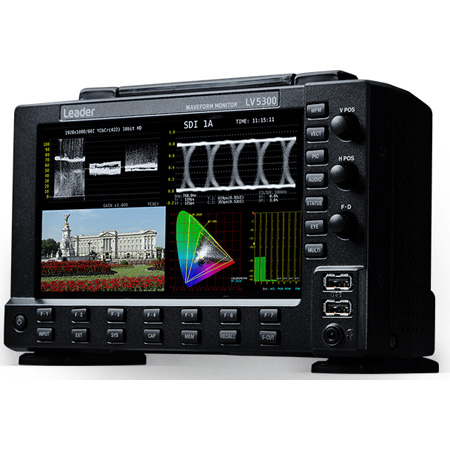

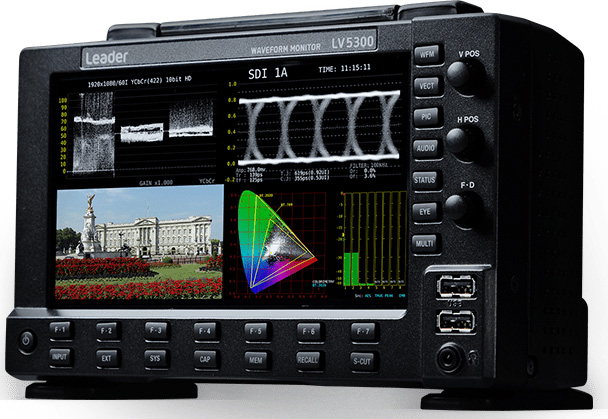

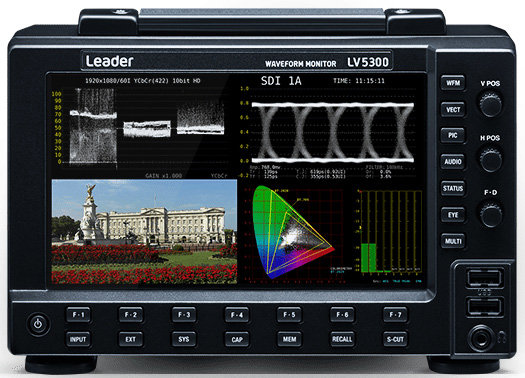

The Leader LV5300 is a waveform monitor with a 7-inch touch screen display in a compact 3 U enclosure operative with battery power supply.
With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable.
Various video signals include video signal waveform display, vector display, picture display 5 BAR display, CIE chromaticity diagram display, CINELITE, etc. In addition to the various displays, freeze error,Black error, gamut error detection Function etc. Quality control (QoE) of video signals Functions Features are equipped.
For audio signals, SDI signals and audio signals superimposed on SDI signals can be displayed on a level meter. Furthermore, Lissajous display, mute, clip error detection, etc. are available. Audio format is compatible with L-PCM.
