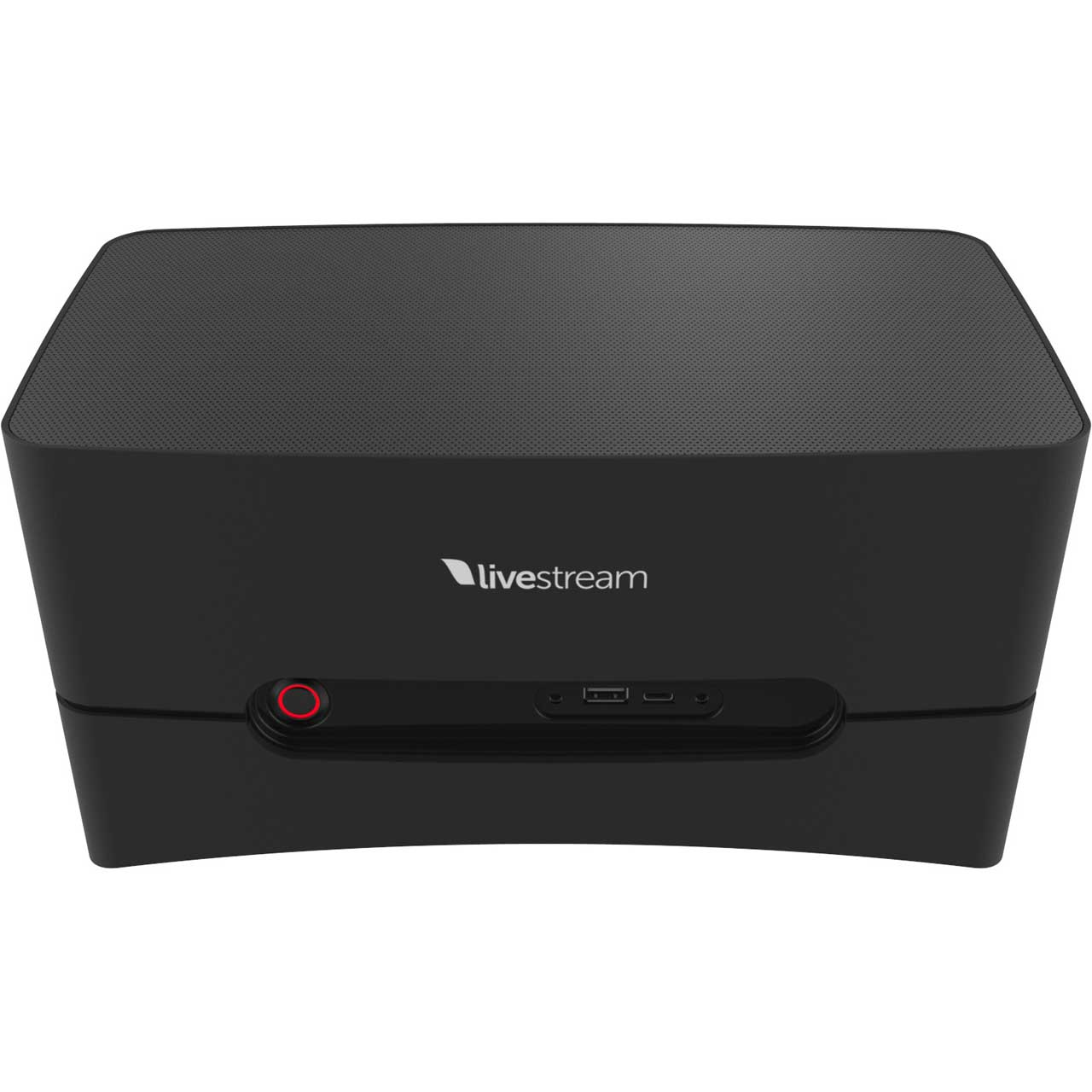

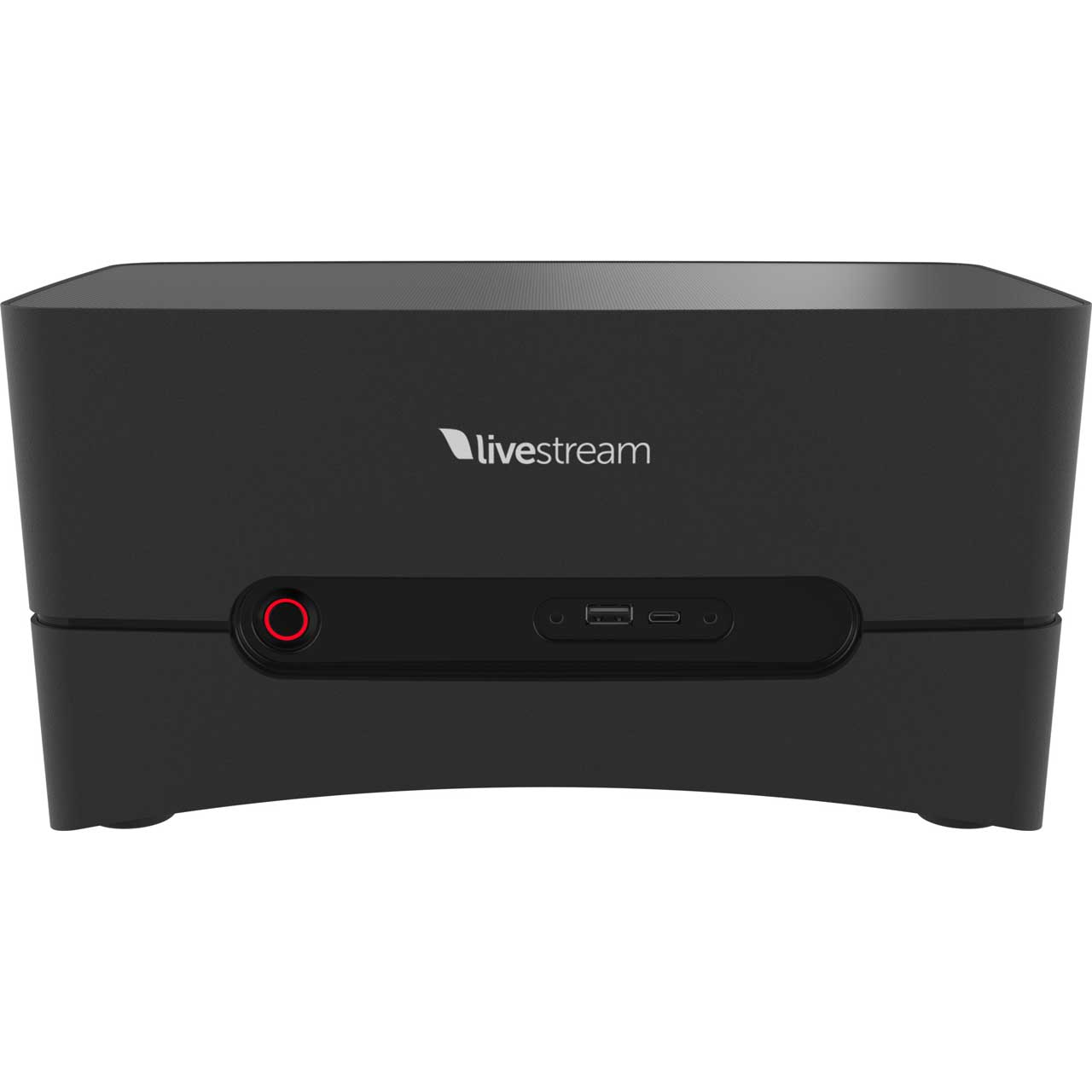

Livestream StudioOne All-In-One HD Switcher with Pre-Installed Livestream Studio Software - 4 x SDI & 10 x NDI Inputs


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    LS-STUDIOONE HD SDI - Overview

    The Livestream Studio One HD with 4 x SDI Inputs is an all-in-one HD switcher with pre-installed Livestream Studio production software. Connect up to four SDI or ten NDI sources, and stream to in-venue screens or to the web using the built-in multi-bit rate encoder via SDI, Ethernet, or wireless using the built-in Wi-Fi capabilities. The Studio One HD outputs 1080p60 and can record up to 20 hours of broadcast-quality HD video. Also included is a 12-month telephone support plan, a configurable, color-coded Livestream production keyboard, and a mouse with mouse pad. The Studio One HD supports embedded audio from SDI and NDI input sources, as well as analog audio via two 1/4" inputs. Audio monitoring is available via a 3.5mm output.

    The pre-installed Livestream Studio live production software provides a full-field rate multiview that displays all live inputs, graphics, and media players in real time. The multiview features audio monitoring for each input and audio PPM overlay with peak hold on all inputs and outputs. In terms of graphics, the Studio One HD supports three graphic layers and two video media tracks. Two layers can be overlayed and mixed with transparency. Add text, images, live picture-in-picture, countdown graphics, and more.

    • Features:

      • 4 x SDI and 10 x NDI Inputs
      • SDI, NDI, and Wireless Streaming Output
      • Live Streaming Multi-Bit Rate Encoder
      • Pre-Installed Livestream Studio Software
      • Supports up to 1080p60
      • 10-Bit 4:2:2 Video, 24-Bit 48 kHz Audio
      • Three Graphics Layers
      • Two Media Tracks
      • Livestream Keyboard and Mouse Included
      • 1-Year Phone Support
    • Specifications:

      • Input: SDI: 4 x SDI
      • NDI: 1 x RJ45 (shared)
      • Output: Program: 1 x SDI
      • Multiview: 1 x HDMI
      • Gigabit Ethernet: 1 x RJ45 (bidirectional, shared)
      • Wireless: 802.11ac
      • Media Sources: 2 x DDRs (video clip playback with built-in transcoder)
      • 3 x GFX (graphics) 2 x Color bars / background color
      • Video Switcher/Mixer: 1 x M/E with no upstream keyer
      • Recording Format: AVI MJPEG up to 150 MB/s MP4/h.264 up to 100 MB/s

    LS-STUDIOONE HD SDI - Required Accessories
