    NDIHXPTZ3B - Overview

    Simple, Flexible, Uncompromising.
    The VIZRT NDI®|HX PTZ3 Camera is the very best and easiest way to acquire live video for input into any workflow and is the world's first camera to offer NDI|HX3 - delivering low latency, all the while maintaining maximum quality at efficient bandwidth. In addition, the all-new PTZ3 is the very first VIZRT camera to offer Professional XLR audio connectivity as well as Tally, control, power, audio and video all using a single cable

    NDI. Better.
    By simply appearing on the network automatically, NDI Cameras can be easily integrated into any workflow. The PTZ3 breaks the mold with the integration of NDI|HX3; giving the option to deliver low latency transmission with reduced bandwidth, while maintaining the visually lossless standards NDI users' demand.

    Audio. Better.
    Better than ever audio is now possible with the Professional XLR audio input available in the NDI|HX PTZ3 Camera. Delivering clean, professional level audio directly from the camera into the NDI network, the XLR feature offers an array of connectivity options - all with a single connection.

    Connect. Better.
    No other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain. The VIZRT PTZ3 can be added into any workflow with a single ethernet cable for HD video up to 1080/60p, audio, PTZ presets and control, tally, and PoE

    PTZ. Better.
    Hard stop and stop movements during camera presets which create an inferior viewing experience are a thing of the past - the PTZ3 offers synchronized preset starts and a new motion algorithm that helps create a natural look and feel to any production

    That's not all - the PTZ3 is also now available in both Black and White body colors and includes ceiling and wall mounts, making it perfect for any setting including studios, hospitals, corporate meeting spaces, or for live events.

    A PTZ Camera Like No Other
    The PTZ3 allows video professionals, information techonology managers, and system designers to explore new ways to expand, grow, and evolve their video productions using the network, while simultaneously streamlining integration and installation by incorporating power over Ethernet.

    Advanced Flexibility and Simplicity
    With one cable for power and connectivity, no other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain.

    A Future-Proofed PTZ Camera
    VIZRT NDI|HX PTZ3 offers countless new elements that add quality, simplicity and flexibility ensuring users can maintain pace with the evolving needs of any production.

    NDI at its best.
    NDI|HX3 puts the user in control; striking the perfect balance of quality and efficiency with zero compromise. This new standard offers the quality and low latency of full NDI without the heavy bandwidth usage.

    Advanced Audio

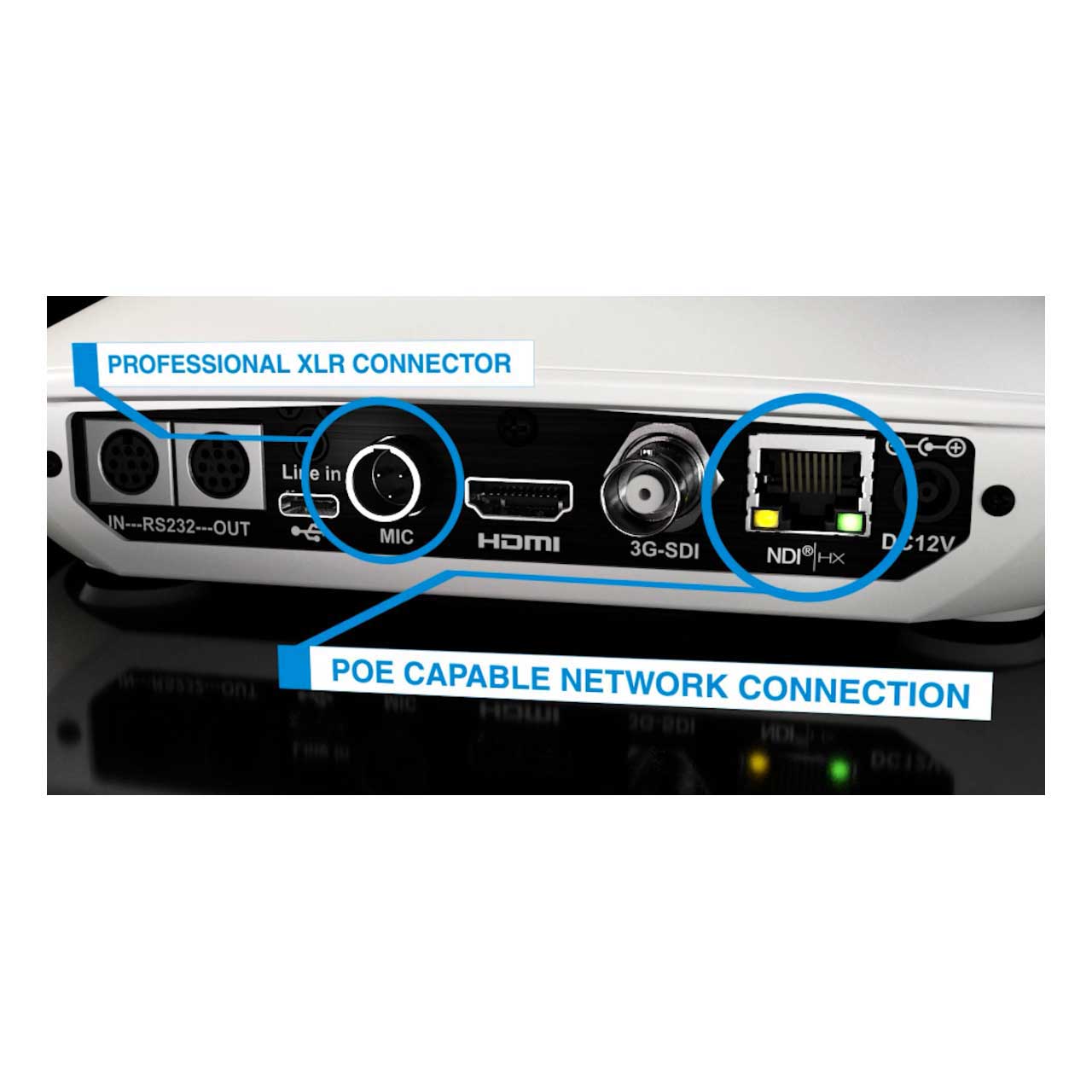

    The PTZ3 has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.

    Seamless Movement
    The PTZ3 offers far superior visual quality with much smoother movement between camera presets and an improved lens and sensor meaning this all-new camera is as at home in low light environments like studios as in brighter classrooms or hospitals.

    Better Connected Than Ever
    Offering Tally, control, power, audio and video all using a single cable, the PTZ3 also includes the latest in NDI with NDI|HX3 and Professional XLR audio connectivity, for the very first time.

    • Features:

      • Offers NDI|HX3 support
      • Support for sophisticated devices with Professional XLR audio connection
      • Available in Black and White body colors
      • One ethernet cable for audio and video, PTZ control and tally
      • Compatible with NDI version 5
      • Smooth, motor-driven pan-tilt-zoom operation and movement between presets
      • Integrated and automatic tally support via NDI®
      • Native support for HD video formats up to 1080p 60
    • Specifications:

      • Video Output: NDI|HX, 3G-SDI, HDMI
      • Audio Output: NDI|HX, HDMI
      • Video Formats:
        1080p: 60, 59.94, 50, 30, 29.97, 25, 24
        1080i: 59.94, 50
        720p: 60, 59.94, 50, 30, 29.97, 25
      • Zoom: 20x Optical & 2x digital zoom
      • Sensor: 1/2.86" High Quality CMOS Sensor
      • Shutter Speed: 1/30 to 1/10,000 sec
      • Panning Angle: -170° to +170°
      • Panning Speed: Max 120°/sec
      • Tilting Angle: 30° to +90°
      • Tilting Speed: Max 80°/sec
      • Aperture: F1 ~ F14
      • Focal Length: 4.9~98mm
      • Horizontal Angle of View: 60°(Far)-3,2°(Near)
      • Min. Object Distance: 1.5m (Wide/Tele)
      • Min. Illumination: 1.0 lux
      • Encoding: H.264/H.265, NDI|HX
      • Audio Input Mini: XLR, 3.5mm stereo audio input (line)
      • Embedded Audio: NDI, HDMI
      • Signal: Balanced (Mini XLR), Unbalanced (Line In)
      • Sample Rate: 48KHz
      • Frequency: 100Hz~20KHz
      • Total Harmonic distortion: -90dB
      • Tally: Supported
      • Anti-Flicker: Off/50Hz/60Hz
      • Gain Control: Auto, Manual
      • Control: NDI
      • User Interface: Web based or VIZRT NDIr Studio Monitor applications for remote configuration, control, and monitoring
      • POE+: POE+ (IEEE 802.3 at)
      • Direct Power: DC12V
      • Power Consumption: 8W
      • Operating Temperature: -10°C~50°C
      • Operating Humidity: 20%~80%
      • Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
      • Weight: 2.97lbs (1.35 kg)
      • Ceiling Mount: Included
      • Wall Mount: Included
      • Adapters: MiniXLR (f) to XLR(f) adapter included
    • Item Includes:

      • 1x NDI HX PTZ3 Camera (Black)
      • 1x Ceiling Mount
      • 1x Wall Mount
      • 1x Mini-XLR to XLR Adapter
    • Warranty:

      • Limited 1 Year Warranty
