XWS-1810 - Overview

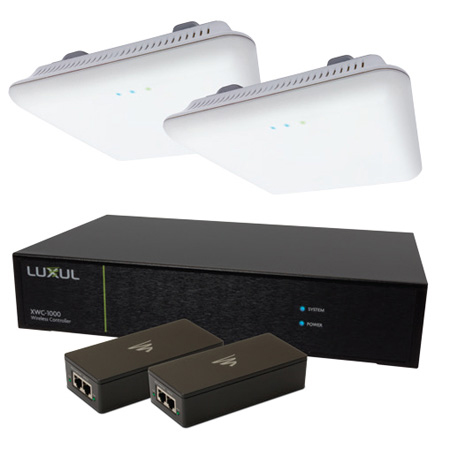

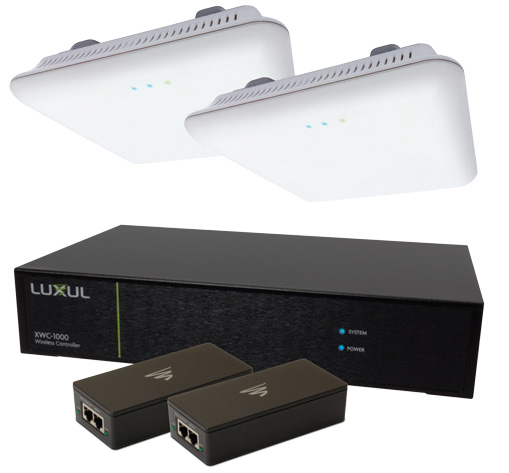

The XWS-1810 Wireless Controller Kit comes with (1) XWC-1000, (2) XAP-810 AC1200 standard power dual-band wireless APs and (2) PoE injectors.

The XWC-1000 Wireless Controller uses Luxul’s exclusive Roam Assist™ technology to ensure seamless roaming of mobile client devices within wireless networks that utilize more than one Wireless Access Point (AP), while providing simple, centralized deployment of up to 16 Luxul APs through an easy-to-use setup wizard. With seamless roaming, installation simplicity and sensible pricing, the XWC-1000 is purpose-built to meet the needs of the residential and light commercial custom installation professional.

The XWC-1000 is compatible with all Luxul standard-power APs, as well as the XAP-12xx and XAP-15xx series of high-power APs-allowing installers to mix and match APs to maximize the performance and budget of each project. The XWC-1000 is available standalone, or in kits complete with APs and PoE hardware.

Use the XWS-1810 to:

  • Solve roaming between multiple access points
  • Simply configure up to 16 Luxul access points
  • Create a secure guest network
    • Features:

        Controller Features:
      • Roaming solved between Access Points with Roam Assist™
      • Simple central control and configuration of Luxul APs
      • Secure guest networking
      • Durable 1U Metal Enclosure for Rack Mount or Desktop Use
      • Three Year Limited Warranty

        XAP-810 Feautres:
      • 802.11ac 2x2 MIMO
      • Up to 4 SSIDs per band (8 total)
      • Single cable installation with PoE
      • Low profile design that installs easily on ceiling, wall or other flat surfaces
      • Three Year Limited Warranty

    • Specifications:

      • XWC-1000 Management Features
      • Controller
      • Simple Setup Wizard
      • Management via Web Interface
      • Cloud-based Firmware Updates
      • AP provisioning
      • Supports up to 16 APs
      • Access Point
      • Secure Guest Networks via VLAN
      • 802.1Q VLANs
      • WPA, WPA2 Security with TKIP, AES Encryption

        Controller Hardware Features
      • Interface: One 10/100/1000M Port
      • AV Series: LEDs on the front, Port on the back of controller
      • Power:
      • Internal Switched Power
      • AC 100-240V, 50/60Hz 0.3A
      • Max Power Consumption: 8.6W
      • Dimensions LxWxH in. (mm): 8.75"(222.3) x 5.25"(133.4) x 1.75"(44.5)
      • Weight lbs (kg): 1.55 (.72)
      • LEDs: Power, System, Ethernet Activity
      • Certifications: FCC, CE, RoHS

        XAP-810 Hardware Features
      • Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
      • Interface: One 10/100/1000M Ports
      • Antenna: Two Dual-Band Antennas
      • Power: PoE (Injector Included)
      • Power Consumption: 12W Avg
      • Max Power Consumption: 17W
      • Operating Temperatures: 0-50°C
      • Dimensions WxHxD in. (mm): 6.25" x 6.25" x 1.75" (158.75 x 158.75 x 44.45)
      • Weight lbs (kg): .95 (.44)
      • LEDs
      • Power, 2.4GHz, 5GHz
      • (Can be turned Off/On Via User Interface)
      • Frequency Concurrent 2.4GHz and 5GHz
      • Wireless Speed
      • 2.4GHz: 300Mbps;
      • 5GHz: 866Mbps
      • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2

        Minimum Requirements
      • Computer with Windows
      • Mac or Linux OS
      • Ethernet cable

    • Item Includes:

      • XWC-1000 Wireless Controller Rack mount kit
      • Rubber feet
      • Power cord
      • XAP-810 access points (2)
      • PoE injector (2)

    • Warranty:

      • 3-year limited warranty
