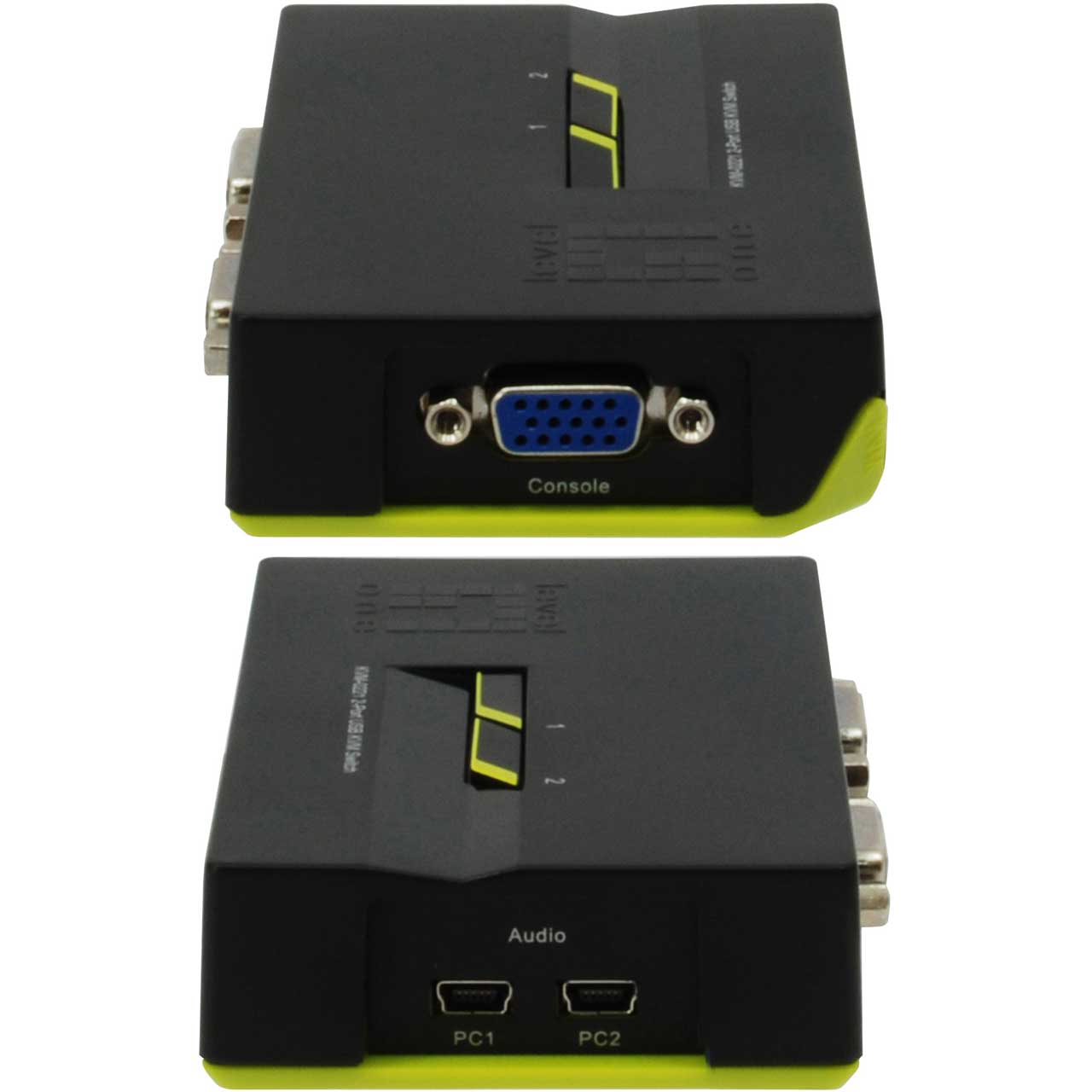

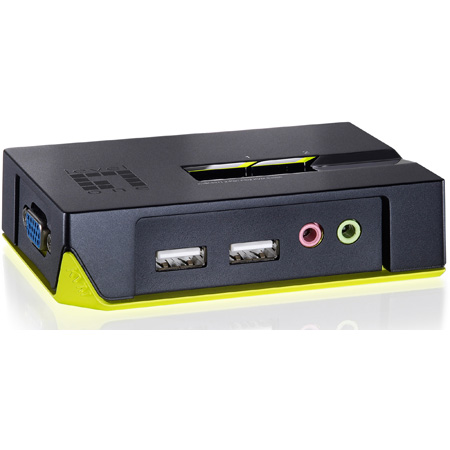

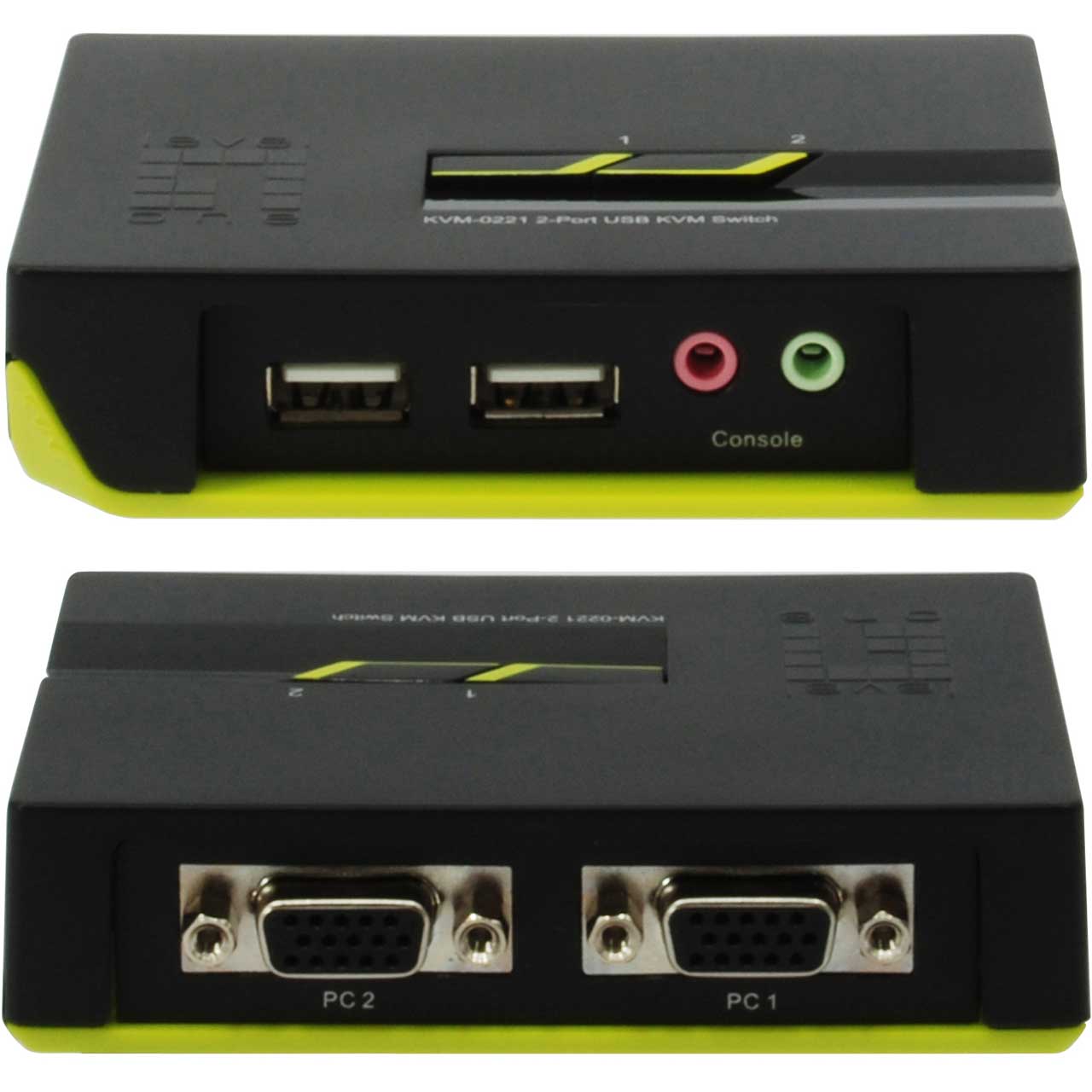

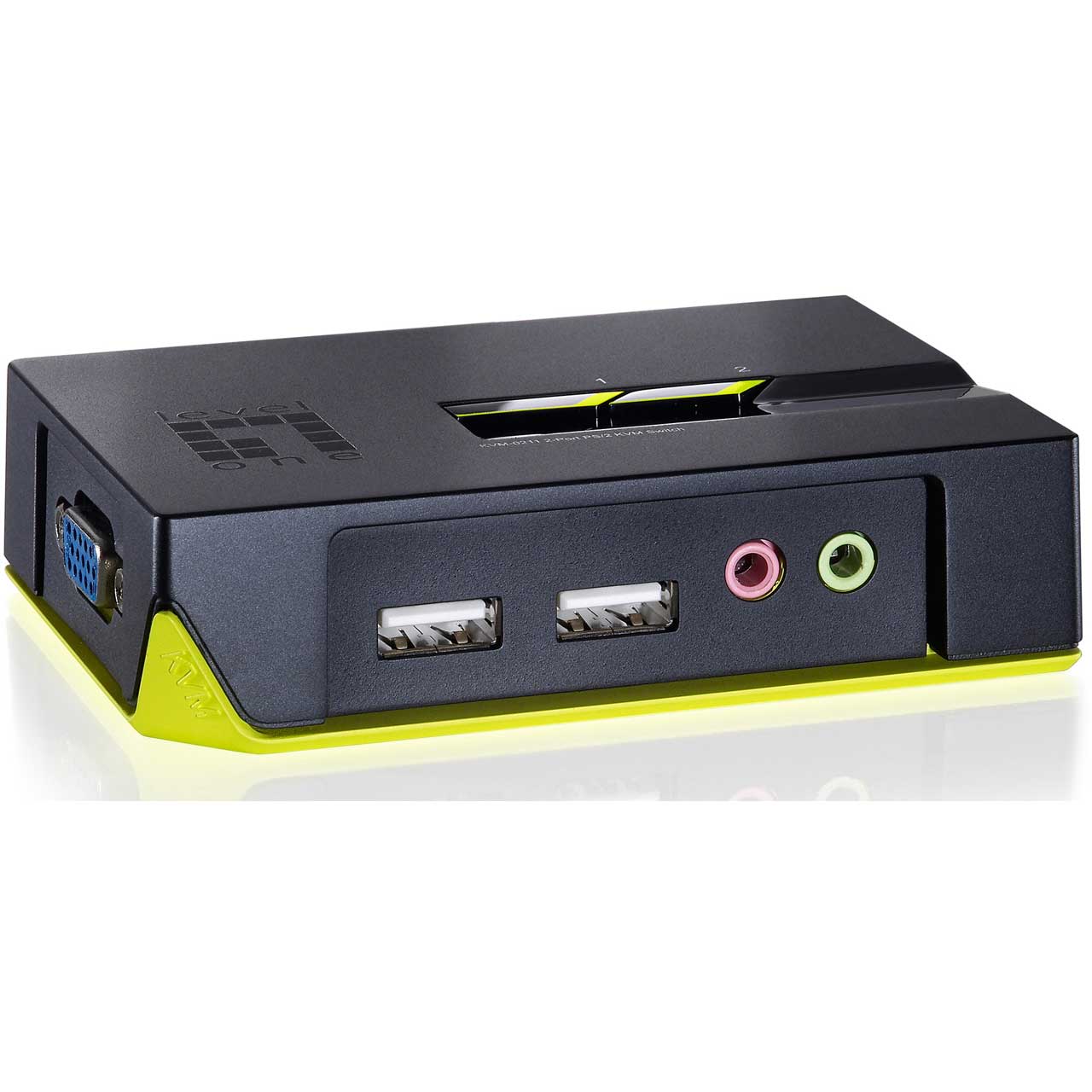

LevelOne KVM-0221 2-Port USB VGA KVM Switch - Audio Support

ITEM #: LVL1-KVM-0221 MFG #: KVM-0221

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$74.36

Our Price:

$67.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    KVM-0221 - Overview

    The LevelOne KVM-0221 2-Port USB KVM Switch with Audio from LevelOne offers users with an easy to install KVM switch that can manage two computers from a single monitor, keyboard and mouse. With audio support, users can connect a single set of speakers directly to the KVM switch and enjoy listening to music and watching movies from either computer without switching cables. It allows users to access, control, boot and reboot two USB-enabled multimedia computers using a single USB keyboard, mouse and monitor and a speaker set and microphone.

    Flexible Multimedia Feature
    Users are now offered with flexible multimedia support. The KVM-0221 offers users with user-programmable simultaneous or independent PC and audio switching. This enables users to listen to music from one computer while simultaneously using the other computer for work or fun.

    The KVM-0221 supports PC and Macintosh (MAC G3, G4, iMAC) platforms.

    One Keyboard, Mouse and Monitor for Two Computers

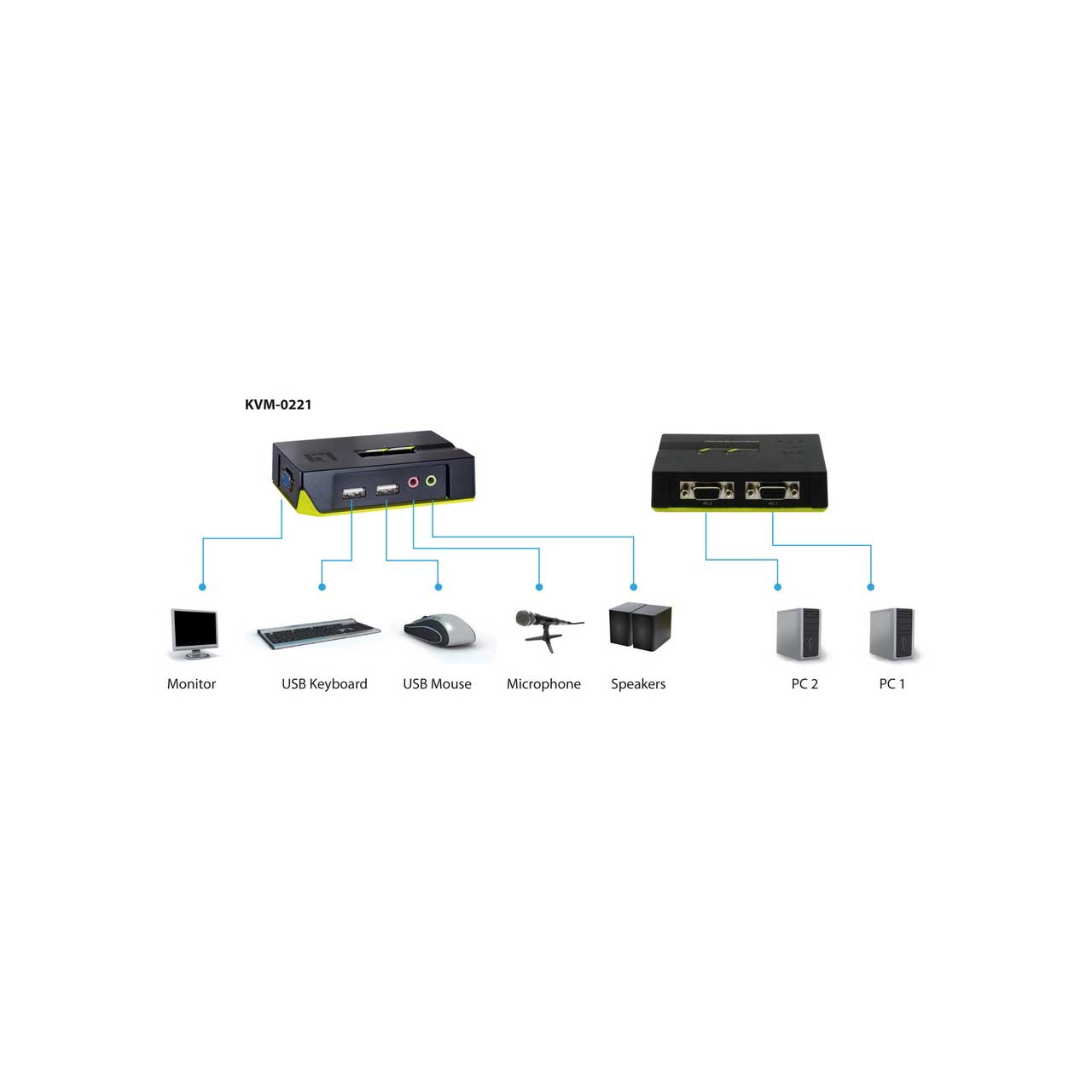

    The LevelOne KVM-0221 connects two computer systems to a single USB keyboard, USB mouse and monitor. The 2-Port USB KVM Switch also provides audio support allowing users to connect the audio ports of each computer to the KVM switch.

    The KVM-0221 is a Plug-and-Play KVM switch that requires no power supply. Users simply connect the KVM switch to the USB mouse and keyboard and screen ports on each computer as well as the audio ports by using the included cables.

    Easy to Switch between Computers
    The KVM-0221 switches between computers either through the pushbuttons located on the switch or by using keyboard hot keys. The KVM switch includes a Windows® and Mac based utility allowing users to select and monitor active PCs from their desktop as well as to configure the keyboard hotkeys for easy switching between computers.

    The KVM-0221 further supports hot-plugging for easy maintenance of computers without shutting down the KVM switch or the computer. The LED display offers an “at-a-glance” status display for easy computer activity assessment.

    • Features:

      • Control and manage 2 computers by using a single USB keyboard, mouse and monitor
      • Supports video resolutions up to 2048 x 1536
      • Easy switching between computers with keyboard hotkeys/front panel push button
      • Windows and Mac switching software support
      • Self powered through USB connection
      • Independent/simultaneous switching of PC and audio/mic channel
      • Provides auto-scanning features and audio support

    • Specifications:

      • Console Port
      • Keyboard: USB x 1
      • Mouse: USB x 1
      • Video: HDB 15-pin (Female)
      • Audio Input/ Output: 3.5mm jack x 1
      • Mic Input/ Output: 3.5mm Mic jack x 1

      • PC Port:
      • USB x 2
      • HDB 15-pin Female x 2
      • Audio / Mic Connector x 2

      • Monitor Supported: VGA / SVGA / QXGA / WUXGA
      • LEDs: 2 LEDs
      • PC Selection: Push Button / Hot Key / Auto Switching
      • Power: USB Interface Power
      • Microphone Supported: V

        Cables
      • USB KVM Combo Cable Sets (1.8m) x 2
      • Min USB 3.5mm Audio / Mic Cables x 2

      • Max. Resolution: 2048 x 1536
      • Scanning Interval: 10,15,20,25,30,35,40,45,50,55,60 Seconds
      • Operating Temp.: 0~50°C
      • Storage Temp: -20~60°C
      • Humidity: 0~80 % RH Non-Condensing
      • Enclosure: High-impact Plastic
      • Weight (g): 116
      • Dimensions (L x W x H): 96mm x 61mm x 24mm
      • OS Supported: Win & Mac

    • Item Includes:

      • x1 KVM-0221

    • GTIN:

      0878742003555
