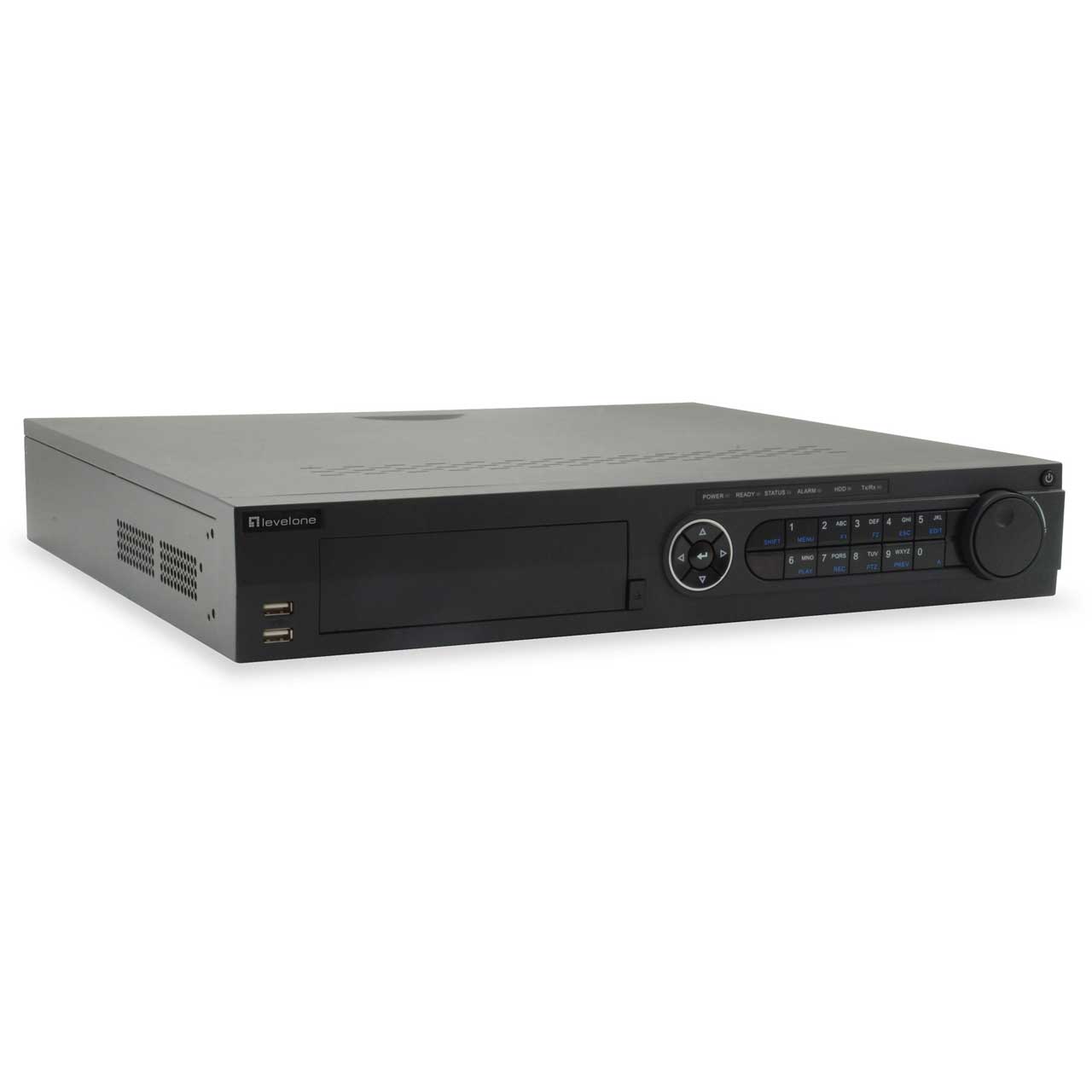

LevelOne NVR-0437 GEMINI 32-Channel Network Video Recorder

ITEM #: LVL1-NVR-0437 MFG #: NVR-0437

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    NVR-0437 - Overview

    The LevelOne NVR-0437 NVR enables live view, recording and playback for up to 32 IP network cameras at the same time, featuring up to 6-megapixel resolution and H.264/H.264+ video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.

    The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 4 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0437 a powerful, smart and cost-effective solution for managing your security network.

    Supports dual gigabit LAN ports allowing for concurrent dual-connection, and providing a network backup in case of unscheduled network downtime.

    Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

    Please Note HDD Drives sold separately.

    • Features:

      • Display mode: Live view/playback/full screen
      • Supports video resolutions up to 6 megapixels
      • Supports smart camera search and 2-way audio
      • Supports PTZ/preset point/preset sequence
      • Supports iPhone/Android phone remote viewing over the Internet
      • 4 x 3.5" HDD bays support disk capacity of up to 6TB
    • Specifications:

      • Standards & Protocols: TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP
      • Embedded System: Linux based

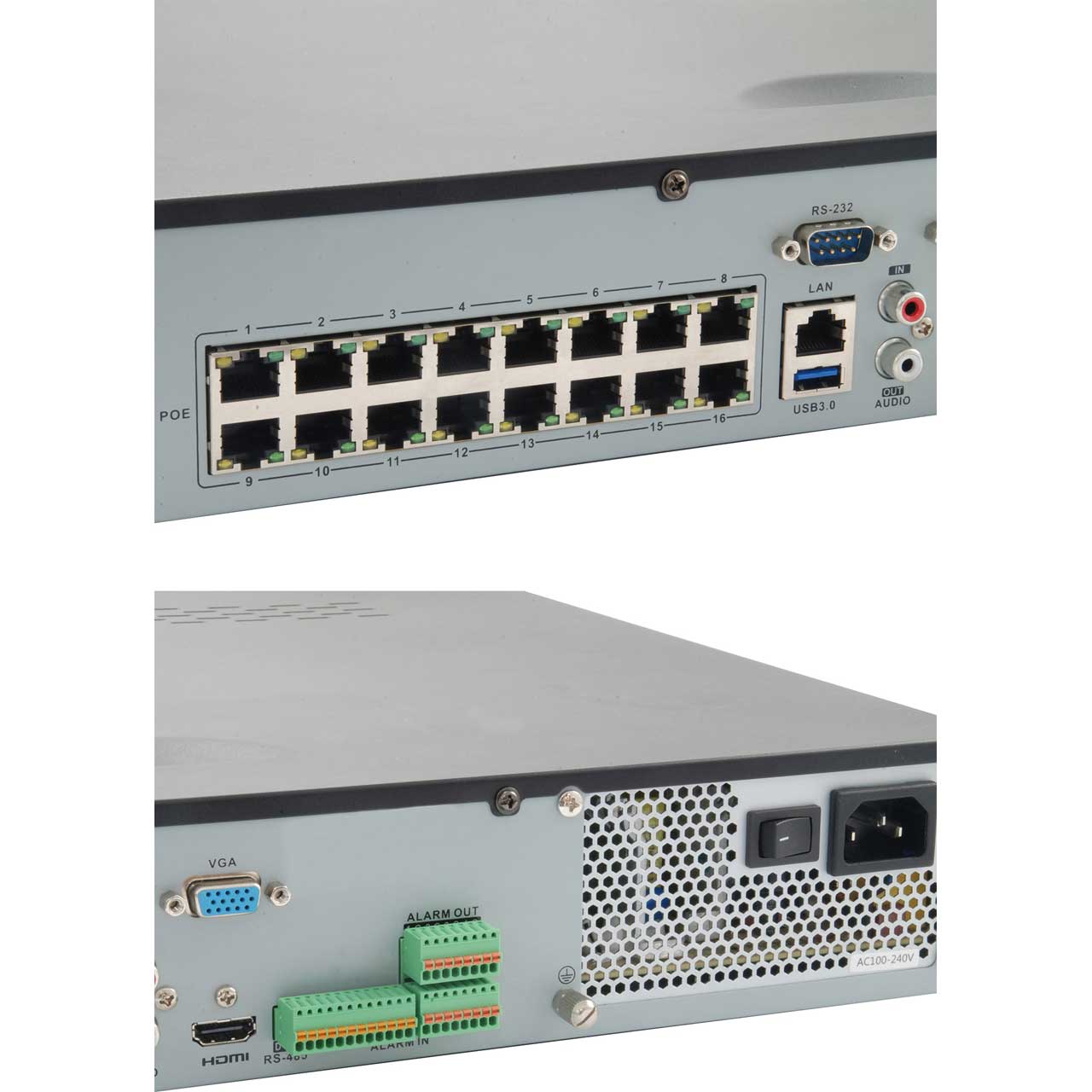

      • Port:
        1x 10/100/1000 Mbps LAN Network Interfaces
        10/100 Mbps x 16 PoE (IEEE 802.3af/at)
        1x Audio Out
        1x Audio In
        1x HDMI Interface
        1x USB3.0 Interface
        2x USB2.0 Interface
        1x RS-232 Serial Interface
        1x VGA Interface
        1x RS-485 Serial Interface
        16x Alarm In
        8x Alarm Out
      • Power Input: 100 to 240VAC
      • Button/Knob: Power, shift, Menu, F1, F2, Rsc, Edit, Play, Rec, PTZ, Prev
      • Indicator: Power, Ready, Status, Alarm, HDD, TxRx
      • Video Format: H.264/H264+
      • Resolution: Record Up to 6-Megapixel resolution
      • Power Input: 100-240V AC
      • Power Consumption: 20 Watt without hard disk
      • Storage Capacity: 4 SATA interfaces for 4 HDDs; Up to 6TB capacity for each HDD
      • Operating Temperature: 14° to 131°F (-10° to 55°C)
      • Humidity: 10 to 90% (non-condensing)
      • PoE:
        16 port PoE (IEEE 802.3 af/at)
        Total 200 Watt
      • Video:
        Live view / Playback resolution: 6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF
        Synchronous playback: 16-ch
        Capability: 6-ch @ 1080p,[email protected],[email protected] 4CIF
      • Number of Clients: 128
      • Network Throughput:
        Outgoing bandwidth: 80Mbps
        Incoming bandwidth: 160Mbps

      • Dimensions (WxDxH): 17.5"+ 15.3" + 2.8" (445 + 390 +70mm)
      • Weight: 8.82Lbs (4kg)
      • Approval and Compliance: EMI/EMS: CE/FCC,uL Others: RoHS
      • Others: Manufactured in ISO-9001 and ISO-14001 certified factory
      • Supported Browsers: Internet Explorer 9.0 or above
      • Compatibility: Onvif Camera
    • Item Includes:

      • x1 NVR-0437
      • x1 Power Cord
      • x1 Resource CD (User Manual, QIG)
      • x1 RJ45 Network Cable
    • GTIN:
