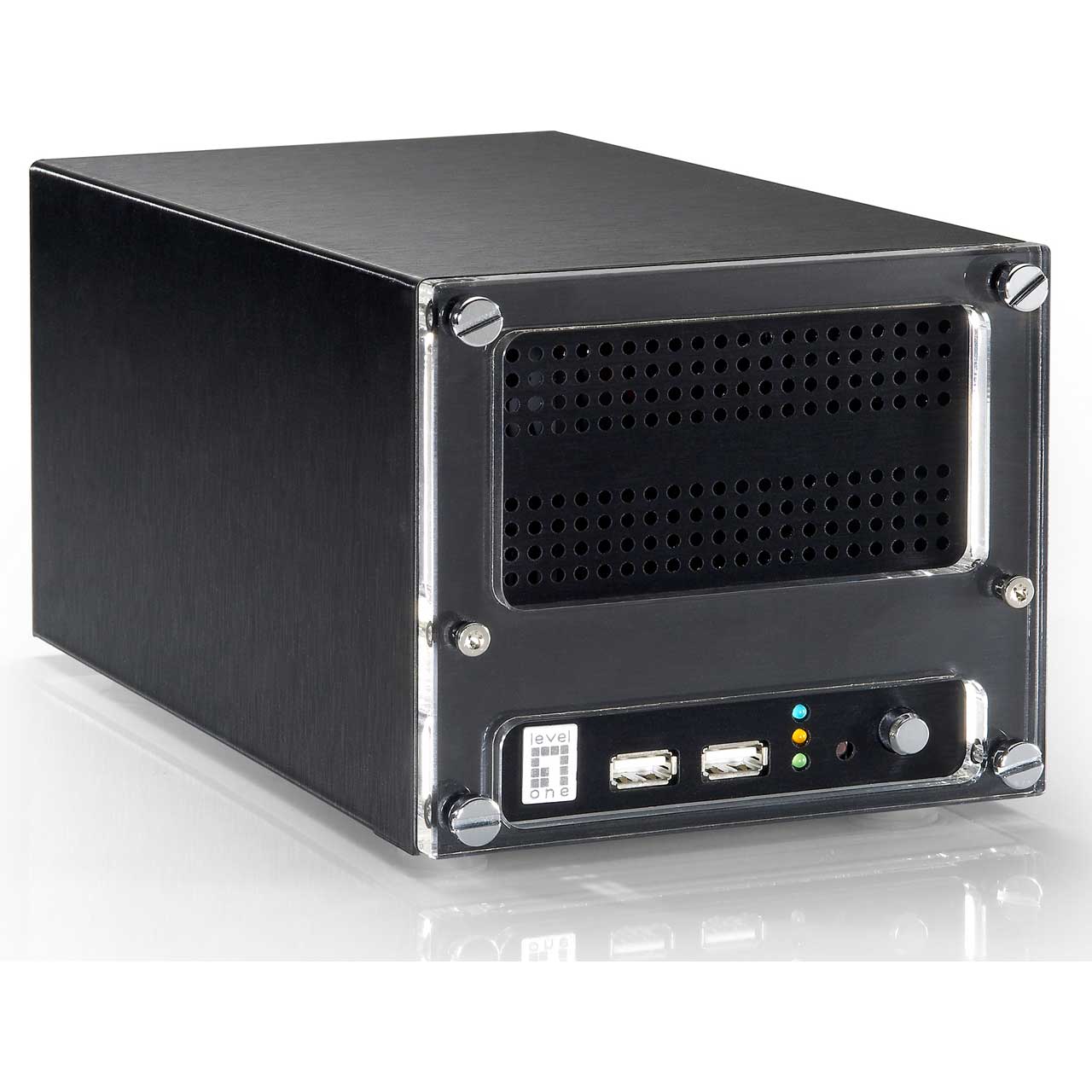

LevelOne NVR-1204 HUBBLE 4-Channel Network Video Recorder

ITEM #: LVL1-NVR-1204 MFG #: NVR-1204

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$554.81

Our Price:

$534.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    NVR-1204 - Overview

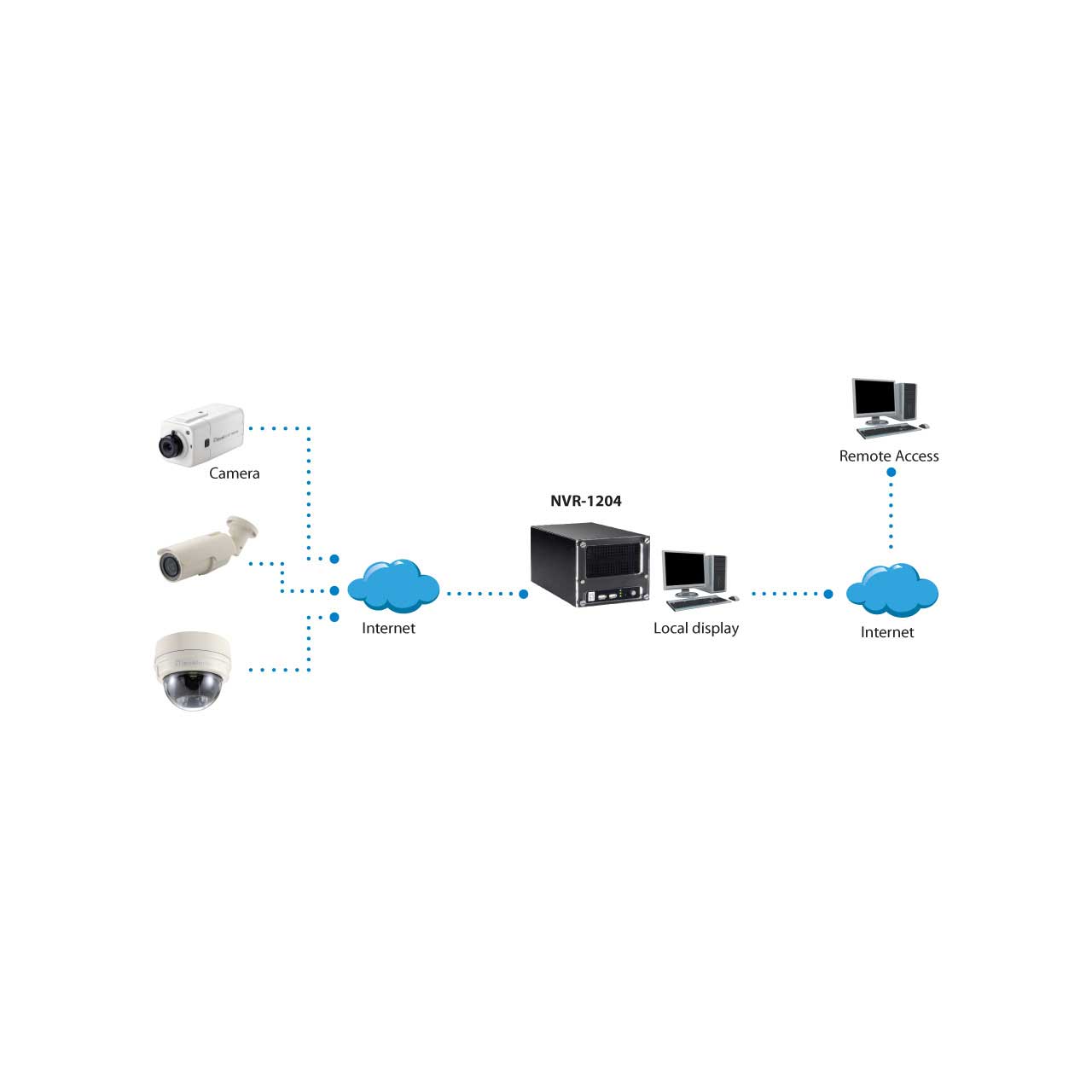

    The LevelOne NVR-12XX (NVR-1204) Series HUBBLE Network Video Recorder is the ideal fill-in recorder for your OneSecure CMS surveillance solution. But it also convinces Standalone with extensive functions, such as marking and reporting of events. In addition, it offers two 3.5 "SATA bays that can hold up to 8TB of total storage space, with 4, 9 or 16 channels available to record the connected IP cameras, depending on the model NVR features two LAN ports that physically separate the camera network from the Internet, and a built-in HDMI port that provides a local console so that the monitoring system can be viewed and controlled without a PC connected.

    Please Note HDD Drives sold separately.

    • Features:

      • Free CMS (Central Management System) software with 64-channel license
      • Supports video resolutions up to 10 megapixels
      • Supports 4-Megapixel HDMI local display
      • Supports up to 4 cameras in live view
      • 2 x 3.5" HDD bays support disk capacity of up to 4TB
      • Supports motion detection and event notification via e-mail or FTP
      • Supports PTZ/preset point/preset sequence
      • Motion detect and event display on e-map

    • Specifications:

      • Max Number of Clients: 1 local, 2 remote
      • Max Number of Cameras: 4
      • Video Compression: H.264
      • Audio Compression: PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback)
      • Max Camera Resolution: Up to 4-Megapixel (local display), Up to 10-Megapixel (remote display)
      • Display Layout Mode: 1,2,3,4
      • Layout Tour (Auto Patrol): Automatic switch between different layouts
      • Digital Zoom: Zoom in digitally by mouse
      • Event Status: Display status for network/record/motion/DI/video loss upon every video region
      • Dual Stream Management: Live view of stream 1 or stream 2 of dual stream devices
      • PTZ Control: Pan, tilt and zoom controls; speed control
      • Preset Points and Tours: Go/set preset points
      • Number of Preset Points: 32
      • Joystick: USB based joystick supported
      • Default Protocol: URL Command
      • Scheduled Recording: Record video with user defined schedule
      • Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
      • Event Speed-up Recording: Record I frame only in normal status, and record full frames when the alarm event is triggered
      • Manual Recording: Instant recording upon mouse click
      • Recording Frame Rate: Max 480 fps in total; Max 30 fps per camera
      • Maximum Recording Throughput: 16Mbps
      • Dual Stream Management: Recording of stream 1 or stream 2 of dual stream devices
      • Interface: Serial ATA
      • Max HDD Capacity: 4T x 2
      • HDD Bay: Maximum 2 disks (options to have empty bays or one 4TB storage disk included)
      • Time Based Video Search: Search video recordings by time, channel or bookmark
      • Event Based Video Search: Search event triggered video recordings, event response video loss
      • Playback Control: Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
      • Synchronized Playback: 4-Channels
      • Manual Snapshot: Create snapshot from playback for export
      • Video Cropping: Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins)
      • Video Export: Export video clips in AVI/RAW format
      • Event Trigger: Video motion detection; External device through digital input; Network loss and recovery
      • Event Response: Record video; play alert beep; activate external device through digital output; e-mail notification with snapshots; enlarge; video loss; go to PTZ preset point
      • Permission Control: Multi-group/users, liveview/playback/setup/remote level permission
      • Operating System: Embedded Linux
      • System Status Monitor: Real time status reports on remote browser
      • Language: Multi-language support
      • PC Web Browser: Microsoft Internet Explorer 9, 10 or 11
      • Remote Client PC System Requirement: Intel Core 2 Quad 2.66 GHz, 32/64-bit, 4GB RAM
      • Mobile Client Program: Mobile device application (LevelOne Mobile Client) supports live view, PTZ control, event or time based search and playback; Supported devices: iPhone, iPad, iTouch and Android device
      • Dimensions (WxHxD): 5.3 x 4.8 x 9.9" (135 x 121 x 251mm)
      • Weight: 2.91Lbs (1.32kg)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Humidity: 10 to 85% RH
      • Power Source/Consumption: DC 12V/22W
      • Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part 15 Subpart B Class B)
      • USB: USB 2.0, 2 ports (USB 1.1 not supported)
      • Support Camera ONVIF: profile S

    • Item Includes:

      • x1 NVR-1204
      • x1 Power Adapter
      • x1 Screw Kit
      • x1 Quick Installation Guide
      • x1 Resource CD (User Manual, Utility, QIG)

    • GTIN:

      0846359034507
