Marshall CV226 All-Weather HD Lipstick Camera with 3GSDI - RS-485 Control

ITEM #: MAR-CV226 MFG #: CV226

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-CV226

CV226 - Overview

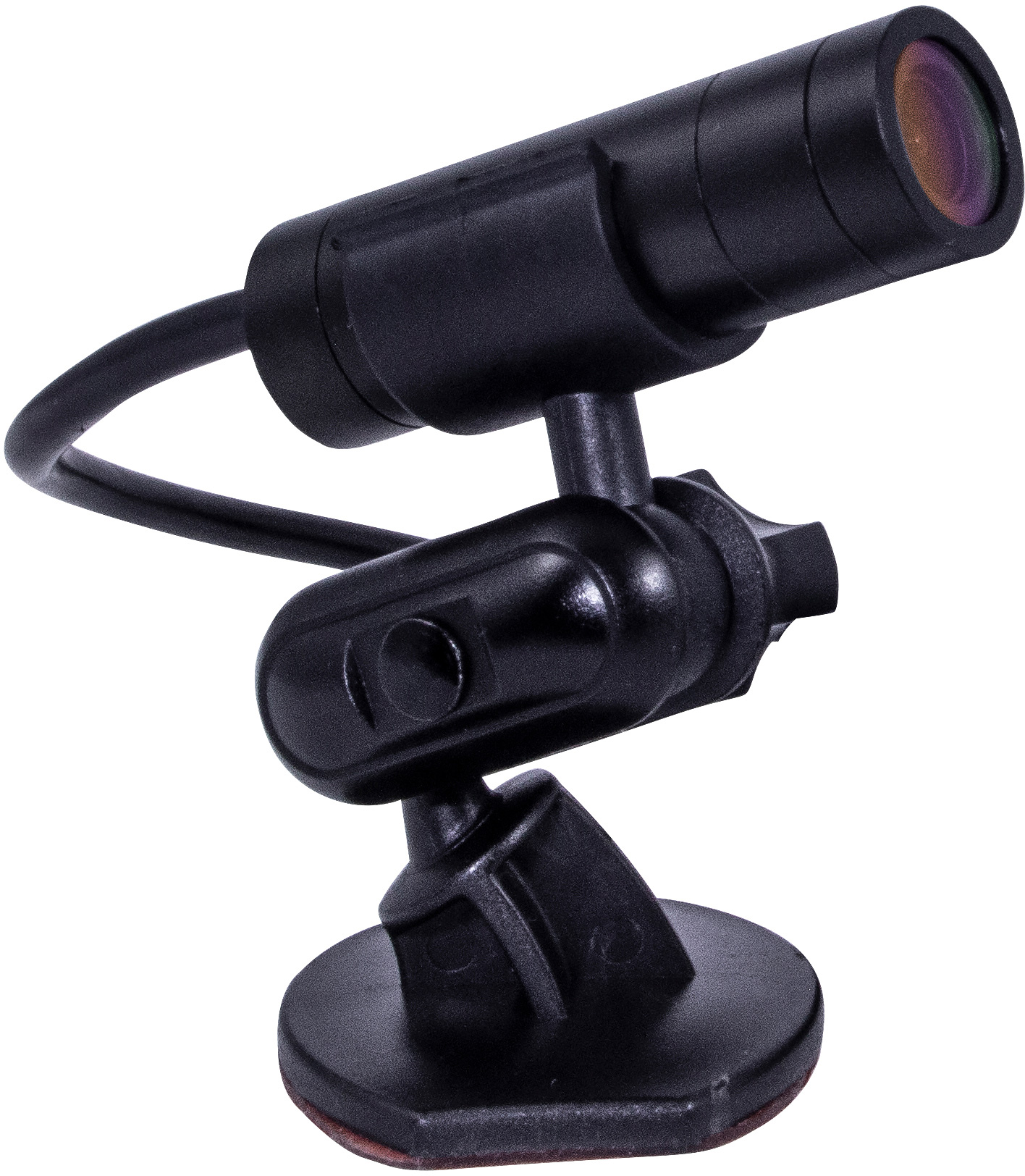

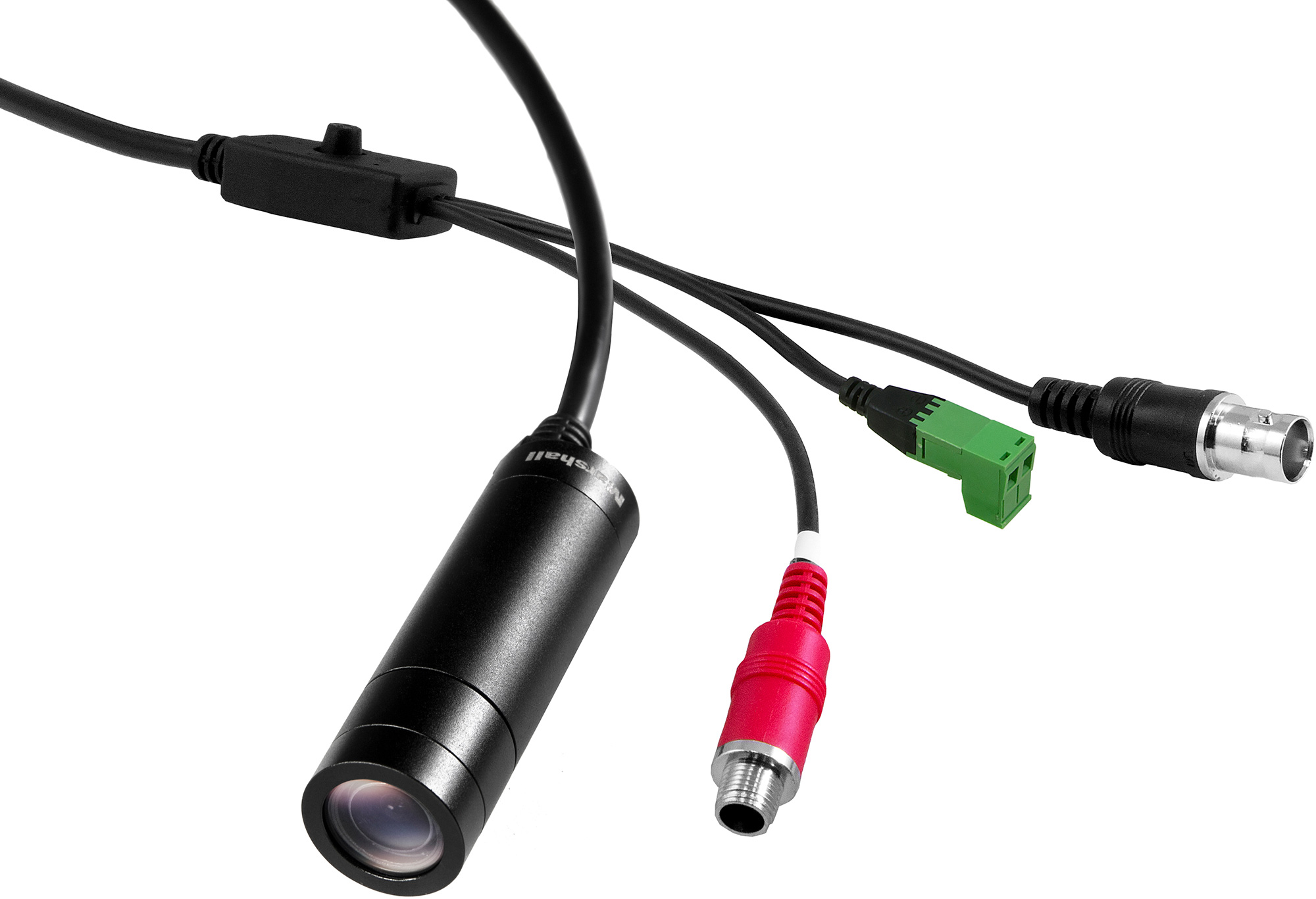

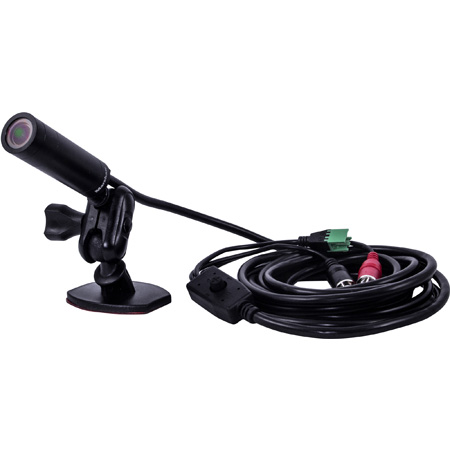

The Marshall CV226 All-Weather Lipstick Camera captures crisp HD color video with professional adjustment and control in a compact lipstick shaped body only 19.5mm in diameter and 62.5mm long. The CV226 is built for rugged outdoor or dirty environments where dust, dirt, rain, mud, or snow become a factor.

The CV226 is suitable for use in indoor and outdoor applications including live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and more

  • Features:

    • Full-sized 3G/HDSDI (BNC) output
    • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)

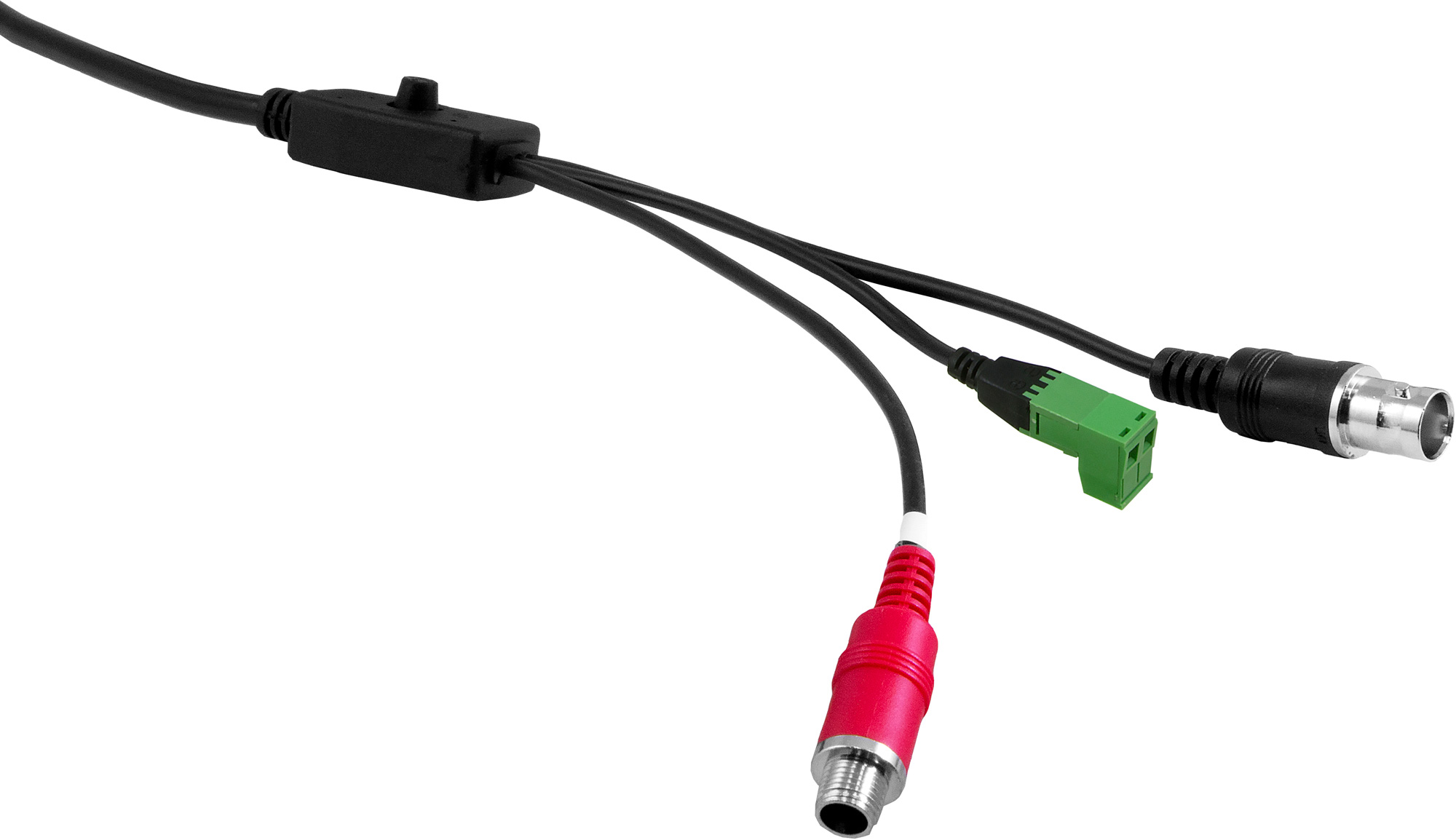

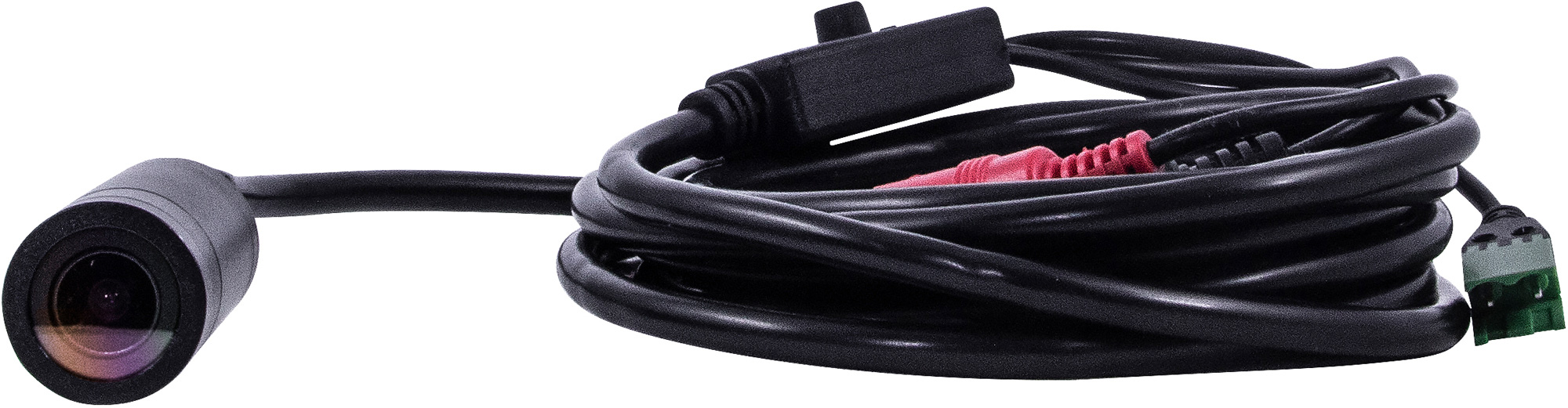

    • 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power
    • Interchangeable M12 lens with IP67 cap includes stock 3.6mm lens (72°H. AOV)
    • IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
    • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
    • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
    • Remote adjustable through RS485 (Visca) or OSD menu joystick
    • CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
    • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • GTIN:
