Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs
  • Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs
  • Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs
  • Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs
  • Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Marshall M-LYNX-702W Dual 7 Inch High Resolution Rack Mount Display with Waveform SDI & HDMI Inputs

Manufacturer: Marshall Electronics

Item #: MAR-M-LYNX-702W   •   MFG #: M-LYNX-702W



List Price:$1,250.00
Our Price:$1,062.50

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The M-LYNX-702W provides maximum versatility with multiple inputs and Waveform/Vectorscope display. All functions are available through professional front panel controls as well as remote operation via an RJ-45 Ethernet port. Standard power and tally connections as well as a logical menu structure make this display an easy choice for custom system designs.

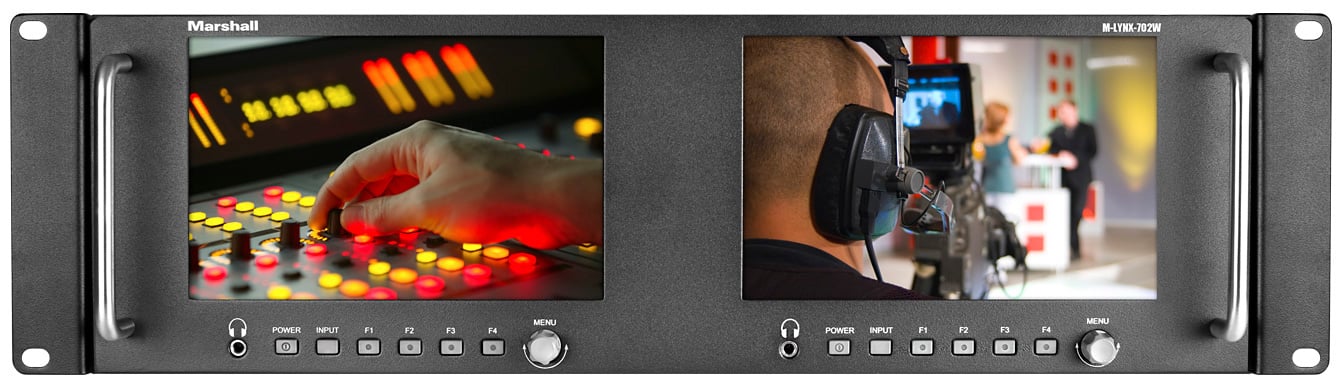

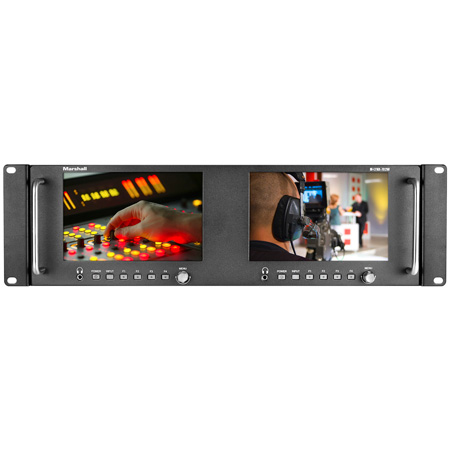

    The M-LYNX-702W has two 7-inch monitors, 3RU high, each with 16:9 aspect ratio, a screen resolution of 1280x800 and a viewing angle of 178 degrees. The monitors come complete with audio de-embedding and monitoring via front panel headphone jacks and built-in LED tally indicators (Red, Green, Yellow). Special features include: waveform, vector, selectable markers, 1:1 pixel mapping, over scan and H/V delay modes, P-P, and ability to view individual colors.


    • Features

      • High resolution 1280 x 800, bright, colorful display with no-compromise input selections for each screen
      • Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)
      • Analog inputs: Component and Composite with loop-through
      • Special features: Waveform/Vector, Peaking Filter, Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, P-P, View individual colors
      • Audio de-embedding and monitoring via front panel headphone jacks
      • Built-in LED tally indicators (Red, Green, Yellow)
      • Slim design and 3RU size
      • Power using included 12-volt supply or use standard 4-pin XLR
      • Selectable English and Spanish on-screen displays

    • Specifications

      • Display (Viewing Area): Dual 7-inch Diagonal, 3RU high
      • Resolution (Pixels): 1280 x 800
      • Viewing Angle: 178° / 178° (H/V)
      • Active Area: 153.6 (W) mm x 90.0 (H) mm
      • Brightness (in cd/m²): 400
      • Aspect Ratio: 16:9
      • Contrast Ratio: 800:1

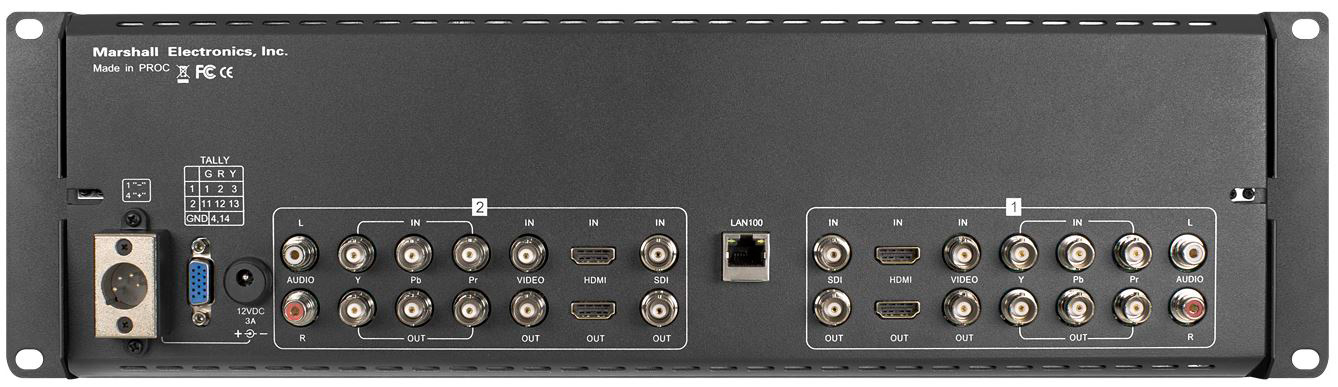

      • Digital Video Inputs: 3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M) HDMI with loop out
      • Analog Video Inputs: Component Y,Pb,Pr with loop out Composite (NTSC, PAL) with loop out
      • Audio Inputs: Accepts HDMI and SDI embedded audio plus analog L,R via RCA
      • Audio Outputs: Accepts HDMI and SDI embedded audio plus line level L/R RCA inputs for analog video sources

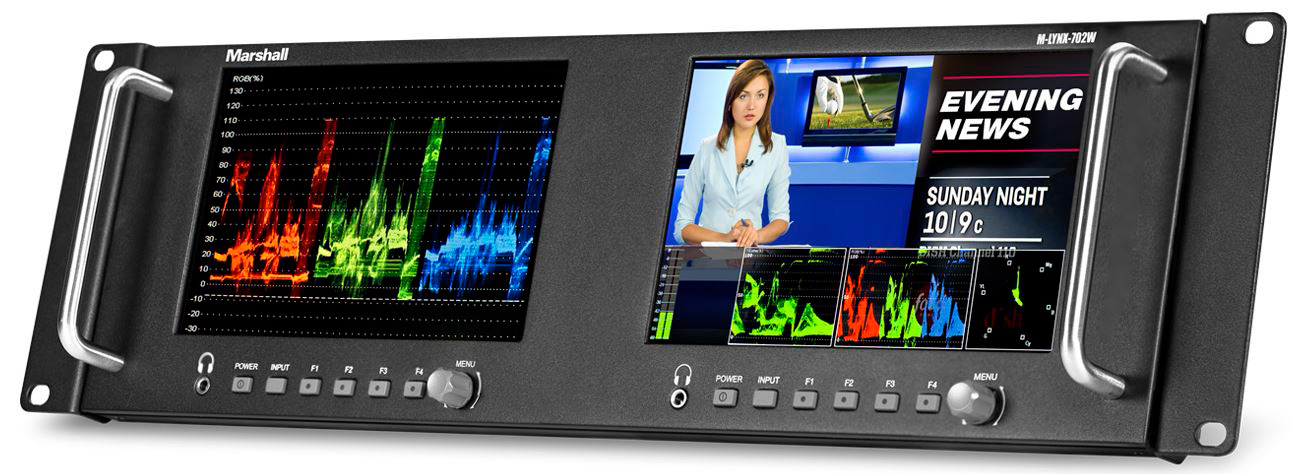

      • Waveform / Vector / Audio Displays: Dual mode, full screen or compact overlay Display Luminance waveform, Parade waveform (RGB or YPbPr), Vectorscope, Histogram, Audio Bars and Audio Phase Meter
      • Control Inputs: Tally 9-pin D-Sub port for GPI input Mini USB Service Port

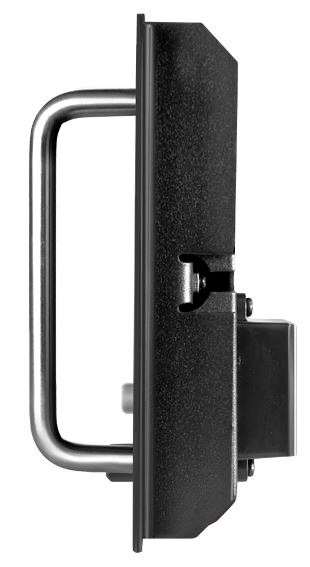

      • Dimensions: 19"W x 5"H x 1"D (482.5x132x25mm)
      • Approx. Weight: 5.8lbs (2.65Kg)
      • Input Voltage: DC 12V
