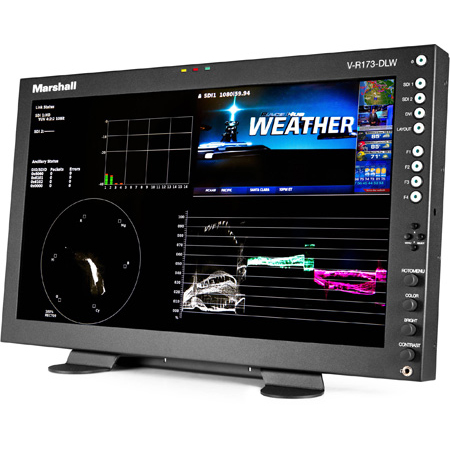

Marshall V-R173-DLW-DT 17 Inch Native HD Resolution IMD LCD Desktop Monitor with Waveform & Vectorscope Displays
  • Marshall V-R173-DLW-DT 17 Inch Native HD Resolution IMD LCD Desktop Monitor with Waveform & Vectorscope Displays
  • Marshall V-R173-DLW-DT 17 Inch Native HD Resolution IMD LCD Desktop Monitor with Waveform & Vectorscope Displays

Questions? Ask a Markertek Expert:
800-522-2025 Email

Marshall V-R173-DLW-DT 17 Inch Native HD Resolution IMD LCD Desktop Monitor with Waveform & Vectorscope Displays

Manufacturer: Marshall Electronics

Item #: MAR-V-R173-DLWDT   •   MFG #: V-R173-DLW-DT



List Price:$3,087.00
Our Price:$2,623.75

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The 17.3" V-R173-DLW monitor features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope, Digital Audio and a host of additional information in a 10 bit "no compromise" video path. In Quad-View mode, the input signal can be broken into four quadrants that simultaneously displays all of the critical information needed to keep your signal path within all critical specifications.

    Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI (Marshall Electronics) tricolor tally and in- monitor text systems via RS-485. Other display features include full CEA-608-B and CEA-708-B Closed Captioning, Timecode and VANC data.


    • Features

      • 10-bit image processor
      • 4x3 and 16x9 aspect ratios
      • High quality motion adaptive deinterlacer
      • Time-code (LTC / VITC)
      • 608/708 closed captioning
      • Waveform monitor
      • Hard TALLY (Red, Yellow, Green LEDs)
      • Soft TALLY (in IMD)
      • RS-485 interface supports Marshall, Image Video and TSL protocols
      • System supports color calibration
      • RS-485 based firmware update

    • Specifications

      • Panel
      • Panel Size: 17.3" Diagonal
      • Resolution: 1920 x 1080
      • Aspect Ratio: 16:9
      • Active Area: 381.88 x 214.81 mm
      • Type: LCD Panel
      • Brightness: 400 cd/m²
      • Contrast: 600:1
      • Viewing Angles (CR>=10): 160° x 160°
      • Backlight type: LED
      • Adjustable Backlight: Yes

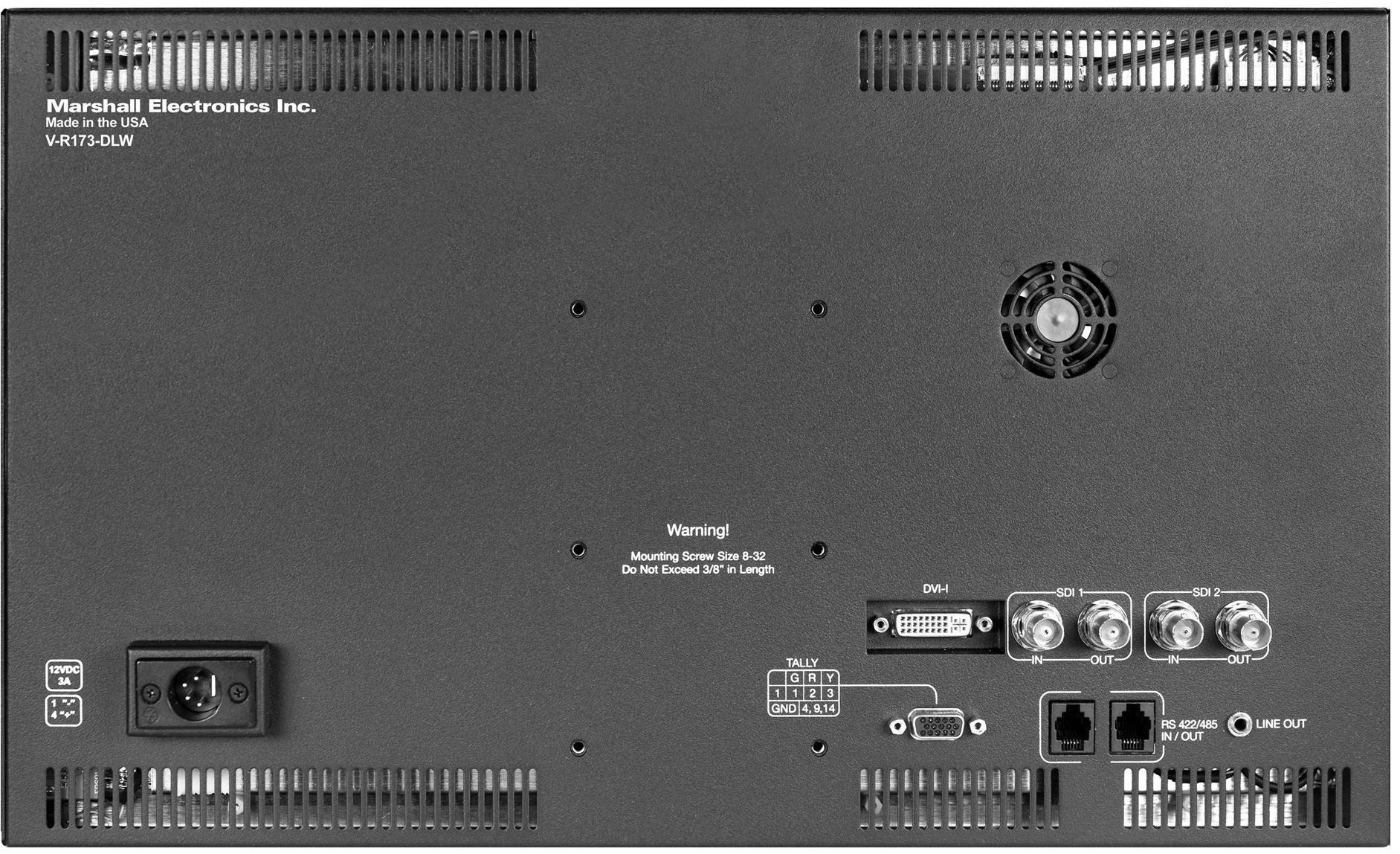

        Input Connectors
      • SD-SDI: Yes
      • HD-SDI: Yes
      • 3G-SDI: Yes
      • DVI-I: Yes

        Output Connectors
      • SD-SDI: Yes
      • HD-SDI: Yes
      • 3G-SDI: Yes
      • Audio Meters: Yes
      • Embedded audio from SDI: Yes
      • Input Status Display: Yes

        Power
      • Voltage: 12 VDC
      • Consumption: 3.0A @ 12VDC (36 W)
      • Power Switch: Yes
      • Connector: 4-Pin XLR Connector

        Environmental
      • Operating Temperature :32°F to 104°F
      • Storage Temperature: -14° F to120° F
      • Rack Unit dimensions: 17.15" W x 10.45" H x 2.00" D
      • Weight (Main Body): 7 lbs
      • Vesa Mount: 75mm

    • Item Includes

      • V-R173-DLW Monitor
      • V-PS12V-5A-XLR Power Supply
      • Operating Instructions
