Delvcam DELV-3GHD-17RD 17.3 inch 1RU Rack Drawer 3G-SDI Video Monitor with Cross Conversion

ITEM #: DELV-3GHD-17RD MFG #: DELV-3GHD-17RD

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,299.95

Our Price:

$1,199.95

Availability: In Stock
iAvailability Description Popup


    DELV-3GHD-17RD - Overview

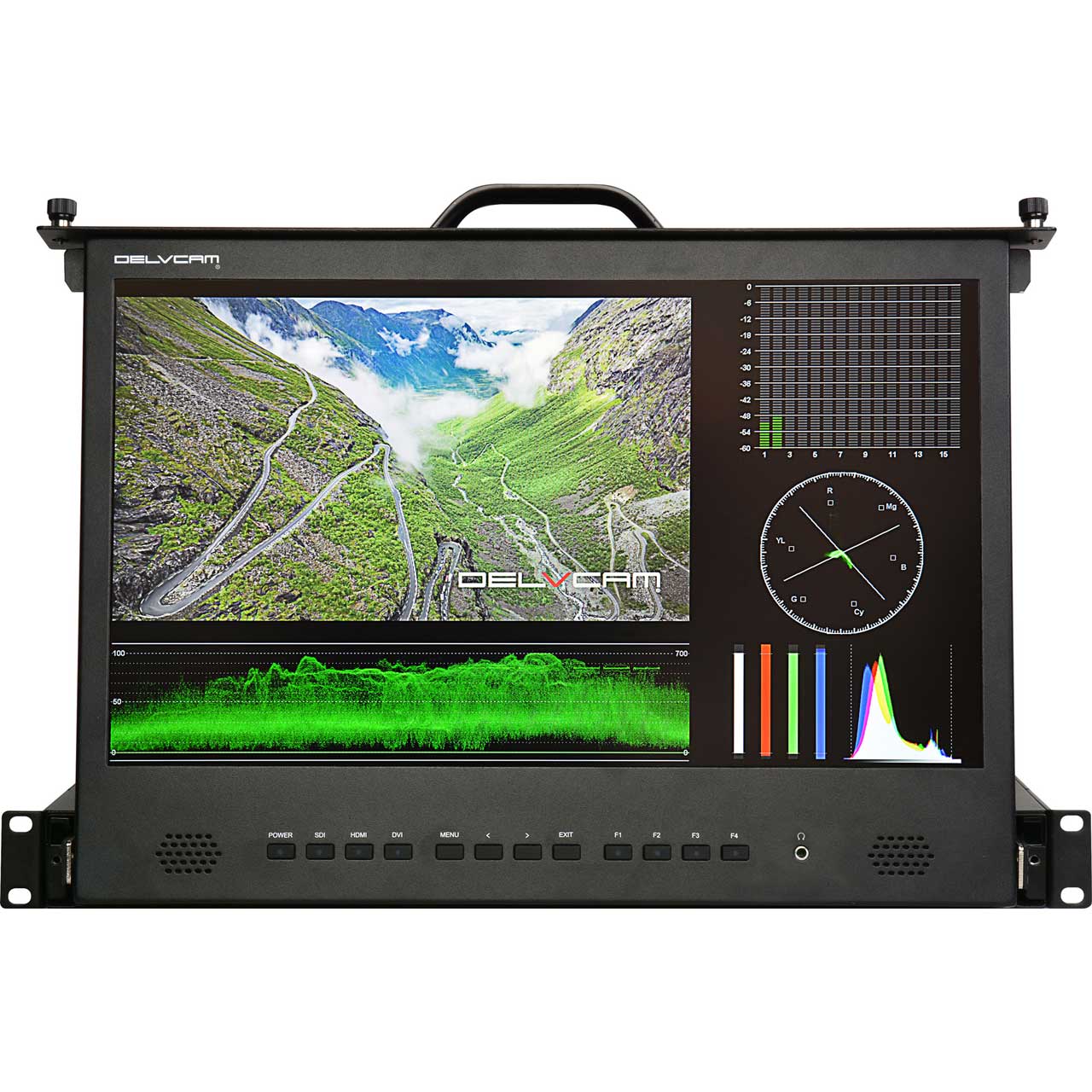

    The Delvcam DELV-3GHD-17RD 17" rack drawer monitoring system is destined to become the central nervous system of your studio and production environments. Its built-in HDMI-SDI cross conversion is perfect for KVM system integration while the built-in audio metering and vector scope will simplify camera setups. The DELV-3GHD-17RD can be mounted in fly-packs or directly in your studio or truck racks and stows away as quickly as a laptop.

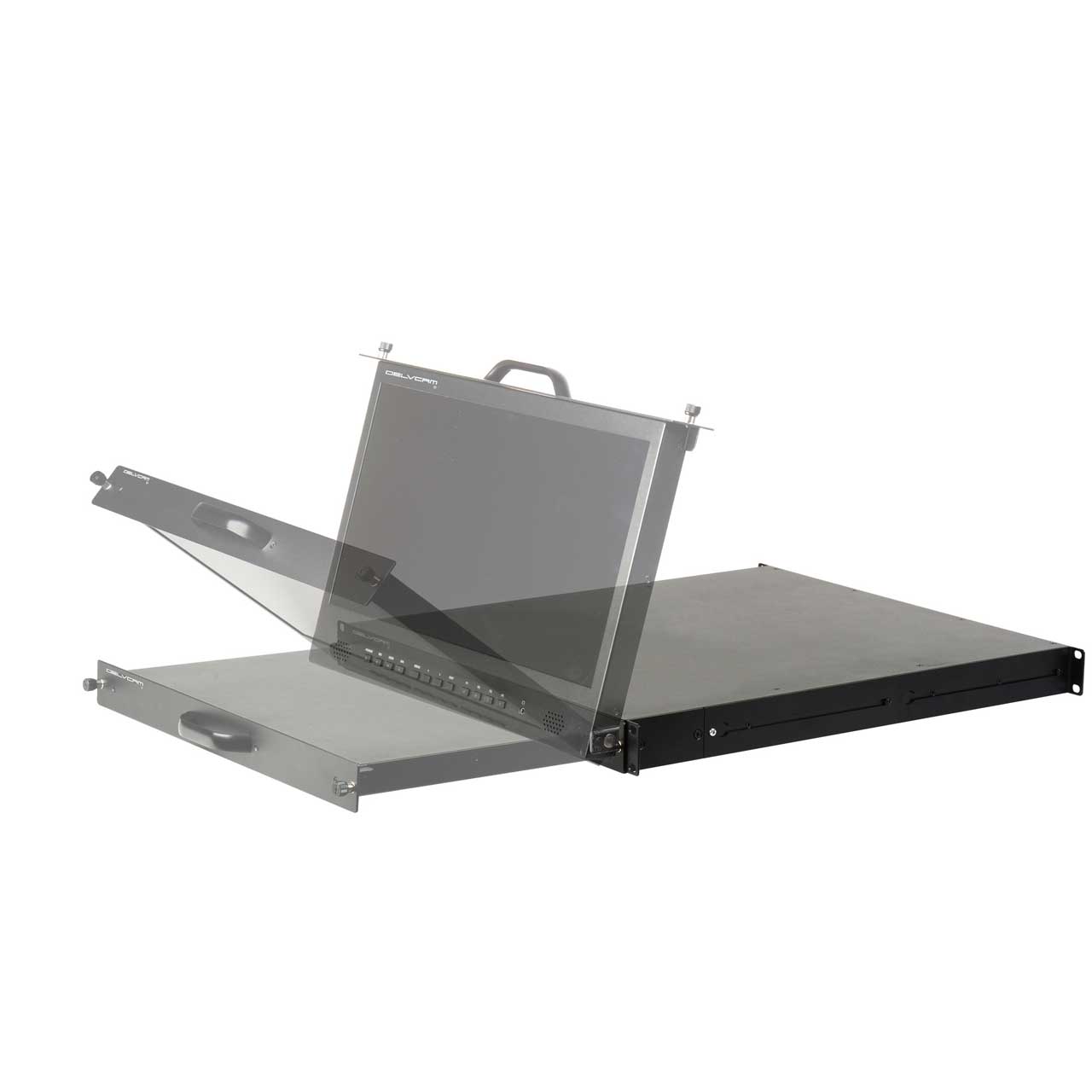

    The DELV-3GHD-17RD boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. The rear panel has host of inputs including 3G-SDI BNC, DVI, HDMI and Tally making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the unit has an auto-power-down function when the monitor is folded shut into the drawer. The drawer front also houses captive screws to secure the monitor during transport when used in mobile environments.

    • Features:

      • 1RU Pull Out Drawer Monitor
      • HDMI-SDI Cross Conversion & Vector Scope
      • Embedded Audiometer
      • Back Rail Adjustable to Rack
      • Rack Mountable or Stand Alone
      • 4 Adjustable Function Buttons
      • Space Saving & Portable with Handle
      • Automatic Power Shut Off in Drawer Position
      • Metal Housing Protection
      • Full HD Resolution
      • Tally Interface

    • Specifications:

      • Screen: 17.3" IPS
      • Resolution: 1920x1080
      • Brightness: 300cd/m²
      • Aspect Ratio: 16:9
      • Contrast: 700:1
      • Viewing Angles: 178°/ 178° H/V
      • Input: 3G-SDI, HDMI, DVI, Audio (L/R), Tally
      • Output: 3G-SDI, HDMI
      • Compatibility: SDI A, SDI B limited to1080i60
      • Audio: 2 Speakers, Earphone Jack
      • Current: 2.8A
      • Input Voltage: 15VDC
      • Power Consumption: 32W
      • Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
      • Storage Temperature: -30°C ~ 70°C (-22°F ~158°F)
      • Dimensions:19x1.73x19.98in/ 482.5x44x507.5mm
      • Weight: 18.96 lb/8.6kg

        Special Functions
      • Picture: Brightness, Contrast, Saturation, Tint, Sharpness, Color Temp, Red Gain, Green Gain
      • Marker: Center, Aspect, Safety, Marker Color, Marker Mat, Thickness
      • Function: Scan, Aspect, Underscan, H/V Delay, Check Field, Zoom, Freeze, DSLR
      • Waveform: Peaking, Peaking Color, Peaking Level, False Color, Exposure, Exposure Level, Histogram
      • Audio: Volume, Level Meter, Audio Channel
      • System: HDMI/SDI Convert, Color Bar, OSD Time, Backlight, Fan, Reset

    • Item Includes:

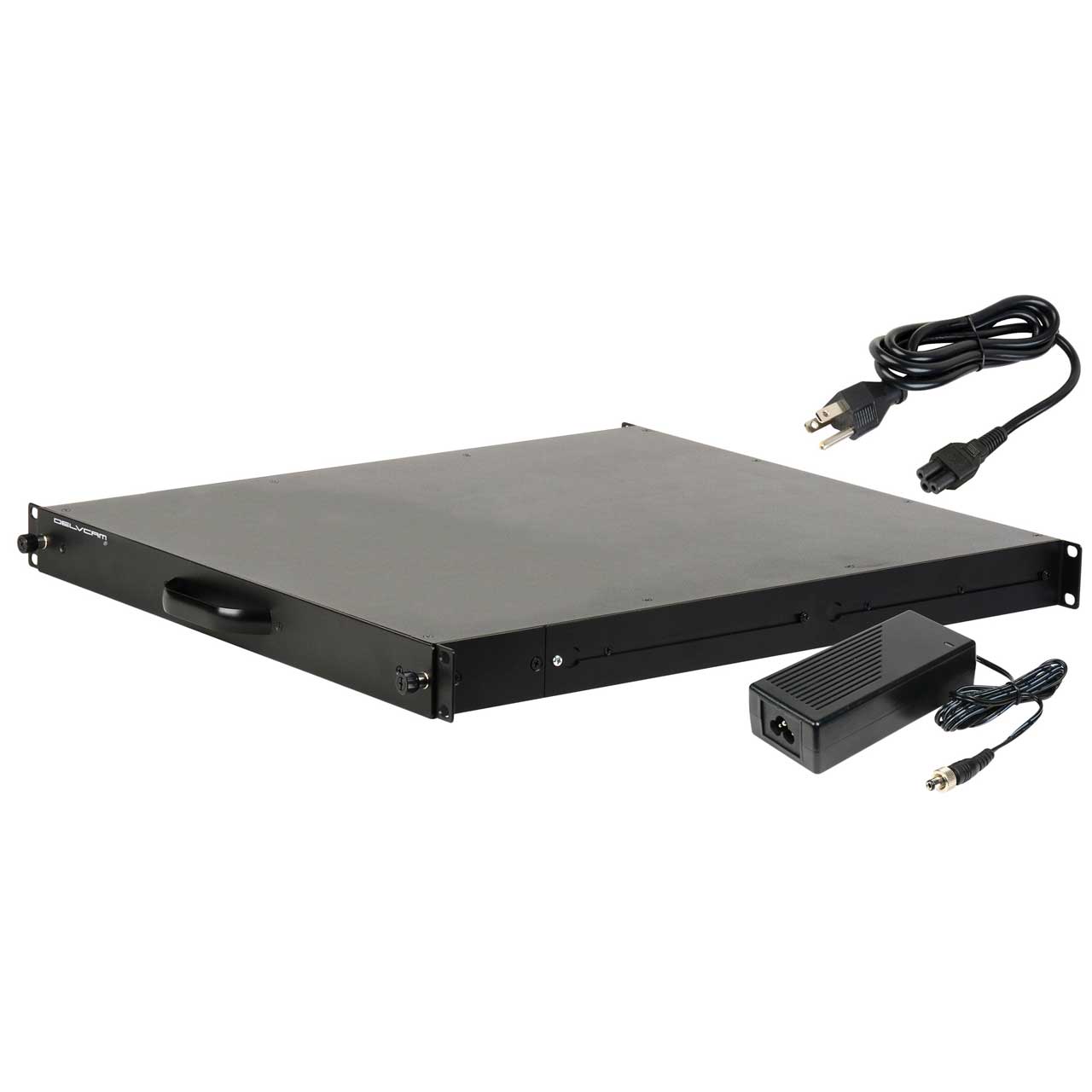

      • 15VDC Power Cable, Tally Connector

    • Warranty:

      • 1 Year

    • GTIN:

      0854554007561
