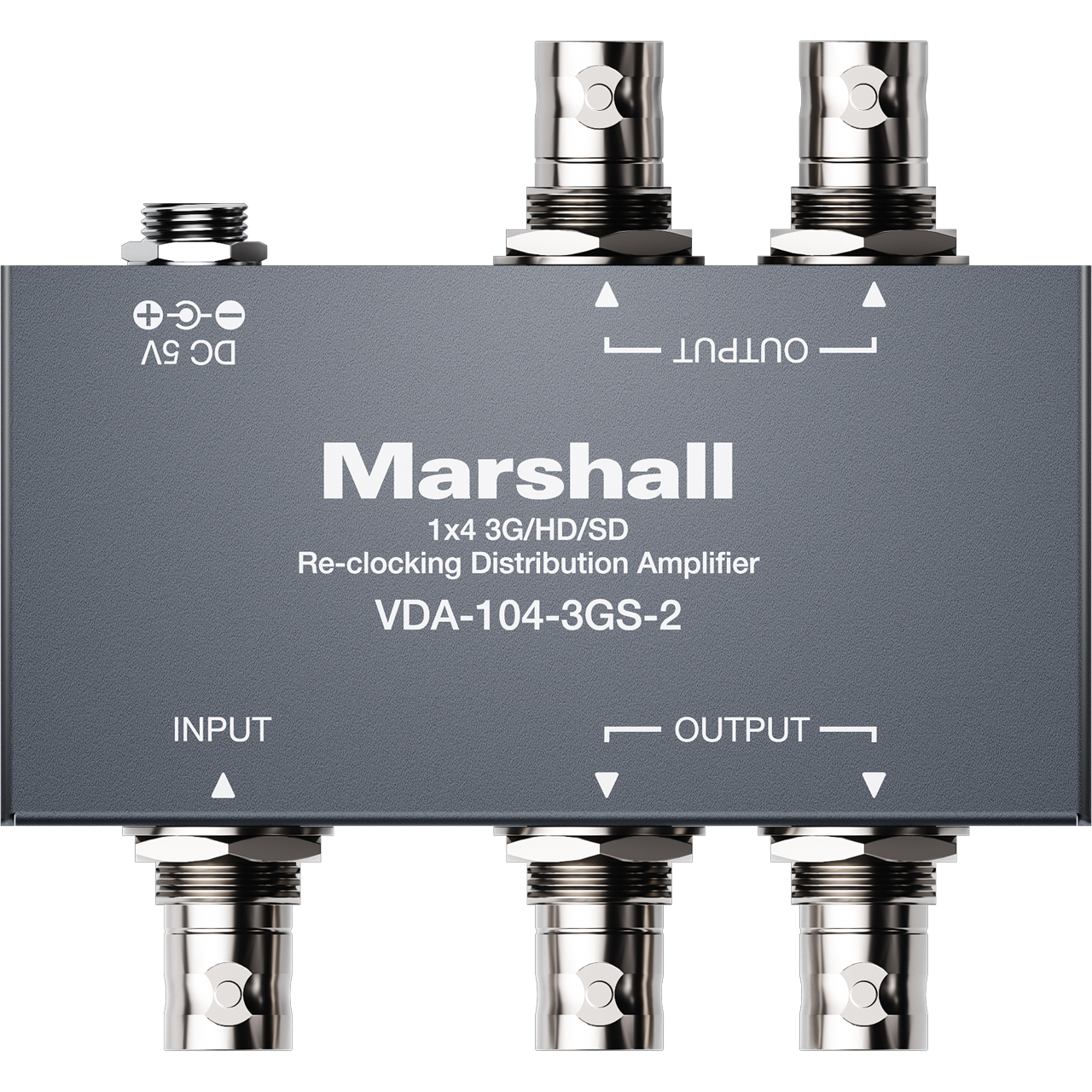

Marshall VDA-104-3GS-2 1x4 3G/HD/SD-SDI Re-clocking Distribution Amplifier

VDA-104-3GS2 - Overview

• Features:

  • Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
  • Supported video formats:
    - SD: 480i59.94 "NTSC", 576i50 "PAL"
    - HD: 720p24, 25, 30, 50, 59.94, and 60
    - 3G: 1080p50, 59.94 and 60. Supports Level A and B
    - 2K: 2048x1080p24 and 30
  • Passes all ancillary data
  • Reclocking function reshapes the signal to improve transmission distance
  • Video format LED indication
  • Provides automatic input cable equalization up to 1000ft (300m) @SD, 500ft (150m) @HD/3G
  • Reclocking function reshapes the signal to improve transmission distance
  • Compact metal housing


• Specifications:

  • SDI Standards: SD/HD/3G-SDI
  • Auto 3G/HD/SD Detection: Yes
  • Supported Protocols: SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M
  • Video Bandwidth: 2.97Gpbs & 2.97/1.001Gbps
  • Data Rates: 270 / 1483 / 1485 / 2970 Mbps
  • Output Impedance: 75Ω
  • Re-clocking Function: Yes
  • Cable Equalization:
    - [3G-SDI] >394ft (120m)
    - [HD-SDI] >656ft (200m)
    - [SD-SDI] >984ft (300m)
  • Audio Support: Yes
  • RP-198 Pathological Patterns: Immune
  • PCB Stack-up: 4-layer board [impedance control - differential 100Ω single 50Ω]
  • Input: 1x BNC [SDI]
  • Output: 4x BNC [SDI]
  • BNC Connector: 75 inter-locked socket
  • Fixedness: Inter-locked power supply
  • Power Supply: 5V 2A DC
  • Power Consumption: 0.85 Watts [max]
  • Operation Temperature: 32~104°F (0~40°C)
  • Storage Temperature: -4~140°F (-20~60°C)
  • Relative Humidity: 20~90% RH [no condensation]


• Item Includes:

  • 1x VDA-104-3GS-2
  • 1x 5V power adapter


• GTIN:

  0801813228755
