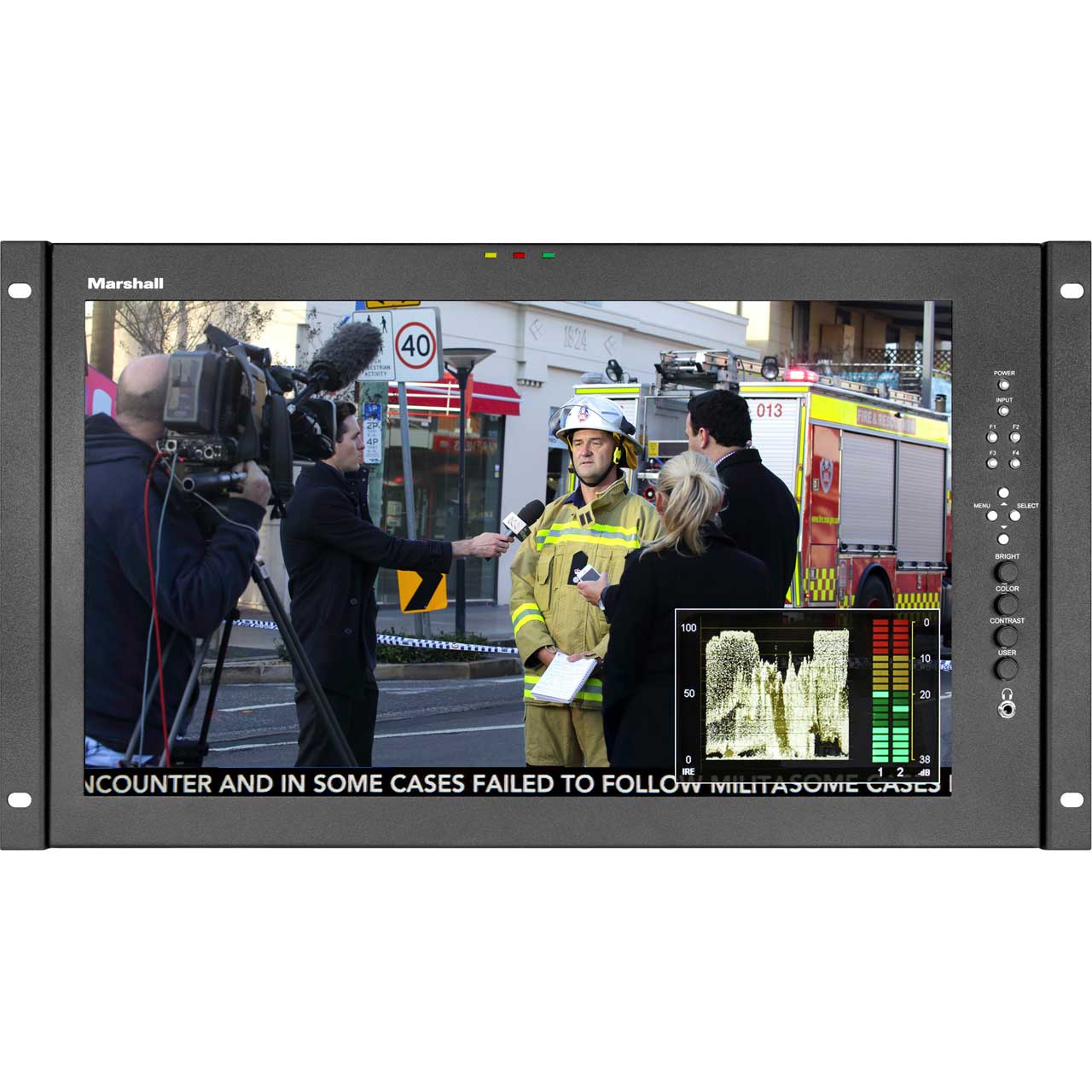

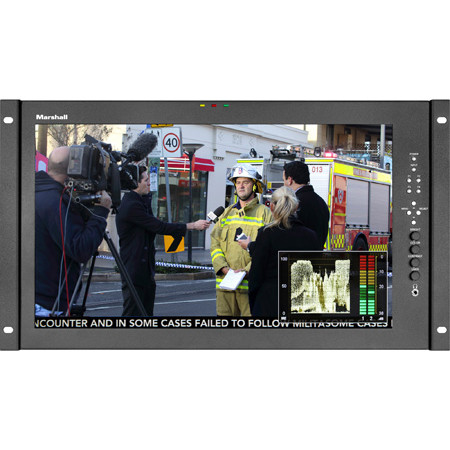

Marshall BAV-V-LCD171MD-3G 17 Inch LCD Desk Rack Mount with HDMI and 3G Input Waveform Monitor and Audio Display

ITEM #: MAR-VLCD171MD-3G MFG #: BAV-V-LCD171MD-3G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-VLCD171MD-3G

BAV-V-LCD171MD-3G - Overview

The Marshall V-LCD171MD monitor provides excellent features in a popular 17-inch size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights and tilting mount design for easy viewing. Great for use in news vans, satellite trucks and central equipment rooms. The V-LCD171MD base unit comes with no preinstalled module.

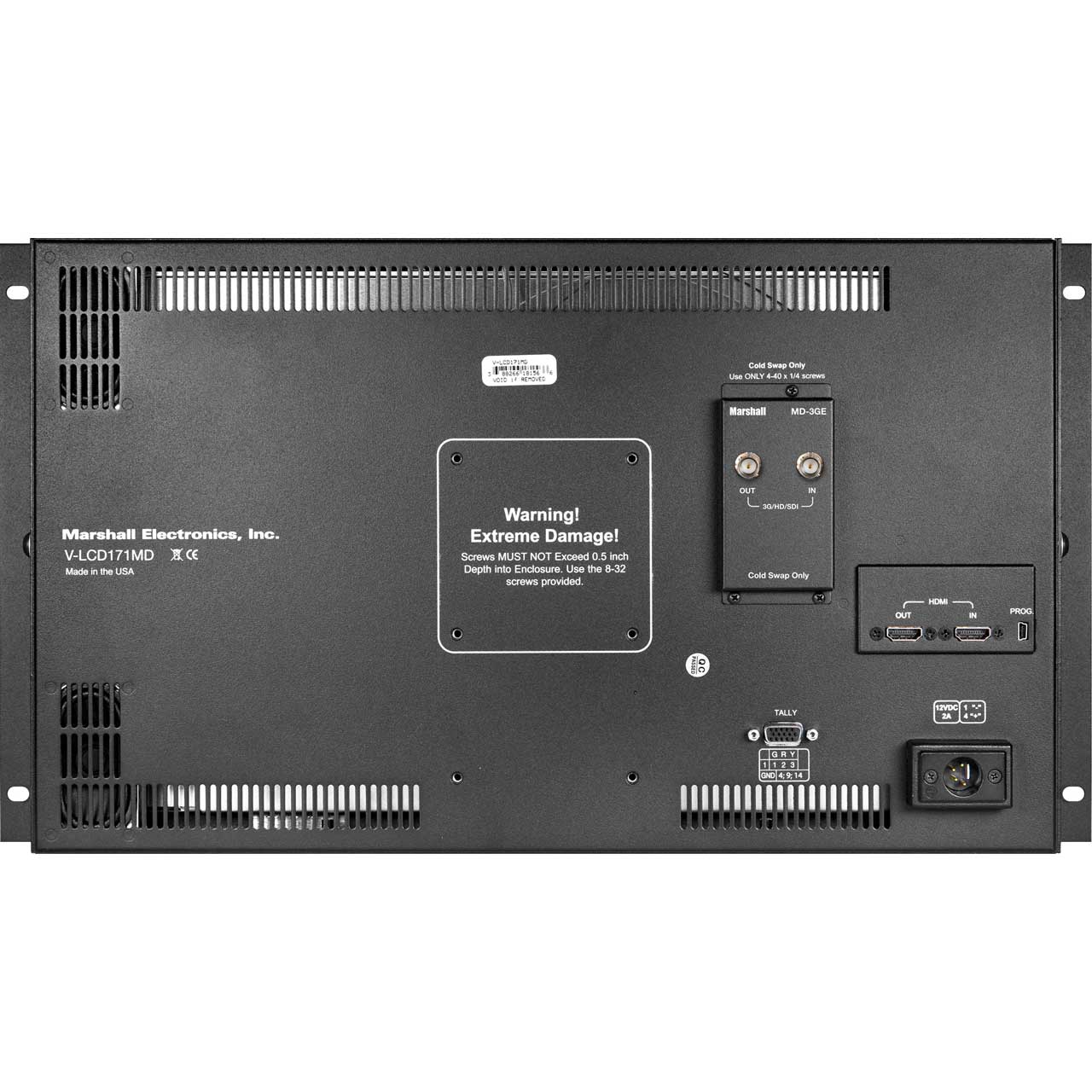

The V-LCD171MD-3G option includes the base unit with a preinstalled MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through.

  • Features:

    • Full HD 1920 x 1080 display
    • HDMI input/output standard
    • Modular design, allows addition of 3GSDI input
    • Waveform monitor at the push of a button
    • Audio meter bars overlay
    • Built-in speakers and headphone jack
    • Rugged 4-pin XLR power connector
    • Three color (Red, Yellow, Green) LED tally lights


  • Specifications:

    • Panel Size: 17.3" Diagonal
    • Resolution: 1920 x 1080
    • Aspect Ratio: 16:9
    • Active Area: 381.89 x 214.81 mm
    • Type: LCD Panel
    • Brightness: 400 cd/m²
    • Contrast: 600:1
    • Backlight type: LED, Adjustable
    • Frame rates: 1080p/1080i/720p/625i/525i
    • Color Temperature: D65, D55 and D93, Linear
    • Video Input Connectors: HDMI
    • Video Output Connectors: HDMI; Embedded Audio SDI
    • Audio Outputs: Headphones; Input Status Display
    • Audio OSD: Audio Bars; Channels
    • Voltage 12 VDC
    • Power Consumption: 2.0A @ 12VDC (16 W)
    • Connector: 4-Pin XLR
    • Compliance: CE approved
    • Operating Temperature: 10° C to 40°C
    • Storage Temperature: 0°C to 50°C
    • Dimensions: 17.30" (W) x 10.46" (H) x 1.33" (D)
    • Weight (Main Body): 7.65 lbs


  • GTIN:

    0801813182811
