Marshall VS-PTC-IP Compact Broadcast IP/RS232/RS422 PTZ Joystick Controller

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

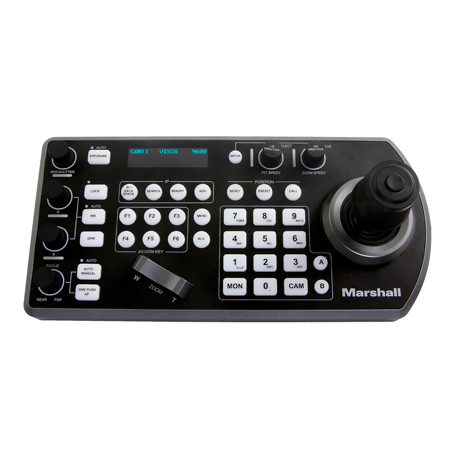

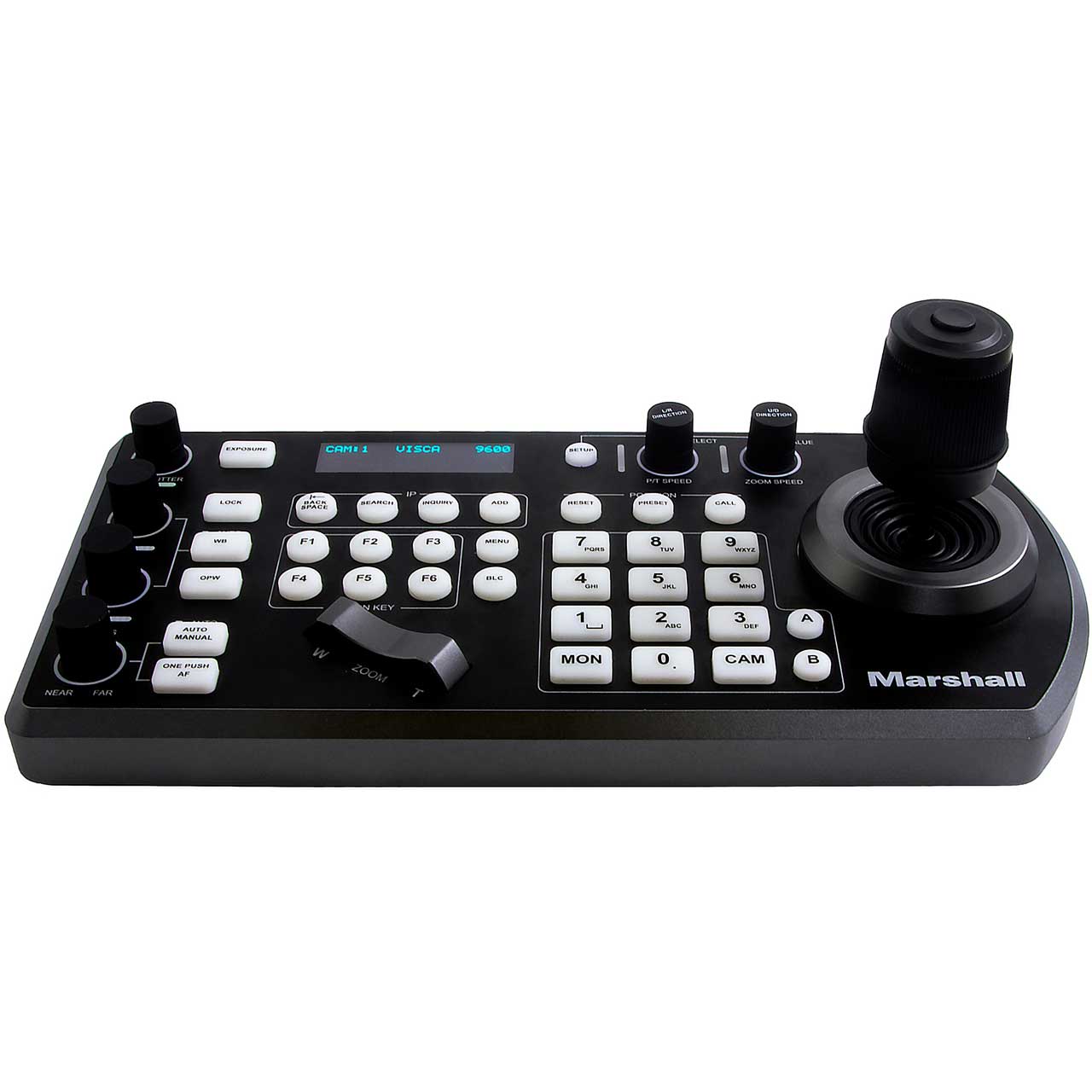

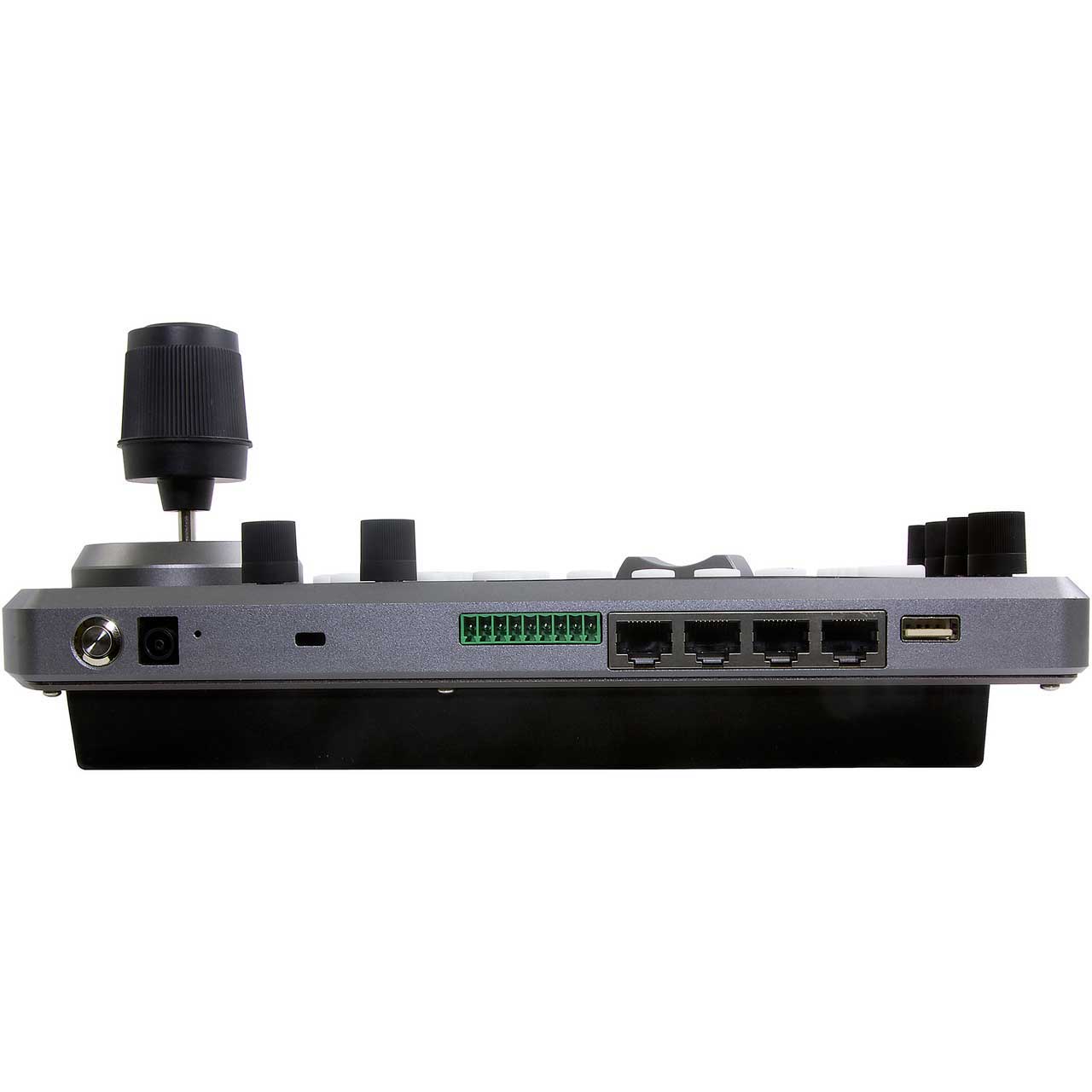

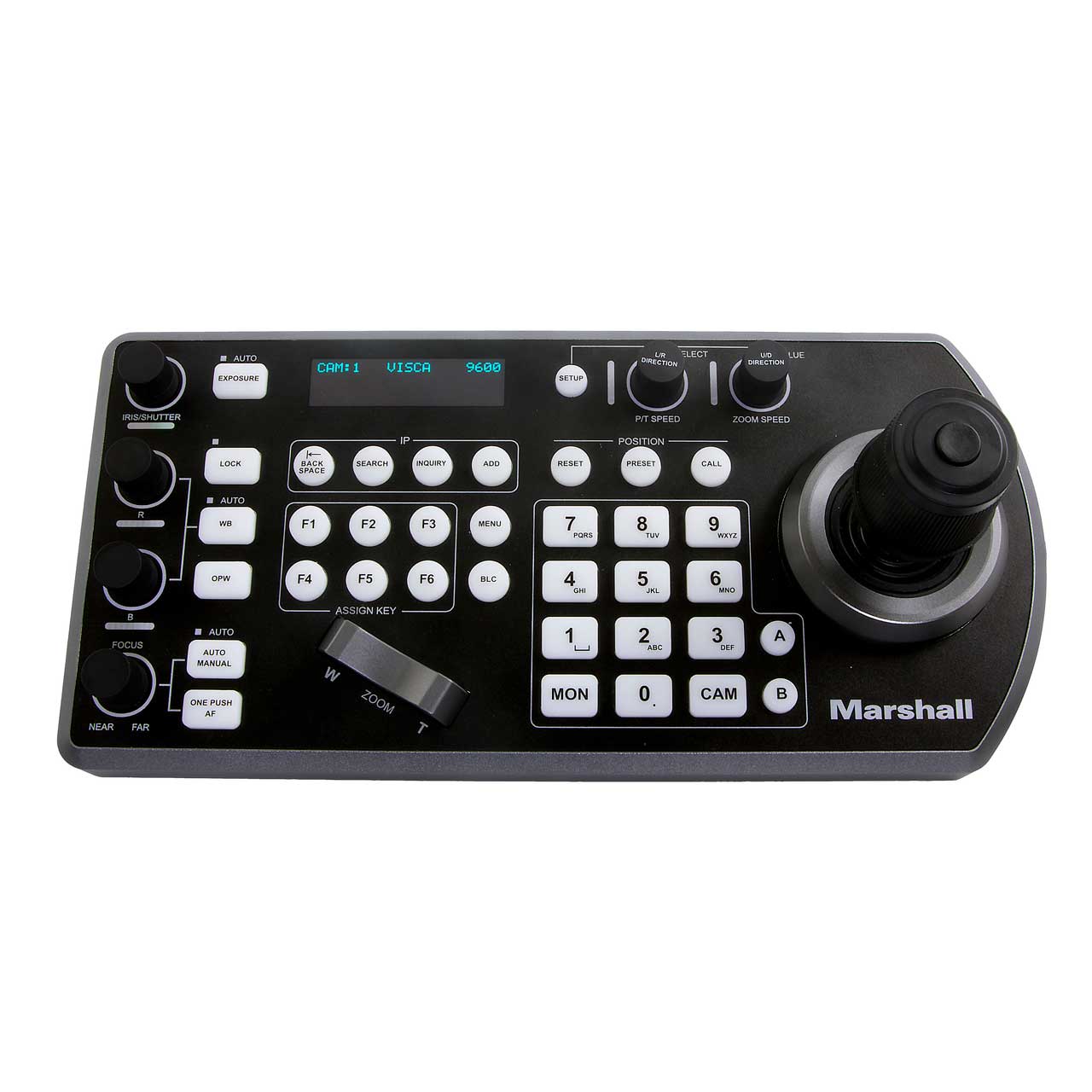

    Marshall VS-PTC-IP Compact Broadcast IP/RS232/RS422 PTZ Joystick Controller

    Manufacturer: Marshall Electronics

    Item #: MAR-VS-PTC-IP   •   MFG #: VS-PTC-IP



    List Price:$1,499.00
    Our Price:$1,349.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The Marshall VS-PTC-IP is a compact broadcast IP/RS232/RS422 PTZ joystick controller. This unit features Easy Camera Discovery setup of multiple camera control protocols simultaneously and direct fine-tune twist dials for control of iris, shutter, exposure, red, blue, white balance.


      • Features

        • Easy Camera Discovery setup of multiple camera control protocols simultaneously (IP/RS232/RS422).
        • Direct fine-tune twist dials for control of Iris, Shutter, Exposure, Red, Blue, White Balance.
        • Controller PoE via IP port, as well as PoE via RS232 and RS422 (RS232/422 power injector included).
        • High-quality tactile joystick that allows effortless one-handed pan, tilt and zoom adjustments.
        • Simultaneous access to Zoom via rocker lever or twist of Joystick.
        • Quick Access Dials for Red/Blue, Iris, Exposure, Shutter Speed, White Balance, Focus, PT Speed, Zoom Speed.
        • RS232/RS422 and IP mix-control setup. It allows you to use RS232/RS422/IP control methods all on one controller - and once camera ID is selected it populates the setup criteria.
        • Automatic IP searches for available PTZ IP cameras in the network and assign IP addresses easily. IP control supports ONVIF, CGI, VISCA Over IP.
        • Up to 256 camera presets with memory of image parameters and 8 patterns/cruises to recall camera moves.
        • Supports 2 groups (7 cameras per group) via VISCA RS422 daisy chain control - doubles Visca control-ability.
        • Unlimited number of controllers can operate on a single IP network to control up to 255 IP cameras. Controls up to total 255 cameras (Combine using PELCO/VISCA/ONVIF IP/VISCA-Over-IP Protocol).
        • Up to 6 select-able ASSIGN function keys, additional functions can be assigned to these buttons.
        • Full compatibility of the CV610-U3-V2, CV620, CV612, CV610-U3, all Marshall CV PTZ Cameras as well as Sony BRC, SRG series PTZ cameras and most PTZ cameras in the market that support RS232/RS422/RS485/IP control.
        • Control firmware upgrade is available via USB to keep the performance of the controller up to date.
        • Tally Indicator: Includes Normal Tally, On-Air Tally, and Contact Modes
        • Multi-color illumination for direct dial, keys, buttons, and indicators.
        • Compatible with Marshall CV620-BK2/WH2, CV620-IP/IPW, CV612HT-4K/4KW, CV610-U3-V2, CV610-U3/UB, Sony BRC, SRG-series, as well as most other PTZ cameras on the market that support IP/RS232/RS422/RS485.

      • GTIN:

        0801813192315
