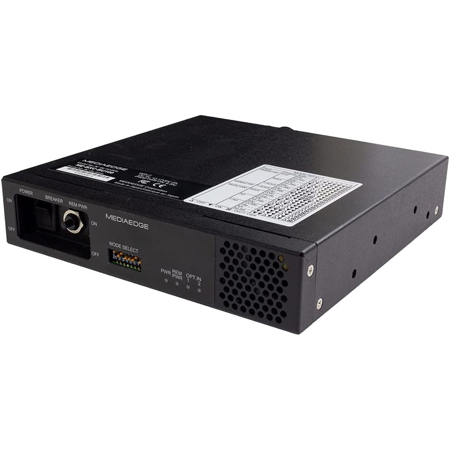

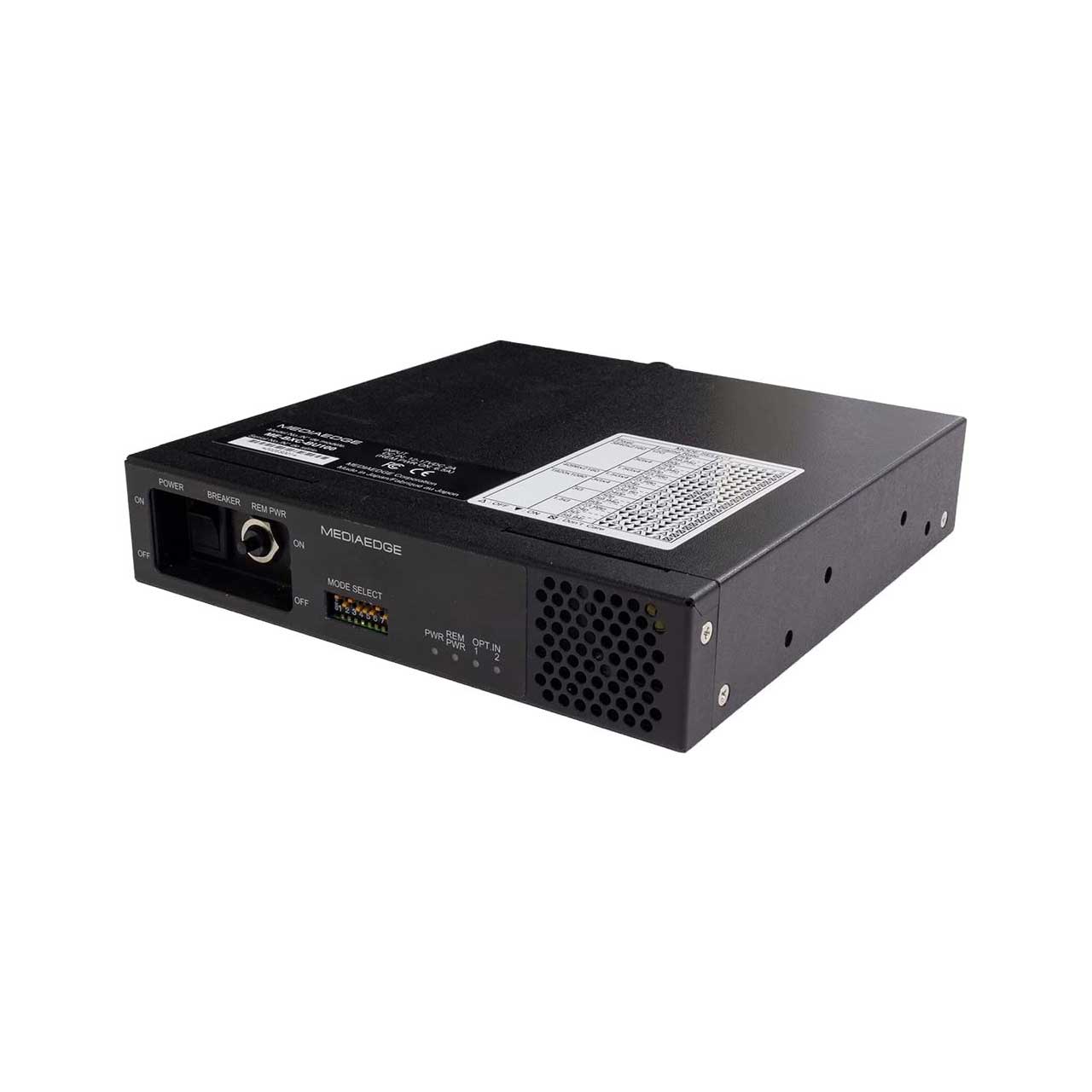

MediaEdge ME-BXC-BU100 QDCAM System Fiber Transmission Base Unit for receiving FHD239.8P/4Kp60/Serial Control of RCP

ME-BXC-BU100 - Overview

• Specifications:

  • Compatible Camera Cable: SMPTE 311 camera cable with SMPTE 304 connectors
  • Max. 500 m (when power is supplied to camera through the camera cable)
  • Cable Length: Max. 2000 m (when local power supply is used for the camera unit)
  • Operating Temperature: 2 to 104°F (0 to 40°C)
  • Operating Humidity: 30 to 90% RH (Must be no condensation.
  • Weight: 3.53 lb (1.60 kg)
  • Dimensions (WxDxH): 7.9 x 7.9 x 1.7 (excluding protrusions (200 x 200 x 42mm) - excluding protrusions
  • Power Voltage: DC 13.8V (DC 12 to 17V: when local power supply is used)
  • Power Consumption: Max. 60W (including power supply to cam-site unit and cable loss)


• Item Includes:

  • 1x ME-BXC-BU100 MEDIAEDGE Transmission System Base Unit


• GTIN:

  4562393843030
