Mogami W2319 High Impedance Transmission Guitar Cable - Black - 656 Foot/Spooled

ITEM #: MG-W2319-00-656 MFG #: W2319-00-656

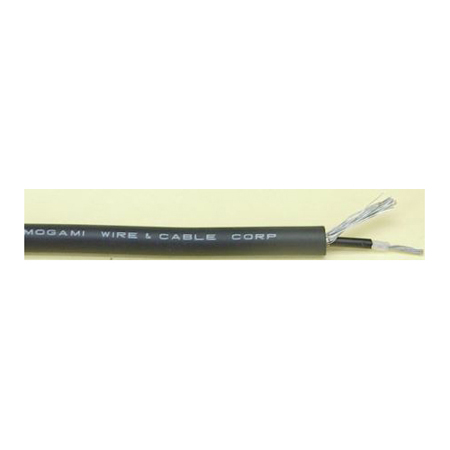

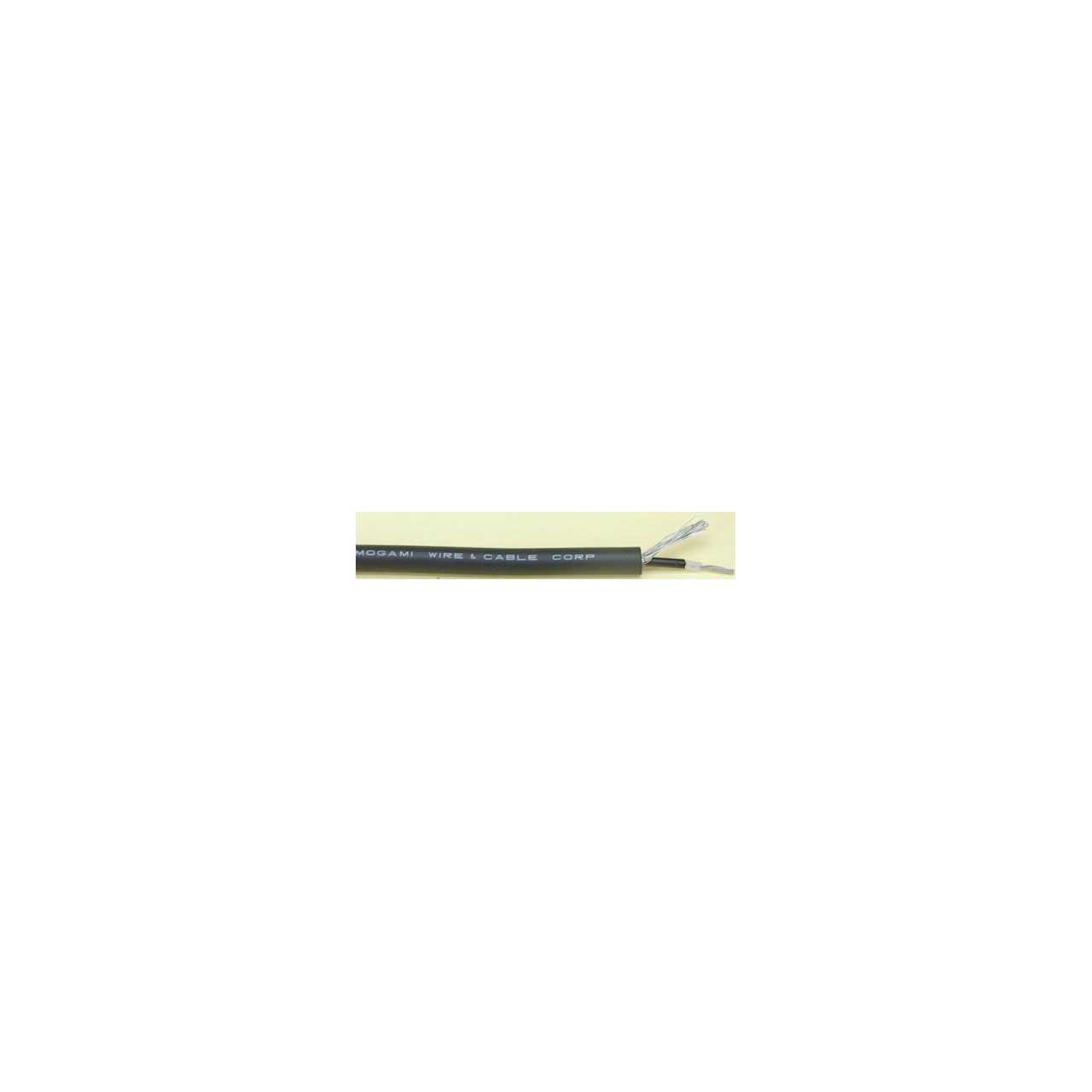

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$360.80

Our Price:

$289.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    W2319-00-656 - Overview

    Mogami W2319 is a High Impedance Transmission Unbalanced Miniature Guitar, Instrument and Audio Cable.

    Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

    • Specifications:

      • Part No.: W2319
      • Conductor Details: 12/0.18TA
      • Size(mm²): 0.305mm² (#23AWG)
      • Insulation Ov. Dia.(mm): 1.6ø (0.063")
      • Material: PE
      • Insulation Color: Clear
      • Sub-Shield Ov. Dia.(mm): 1.8ø (0.071")
      • Material: Conductive PVC (Carbon PVC)
      • Color: Black
      • Main-Shield: Served-Shield Approx. 38/0.16TA
      • Jacket Ov. Dia.(mm): 5.0ø (0.197")
      • Material: PVC
      • Color: Black

      • ELECTRICAL & MECHANICAL CHARACTERISTICS
      • DC Resistance at 20°C: Inner Conductor - 0.064Ω/m(0.020W/Ft)
      • Shield Conductor: 0.026Ω/m(0.0079Ω/Ft)
      • Capacitance at 1kHz, 20°C: 155pF/m (47.3pF/Ft)
      • Inductance: 0.3æH/m (0.092æH/Ft)
      • Electrostatic Noise: 0.13mV Max.
      • Electromagnetic Noise At 10kHz*: 0.07mV Max.
      • Microphonics*: 0.3mV Max
      • Voltage Breakdown: Must withstand at DC 500V/15sec.
      • Insulation Resistance: 100000 MΩ x m Min. at DC 500V , 20°C
      • Flex Life: 11,000 cyles
      • Tensile Strength: (26°C, 65%RH) 303 N
      • Emigration: Non-emigrant to ABS resin
      • Applicable Temperature: -20°C/+60°C(-4°F/+140°F)

        *Using standard testing methods of Mogami Wire & Cable Corp.
