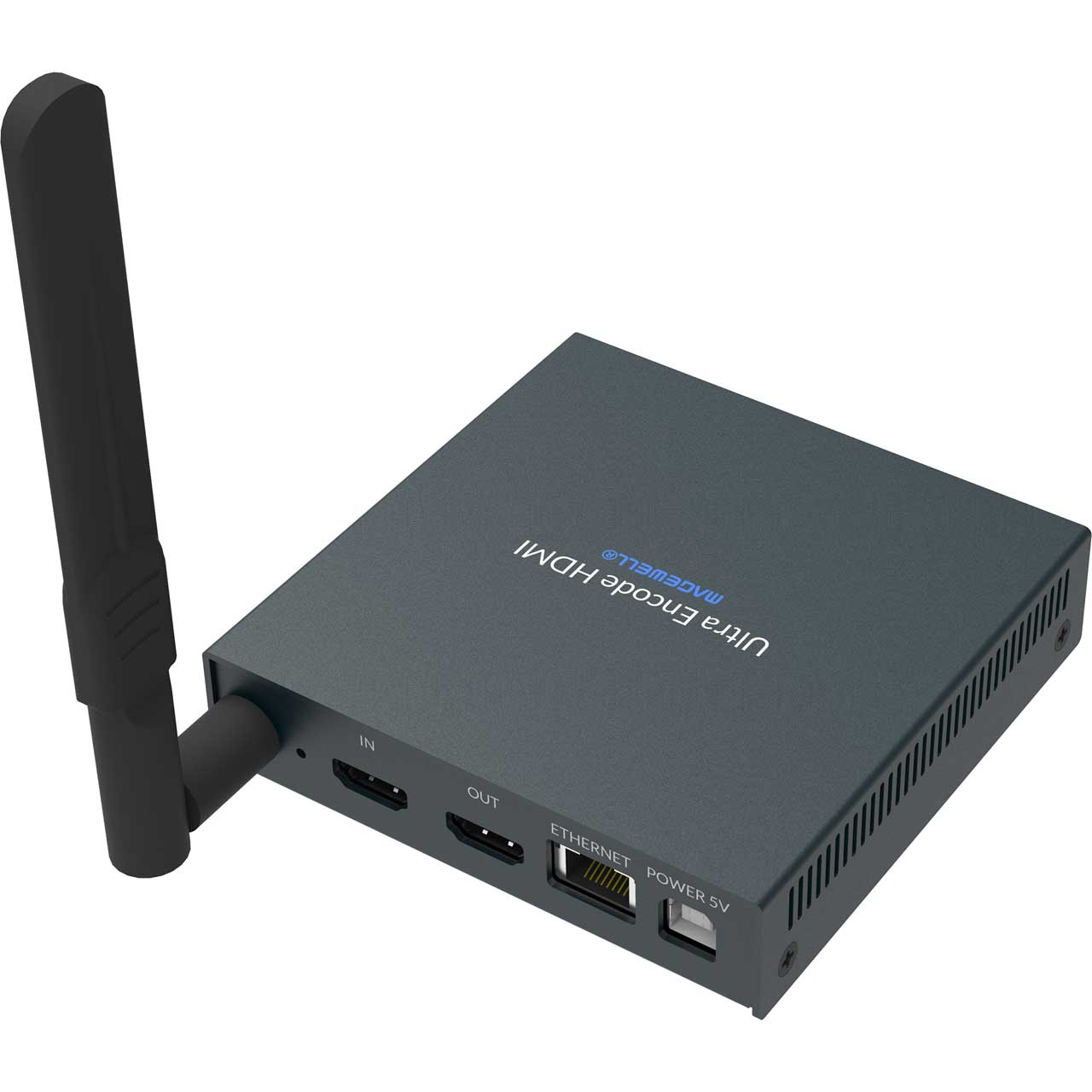

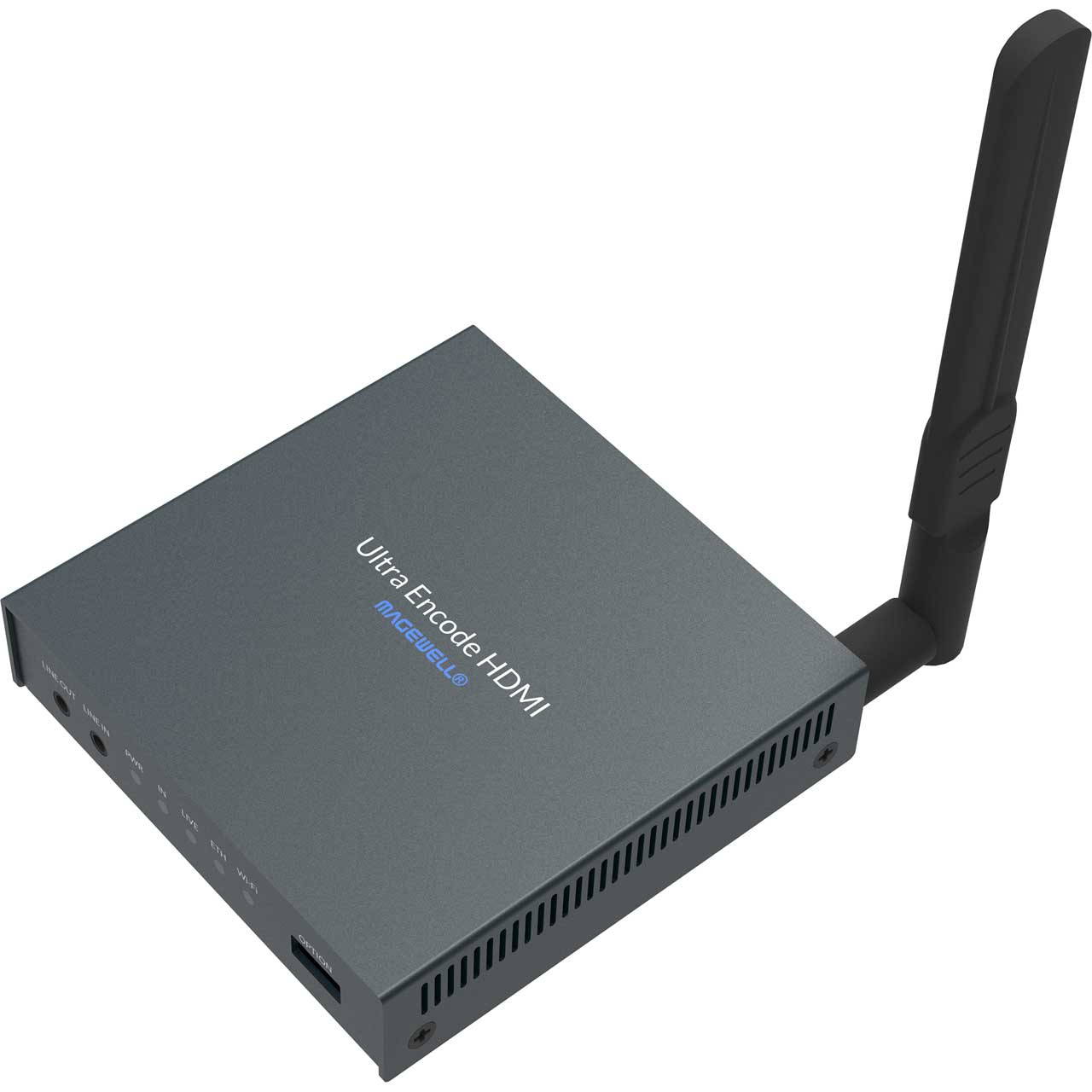

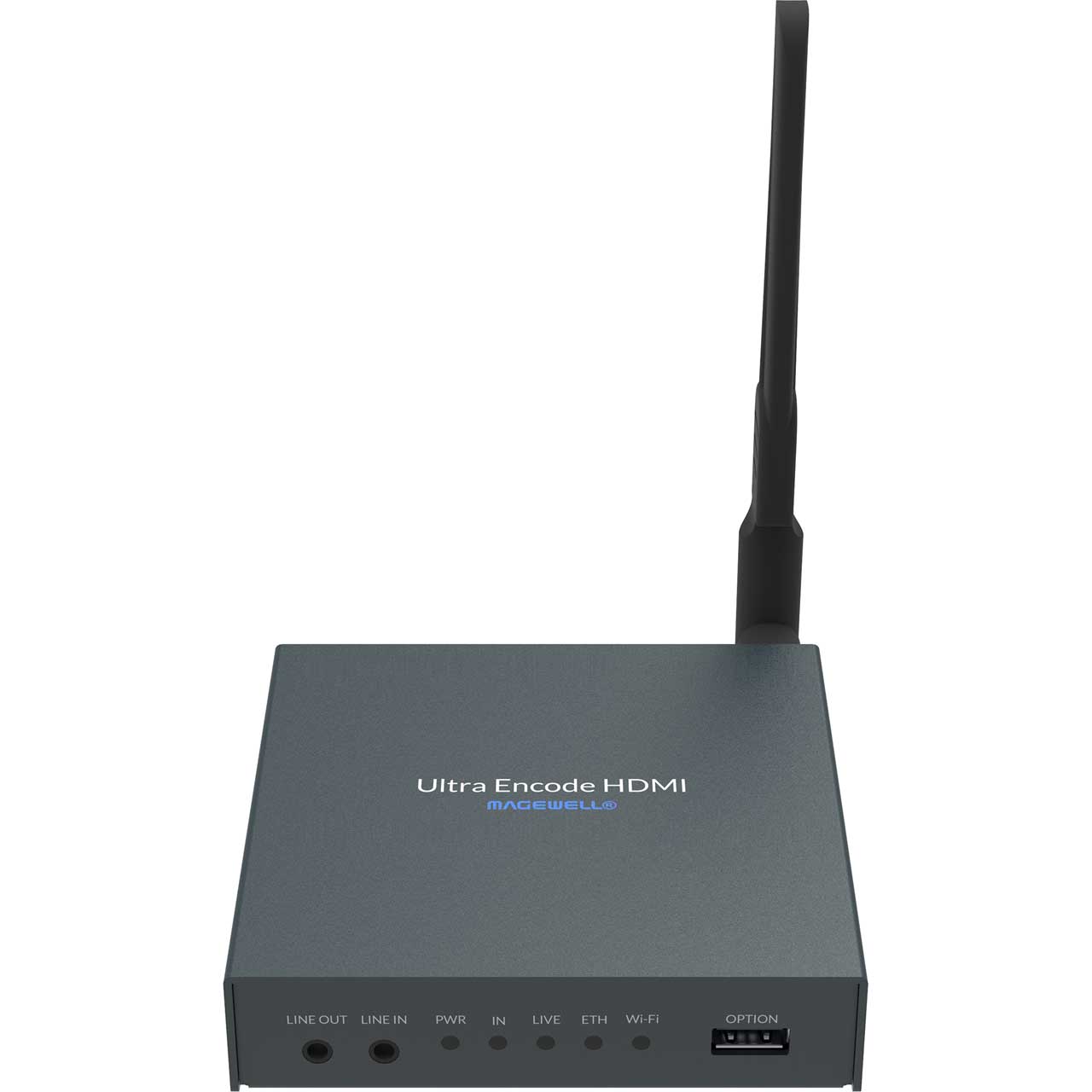

Magewell 53040 Ultra Encode HDMI Streaming Encoder

ITEM #: MGW-53040 MFG #: 53040

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    53040 - Overview

    Magewell Ultra Encode family of universal live media encoders offers systems integrator, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. Available in HDMI (53040) and SDI models, Ultra Encode supports high-quality H.264, H.265 (HEVC) and NDI |HX encoding and multiple streaming protocols with wired or wireless network connectivity.

    Encoder converts input signal to custom format, using H.264/H.265 video encoders and AAC audio encoder. It can push multiple streams to RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS(push)/TS over UDP/TS over RTP video servers simultaneously that you have access to.

    Encoder is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as your own site, with multiplatform distribution. To custom encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytic, and stream health monitoring are provided.
    Input Features
    Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
    Support for 48KHz, 16-bit 8-channel audio streams
    Input audio from 3.5 mm LINE IN

    Encoding Features
    Dual stream encoding profiles: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
    Support for H.264/HEVC video encoding
    Encoding 2-channel AAC at 48kHz, 16-bit

    Streaming Features
    Natively support streaming to Facebook, Twitch and YouTube
    Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
    Allow streaming to multiple destinations simultaneously (select protocols)

    Others
    Internet connectivity via wired Ethernet and wireless network
    Control via intuitive Web GUI or HTTP APIs

    • Features:

      • Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP streaming protocols
      • Dual code stream
      • Multi-streaming to various video platforms simultaneously
      • Video encoders - H.264 and H.265 (HEVC)
      • Audio encoder - AAC
      • Web UI - a network remote management - provides webpage configuration with kinds of customization for functions and devices.

    • Specifications:

      • Web UI Management
      • Provide comprehensive information regarding the system information of device and working status in real-time
      • Video thumbnail preview
      • Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
      • Update firmware
      • Export configuration profiles of the device
      • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
      • Provide HTTP APIs

        Network Interfaces
      • Wired Ethernet Network: 10/100/1000Mbps
      • Wi-Fi 802.11 a/b/g/n/ac
      • 3G/4G USB mobile broadband Modem (not included)

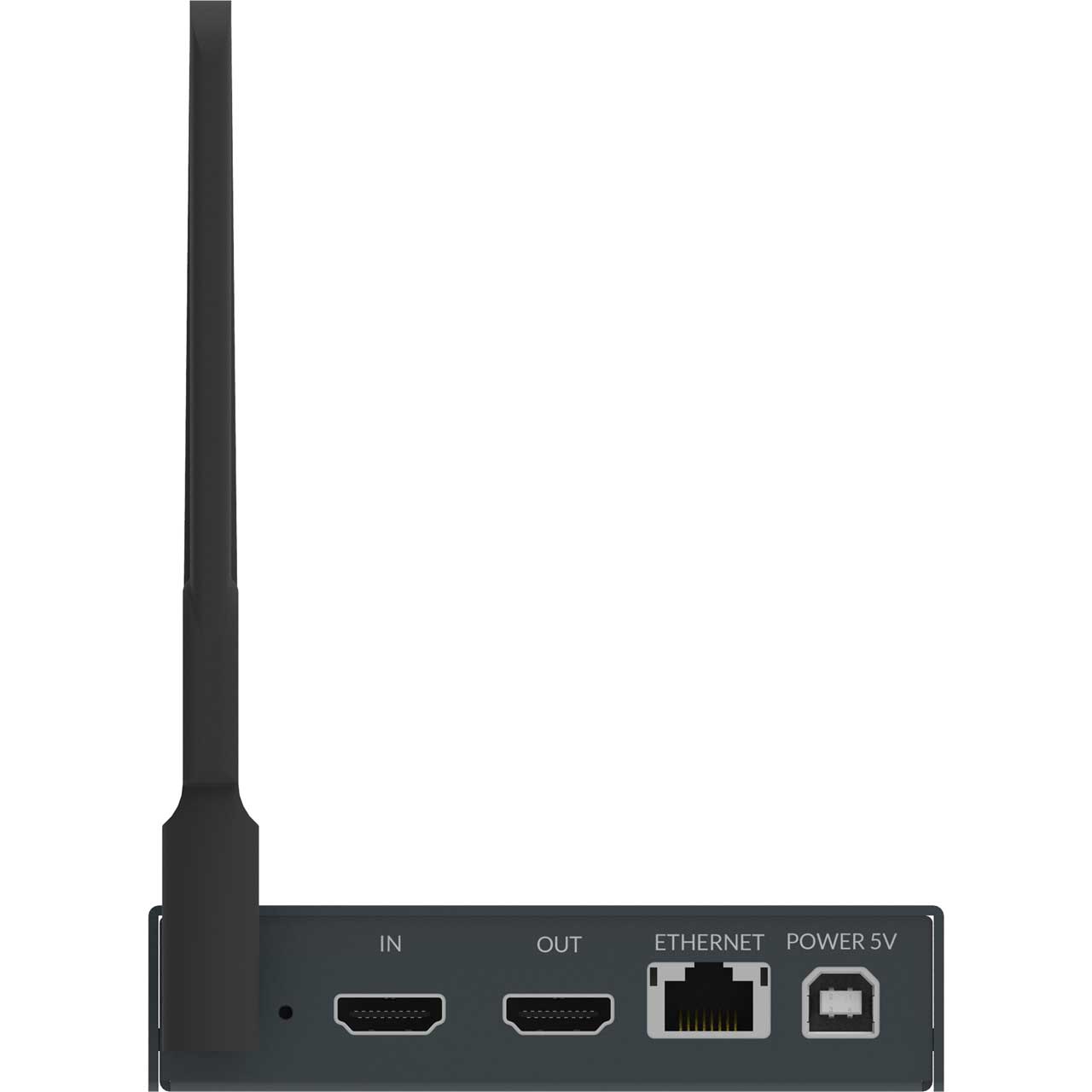

        Input/Output Interfaces
      • HDMI 1.4a input and loop-through interfaces
      • 3.5mm LINE IN
      • 3.5mm LINE OUT

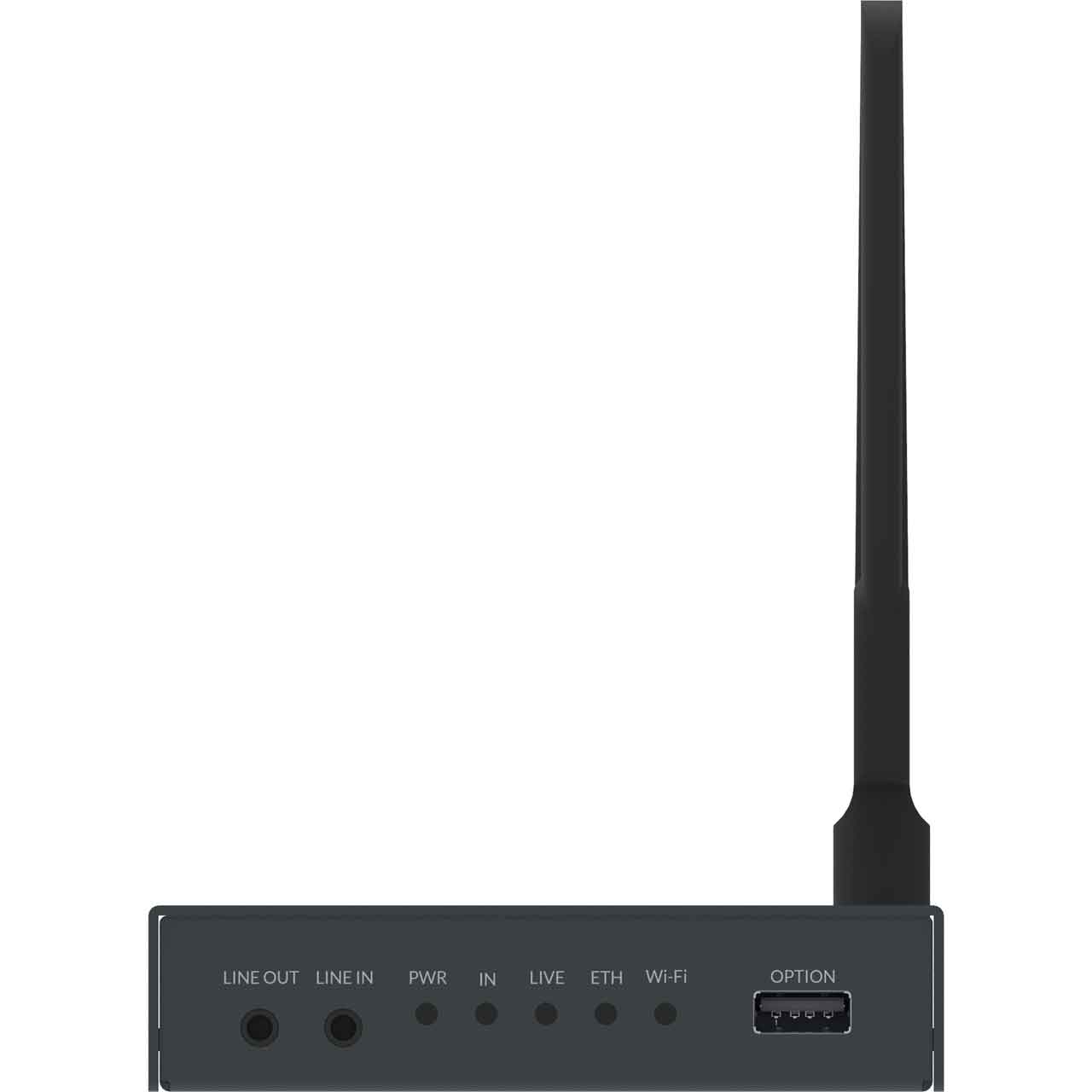

        LED Indicators
      • LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

        Power
      • Power Supply: DC 5V/2A
      • Max Power Consumption: ~9.5 W

        Form Factor
      • 4.19 x 4.19 x 0.98" (106.6 x 106.2 x 25mm)

        Working Environment
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 158°F (-20 to 70°C)
      • Relative Humidity: 5 to 90% non-condensing

    • Item Includes:

      • 1x Power Adapter (US/EU/UK/AU/JP)
      • 1x Power Adapter (KR)
      • 1x Power Cable
      • 1x HDMI Cable
      • 1x Wi-Fi Antenna
      • 1x T-bracket

    • GTIN:

      8143950201362
