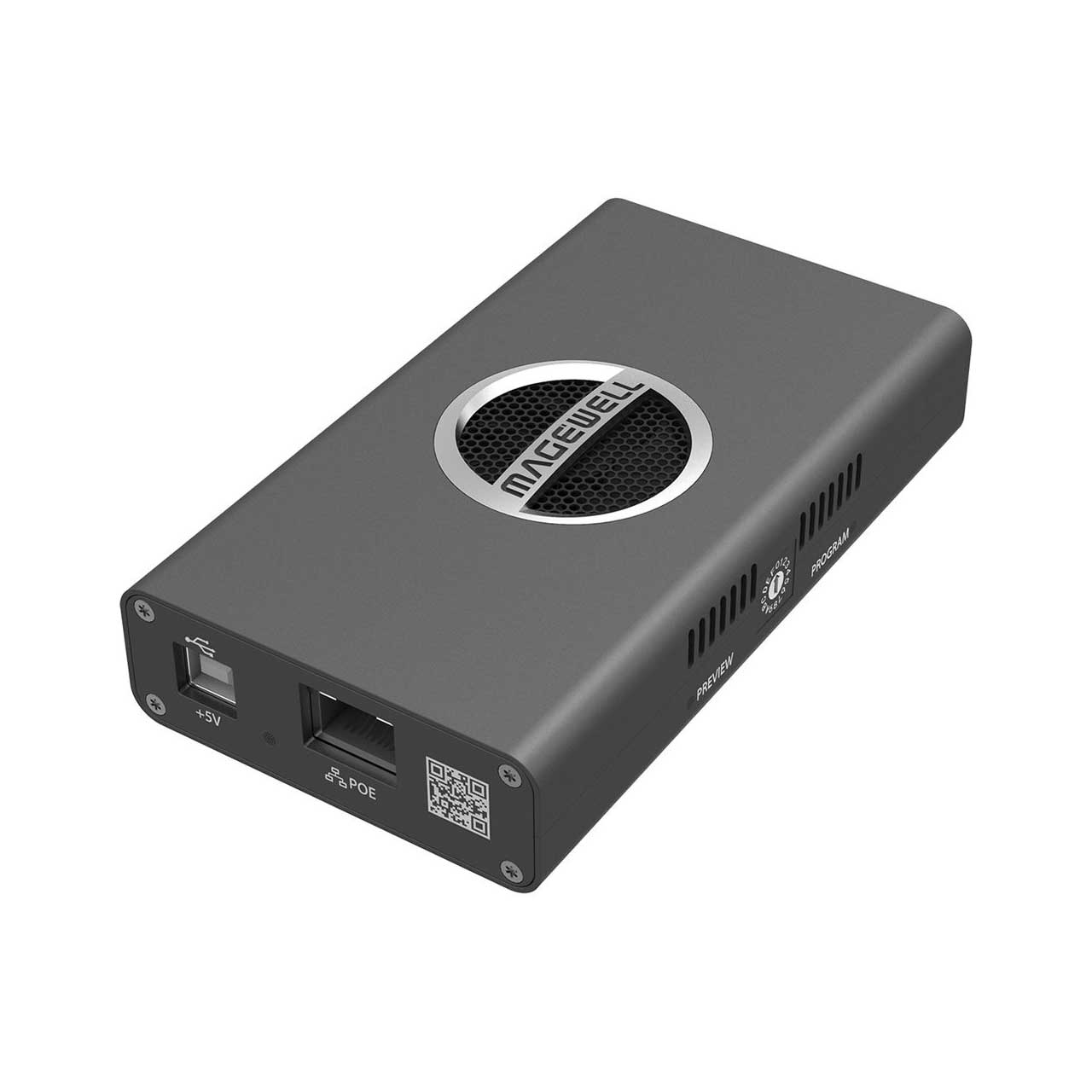

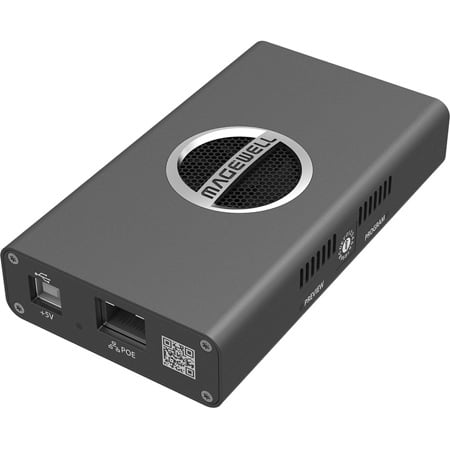

Magewell 64020 Pro Convert HDMI Plus HDMI to NDI Converter

64020 - Overview

64020 - Overview

64020 - Details

• Features:

  • Convert one channel of HDMI signal with embedded audio to NDI® stream
  • Loop-through one channel of HDMI signal with embedded audio
  • 297MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio InfoFrames
  • Full colorimetry support
  • Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
  • Support for 8 channel IEC60958 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.


• Specifications:

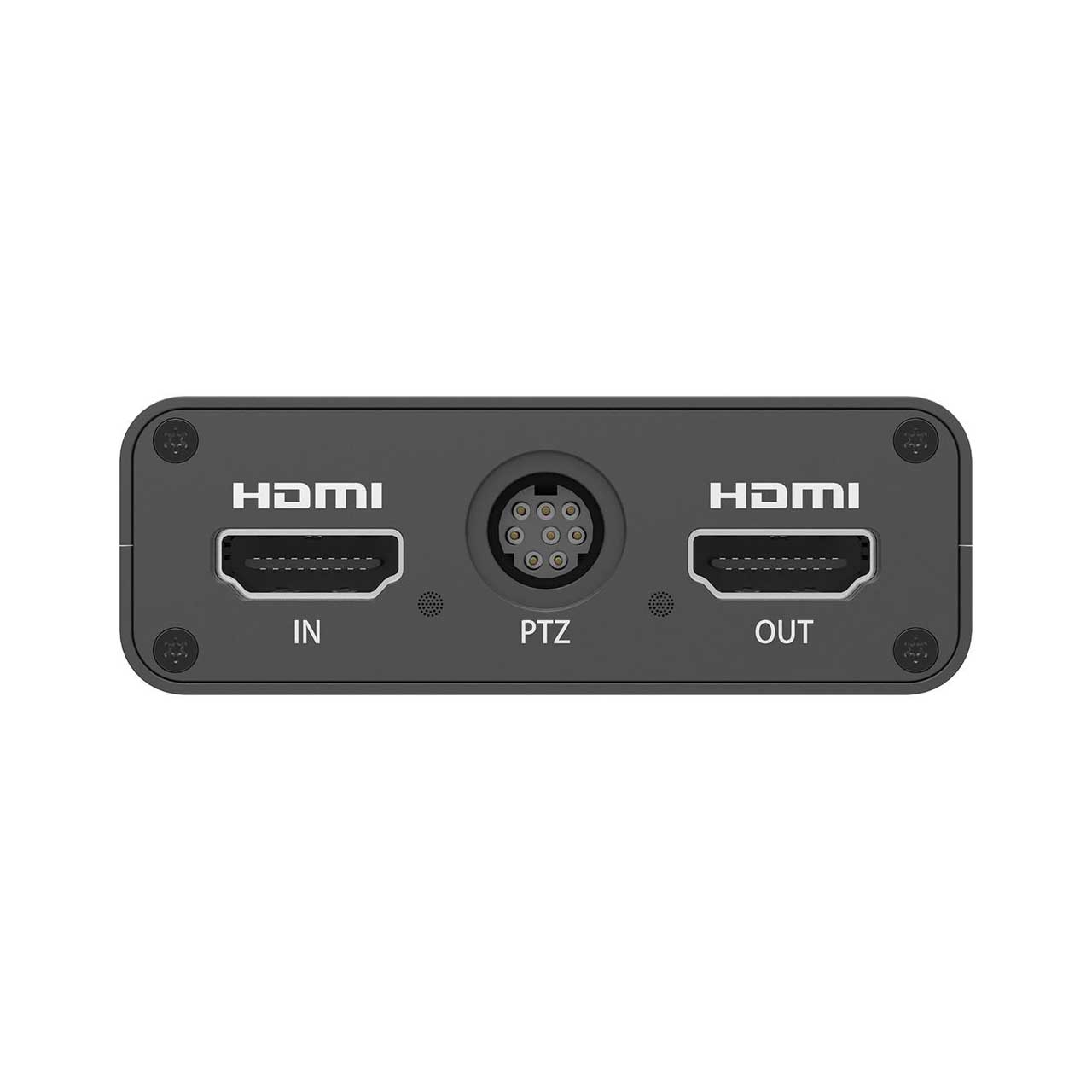

  • Input interface: HDMI x1 Support up to 4K60 4:2:0
  • Loop-through Interface: HDMI x1 Support up to 4K60 4:2:0
  • USB Interface: USB 2.0 for power and data transfer
  • Network Interface: 10/100/1000 Mbps Ethernet Support IEEE 802.3af PoE
  • Power Interface: DC+5V
  • PTZ Interface: Mini-DIN-8
  • NDI Encoding: Up to 1080p60
  • Firmware: Upgradable firmware
  • Operating temperature: 0 to 45 °C
  • Storage temperature: -20 to 70 °:C
  • Relative Humidity: 5% to 90% non-condensing
  • 5V max current: ~1.5A
  • Max power consumption: ~8W


• GTIN:

  8143950201157
