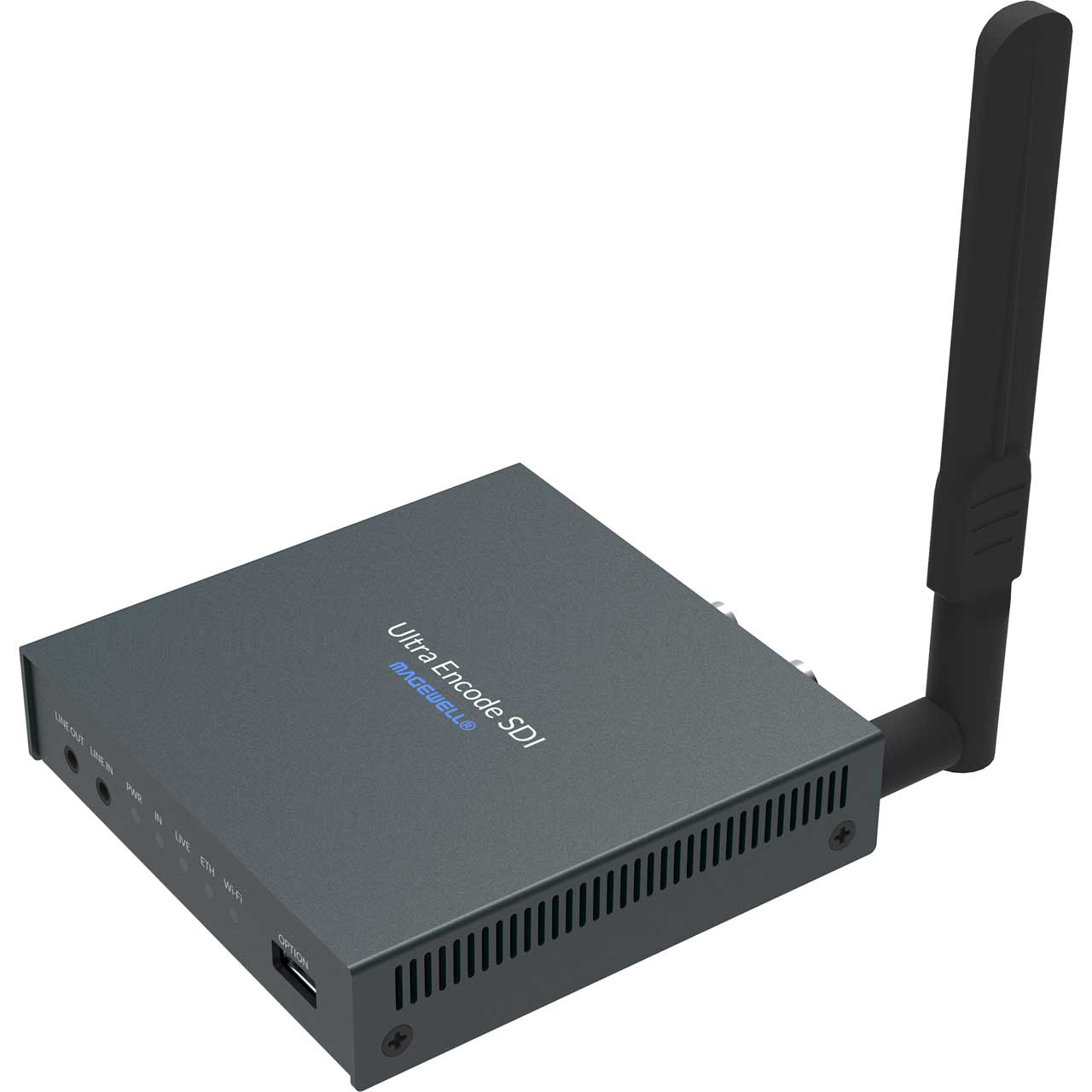

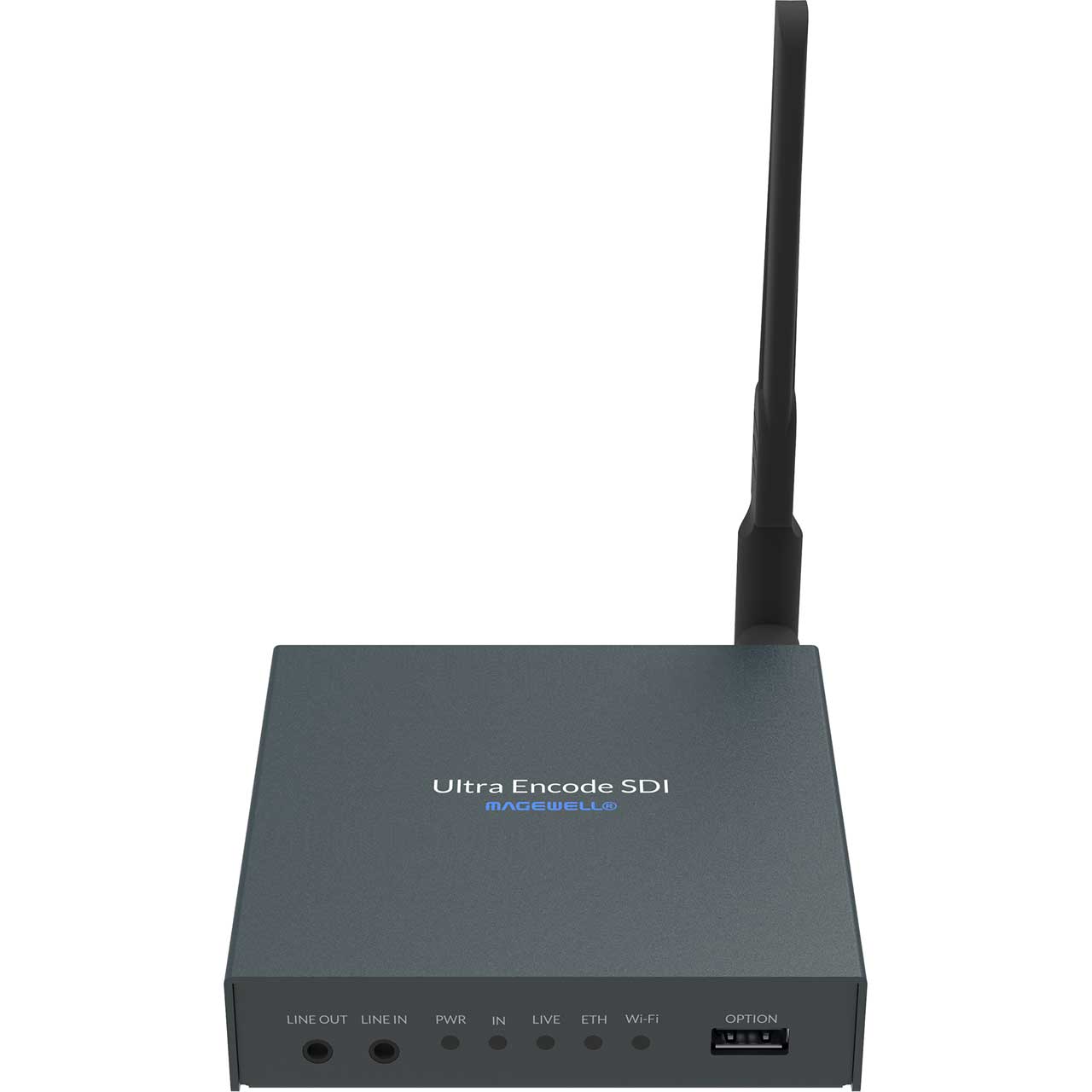

Magewell 53050 Ultra Encode SDI Streaming Encoder

ITEM #: MGW-53050 MFG #: 53050

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Availability: Sold Out
iAvailability Description Popup

    53050 - Overview

    Magewell Ultra Encode family of universal live media encoders offers systems integrator, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. Available in HDMI and SDI (53050) models, Ultra Encode supports high-quality H.264, H.265 (HEVC) and NDI |HX encoding and multiple streaming protocols with wired or wireless network connectivity.

    Encoder converts input signal to custom format, using H.264/H.265 video encoders and AAC audio encoder. It can push multiple streams to RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS(push)/TS over UDP/TS over RTP video servers simultaneously that you have access to.

    Encoder is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as your own site, with multiplatform distribution. To custom encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytic, and stream health monitoring are provided.
    Input Features
    Support for up to 2048x1080 60fps input and loopthrough signals
    Input & loopthrough 16-Channel SDI embedded audio
    Input audio from 3.5 mm LINE IN

    Encoding Features
    Dual stream encoding: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
    Support for H.264/HEVC video encoding
    Encoding 2-channel AAC at 48kHz, 16-bit

    Streaming Features
    Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
    Allow streaming to multiple destinations simultaneously (select protocols)

    Internet connectivity via wired Ethernet and wireless network
    Control via intuitive Web GUI or HTTP APIs

    • Features:

      • Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP streaming protocols
      • Dual code stream
      • Multi-streaming to various video platforms simultaneously
      • Video encoders - H.264 and H.265 (HEVC)
      • Audio encoder - AAC
      • Web UI - a network remote management - provides webpage configuration with kinds of customization for functions and devices.
    • Specifications:

      • Web UI Management
      • Provide comprehensive information regarding the system information of device and working status in real-time
      • Video thumbnail preview
      • Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
      • Update firmware
      • Export configuration profiles of the device
      • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
      • Provide HTTP APIs

        Network Interfaces
      • Wired Ethernet Network: 10/100/1000Mbps
      • Wi-Fi 802.11 a/b/g/n/ac
      • 3G/4G USB mobile broadband Modem (not included)

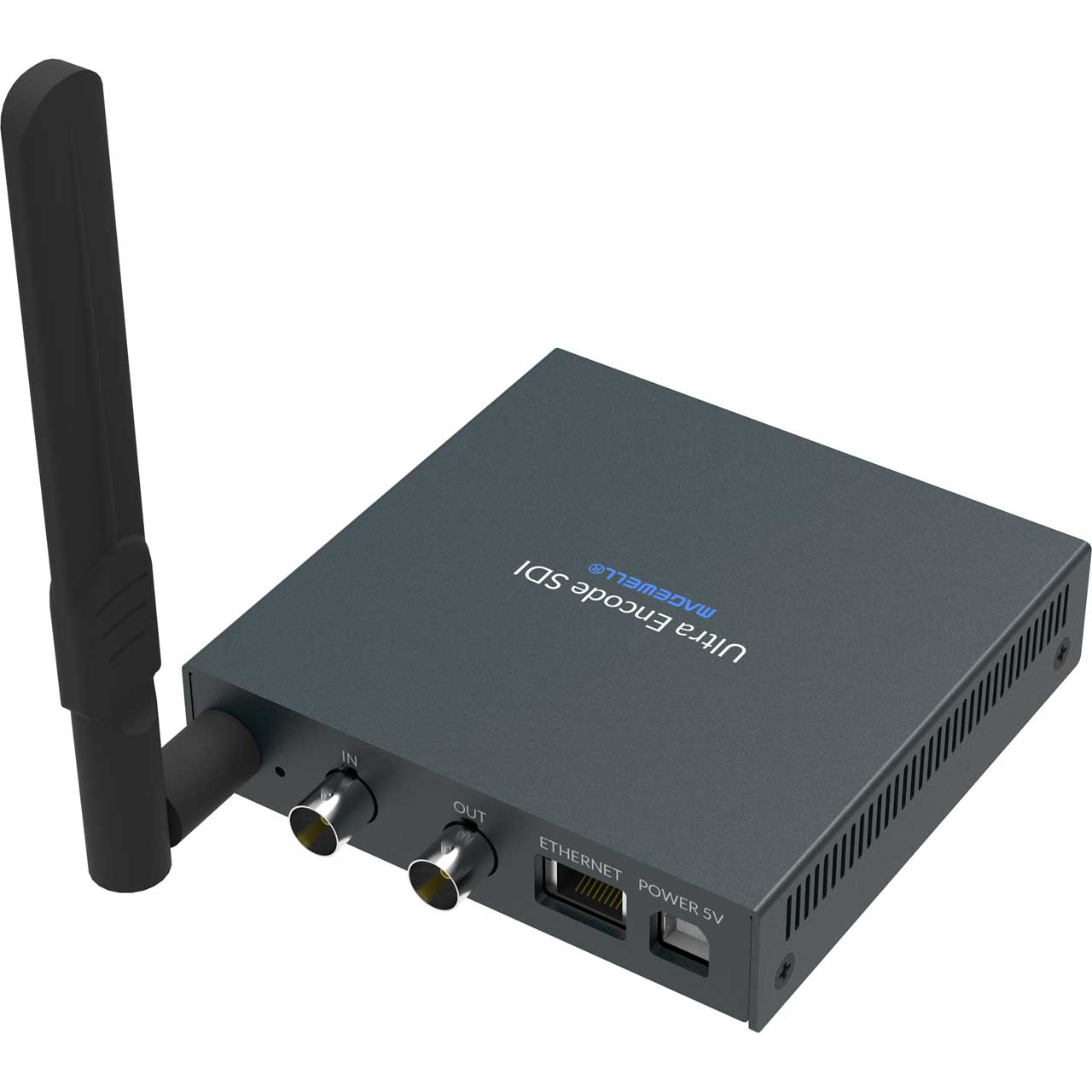

        Input/Output Interfaces
      • SD/HD/3G BNC input and loop-through interfaces
      • 3.5mm LINE IN
      • 3.5mm LINE OUT

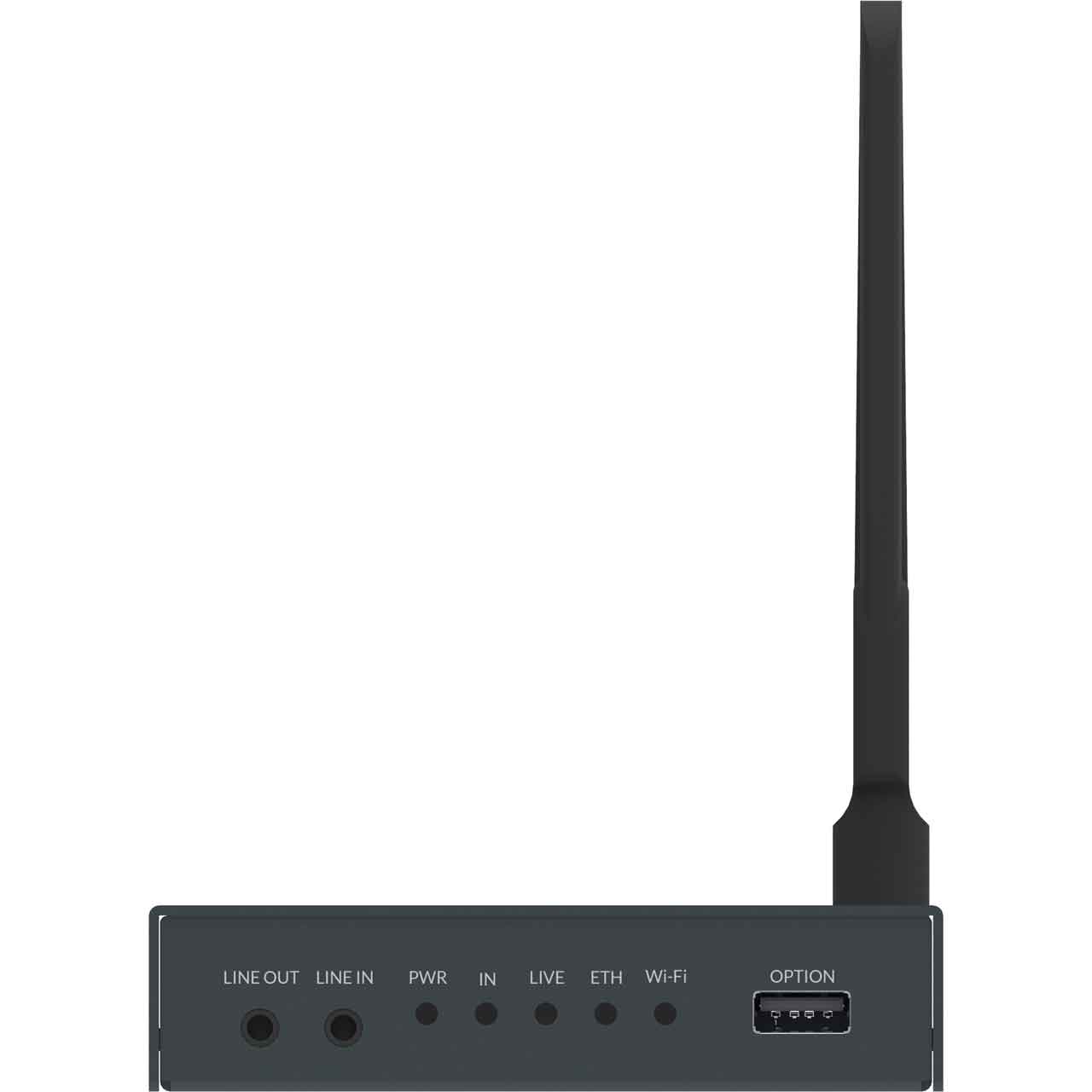

        LED Indicators
      • LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

      • Power Supply: DC 5V/2A
      • Max Power Consumption: ~7.6W

        Form Factor
      • 4.19 x 4.19 x 0.98" (106.6 x 106.2 x 25mm)

        Working Environment
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 158°F (-20 to 70°C)
      • Relative Humidity: 5 to 90% non-condensing
    • Item Includes:

      • 1x AC adapter
      • 1x Wi-Fi antenna
      • 1x USB 2.0 Type B cable
      • 1x T-bracket
