    MPA1-MIX-MADI-V - Overview

    TSL Products MPA1-MIX-MADI-V 1RU MADI Audio Mixing Monitor is specifically designed for use where operators need confidence monitoring of a MADI stream. With powerful user features accessible via the web UI, the MPA1 MADI is simple to use and flexible enough to meet specific and demanding workflow requirements.

    Built on years of global audio expertise, the powerful and intuitive MPA1-MIX-MADI-V presents users with instant 'at a glance' monitoring of 64 MADI audio channels.

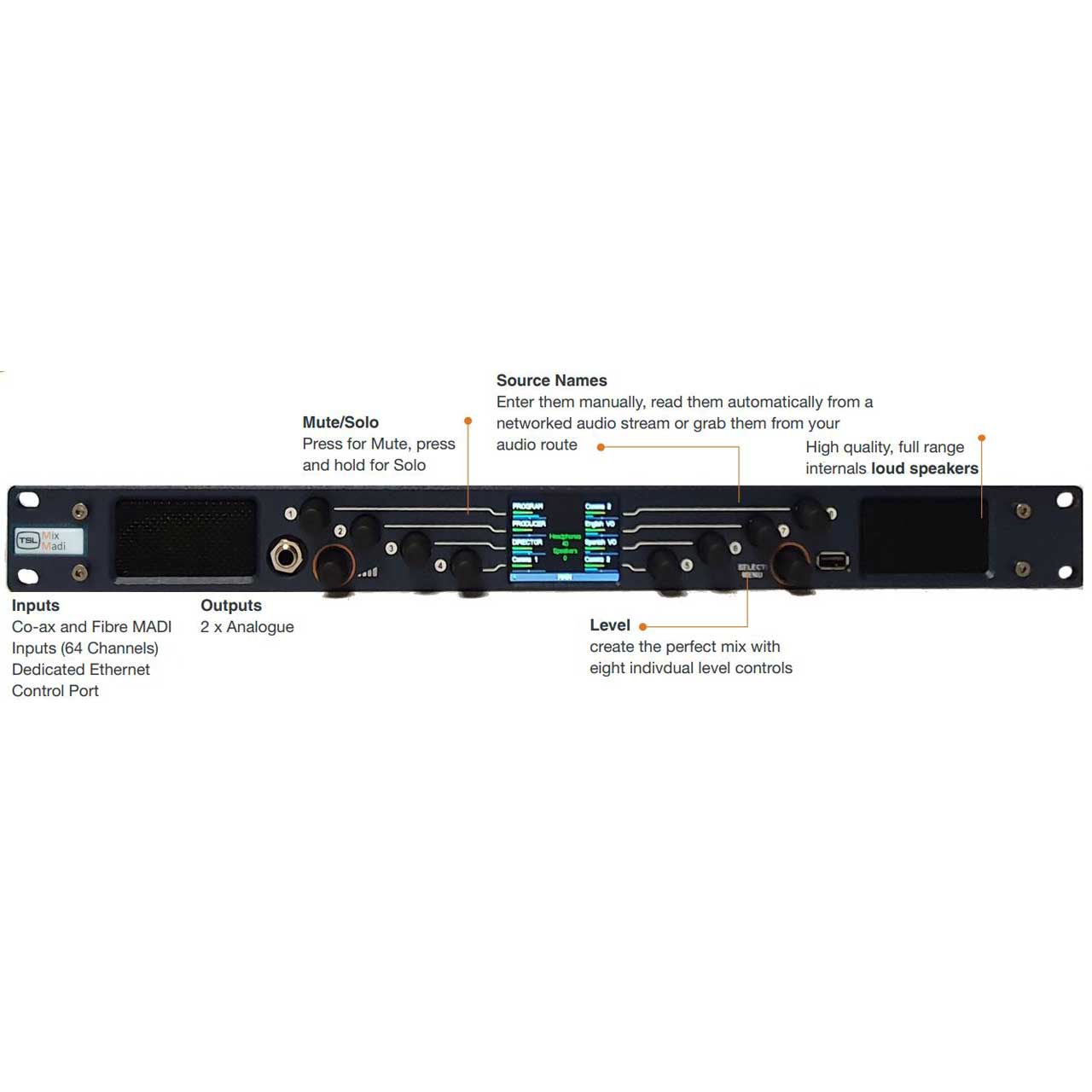

    With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix. With a total of 64 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function.

    As a member of the MPA1 range of audio monitors, the MPA1-MIX-MADI-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

    • Features:

      • High quality audio monitoring of 64 MADI audio channels
      • Fast and intuitive stereo monitor mixing of up to 8 MADI Sources
      • Audio level meter display of up to 8 audio pairs
      • Quick store and recall of up to 16 monitor mixes
      • Source Label and Monitor Mix Label display
      • High quality internal loudspeaker system
      • Headphone and External Loudspeaker monitoring Outputs.
      • Built in web server allows remote configuration, control and monitoring over an Ethernet network.
      • SNMP control allows for tight integration with TSL Tallyman and 3rd Party Control Systems
      • Free software updates

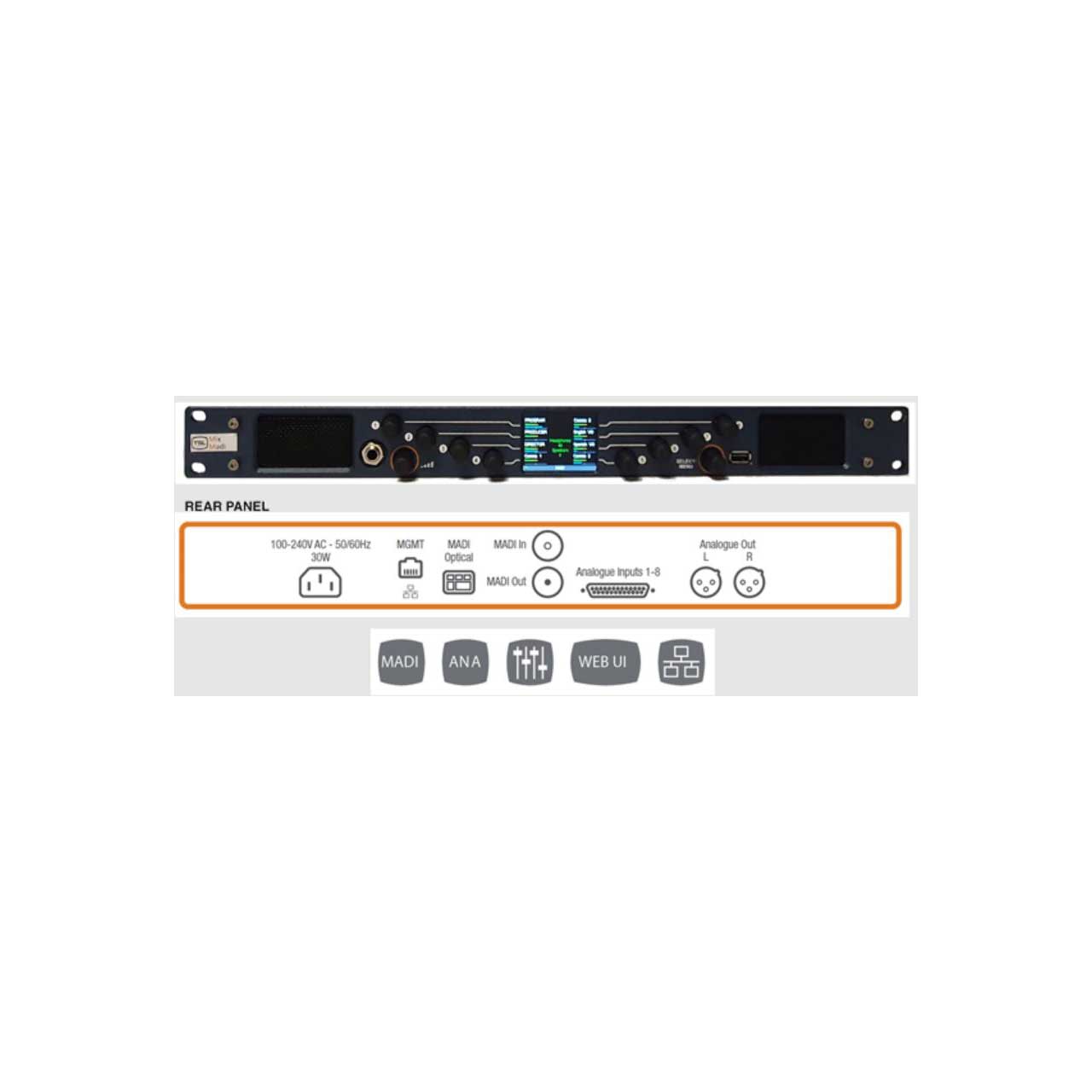

      • 1x Coaxial MADI Input (with loop through connection)
      • 1 x Optical MADI Input
      • 1x Balanced Analogue Output Pair
      • 1x 1/4 inch Headphone Output
      • 1x Front Panel USB
      • 1x RJ45 Ethernet control and monitoring port
      • 100-240V 50/60Hz mains input on IEC
    • Specifications:

      • Height: 1RU
      • Dimensions: 483mm x 45mm x 100mm
      • Weight: 1.4 kg
      • Display: Audio Metering
      • Audio Channels: 16
      • Signal To Noise Ratio: TBA
      • Peak Acoustic Output: 90dB @ 1foot
      • Frequency Response: TBA
      • Power: 85-264V ~ 50Hz/60Hz, 0.75A - 0.5A Max 30W
      • Unit Control: SNMP, Webpage
      • Inputs: 1 x MADI Coax, 1 x MADI Optical + 8 Balanced Analog
      • Balanced Analog Inputs: >60k Ohms
      • Balanced Analog Outputs: Fixed or Variable
      • SFP Cages: 1 x MADI Optical
      • Upgrades: Via USB
    • Item Includes:

      • 1x TSL Products MPA1-MIX-MADI-V 1RU 64 Channel MADI Audio Mixing Monitor - Optimized for use in Production Environments
