BZBGEAR BG-MR7001-HSU10X-5M Medical Computer Roll Cart/Stand w/ 10x PTZ Camera & Speakerphone for Enhanced Care - Type A

ITEM #: MR7001-HSU10X-5M MFG #: BG-MR7001-HSU10X-5M

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-MR7001-HSU10X-5M - Overview

The BZBGEAR BG-MR7001-HSU10X-5M Medical Cart Kit epitomizes an advanced and meticulously designed solution, precisely tailored to meet the distinctive requirements of healthcare professionals. This kit seamlessly integrates a versatile medical cart, the state-of-the-art BG-SMB-4M Speakerphone, and the high-performance BG-VPTZ-HSU3 Medical Camera.

Collectively, these components form a comprehensive telemedicine and communication solution for medical environments, encompassing essential features and capabilities. This kit not only enhances patient care but also facilitates seamless remote collaboration and provides robust support for medical education, marking a significant stride towards the future of healthcare practices.

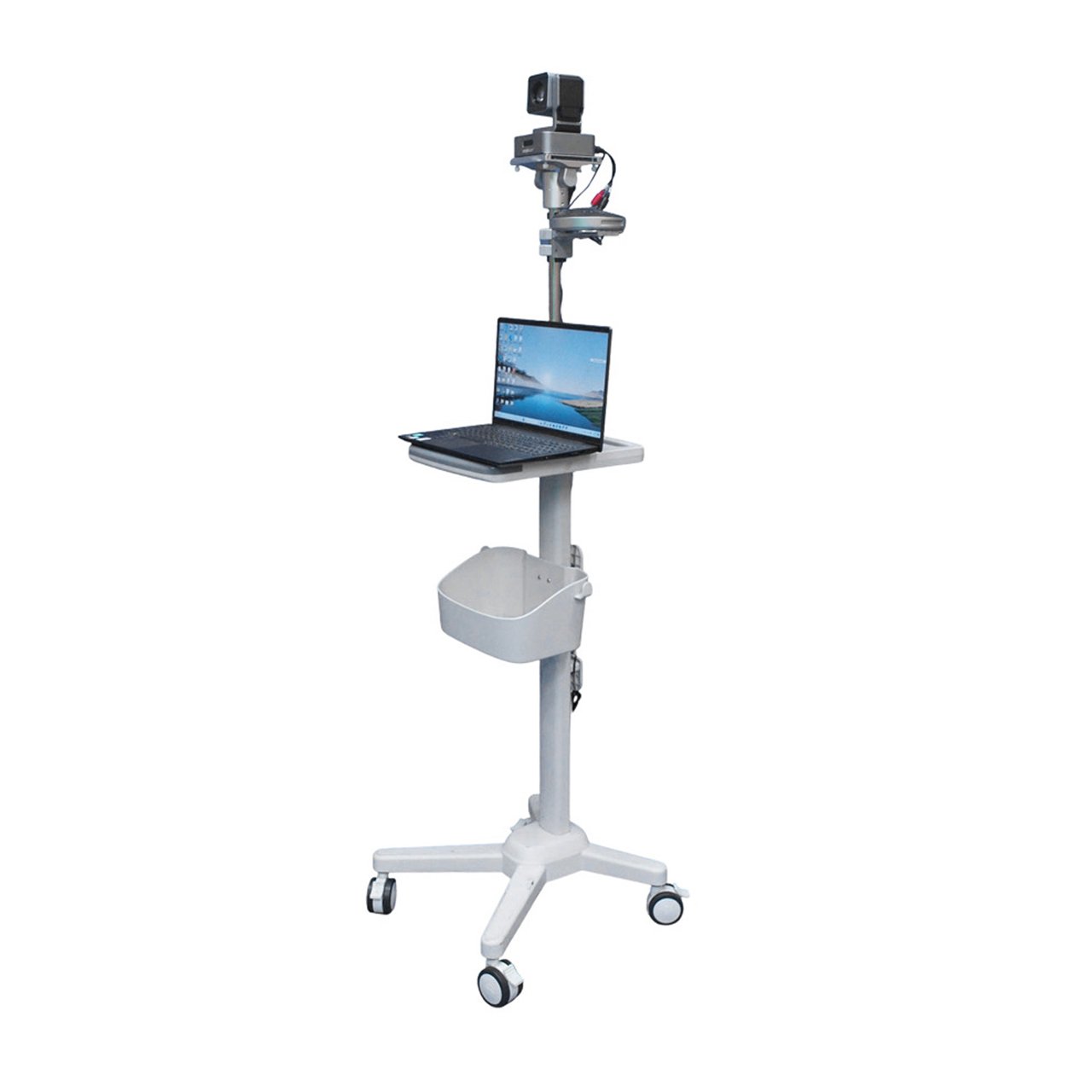

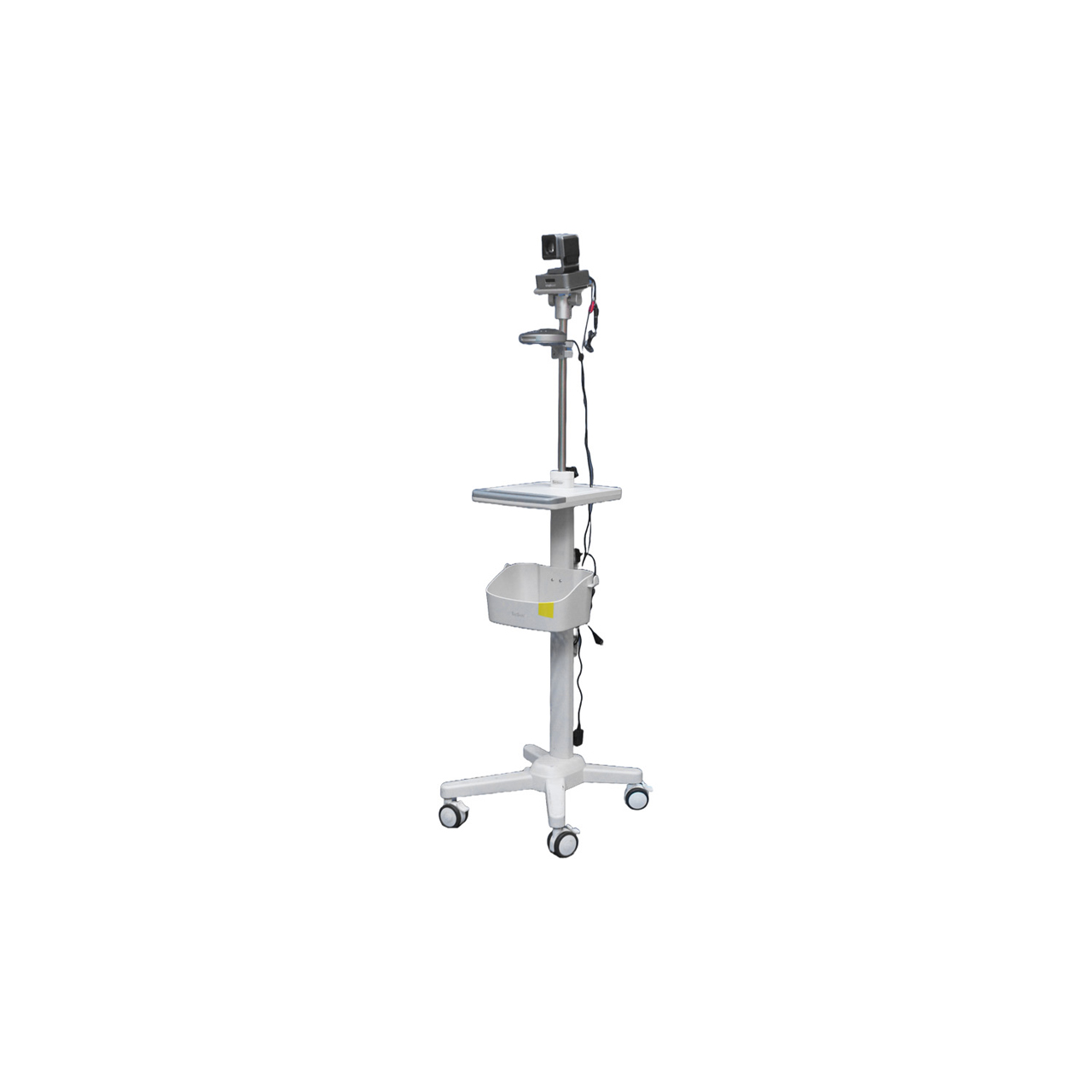

Medical Cart
The cart is equipped with a 5-wheel base for enhanced stability and mobility. The cart also has a 25-inch diameter, providing ample space for equipment and supplies. This includes a holder at the top of the pole for securely mounting medical cameras or other devices. The cart features a controller hanger for easy storage of medical equipment controllers. It comes with a convenient pull handle for ease of maneuverability. The pole at the top of the cart is adjustable, with a standard height range from 33 inches to 51 inches. Additionally, there is an optional extended pole available, allowing the cart to reach a maximum height of 82 inches when needed.

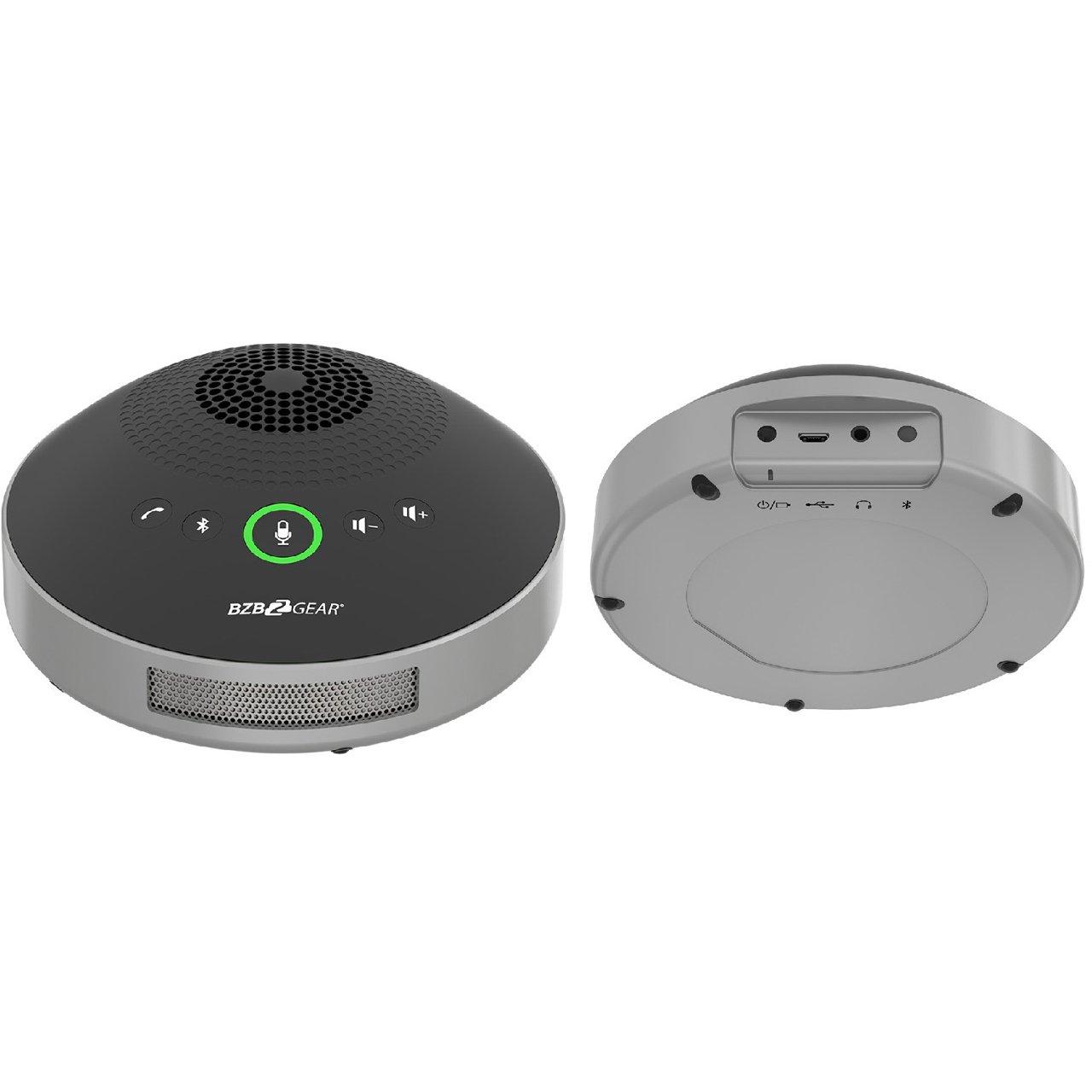

Speakerphone
This speakerphone provides a portable solution by seamlessly connecting to laptops, smartphones, and tablets through USB or Bluetooth. It features a rechargeable battery that offers up to 4 hours of on-the-go performance. The 3.5mm headset port adds flexibility, allowing a smooth transition from conference calls to private conversations. To enhance the audio experience, the speakerphone incorporates advanced features such as full-duplex echo cancellation, noise reduction, and ultra-wideband HD voice technology. These technologies work together to guarantee a crystal-clear audio experience, eliminating echoes and distortions. The speaker boasts impressive volume capabilities, reaching up to 85dB, making it suitable for various settings. Additionally, the inclusion of a line-out connection ensures optimal sound output when higher volume levels are required.

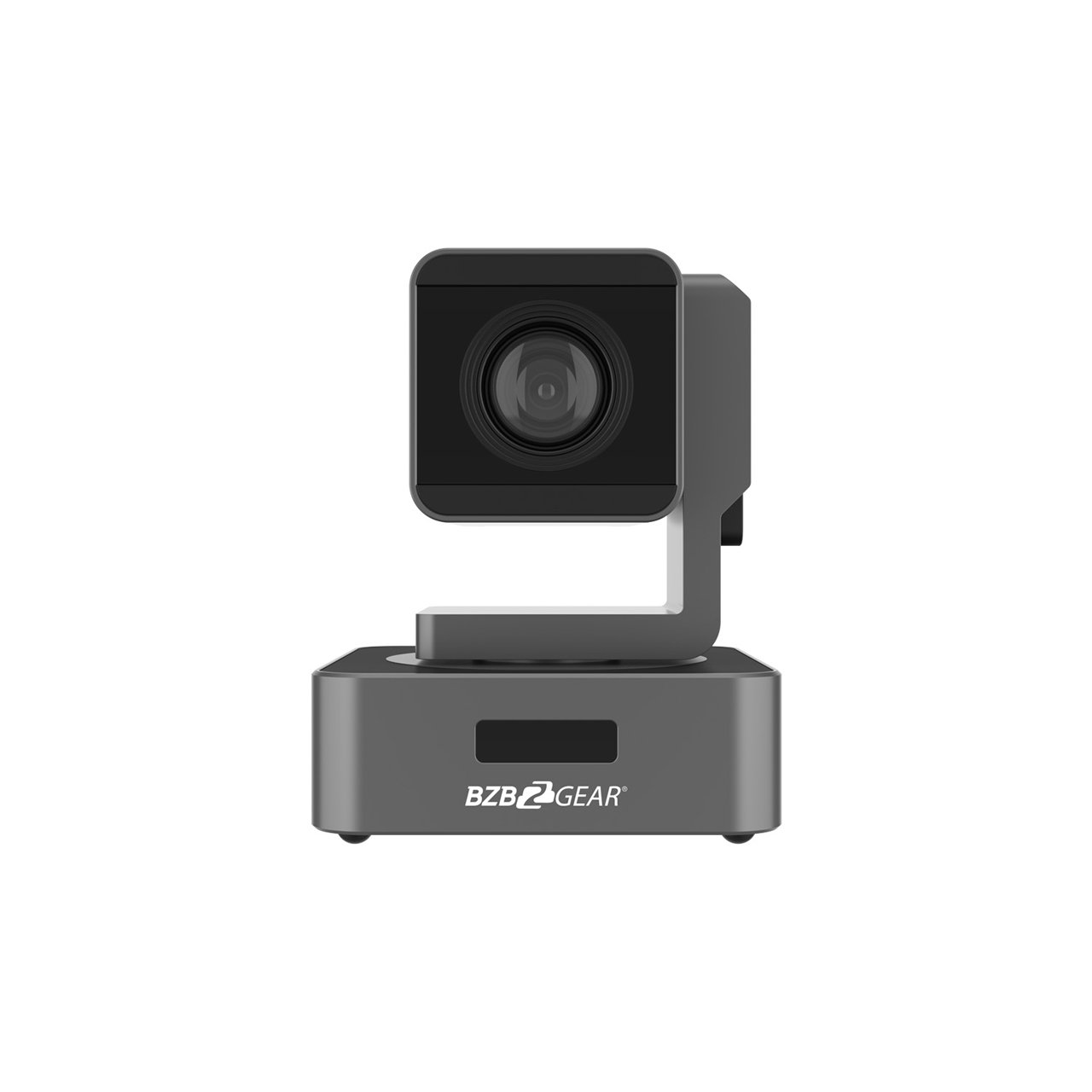

Camera
The camera can capture images at resolutions up to 1080p@60Hz, ensuring high-quality visuals. This is especially important in a medical setting where clear and detailed images are crucial for accurate diagnosis and communication. The camera offers simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This versatility allows it to seamlessly integrate with various equipment and software commonly found on medical carts, such as monitors and recording devices. The 3.5mm audio input jack allows for audio to be embedded directly into the video stream. In a medical context, this can be valuable for capturing and transmitting audio from medical procedures, discussions, or patient interactions along with the video. The camera supports H.264 and H.265 video compression formats and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols. This makes it compatible with a wide range of streaming and recording platforms used in healthcare, facilitating remote consultations, telemedicine, and medical education. The camera can be controlled using various protocols, including RS-232, RS-485, LAN, or IR remote control. This flexibility allows medical professionals to adjust the camera’s position and settings easily, ensuring optimal viewing angles during medical procedures or consultations.

  • Features:

    • Clear 1080p@60Hz video feed
    • Adjustable Medical Cart
    • Efficient Cable Management
    • Equipped with an Attachable Basket and Pull Handle
    • Secure Device Mounting
    • 360° Audio Pickup
    • RS-485/RS-232 VISCA/Pelco-P/D Control
    • HDMI, 3G-SDI, USB & IP Streaming Output
    • PoE Support

  • Specifications:

      Speakerphone Specifications
    • Dimensions: 5.6" x 5.6" x 1.7" (141mm x 141mm x 42mm)
    • Weight: 0.57 lbs (260g)
    • Voice Technical Parameters:
      - Acoustic Echo Cancellation (AEC): >65dB
      - Echo Length Cancellation: ≥500ms
      - Bidirectional Noise Compression (NC): <25dB
      - Automatic Direction Finding Technology of Intelligent Microphone (EMI)
      - Automatic Gain Control (AGC)
    • Audio Parameters:
      - Microphone Frequency Response: 100Hz-22KHz
      - Speaker Frequency Response: 100Hz-22KHz
      - Speaker Volume: 95dB at the most
      - Microphone sound-pickup diameter: 4m, 360 degrees full range
    • Interface: Bluetooth/USB interface, 3.5mm audio output
    • Power Supply: USB power supply (5V/500m)
    • Computer Environment: Windows, Mac OSX, Android
    • Operating Environment: Operational environment: 32-104°F (0-40°C)

      Camera Specifications
    • Dimensions: 4.7" x 5.7" x 4.7" (120mm x 145mm x 120mm)
    • Weight: 3.5lbs (1.6kg)

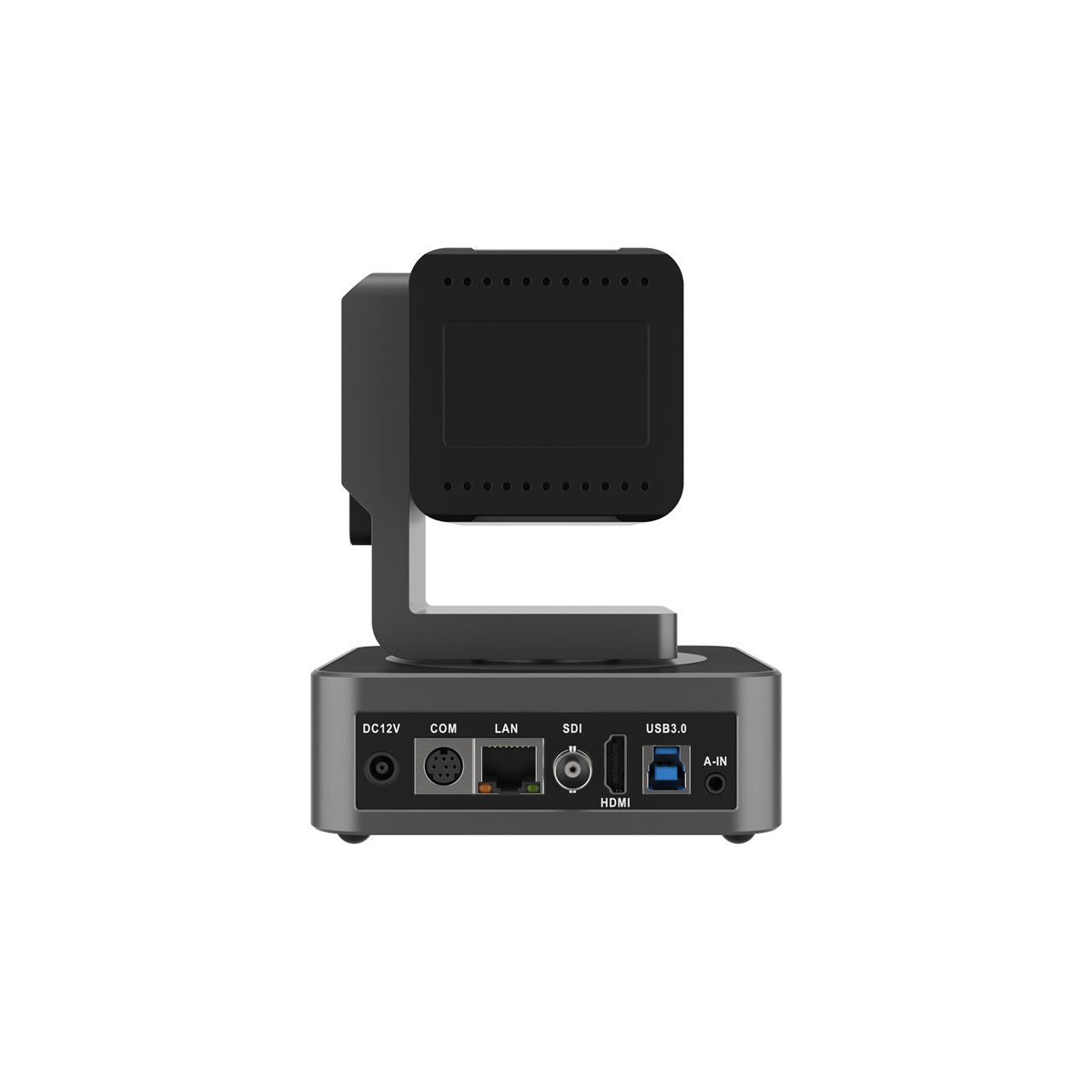

    • Video I/O:
      - 1x HDMI (Unspecified Signal) Output
      - 1x BNC (3G-SDI) Output
      - 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
    • Audio I/O:
      - 1x 1/8" (3.5mm) TRS Stereo Line Input
    • Other I/O:
      - 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input
      - 1x RJ45 (LAN) Control Input/Output
    • Pan: 356° (-178 to 178°) at 0.1 to 180°/s
    • Tilt: 120° (-30 to 90°) at 0.1 to 120°/s
    • Image Sensor: 1/2.7"-Type CMOS
    • Focus Control: Autofocus and Manual Focus
    • Focal Length: 5.1mm to 51mm
    • Optical Zoom Ratio: 10x
    • Field of View: Horizontal: 72° to 2.9°
    • Maximum Aperture: f/1.6 to 2.8
    • Shutter Speed: 1/10000 to 1 Second
    • Minimum Illumination: 0.05 Lux
    • Flip/Mirror Support: Image Flip, Mirror (Vertical)
    • External Recording Modes:
      - 1920 x 1080p at 25/29.97/50/59.94 fps
      - 1920 x 1080i at 25/29.97/50/59.94 fps
      - 1280 x 720 at 25/29.97/50/59.94 fps
    • Embedded Audio: HDMI/SDI: 2-Channel

      Medical Cart Specifications
    • Load Capacity: 2.2lbs-17.6 lbs (1kg-8kg) as Standard
    • Trolley Size: 17.7" x 18.5" x 57.4" (450mm x 469mm x 1457mm)
    • Height: 41.1"-57.4" (1045mm-1457mm)
    • Drawer: 13.9" x 9.65" x 7.87" (352 x 245 x 200mm), load 4.41lbs (2kg)
    • Tablet: 11.8" x 15.7" (300mm x 400mm), load 4.41lbs (2kg)
    • Adjust Way: Manual lift
    • Material: Aluminum Alloy + Sheet Metal + ABS

  • Item Includes:

    • 1x BG-VPTZ-HSU3 Camera
    • 1x IR Remote Controller
    • 1x RS-232 to DB 9pin Cable
    • 1x 12V/ 2.0A DC Power Adapter
    • 1x User Manual for BG-VPTZ-HSU3 Camera
    • 1x BG-SMB-4M
    • 1x 1.8M USB Cable
    • 1x User Manual for BG-SMB-4M
    • 1x Display Holder
    • 1x Desktop
    • 2x Hooks
    • 1x Drawer
    • 1x Base
    • 1x Castor
    • 1x Pole

  • Warranty:

    • 5-Year Limited Warranty
