Matrix Switch MSC-2HD2408L 3G/HD/SD-SDI 24x8 2RU Routing Switcher -Button Ctrl

ITEM #: MSC-2HD2408L MFG #: MSC-2HD2408L

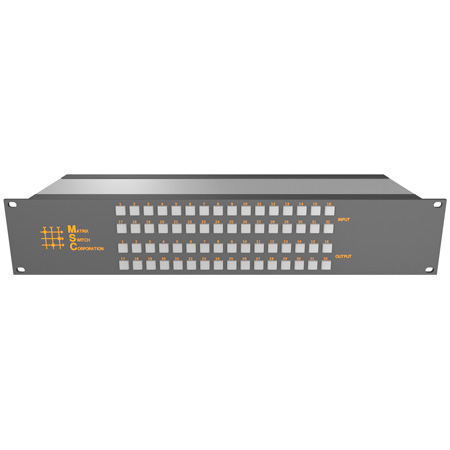

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-2HD2408L

MSC-2HD2408L - Overview

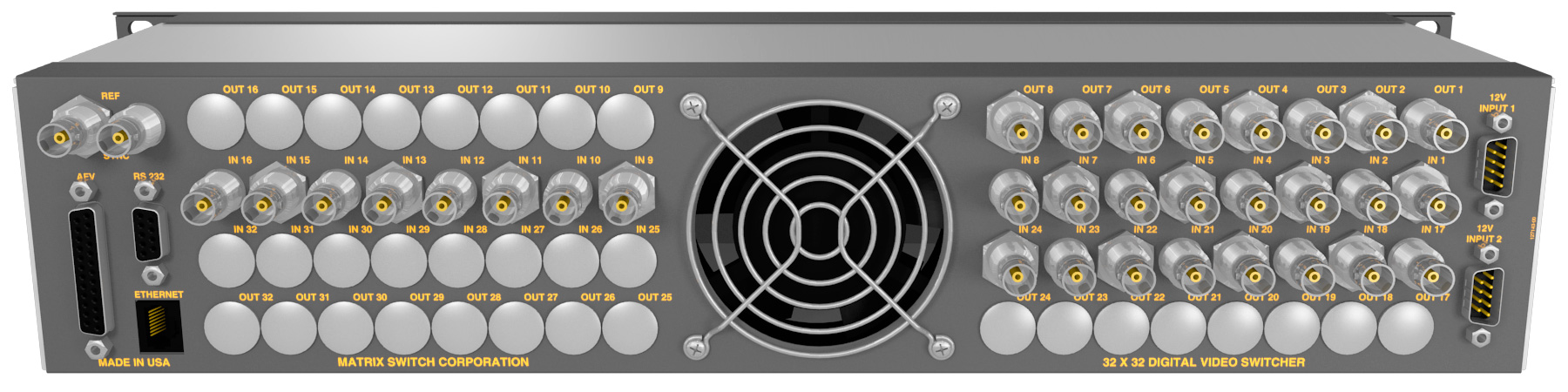

Matrix Switch Corporation 'Configurable 2RU SDI Video Routing Switchers' offer factory configurable matrix size configurations in input OR output increments of 8 up to 32x32 for a total of 12 different sizes. These systems are 2RU in height and less than 7 inches deep, allowing for installation in space and weight limited situations.

An extra audio option provides audio routing capabilities in addition to the included embedded SDI audio routing support. This option is ordered as a separate 2RU device connected via a D25 straight through male to male cable. Either AES digital (MSC-DE3232) or analog stereo audio (MSC-AA3232) can be chosen.

Forced air cooling ensures low internal temperatures for long service life in the most harsh environments and a redundant power supply is also included for added reliability.

The choice of a button control panel or status only panel provides an additional savings opportunity for applications that utilize a remote control panel or are only controlled via the webpage interface, telnet or RS-232 serial.

  • Features:

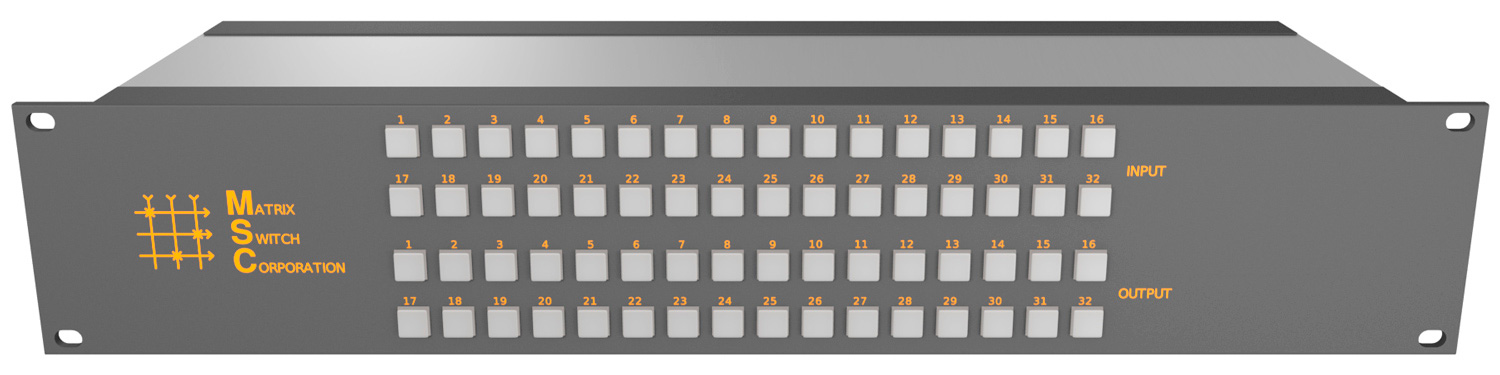

    • Button control panel interface
    • Redundant power supply included
    • Interactive web page interface
    • Vertical interval switching
    • Video mute on every output
    • Store and recall up to 10 presets (complete or partial matrix state recall)
    • Passes SDI embedded audio and ancillary data
    • Compact design - 2RU less than 7 inches deep
    • Software updates via Ethernet port
    • Backed by a full 2 year manufacturer parts and labor warranty
    • Flexible control via a text based protocol (MASCOT) over TCP/IP port, RS-232 serial or web page interface
    • Compatible with Matrix Switch Corporation TCP/IP Remote Panels
    • Optional additional 75 ohm AES digital audio (separate unit MSC-DE3232 connected via D25 AFV connector)
    • Optional additional balanced analog stereo audio (separate unit MSC-AA3232 connected via D25 AFV connector)

  • Specifications:

    • Specifications
    • Size: 19"W x 3.5"H x 7"D
    • Weight: 8 lbs
    • Power: 12 VDC
    • Storage Temp: -10 Through +50 Deg C
    • Operating Temp: 0 Through +40 Deg C
    • Humidity: 0 Through 90% Non-Condensing
    • Warranty: 2 Years Parts & Labor
    • SDI Video
    • Connector type: BNC
    • Data Types: SMPTE 259/292/424
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
    • Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Level: 800 mV P-P +/- 20%
    • Input Impedance: 75 Ohms +/- 1%
    • Cable equalization (1694A coax): 350m @ SD, 175m @ HD, 100m @ 3G
    • Output Level: 800 mV P-P +/- 5%
    • Output Impedance: 75 Ohms +/- 1%
    • Output Jitter: < 0.2 UI
    • Reference Signal
    • Connector: Analog BNC with pass-through
    • Format: NTSC, PAL and Tri-level sync
    • Control Specifications
    • Serial RS232: 9600 Baud 8N1
    • Ethernet: 10 BaseT TCP/IP
    • Panel control: Local and remote button control panel options


MSC-2HD2408L - Required Accessories
