Ocean Matrix HDBaseT 4K HDMI & USB KVM Extender with Two-Way IR & RS232 - Transmitter & Receiver Kit

ITEM #: MTK-OMXHDBT-01 MFG #: MTK-OMXHDBT-01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$395.00

Our Price:

$315.00

Availability: In Stock
iAvailability Description Popup


    MTK-OMXHDBT-01 - Overview

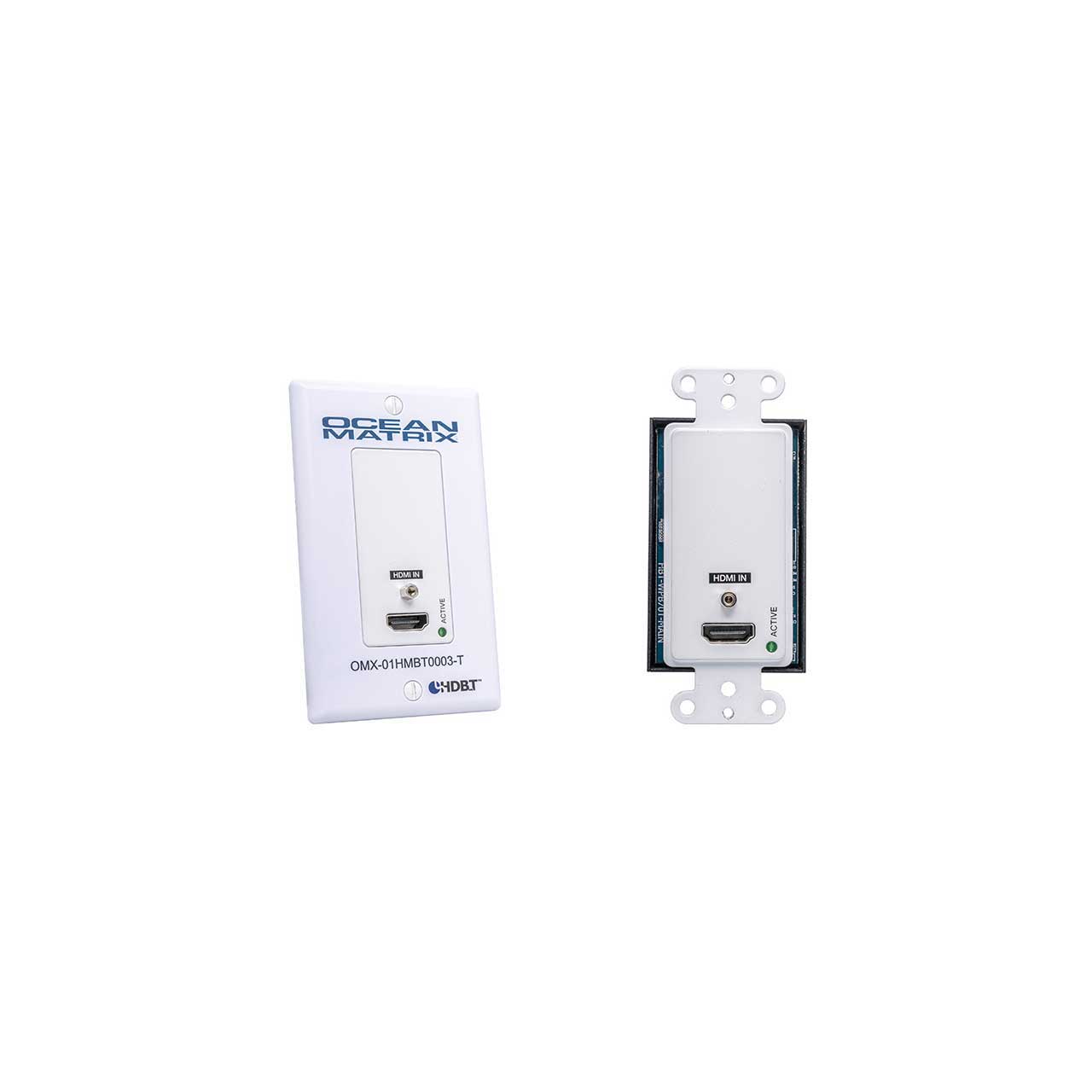

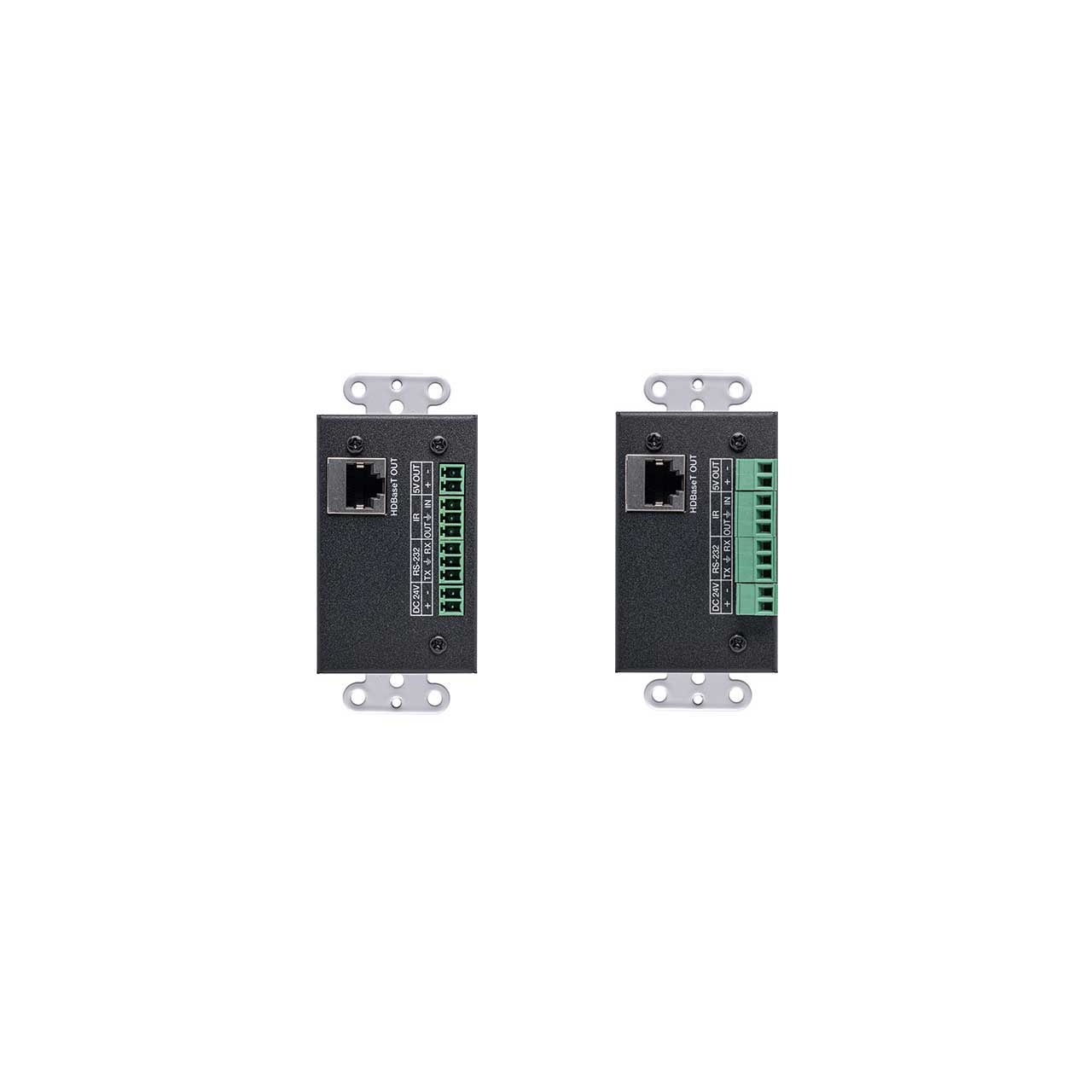

    This kit combines the Ocean Matrix 01HMBT0003-R and 01HMBT0003-T to create a complete 4K HDMI, USB KVM via HDBaseT transmitter and receiver kit. The Ocean Matrix 01HMBT0003-T comes as a wall plate form factor making it a perfect fit for live event projection systems, conference rooms or any space where a camera, laptop or portable media player is used as a video source.

    This kit meets the standards for 4K video and HD audio transmission over a single Ethernet CAT6/6A cable up to 131 feet. Supporting video resolutions up to 4K2K@60Hz(4:4:4), this extender set delivers two-way IR, RS232 control, and two-way 24V PoC making system installation easier and allowing for streamlined setups.

    • Features:

      • USB/KVM Functionality & CEC Enabled
      • Extends Two-Way IR & RS232 Pass Through
      • Video Resolutions up to 4K2K@60Hz YUV4:4:4
      • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
      • Up to 7.1 Channels HD Audio
      • Two-Way 24V PoC
      • Rugged Black Powder-Coated Metal Enclosure
      • CE, FCC Certified

    • Specifications:

      • Compliance: HDMI 2.0b, HDCP2.2, HDCP 1.4
      • Video Bandwidth: 18Gbps
      • Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,1080P 3D@60Hz
      • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
      • Color Depth: 10-bit, 12-bit
      • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Power Consumption: 7.5W
      • Dimensions(HxWxD): 0.8 x 6.8 x 3.8 in
      • Weight: 0.92 lb

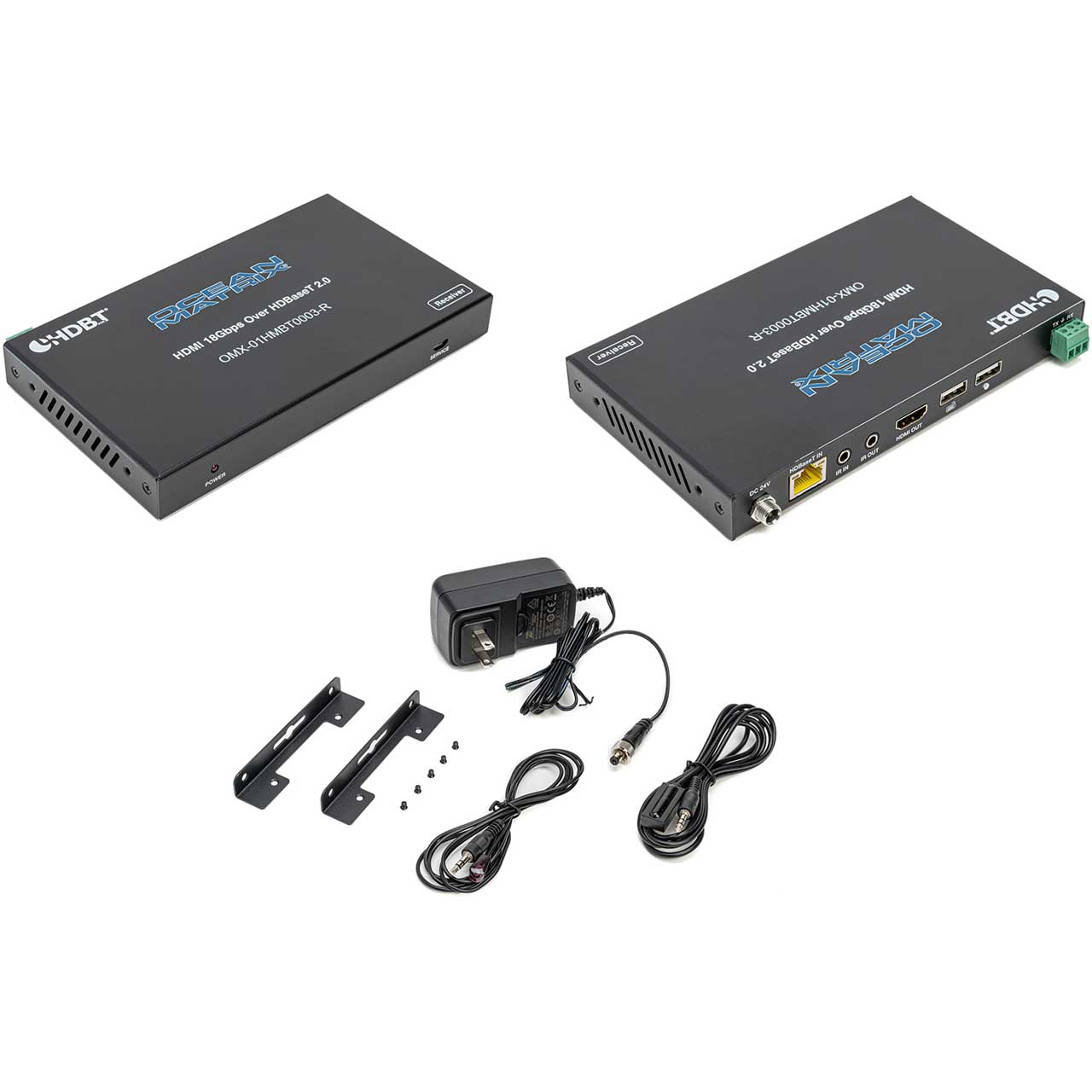

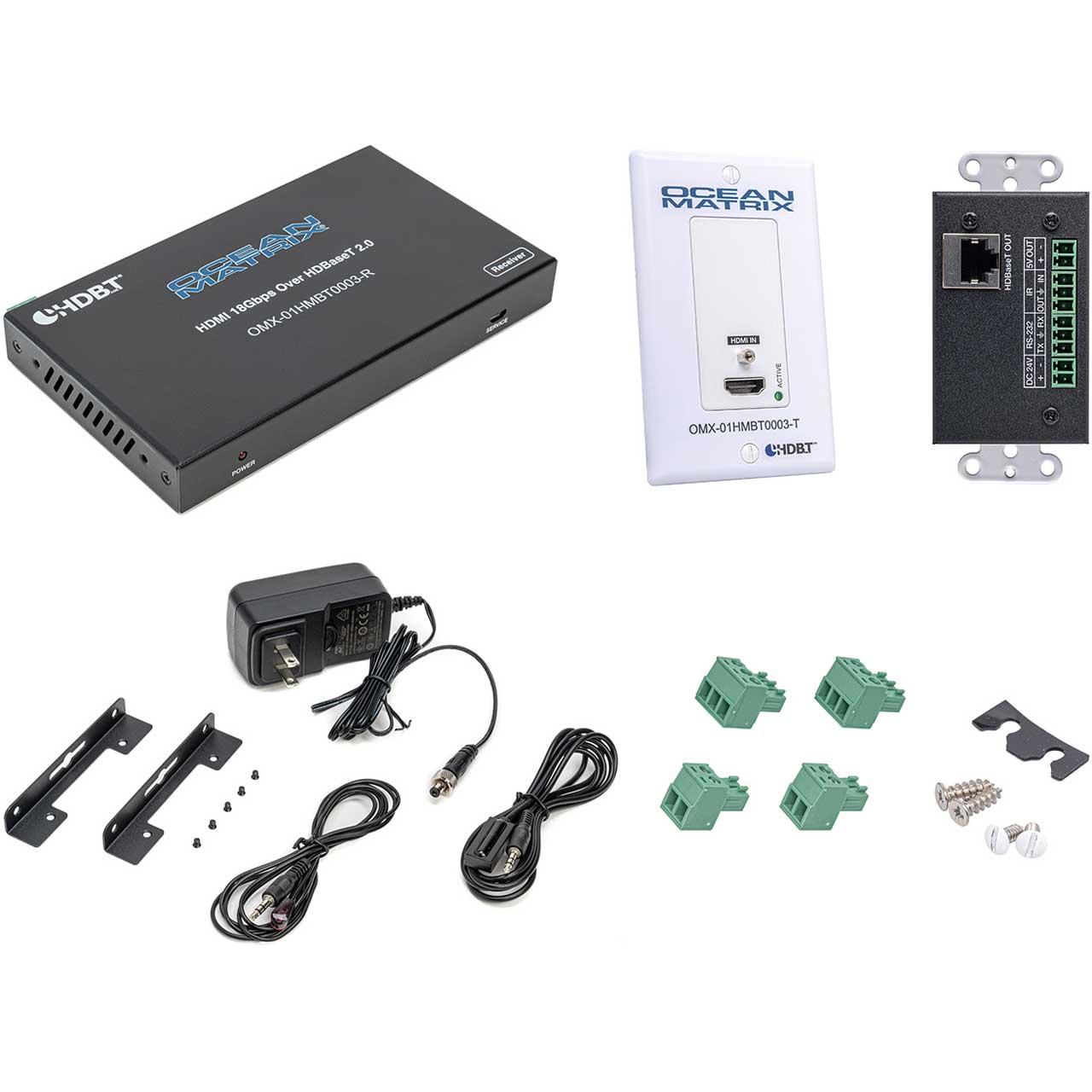

    • Item Includes:

      • HDBaseT Transmitter
      • HDBaseT Receiver
      • Mounting Ears

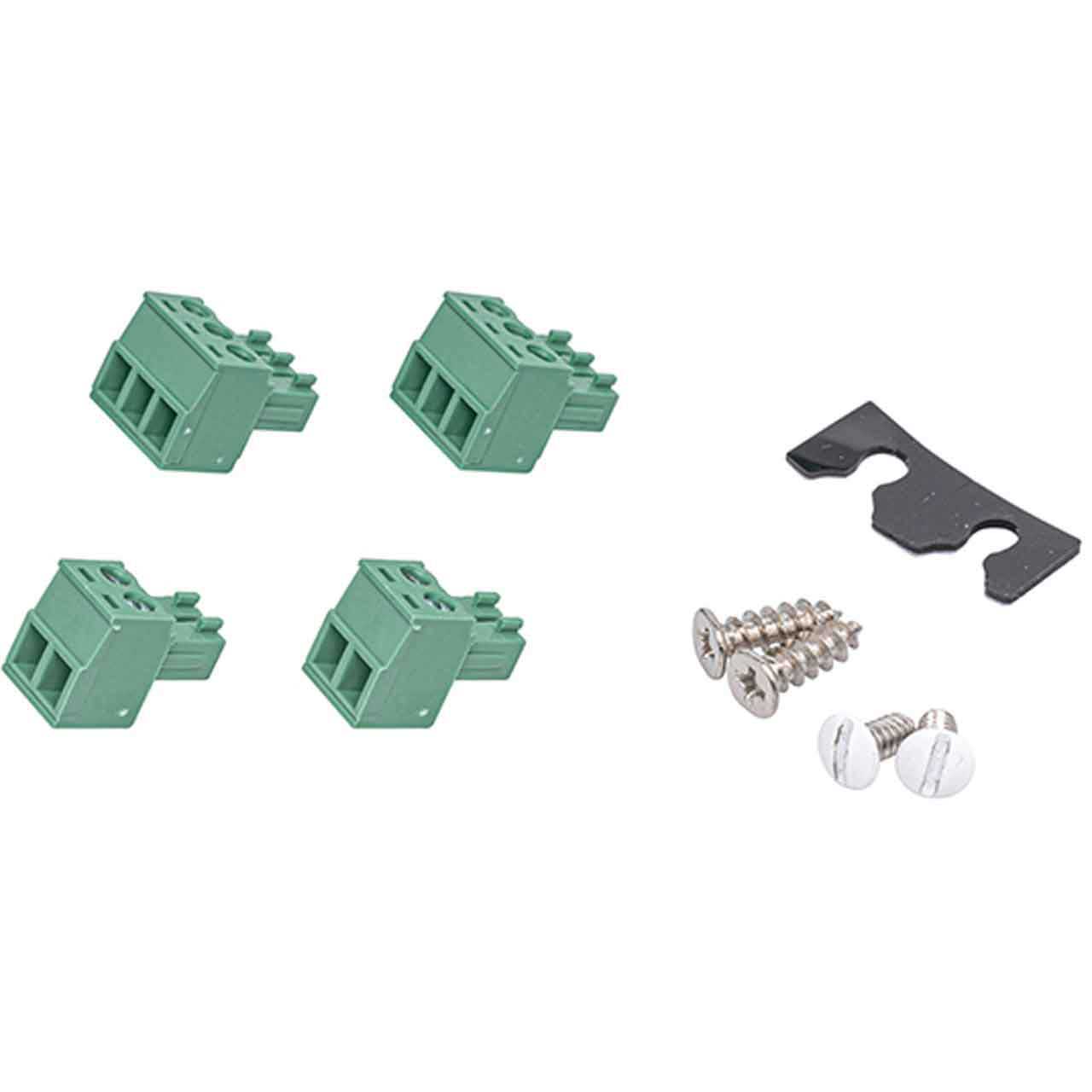

      • RS232 Connectors
      • 24V/1A Power Supplies

    • Warranty:

      • 1 Year
