    MONARCH LCS - Overview

    IT administrators will find this reliable, standalone network appliance simple to set up and integrate into any open Video Management System (VMS) or Lecture Management System (LMS). Monarch LCS lets you easily define profiles for live streamed and recorded lectures by mixing camera and presentation material from SDI and HDMI sources. Once configured, this versatile H.264 encoding appliance can be operated by anyone at the push of a button. And it won't break your budget!

    Variety of Operating Modes
    Complex recording equipment is no longer required to effectively capture presentations in lecture halls. A typical setup would consist of video and audio of the presenter and a computer source with supporting material which can be mixed into a single webcast. The operator can select a number of operating modes that include layouts such as Picture-in-picture and Side-by-side. If the operator prefers to dynamically change the inputs throughout the lecture, the Monarch LCS also offers Switcher mode. With very little set up time, the Monarch LCS can be configured to capture and deliver content such as presentations and seminars in many appealing layouts.
    View Dual-Input Modes of Operation

    Viewer Defined Layouts
    Keep your audience fully engaged by putting the control in their hands. In Isolated mode, the appliance provides two independent video files or streams. This feature, when used with a compatible 3rd party player, enables the viewer to select their preferred layout. The synchronized streaming or recording of Monarch LCS' dual inputs are invaluable when such players are used. By aligning video inputs, the viewer can seamlessly switch to their preferred layout while maintaining perfectly synced audio and video.

    Easy to Operate
    Matrox Monarch LCS can be controlled and configured via the Monarch LCS Command Center using any device on the network that supports a standard web browsing application such as a tablet. The interface is designed for operator ease-of-use and features one-click operation to start encoding from anywhere within the user interface. A number of typical streaming and recording presets are provided that define all of the encoding parameters, including resolution and bitrate. Encoding parameters can be customized and combined with destination and operating mode settings and saved as a unique profile. If the device must be accessed by different users, profiles can be instantly recalled without having to re-enter data.

    • Specifications:

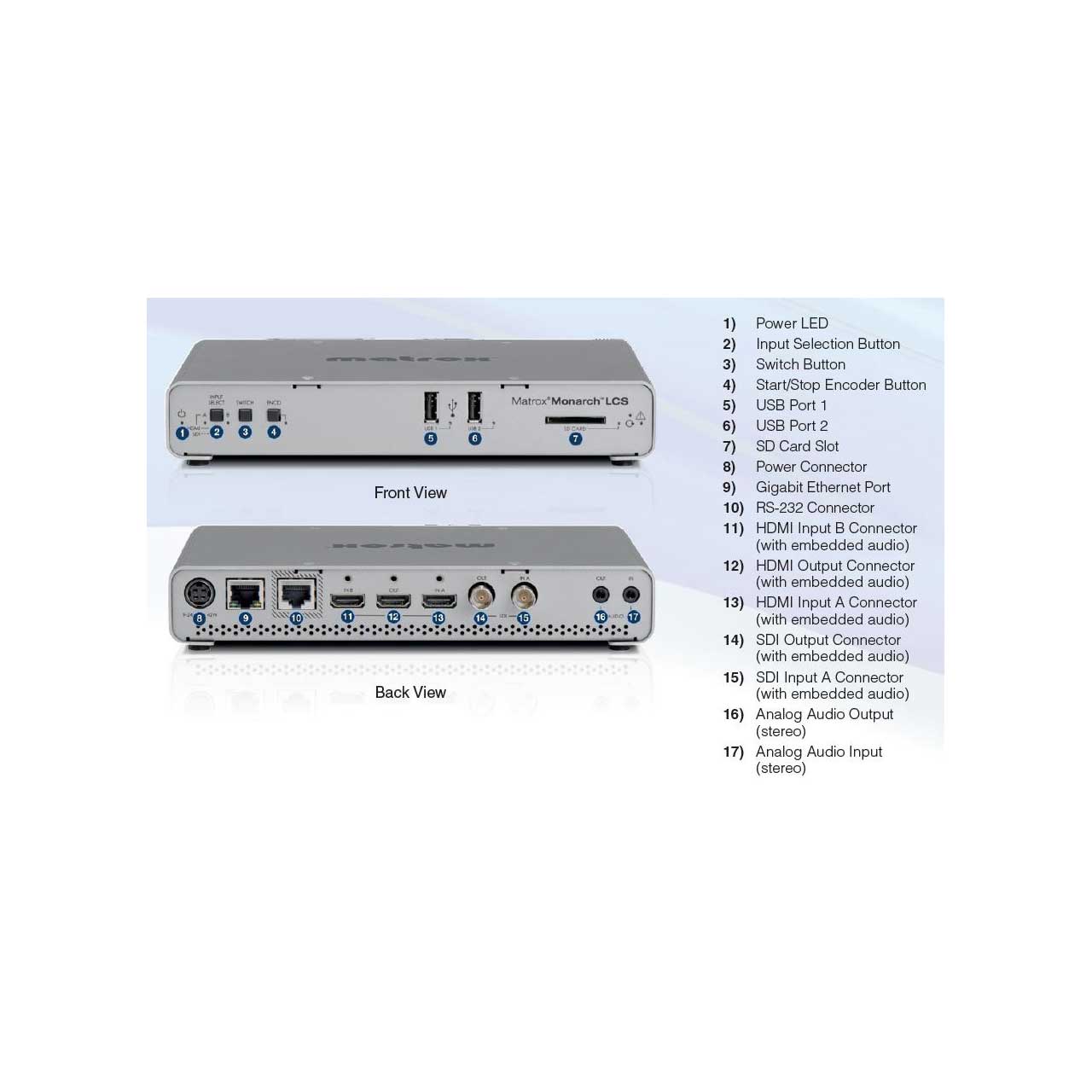

      • Inputs and Outputs
      • Supported HDMI Video Input 1 (Video Sources)
      • Progressive
      • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
      • 1280x720 @ 60/59.94/50 Frames per second
      • Interlaced
      • 1920x1080i 29.97/25 Frames per second
      • Supported HDMI Video Input 2 (Computer Sources)
      • Progressive
      • 1920x1080 @ 60/50 Frames per second
      • 1280x720 @ 60/50 Frames per second
      • Interlaced
      • 1920x1080i 29.97/25 Frames per second
      • HDMI Video Output
      • Preview output of video input signals. Preview output can be mapped from either SDI or HDMI input sources.
      • Note that when input is an SD resolution, the HDMI preview output will show video window-boxed on an HD output.
      • When HDMI output is set to Preview Mode, refer to the manual for a complete description of behavior.
      • Supported SDI Video Input
      • Progressive
      • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
      • 1280x720 @ 60/59.94/50 Frames per second
      • Interlaced
      • 1920x1080i @ 29.97/25 Frames per second
      • 720x486i @ 29.97 Frames per second
      • 720x576i @ 25 Frames per second
      • Audio Output
      • Passthrough of 8 channel of embedded audio channels in HDMI and SDI signals.
      • Unbalanced analog stereo output via 1/8" (3.5mm) jack-passthrough of input.
      • Line Level
      • Note that all outputs are active regardless of audio and video input selection.
      • Extra features
      • Video Input Format is Auto-Detected in SDI and HDMI.
      • All outputs are active regardless of audio and video input selection.

        H.264/MPEG-4 Part 10 (AVC) Video Encoder
      • Resolutions: ranging from: 128x128 to 1920x1080
      • Single Encoder - Maximum of 1080p60 fps
      • Dual Encoder - Maximum of 720p60 fps or 1080p30 fps
      • Encoding Profiles: Baseline, Main and High
      • Encoding Controls
      • 2.0, 3.0, 3.1, 4.0, 4.1 Level Support
      • GOP Size: Variable bit rate support
      • Average max/min data rate controls: Deblocking Filter

        MPEG-4 AAC Audio Encoder
      • Standard: AAC-LCS
      • Sample Frequency: 32, 44.1 and 48 kHz when digitized from an analog source
      • Channels: 2 channels Stereo (L/R)
      • Bit Rates: Range from 32 kbps to 256 kbps

        Recording File Format
      • File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio
      • Recording Lengths: 300 minutes
    • Item Includes:

      • Matrox Monarch LCS device
      • Matrox Monarch LCS external power supply
      • IEC320-C14 power cords (US, GB and EU)
    • Warranty:

      • 2 year
    • GTIN:


    MONARCH LCS - Required Accessories

      MONARCH LCS - Recommended Accessories
