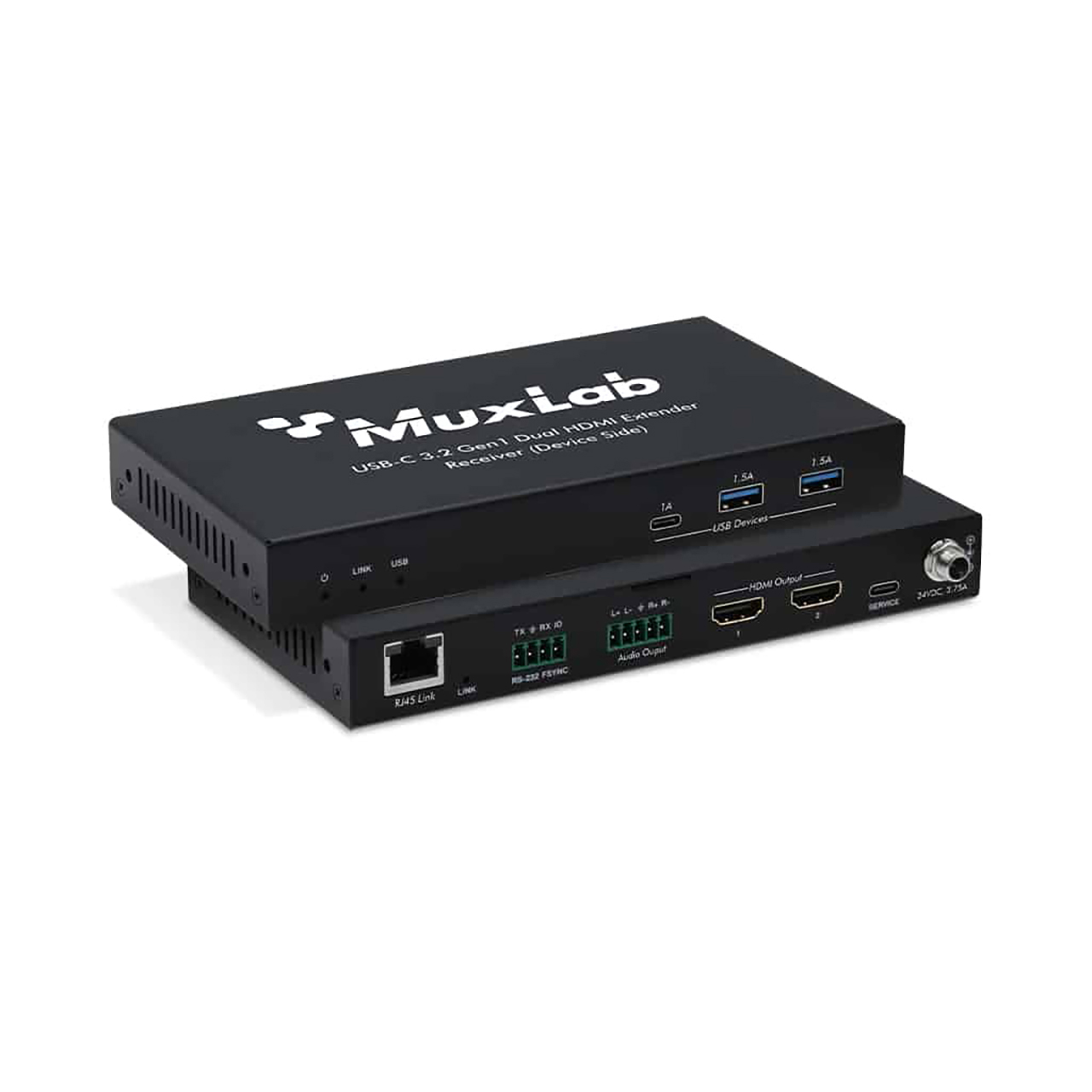

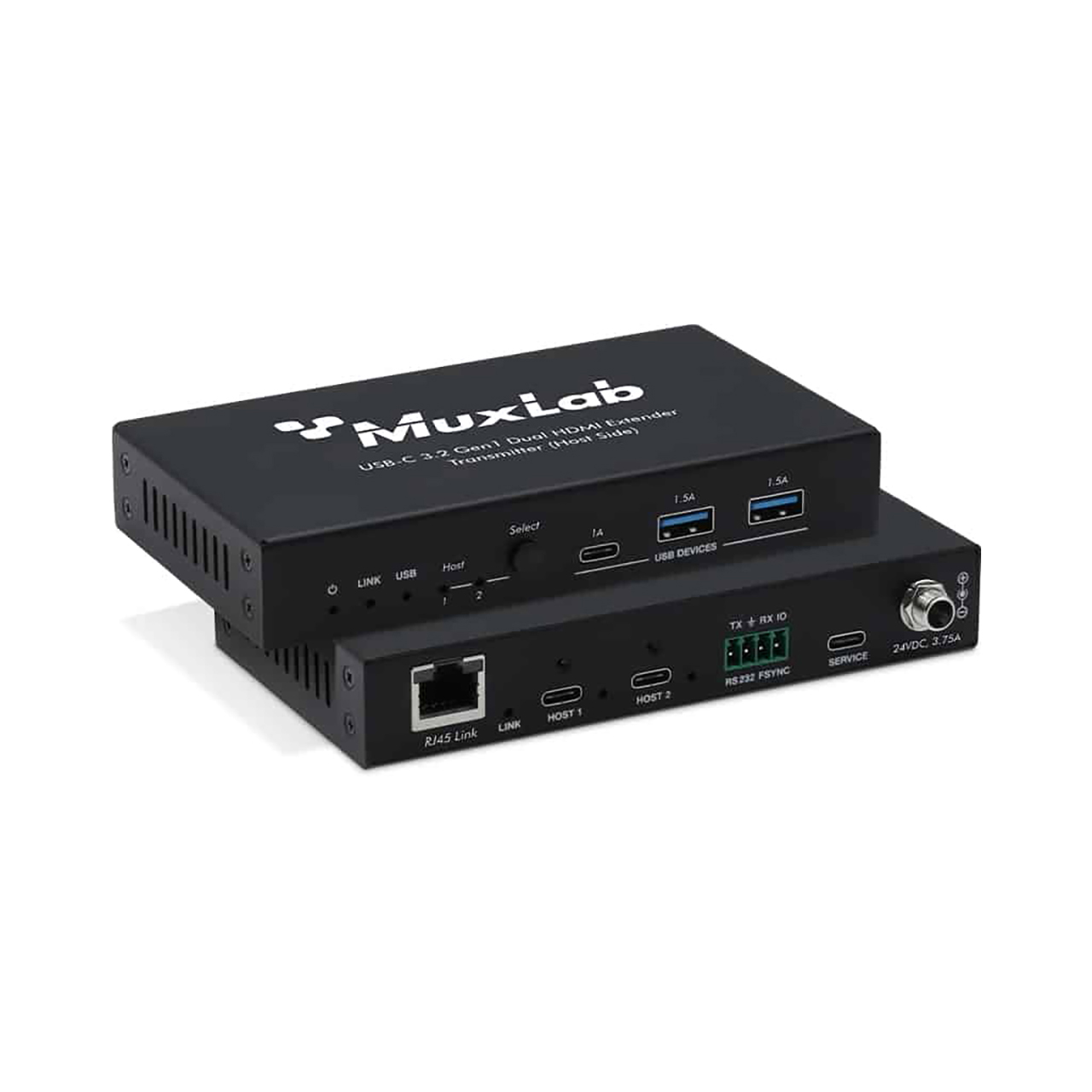

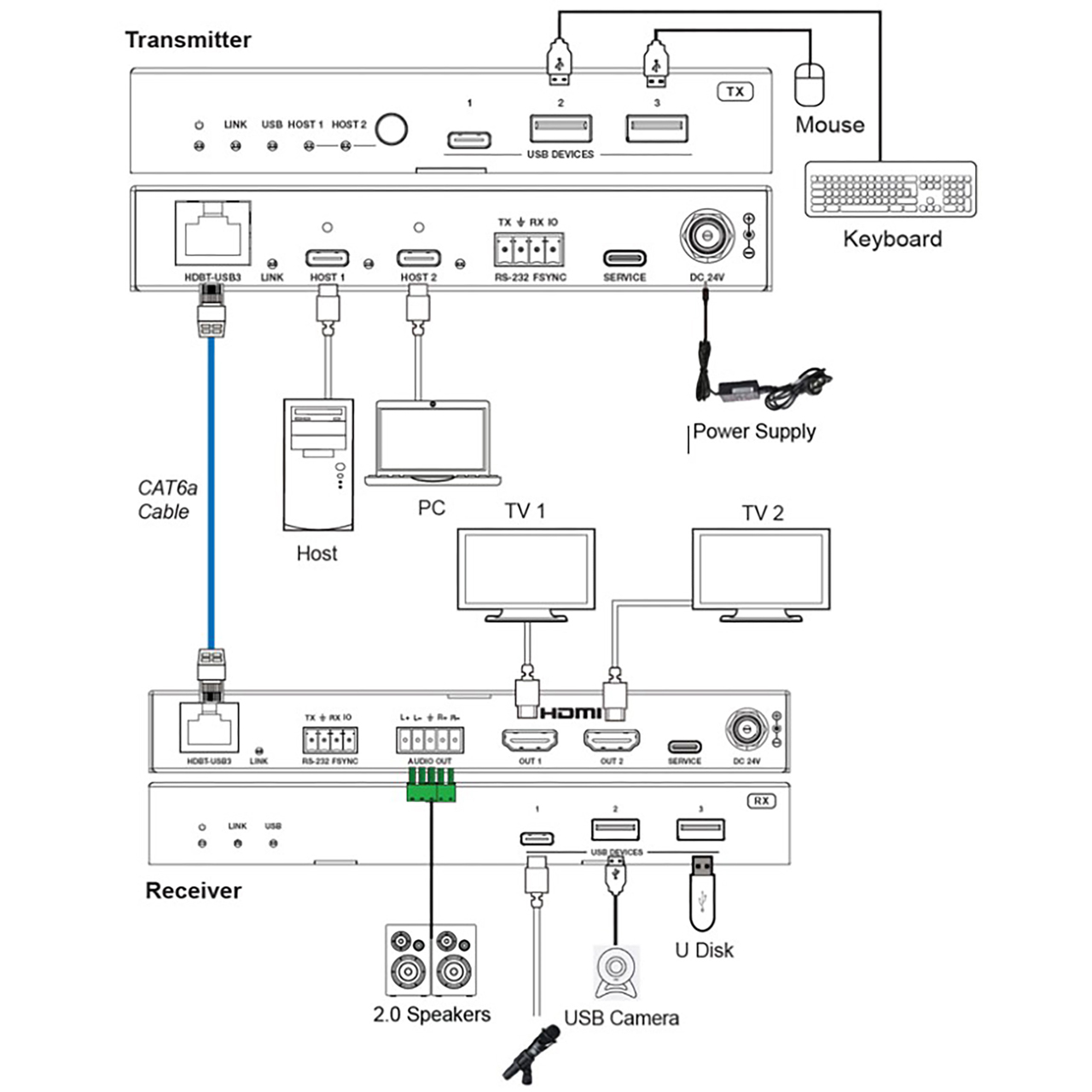

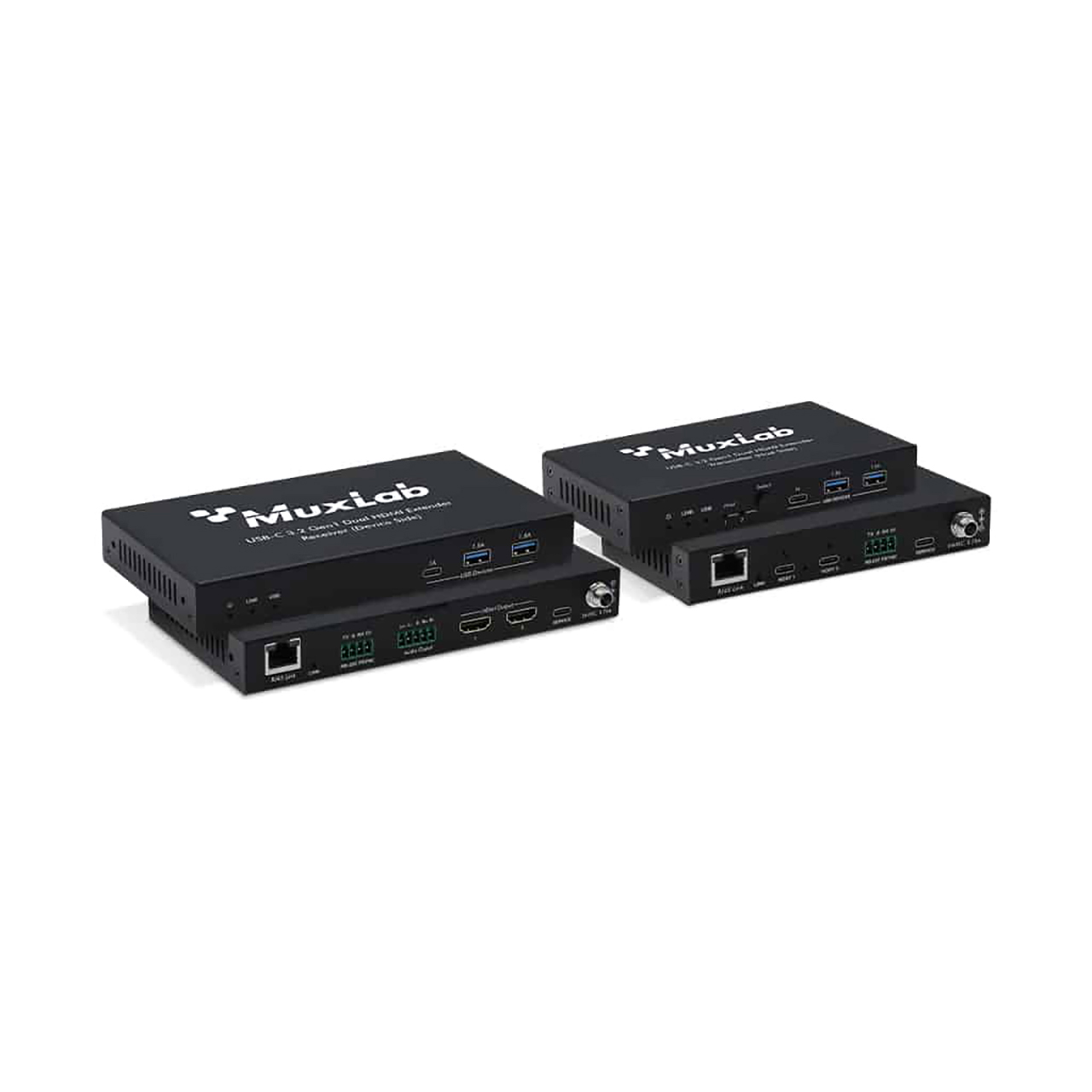

The MuxLab 500536 enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 328 feet (100m) over standard Cat6a UTP cable. Transmitter features with Two USB-C 3.2 Gen1 selectable hosts port, 3x local (1x USB-C and 2 USB-A) input, 1x FSYSNC GPIO input and 1x RS-232 passthrough. Receiver features with 3x USB 3.2 Gen1 (1x USB-C and 2 USB-A) outputs, 2x HDMI output ports, 1x FSYSNC GPIO output and 1x RS-232 pass through. The device also supports 24V Bi-directional PoC.
The USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards
Applications:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems
