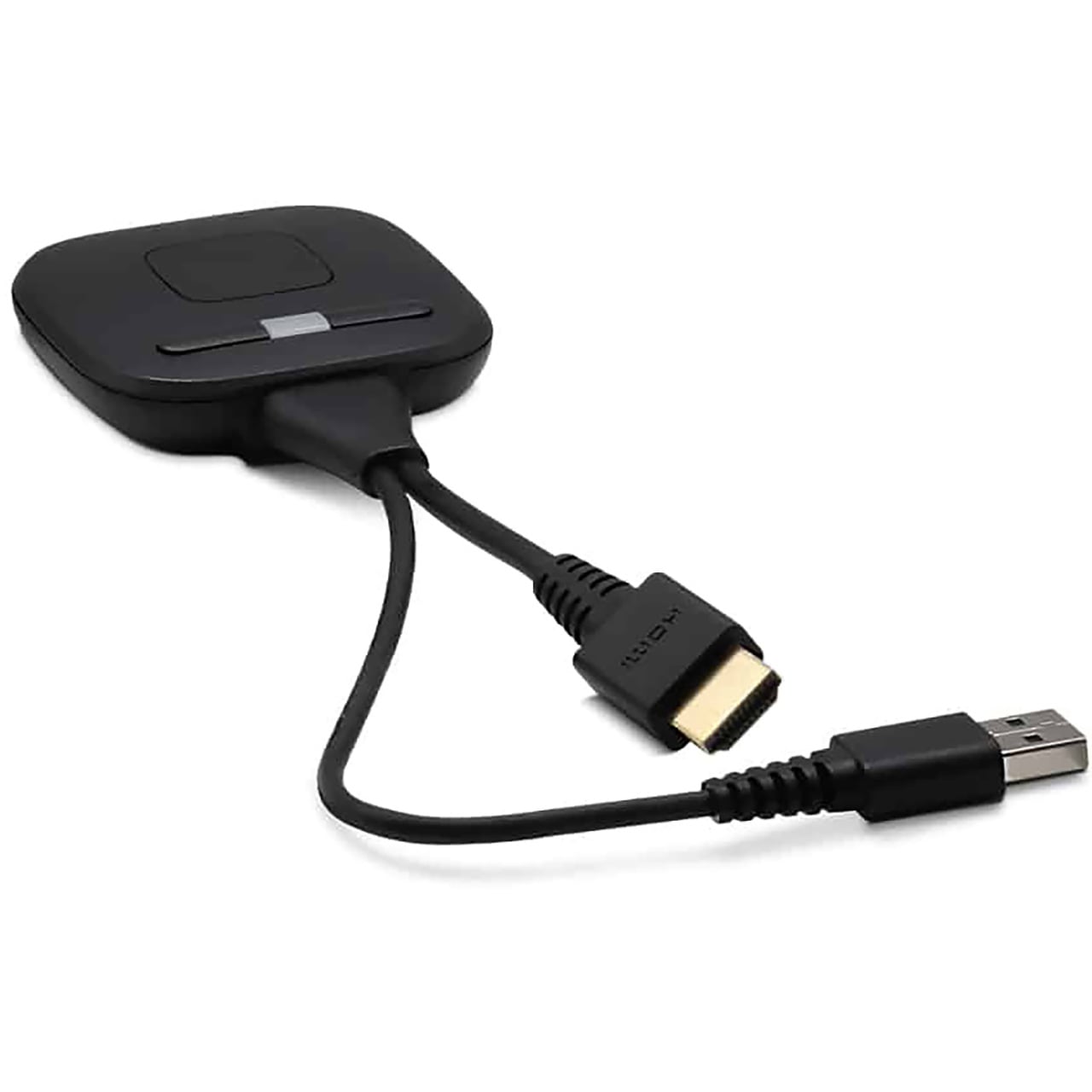

MuxLab 500880 MuxMeet Share Dongle-H2 for BYOM Screen Sharing with HDMI

ITEM #: MUX-500880 MFG #: 500880

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$511.00

Our Price:

$409.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500880 - Overview

The MuxLab MuxMeet Share Dongle-H2 500880 is an HDMI Dongle that enables meeting participants using Windows or Mac-based laptops to wirelessly share content with the push of a button, making connecting and sharing desktop screens in a meeting a simple and enjoyable experience. Programmable buttons are available; for example, you can configure them to cycle through the available cameras.

The MuxMeet Share Dongle-H2 is easy to connect and easy to use. Sharing your desktop screen is as easy as pushing a button on the attached MuxMeet Share Dongle-H2, and an LED indicates the unit status. This device works in conjunction with MuxMeet Share Base-3 or with MuxMeet Share Base-2.

MuxMeet Share Base-2 and MuxMeet Share Base-3 are sold separately.

  • Features:

    • Can be connected to a Windows or Mac based laptop
    • Can wireless transmit your computer desktop to MuxMeet Share Base-2 or MuxMeet Share Base-3
    • Supports transmit the computer desktop in mirror or extended mode
    • With the push of a button, it is possible to start or stop a transmission

  • Specifications:

      Technical
    • Environment: Custom audio-video systems in a structured cabling environment
    • Application: Head-end installations, conference room, remote teaching
    • Standard: HDMI 1.4, HDCP 1.4
    • Video Resolution: 3840x2160@30Hz, 2540x1440@60Hz, 1920x1080@60Hz, 1280x720@60Hz
    • Audio Input: HDMI PCM 2CH
    • Latency: <100ms
    • Wireless Protocol: WiFi IEEE 802.11 a/g/n/ac/ax
    • Frequency Band: 2.4GHz & 5GHz
    • WiFi Antenna: MIMO 2x2
    • Data Rate in Wireless: Up to 1200Mbps

      Hardware Interfaces
    • HDMI Port: 1x HDMI Type A (19-pin male) with Pig-tail
    • USB Port: 1x USB-A (male) with Pig-tail
    • Status Led: Bi-color LED: off no power, green powered and red sharing activated

      General
    • Power Supply: USB 5V
    • Power Consumption: 2.5W maximum
    • Dimensions: 3.5" x 2.6" x 0.5" (90mm x 65mm x 13mm) - Excluding pig-tail of 200mm maximum
    • Weight: 0.22lbs (100g)
    • Compliance: Regulatory: FCC, CE, RoHS
    • Order Information: 500880 MuxMeet Share Dongle-H2 (UPC: 627699008805)

  • Item Includes:

    • 1x 500880 MuxMeet Share Dongle-H2

  • Warranty:

    • 2-Year Limited Warranty
