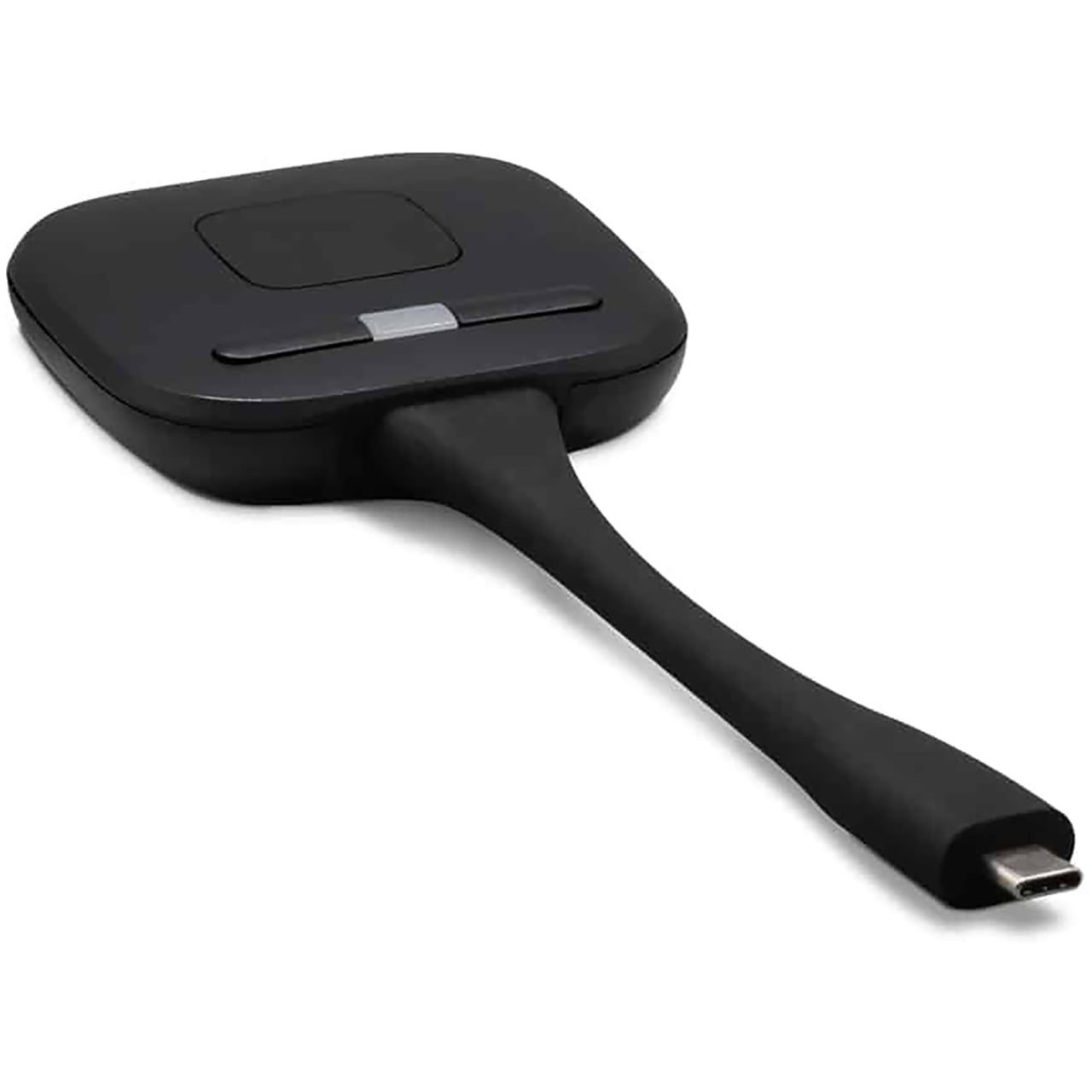

MuxLab 500881 MuxMeet Share Dongle-U2 for BYOM Screen Sharing with USB-A

500881 - Overview

• Features:

  • Can be connected to a Windows or Mac based laptop
  • Can wireless transmit your computer desktop to MuxMeet Share Base-2 or MuxMeet Share Base-3
  • Supports transmit the computer desktop in mirror or extended mode
  • With the push of a button, it is possible to start or stop a transmission


• Specifications:

  Technical
  • Environment: Custom audio-video systems in a structured cabling environment
  • Application: Head-end installations, conference room, remote teaching
  • Standard: DP 1.2 & USB 2.0
  • Video Resolution: 3840x2160@30Hz, 2540x1440@60Hz, 1920x1080@60Hz, 1280x720@60Hz
  • Audio Input: HDMI PCM 2CH
  • Latency: <100ms
  • Wireless Protocol: WiFi IEEE 802.11 a/g/n/ac/ax
  • Frequency Band: 2.4GHz & 5GHz
  • WiFi Antenna: MIMO 2x2
  • Data Rate in Wireless: Up to 1200Mbps

    Hardware Interfaces
  • USB Port: 1x USB-C (24-Pin male) with Pig-tail
  • Status Led: Bi-color LED: off no power, green powered and red sharing activated

    General
  • Power Supply: USB-C 5V
  • Power Consumption: 3W maximum
  • Dimensions: 3.5" x 2.6" x 0.5" (90mm x 65mm x 13mm) - Excluding pig-tail of 200mm maximum
  • Weight: 0.22lbs (100g)
  • Compliance: Regulatory: FCC, CE, RoHS
  • Order Information: 500881 MuxMeet Share Dongle-U2 (UPC: 627699008812)


• Item Includes:

  • 1x 500881 MuxMeet Share Dongle-U2


• Warranty:

  • 2-Year Limited Warranty
