NTI RACKMUX-4K17-N Rackmount 4K HDMI/DisplayPort 1RU KVM Drawer with 4K x 2K Resolution


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    RACKMUX-4K17-N - Overview

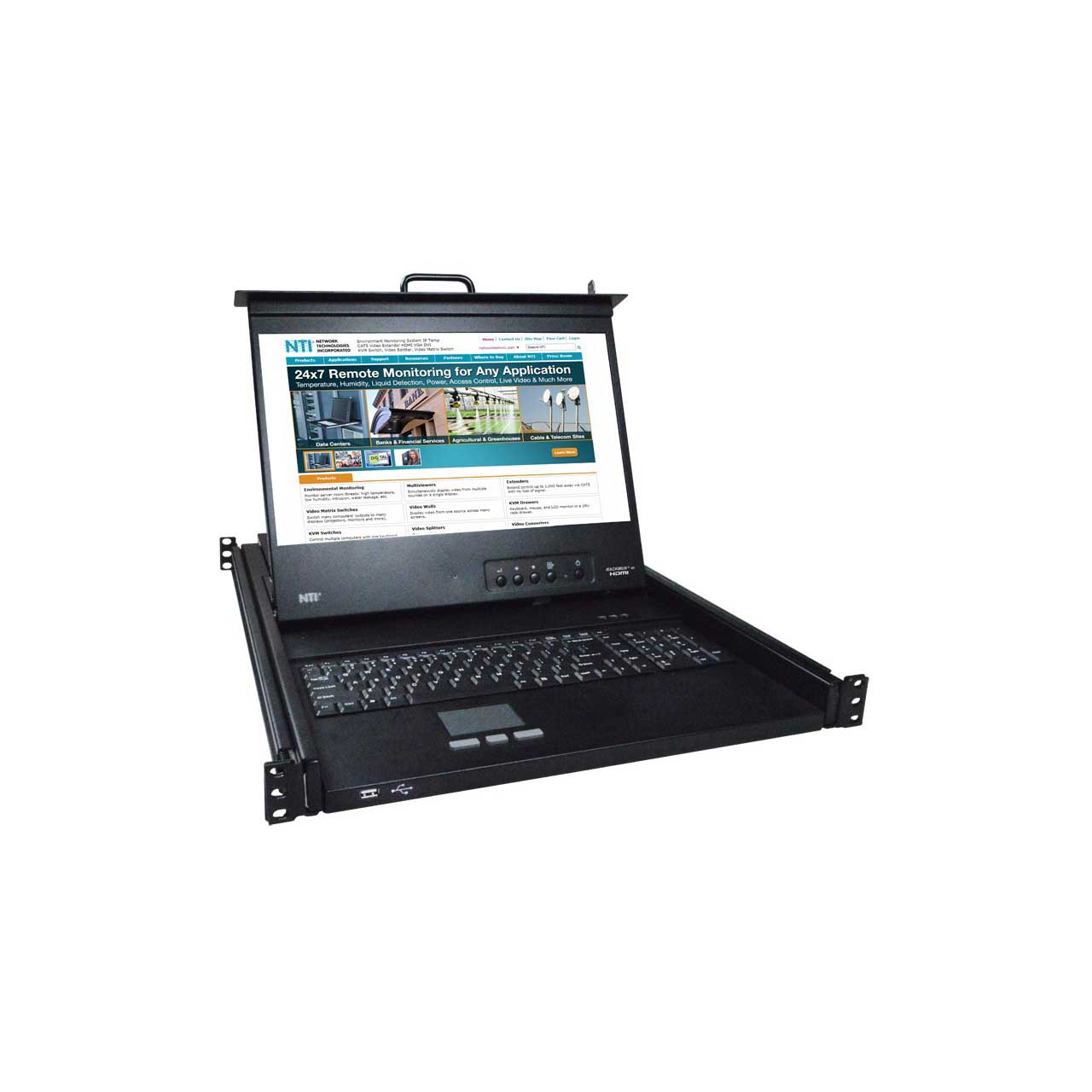

    The RACKMUX 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

    • Features:

      • Available with forward-folding 17.3" TFT/LCD monitor.
      • Compatible with HDMI or DisplayPort USB computers.
      • HDMI connector supports resolutions up to 3840x2160@30Hz 4:4:4.
      • DisplayPort connector supports resolutions up to 3840x2160@60Hz 4:4:4.
      • HDMI 1.4, DisplayPort 1.2a, HDCP 2.2/1.4 compliant.
      • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
      • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
      • Three-button touchpad mouse supports single-finger gestures.
      • Drawer locks into place when open to prevent it from sliding in and out of the rack.
      • Rugged steel construction with durable powder coat finish.
      • LCD auto-shutoff in closed position.
      • Internal cable arm provides proper cable management for sliding the drawer open and closed.
      • Equipped with On Screen Display (OSD).
      • Designed to be a one-person job when installing the drawer.
      • Front panel security lock.
      • Front panel USB port to connect an external USB device, such as a flash drive.
      • Supports audio pass-through - connect USB speakers or headphones to the front-panel USB port to play the audio.
      • Available with optional mounting bracket for two-post style telco rack.
    • Specifications:

      • Host Interface:
      • Compatible with a USB-enabled computer with HDMI or DisplayPort output.
      • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.

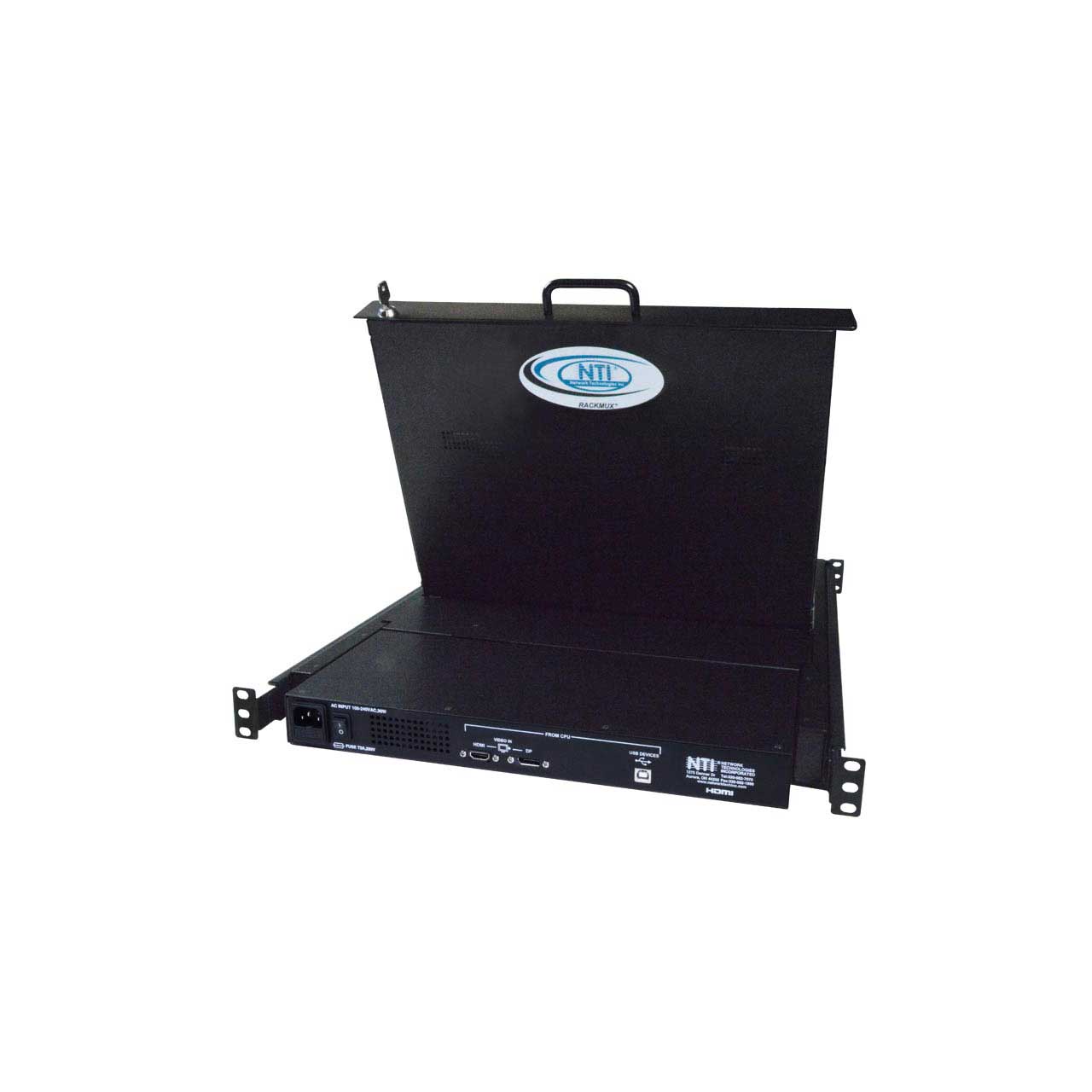

      • One female HDMI, one female DisplayPort, and one female USB Type B connectors.
      • Use with an NTI KVM Switch to control multiple USB computers.
      • Compliant with HDMI 1.4, DisplayPort 1.2a, and HDCP 2.2/1.4 standards.

      • Forward-folding 17.3" Active Matrix LCD flat panel display.
      • Resolution:
      • HDMI: up to 3840x2160@30Hz 4:4:4.
      • DisplayPort: up to 3840x2160@60Hz 4:4:4.
      • Tilt: up to 120°.
      • Frequency: up to 60Hz
      • OSD controls for brightness, contrast, phase, Horz- and Vert-center alignment, zoom and color adjustment.
      • Brightness: 400 nits
      • Contrast Ratio: 1000:1

      • Keyboard available in: English (US).
      • 100-key (US) with numeric keypad
      • Three button touchpad mouse.
      • Supports single-finger gestures.
      • Front panel USB 2.0 port to connect external USB devices.
      • Female USB Type A connector.
      • KVM drawer must be connected to a USB-enabled computer.

      • 6-foot (1.8-meter) HDMI male to male cable included.
      • 6-foot (1.8-meter) DisplayPort male to male cable included.
      • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
      • 6-foot (1.8-meter) power supply cable included.

      • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
      • Power Consumption: 30 W

      • WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
      • Handle adds an additional 1.5" to the depth when monitor is in closed position.
      • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
      • Drawer locks into place when open to prevent it from sliding in and out of the rack.
      • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

      • Operating temperature: 32 to 104°F (0 to 40°C).
      • Storage temperature: -4 to 140°F (-20 to 60°C).
      • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

        Regulatory Approvals:
      • CE, RoHS
      • TAA compliant
      • Warranty: Two years
    • Warranty:

      • 2 Year Warranty
