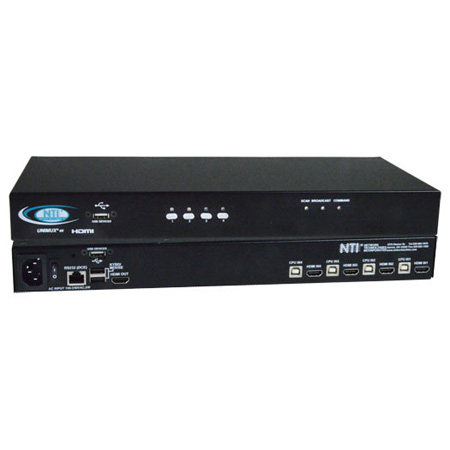

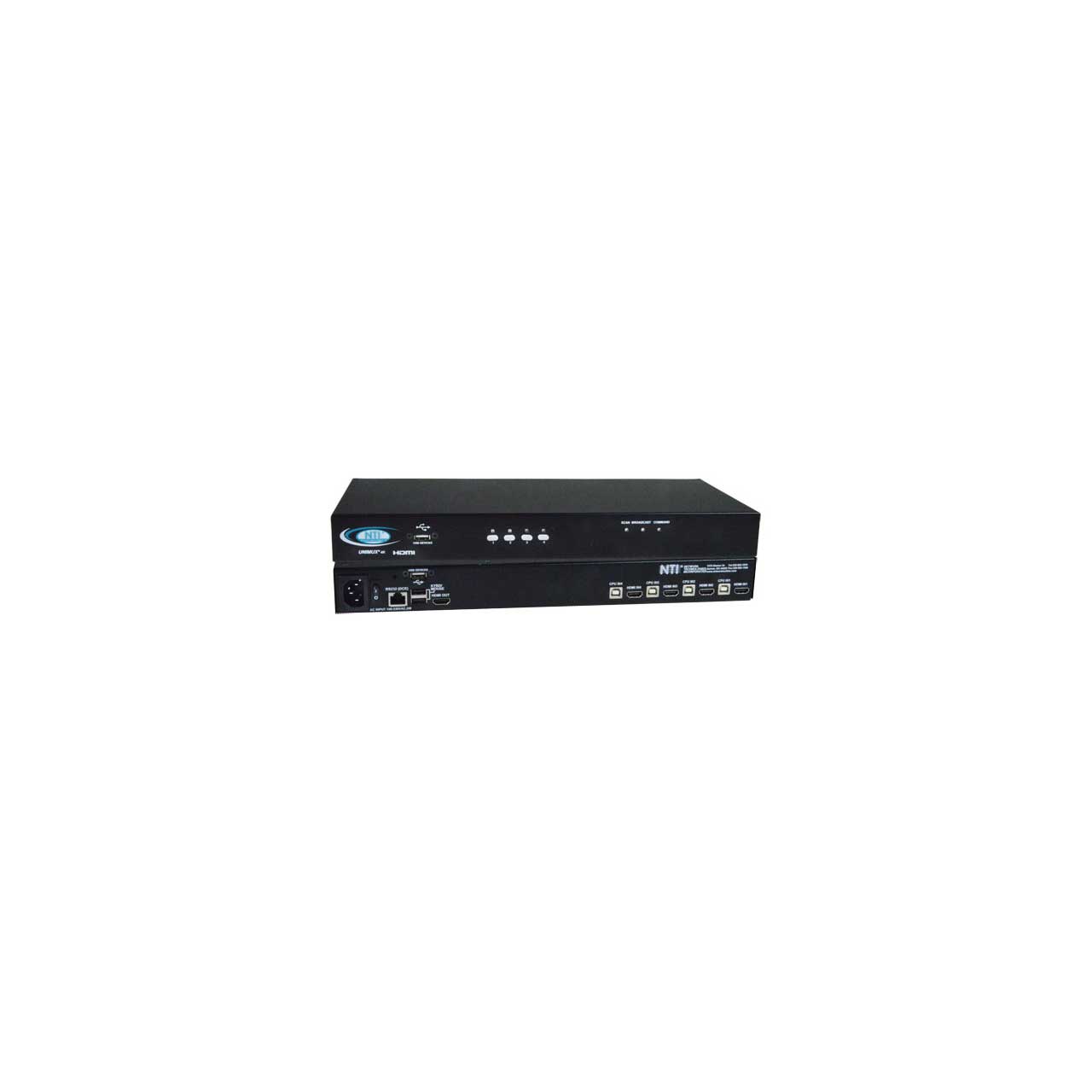

NTI UNIMUX-HD4K-4 4K HDMI USB KVM 4-Port Switch

UNIMUX-HD4K-4 - Overview

• Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz) and HDTV resolutions to 1080p (60Hz).
  • Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
  • Compatible with USB computers (PC, SUN and MAC).
  • Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
  • Two transparent USB 2.0 ports (low/full/high speed), in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • High quality steel construction.
  • Flash upgradeable.
  • Rackmount kit included.


• Specifications:

  • Hosts
  • Female HDMI-A connectors.
  • Female USB Type B connectors.
  • Supports USB-enabled computers (PC, SUN, and MAC) with HDMI video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.

    Monitor
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz), and HDTV resolutions to 1080p (60Hz).
  • One female HDMI-A connector.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.

    Devices
  • Two female USB 1.1 Type A connectors for keyboard and mouse.
  • Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.
  • Compatible with most USB keyboards and mice, including USB IntelliMouser.
  • Keyboard and mouse are hot-pluggable.
  • Supports SUN and MAC extra keys.
  • Two transparent female USB 2.0 Type A connectors for additional USB devices.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives.

    Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 5W

    Cables
  • Interface cables between your computers and the switch are required for proper operation. (Cables not included)
  • Use male-to-male HDMI cables (HD-xx-MM) and male USB Type A to male USB Type B cables (USB2-AB-0-5M-5T) to connect HDMI USB computers to the switch.
  • 5-foot (1.5-meter) CAT5e patch cable and RJ45F-DB9F adapter included for RS232 control.

    Environmental
  • Operating Temperature: 32 to 100°F (0 to 38°C).
  • Storage Temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • Regulatory Approval
  • CE, RoHS
  • TAA compliant
  • Warranty: Two years


• Warranty:

  • 2 Years
