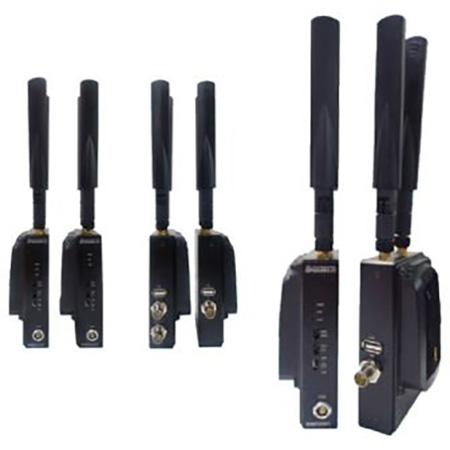

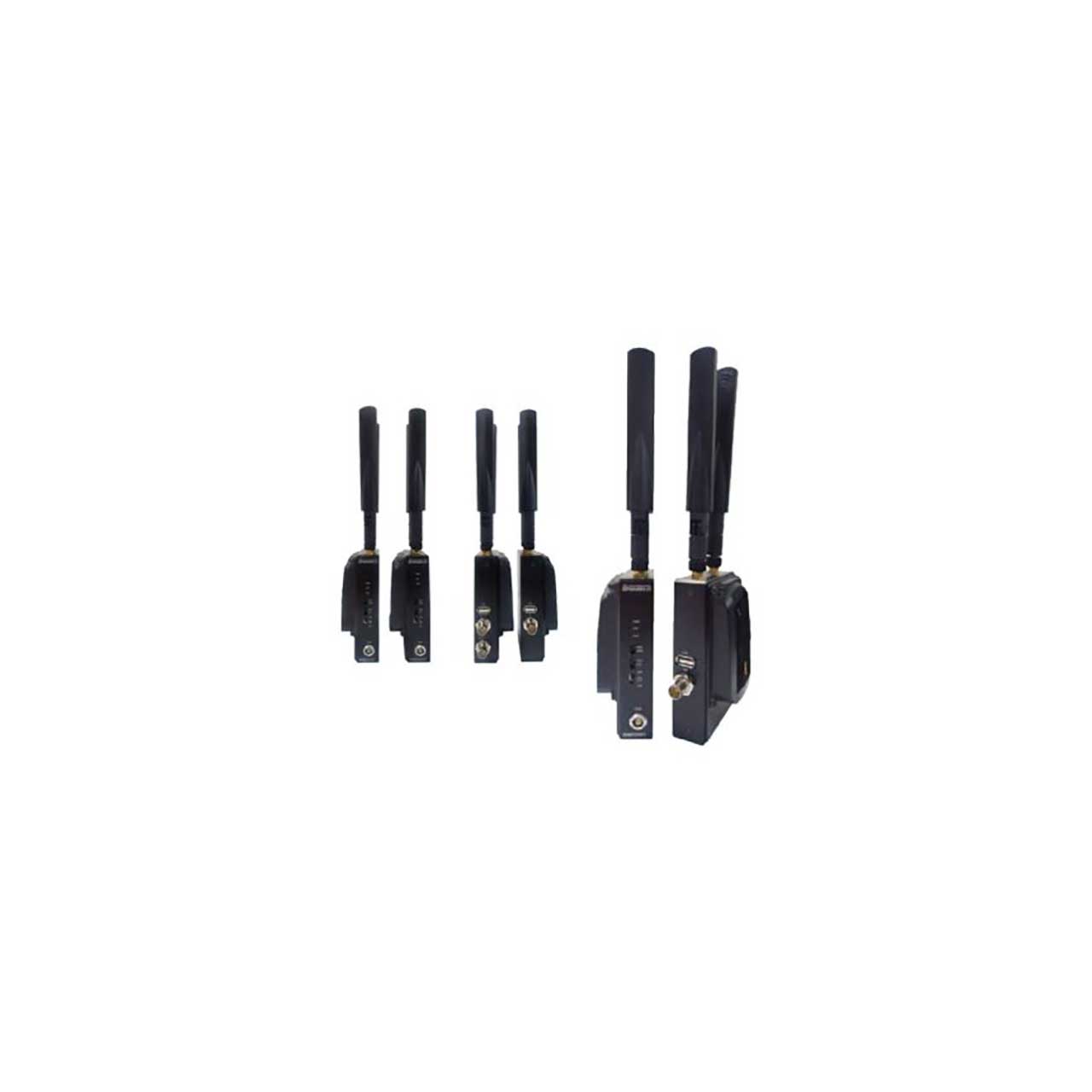

Nimbus WiMi5200T/R 3G-SDI 2000 Foot Wireless Video H.264 Live Streaming Transmitter & Receiver - Sony NP

NIMBUS-WIMI5200T/R - Overview

• Features:

  • H.264 (MPEG-4 Parts10 : AVC)
  • Full HD live streaming over Wi-Fi
  • Baseline Profile with level 4.2
  • Radio Coverage: 2,000ft at line of sight
  • Zero delay (10ms), end-to-end (30ms), H.264 engine
  • Transmission of 1080p60 3G-SDI over Wi-Fi
  • Video formats of DTV Spec
  • IEEE 802.11n, 5 GHz (12 Ch. @ 40MHz)
  • Multiple pairs of operation at one location


• Specifications:

  • Interfaces
  • SDI input with looped SDI output
  • DIP switches: Selection of Wi-Fi frequency and encoding rate
  • USB: Firmware update

    Supported SDI Formats
  • SMPTE 244 (NTSC): 480i59.94 (Output: 1080i59.94)
  • IEC61179-5 (PAL): 576i50 (Output: 1080i50)
  • SMPTE 296M: 720p50, 720p59.94, 720p60
  • SMPTE 274M: 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60

    Radio Specifications
  • Wi-Fi Standard: IEEE 802.11n, FCC/CE/KC Approval
  • Frequency: U-NII-1(5.15~5.25GHz), U-NII-2A(5.25~5.35GHz), U-NII-2C(5.47~5.725GHz), U-NII-3(5.725~5.85GHz)
  • Number of Wi-Fi Ch.: 12 Wi-Fi channels @ 40MHz channel bandwidth
  • Transmission Distance: Up to 2,000 ft @ line of sight
  • Transmission Power: Max. 50mW (17 dBm)/chain, Total: 100mW (20 dBm)
  • Antenna: 2T x 2R MIMO


• Item Includes:

  • 1x Nimbus WiMi5200T/R 3G-SDI 2000 Foot Wireless Video H.264 Live Streaming Transmitter & Receiver - Sony NP


• GTIN:

  0193913000172
