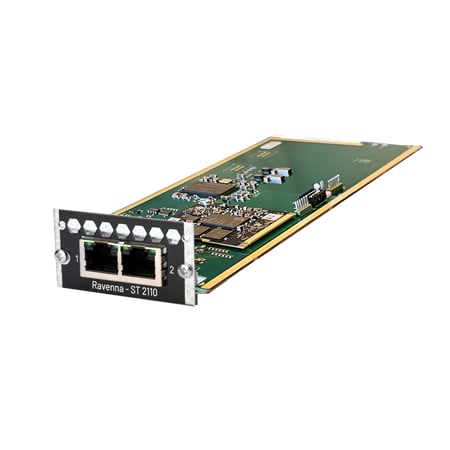

The Digital Audio Denmark CARD-RAVENNA 128-Channel IP Audio Ravenna card is aimed for AoIP connectivity into Ravenna, AES67 and ST 2110 ecosystems.
The Card has two RJ45 network ports providing AoIP connectivity to an IP based Ethernet with selectable sample-rate conversion on inputs and outputs. The two ports are setup as a switch, or they can be configured for Seamless Protection Switching on redundant networks.
The Card provides a high performance media transport that is tightly, deterministic, and low latency for Networked I/O end-points, and supports industry standard discovery, registration and orchestration, both on a dedicated Ravenna defined network, and on open and interoperable AES67 or ST 2110 based network systems.

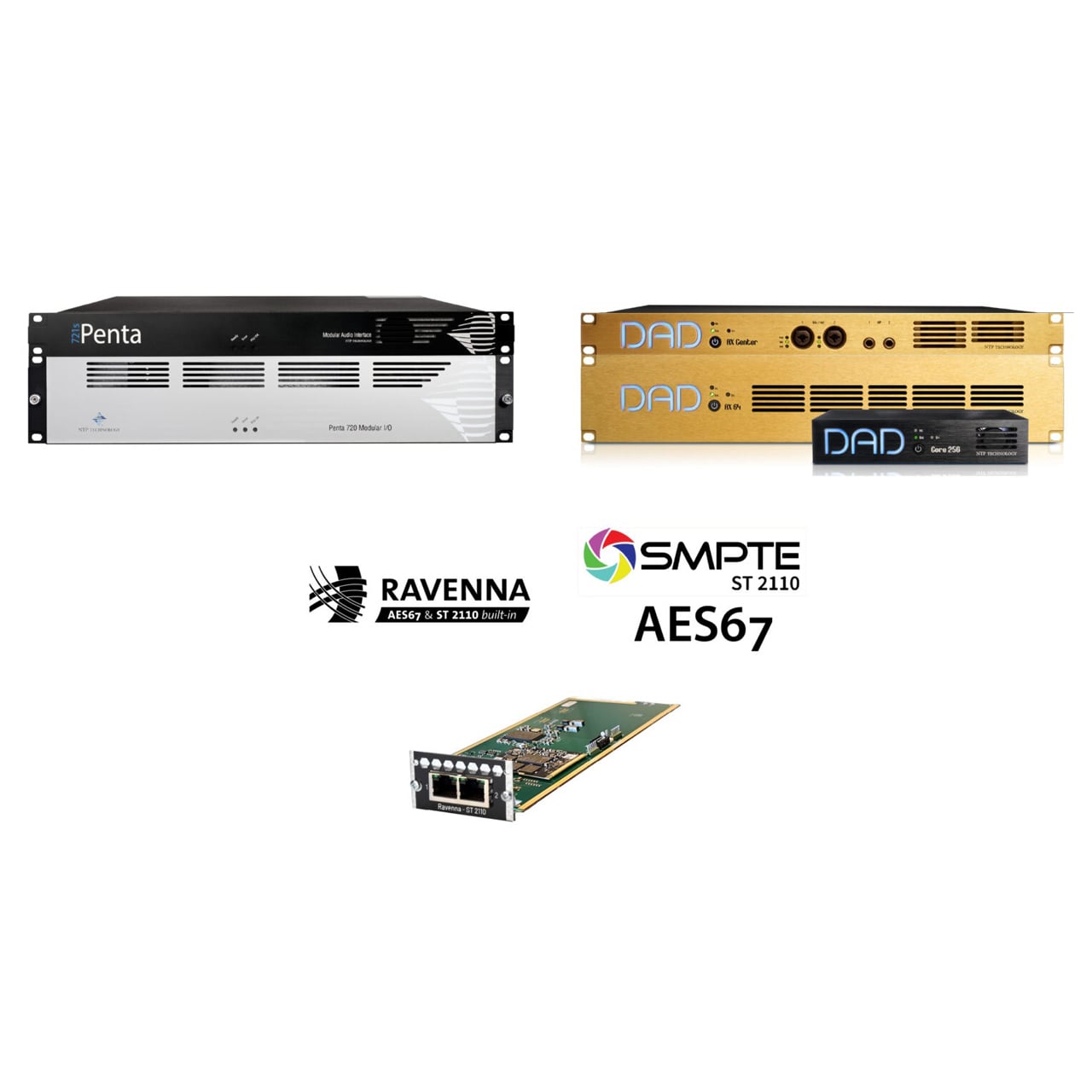

ST 2110-30 Audio over IP connectivity is available via firmware upgrades for their best-in-class audio interfaces, including the Thunder | Core series, Penta series, AX32, Dante/AES67 Card with free corresponding updates to the DADman control software.
The updates also support this Ravenna/AES67/ST 2110 Card. This expansion of network capabilities enables solutions with their products, making them more compatible with IP Ethernet Audio Formats and therefore more flexible, capable, and easy to use in a variety of applications.
