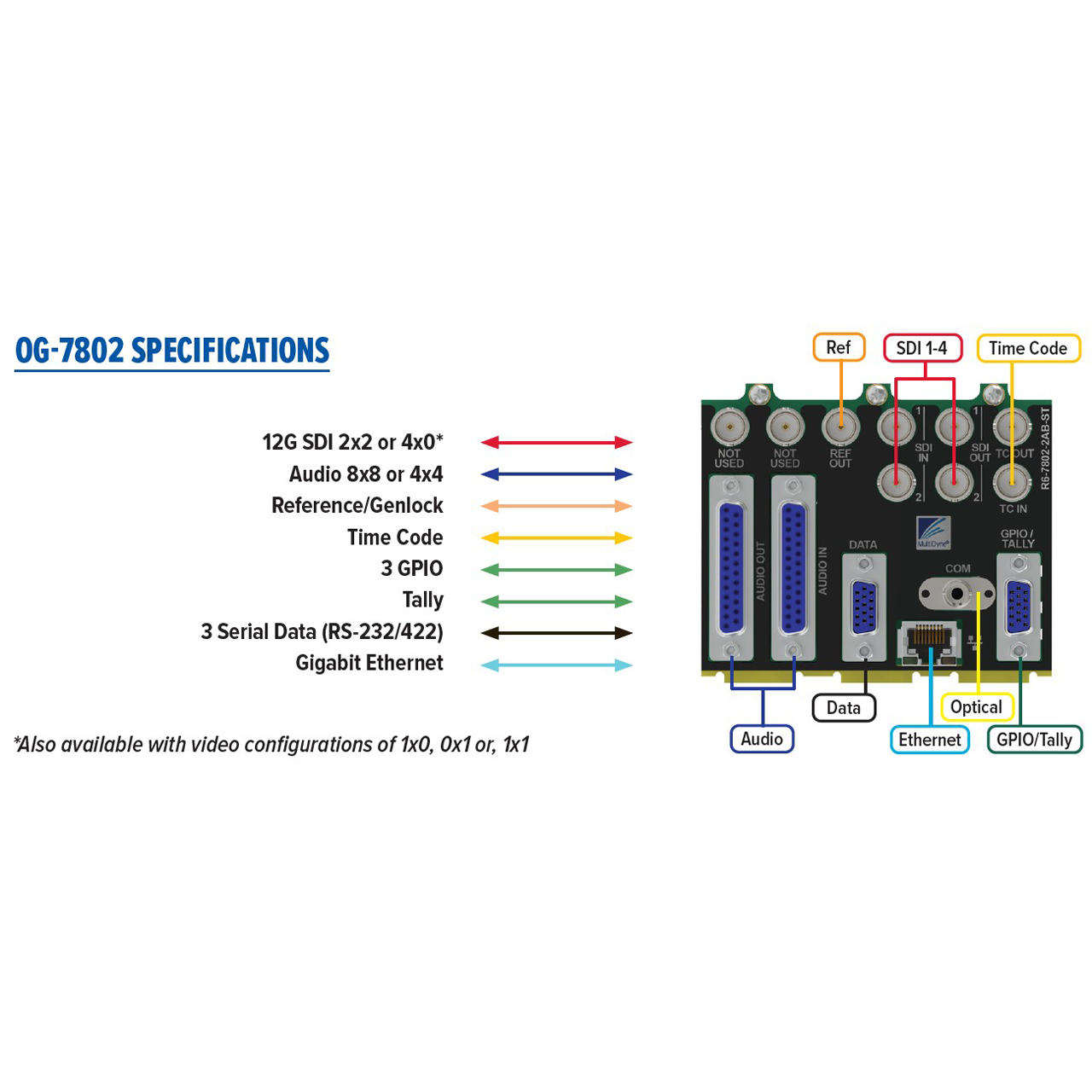

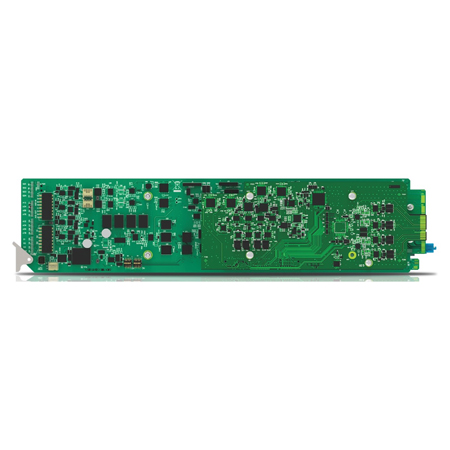

The Multidyne OG-7802 Transceiver Card features two Bidirectional 12G-SDI Video inputs, eight Two-way Analog Audio (or 4 AES), plus Genlock/Sync, Timecode, three Serial Data (232/422) ports,Tally, three GPIOs and Gigabit Ethernet. One single-mode fiber operation; Requires R6-7802-2AB-ST rear panel & OG3-FR-x openGear frame, items sold separately.
The OG-7800 series of modules for the openGear platform provides flexibility for all fiber transport needs. Signals are transported uncompressed and unprocessed for maximum signal integrity. Included signals are: 12G SDI, audio, data, Ethernet, and reference, all compatible with the industry standard openGear platform offering SNMP management via Dashboard software.
Please Note: Rear Module image is for reference only. Rear Module is sold seperately. Although these are "transceiver" cards, a different fiber wavelength value is assigned to each individual card in order to successfully transmit fiber bidirectionally.
