Ocean Matrix OMX-01HMBT0009 HDBaseT 4K HDMI Extender Set with ARC RS232- EDID- CEC- Two-Way IR- Two-Way PoC

ITEM #: OMX-01HMBT0009 MFG #: OMX-01HMBT0009

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$232.49

Our Price:

$215.95

Special Price:

$188.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-01HMBT0009 - Overview

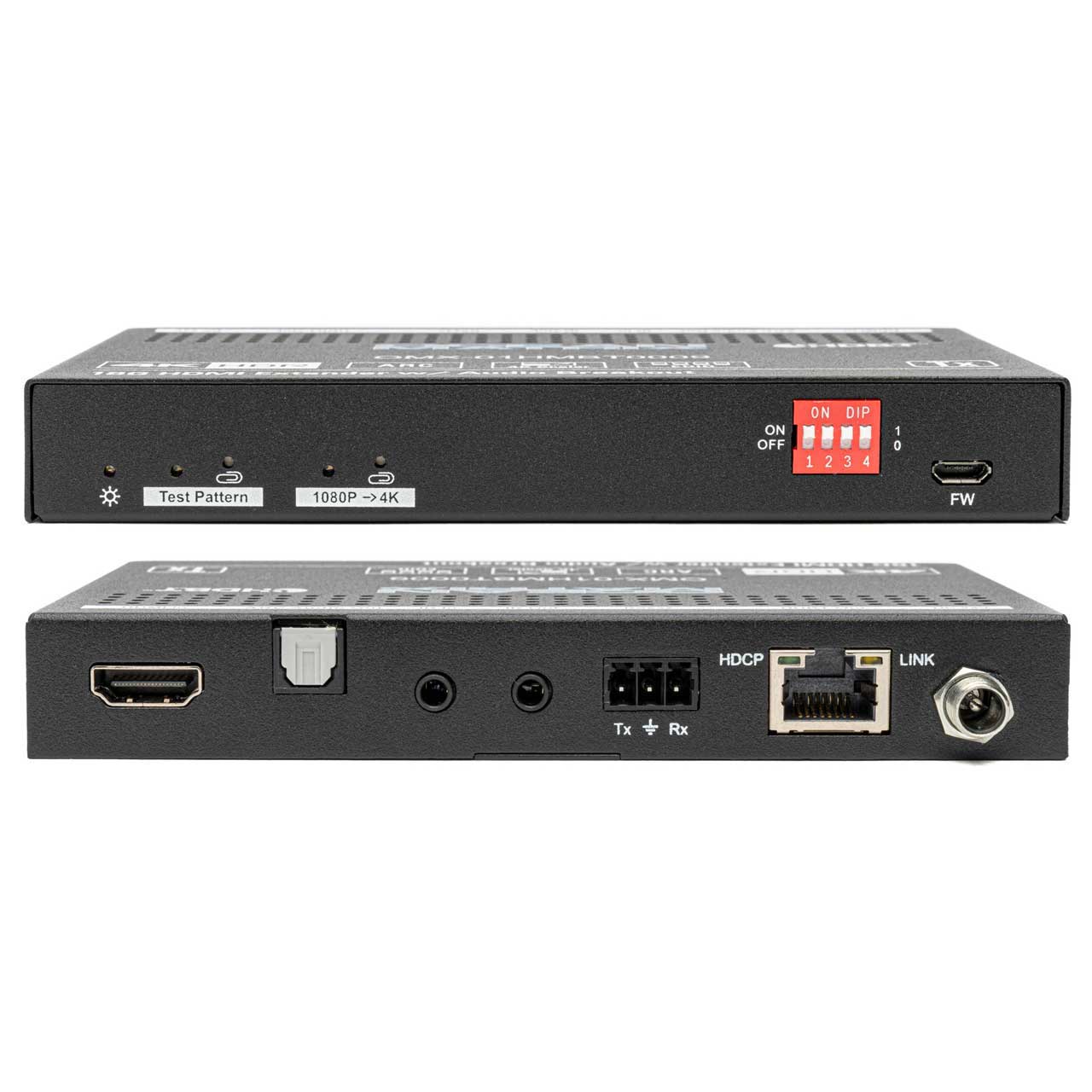

    The Ocean Matrix OMX-01HMBT0009 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to 131 feet. A 4-pin DIP switch allows for selection of multiple built-in EDID settings. A test pattern button generates an image of 1080P/60Hz or 4K/60Hz color bar for output.
    This extender set supports video resolutions up to 4K2K@60Hz 4:4:4 and 1080P to 4K upscaling. Additional features include audio de-embedding, ARC, two-way IR control, RS232 pass through, and two-way 24V PoC.

    • Features:

      • Extends Two-Way IR Signals
      • RS232 Pass Through
      • EDID Management
      • CEC Pass Through
      • Supports ARC
      • Supports Audio De-embedding - TOSLINK/SPDIF Out on Receiver
      • Two-Way 24V PoC
      • Transmission Distance: 1080P up to 230 Feet, 4K up to 131 Feet
      • Two-Way PoC
      • Rugged Black Powder-Coated Metal Enclosure
      • CE, FCC Certified


    • Specifications:

      • Compliance: HDMI 2.0, HDCP 2.2/1.4
      • Bandwidth: 18Gbs
      • Video Resolution Input: up to 4Kx2K@60Hz 4:4:4
      • Audio Formats: PCM, Dolby Digital, Dolby True-HD, DTS, DTS-HD
      • Frequency Response: 20Hz-20KHz, +/- 3dB
      • Power Consumption: 12W
      • Power Input: 100-240VAC, 50/60Hz
      • Dimensions (HxWxD): 0.77 x 5.7 x 3.3 in
      • Weight: TX 9.7 oz, RX 10.23 oz


    • Item Includes:

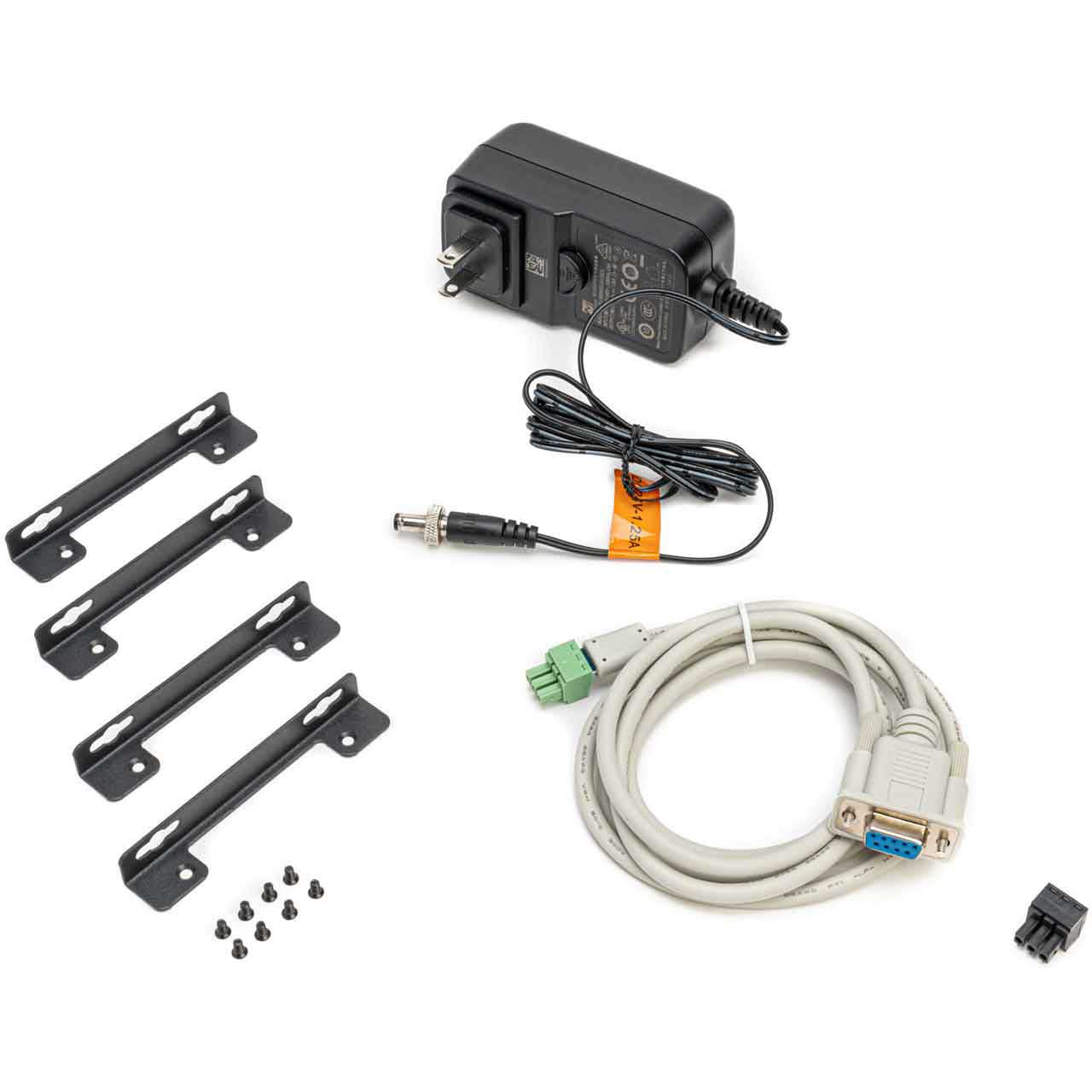

      • 1- 3Pin Terminal Block, 4 Mounting Ears & 4 Screws, 1-RS232 Cable (3Pin to DB9), 1-24V/1.25A power supply


    • Warranty:

      • 1 Year
