Ocean Matrix OMX-02MXSI0001 Converter Scaler - Multiformat to SDI

ITEM #: OMX-02MXSI0001 MFG #: OMX-02MXSI0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-02MXSI0001

OMX-02MXSI0001 - Overview

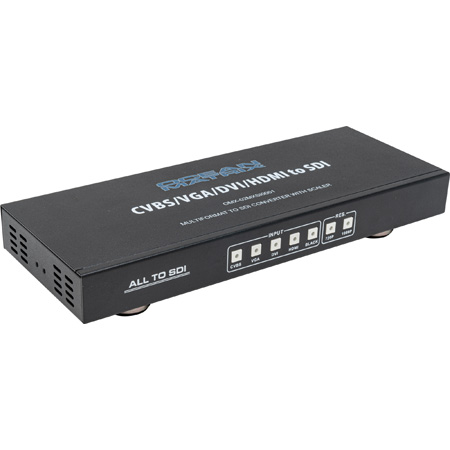

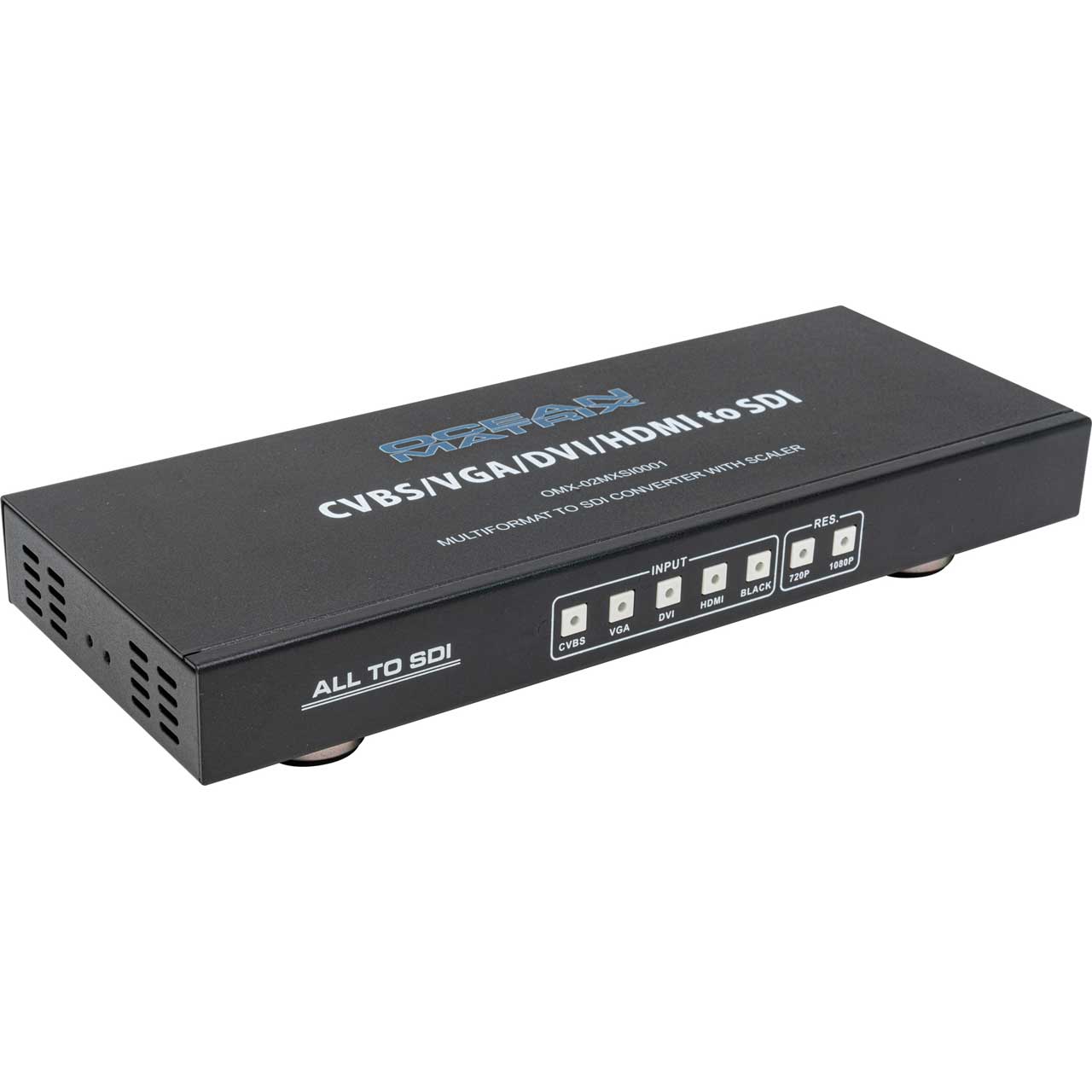

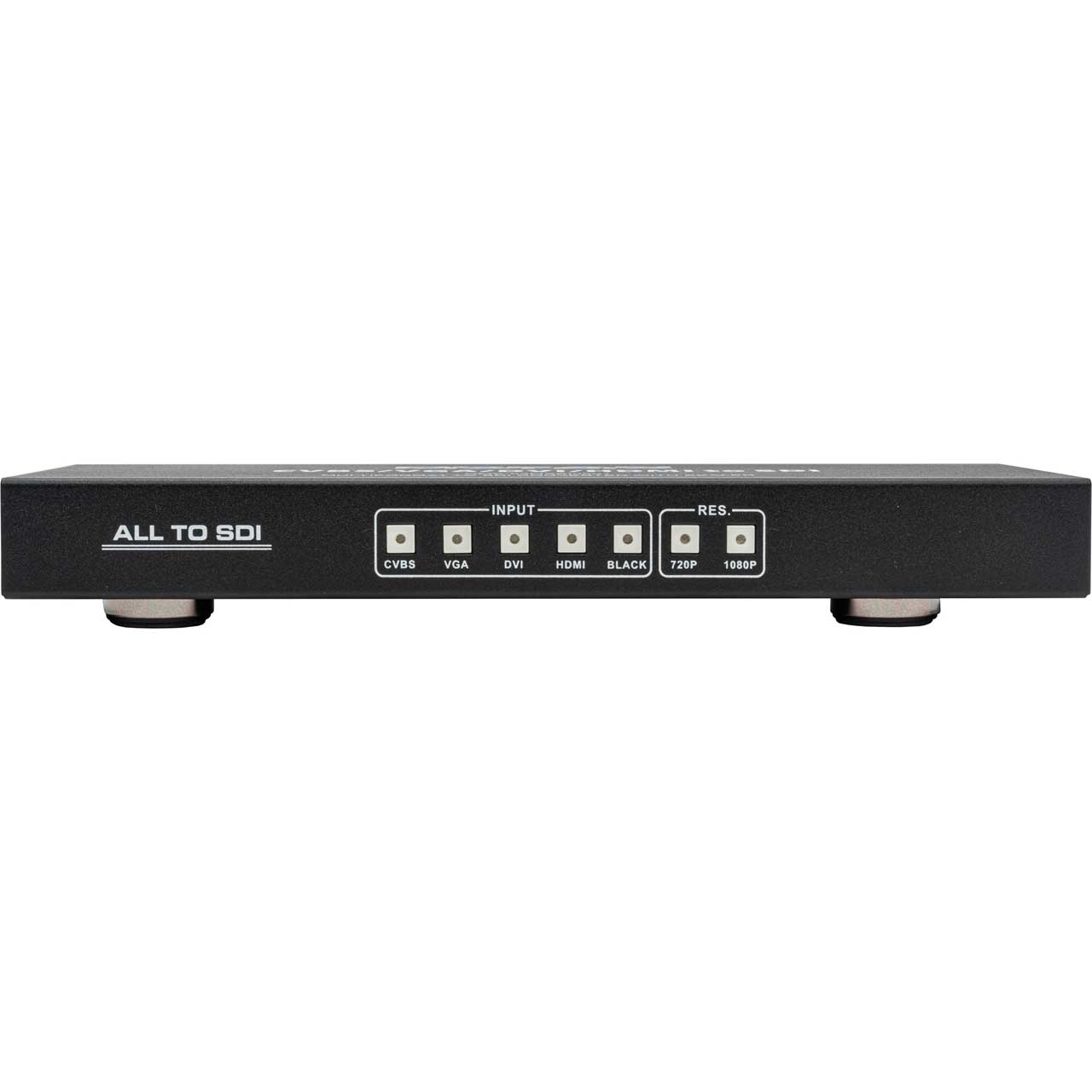

The all-in-one solution for converting anything to 3G-SDI video signals is the Ocean Matrix OMX-02MXSI0001. Converts HDMI, DVI, VGA and composite video at the touch of a button and includes two simultaneous SDI outputs for feeding local monitors or video extenders.

The Ocean Matrix 02MXSI0001 supports SDI SMPTE 424M/425M or HD-SDI SMPTE 292M and can drive signal output to distances up to 100 meters on Belden and Canare or similar 3G/12G rated cable. Input support includes HDMI 480i/576i to 1080P@50/60Hz, VGA up to 1920x1080@60Hz and composite video inputs in NTSC, PAL or SECAM.

  • Features:

    • Upscales HDMI, DVI, VGA and Composite Video to 3G-SDI or HD-SDI
    • Two SDI Outputs Simultaneously
    • Video Resolutions: Up to 1080p@60Hz
    • SMPTE Standards: 425M-AB (3G-SDI), 424M, 292M (HD-SDI)
    • Black Powder Coated Metal Enclosure with padded feet
    • Supports Black Screen Signal Output


  • Specifications:

    • SDI Output Distance: 3G-SDI up to 328ft, HD-SDI up to 656ft
    • HDMI Cable Distance: Input: 33ft, 8/12-bit
    • SDI Transmission Rates:
      2.97Gbps
      1,485Gbps
    • Video Bandwidth: 165MHz
    • HDMI Input Timing Range: 480i/576i ~ 1080p@50/60Hz
    • VGA Input Timing Range: VGA@60~SXGA60 & 480i~1080p@60Hz
    • VGA/DVI Input Timings:
      VGA @ 60Hz
      SVGA @ 60Hz
      XGA @ 60Hz
      SXGA @ 60Hz
      WXGA @ 60Hz
      1280x720 @ 60Hz
      1920x1080 @ 60Hz
    • Composite Video Input: NTSC, PAL SECAM
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2/Color
    • Depth: 10-bit, 12-bit
    • Audio Formats: PCM 2CH with 48kHz sample rate

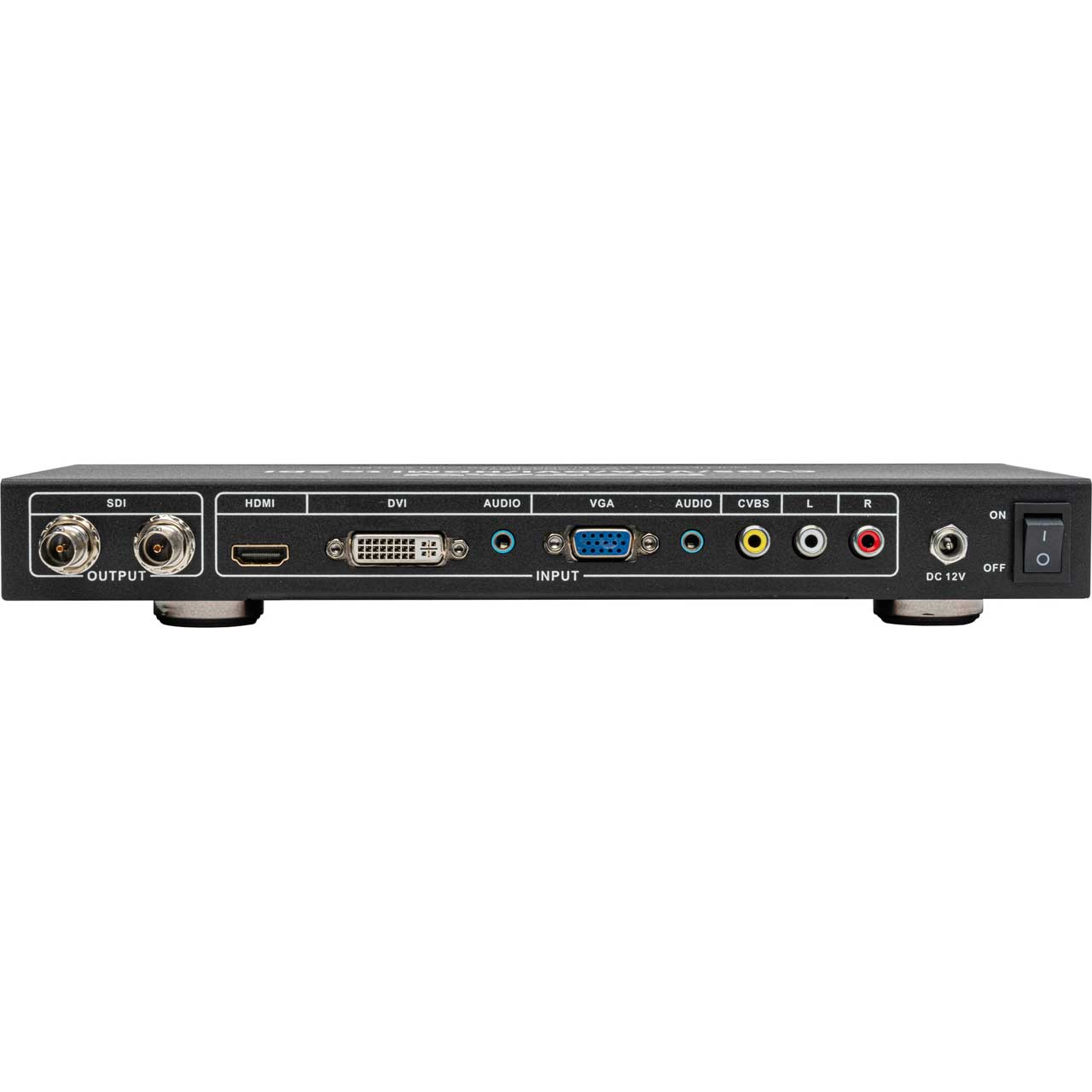

    • Inputs:
      HDMI Type A
      DVI with audio
      VGA with audio
      Composite with L/R
    • Output: SDI (HD, 3G-SDI)
    • Power Input: AC100 - 240V 50/60Hz
    • Power Consumption: 5W
    • Dimensions: 11.34" x 4.30" x 1.3"
    • Weight: 1.65lbs


  • Item Includes:

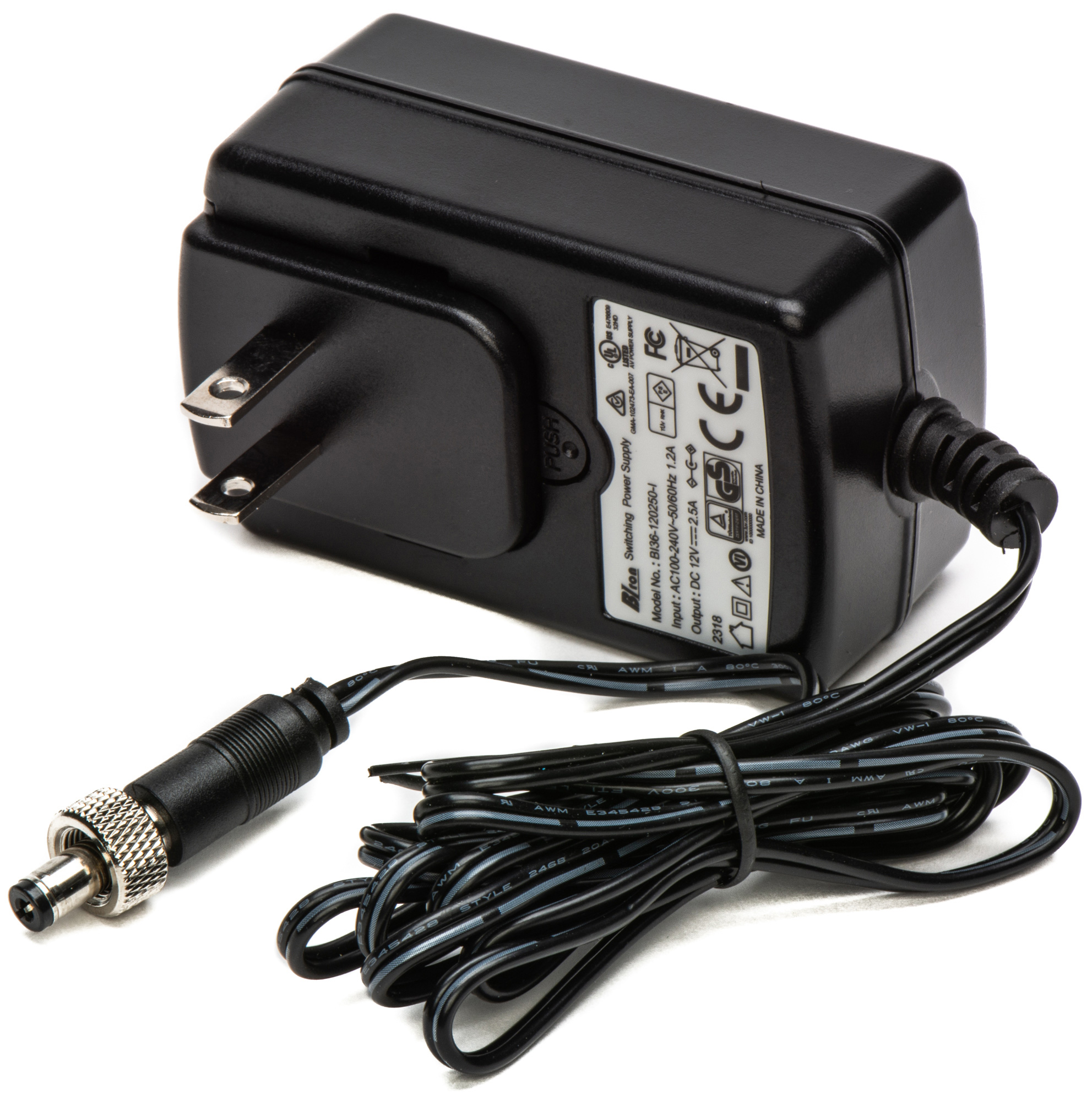

    • 1x 12V/2.5A Power Supply


  • Warranty:

    • 1 Year
