Ocean Matrix OMX-SDI-HDMI 3G HD-SDI to HDMI Converter - Bstock (Display Model)

ITEM #: OMX-SDI-HDMI-BS MFG #: OMX-SDI-HDMI-BS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-SDI-HDMI-BS

OMX-SDI-HDMI-BS - Overview

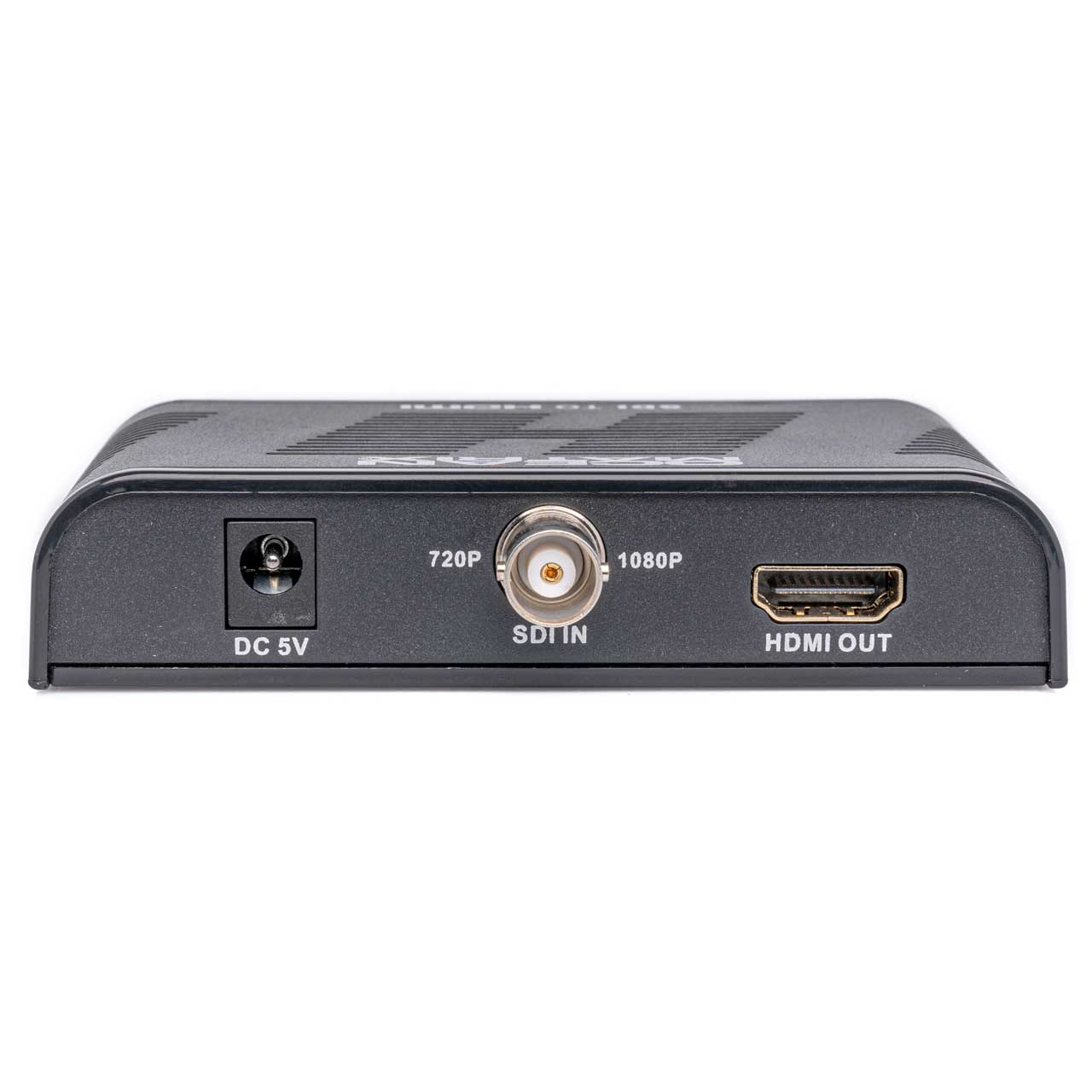

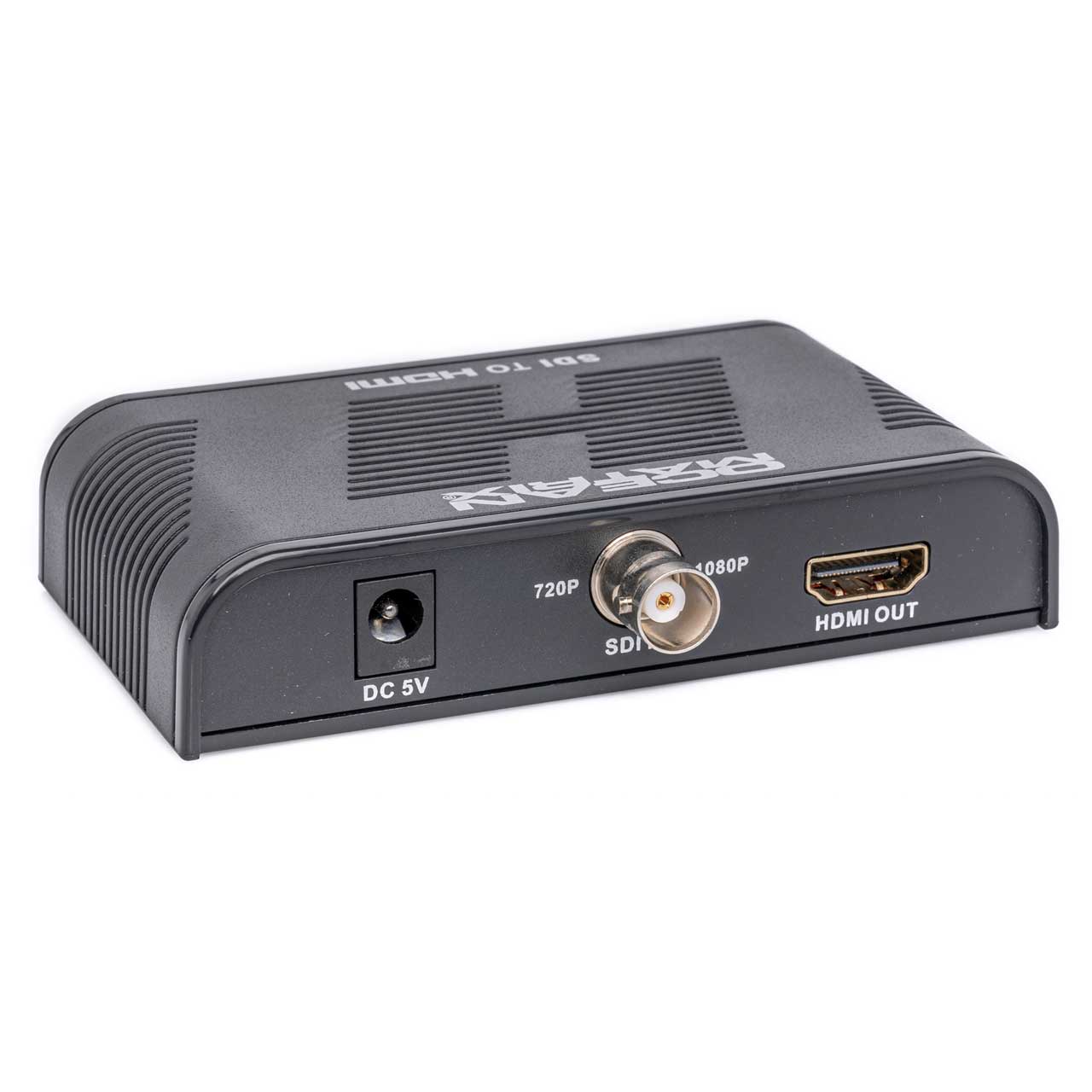

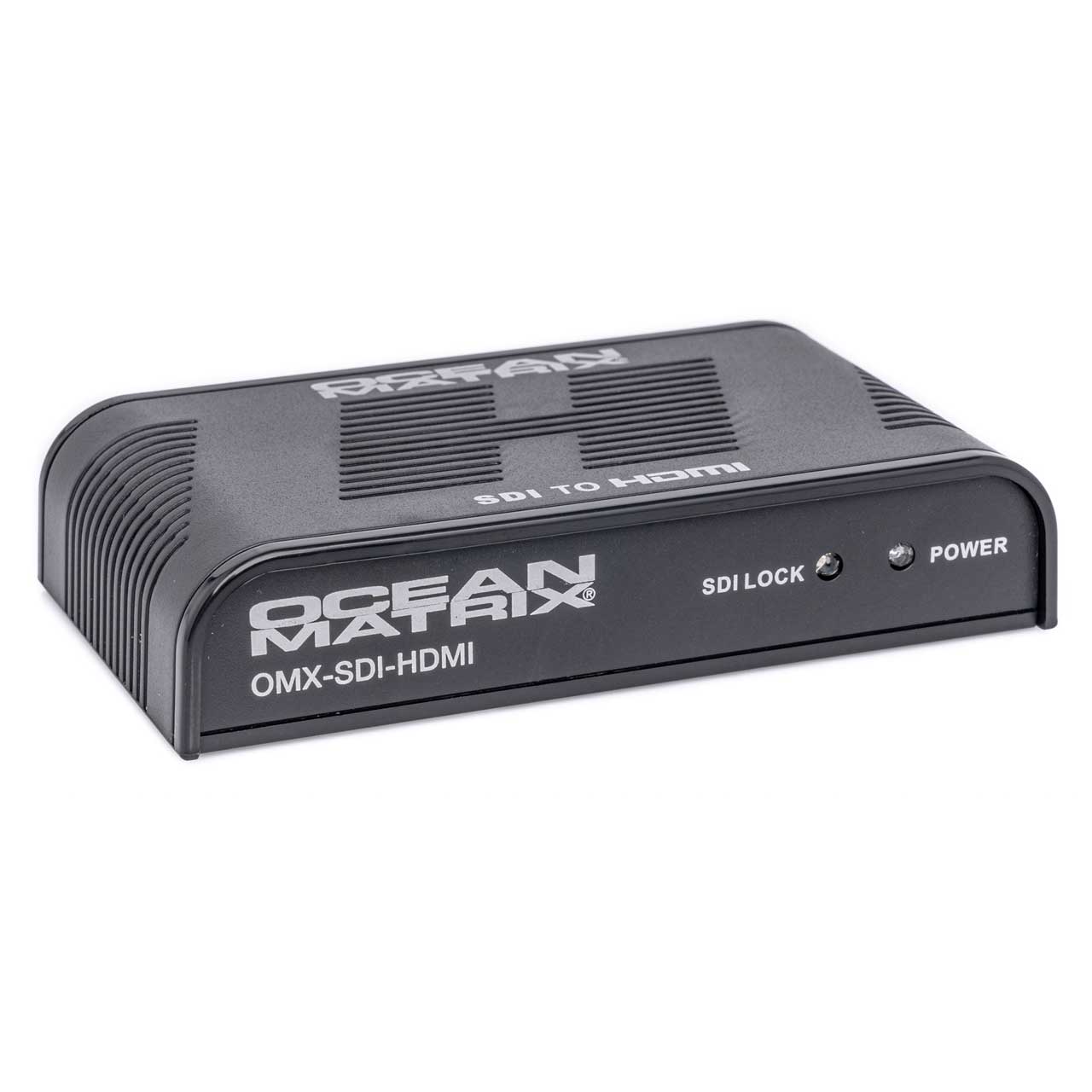

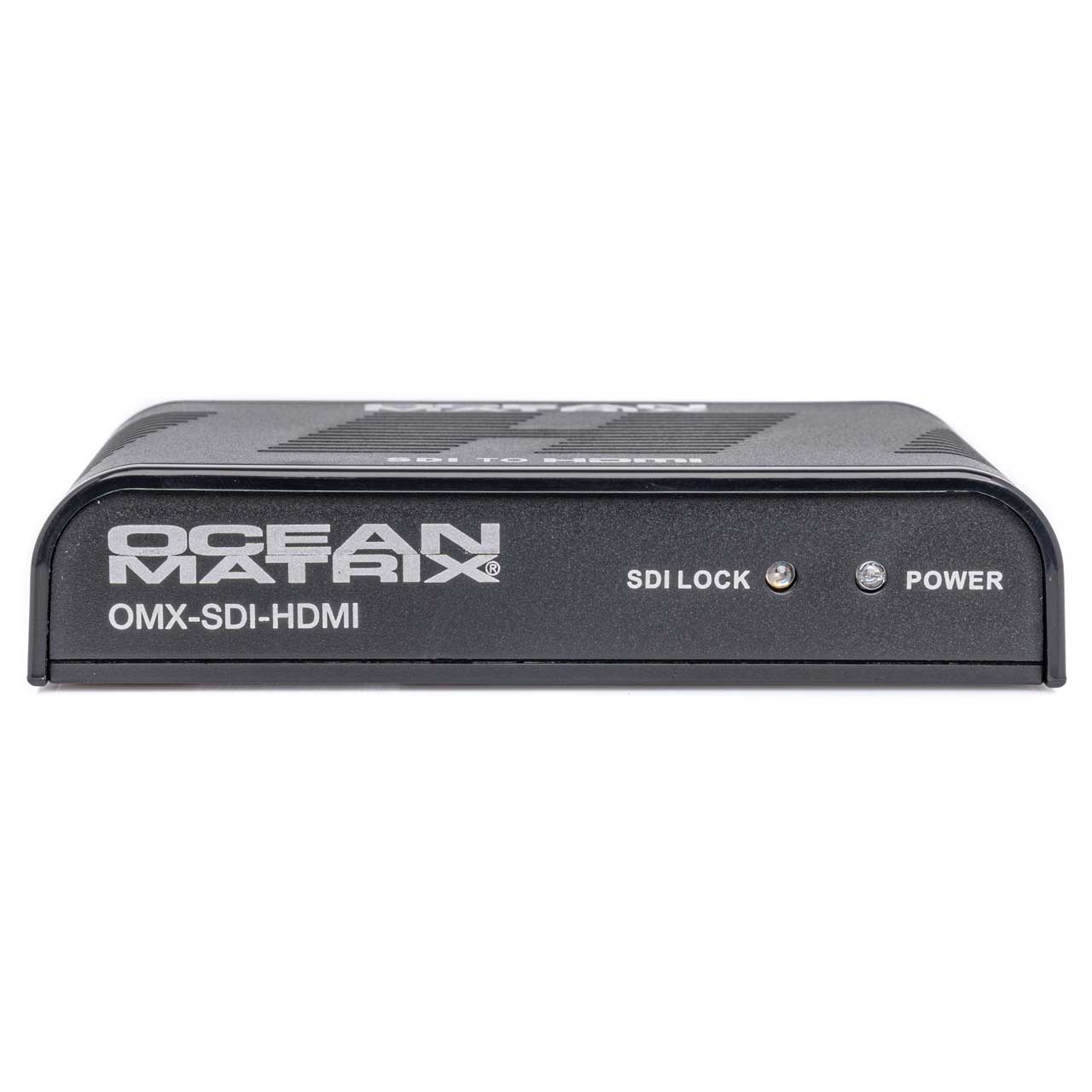

A low cost 3G-SDI/HD-SDI/SD-SDI to HDMI Converter that's perfect for monitoring broadcast video production signals on HDMI or DVI Display's. Part of the Ocean Matrix CleanLink series, this digital converter delivers a true and reliable signal with no transition loss.

Please Note: This unit was used as a display model and is in working condition.

  • Features:

    • Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI Input Signal
    • Full HDMI support with embedded audio
    • Synchronized 48KHz L/R audio output
    • Plug and play
      Bstock - The unit was used as a display model and is in working condition.


  • Specifications:

    • SDI Input
    • Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
    • Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
    • Impedance: 75 Ohms
    • Receive ability: SD-SDI signal is as far as 460 meters away; HD-SDI is as far as 230 meters away;
    • Resolution: SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ; 1080i@60HZ; HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;
    • Audio: 48KHZ digital audio.

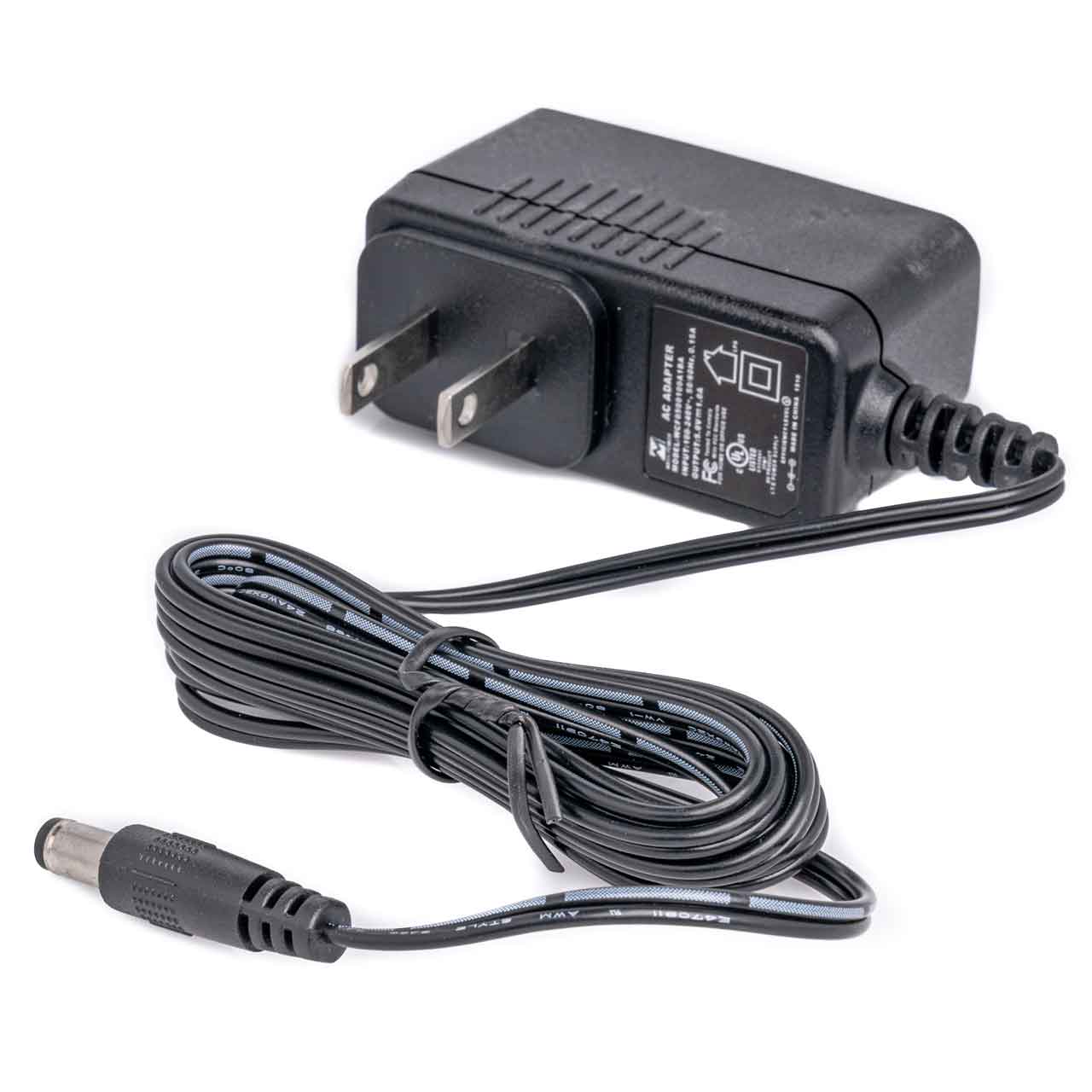

    • Power: 5VDC/1A/ Working current is less than 400 mA
    • Dimension: 105 x 59 x 23mm
    • Weight: 75g
