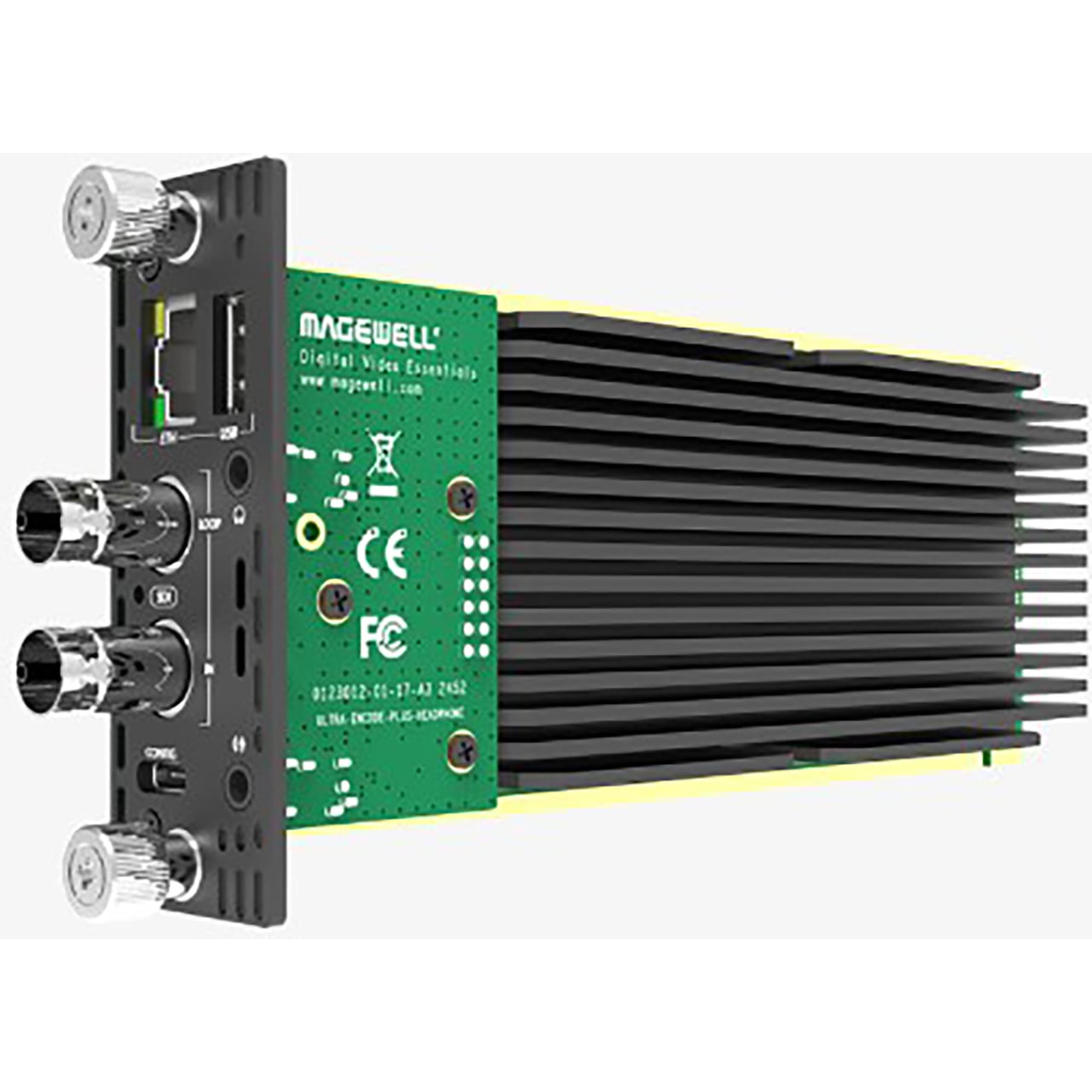

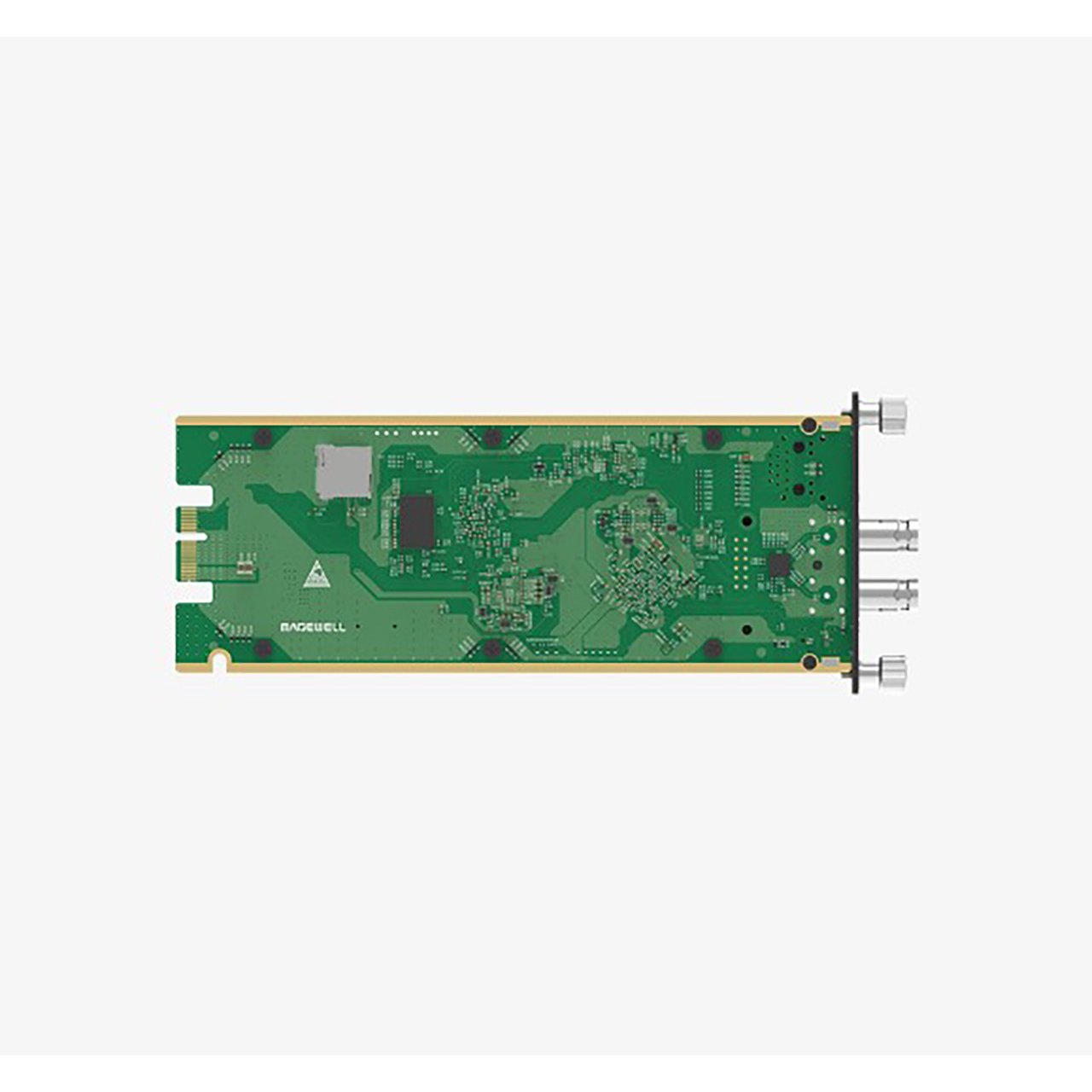

Magewell B31610000 Ultra Encode SDI Plus Module for Modator Chassis

B31610000 - Overview

Encoding module for rack-mounted centralized deployment

• Features:

  Input & Loop-Through Features
  • Support for up to 4096x2160 30fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

    Encoding Features
  • Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
  • Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
  • Support for H.264/HEVC video encoding
  • Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
  • Encoding 8-channel AAC and audio channels mapping
  • Side-by-Side 3D video encoding

    Streaming Features
  • Natively support Facebook, Twitch, YouTube and WOWZA
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule

    Recording and screenshot
  • Record to internal storage (supplied 128GB Micro-SD card), external USB storage or network attached storage (NFS/CIFS)
  • Video recordings in MP4, MOV or TS format
  • Normal recording and loop recording supported
  • Support for recording schedule

    Others
  • Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration


• Specifications:

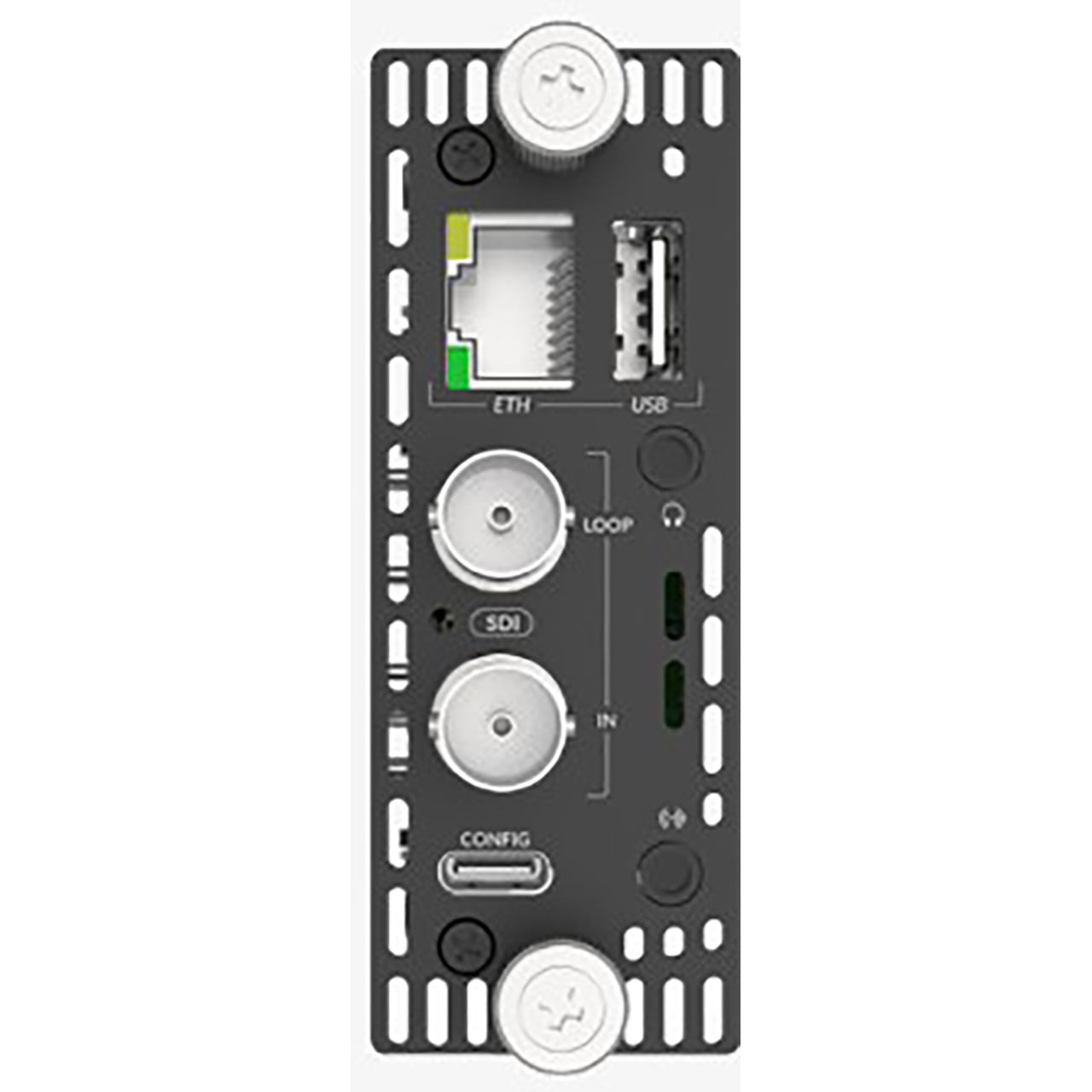

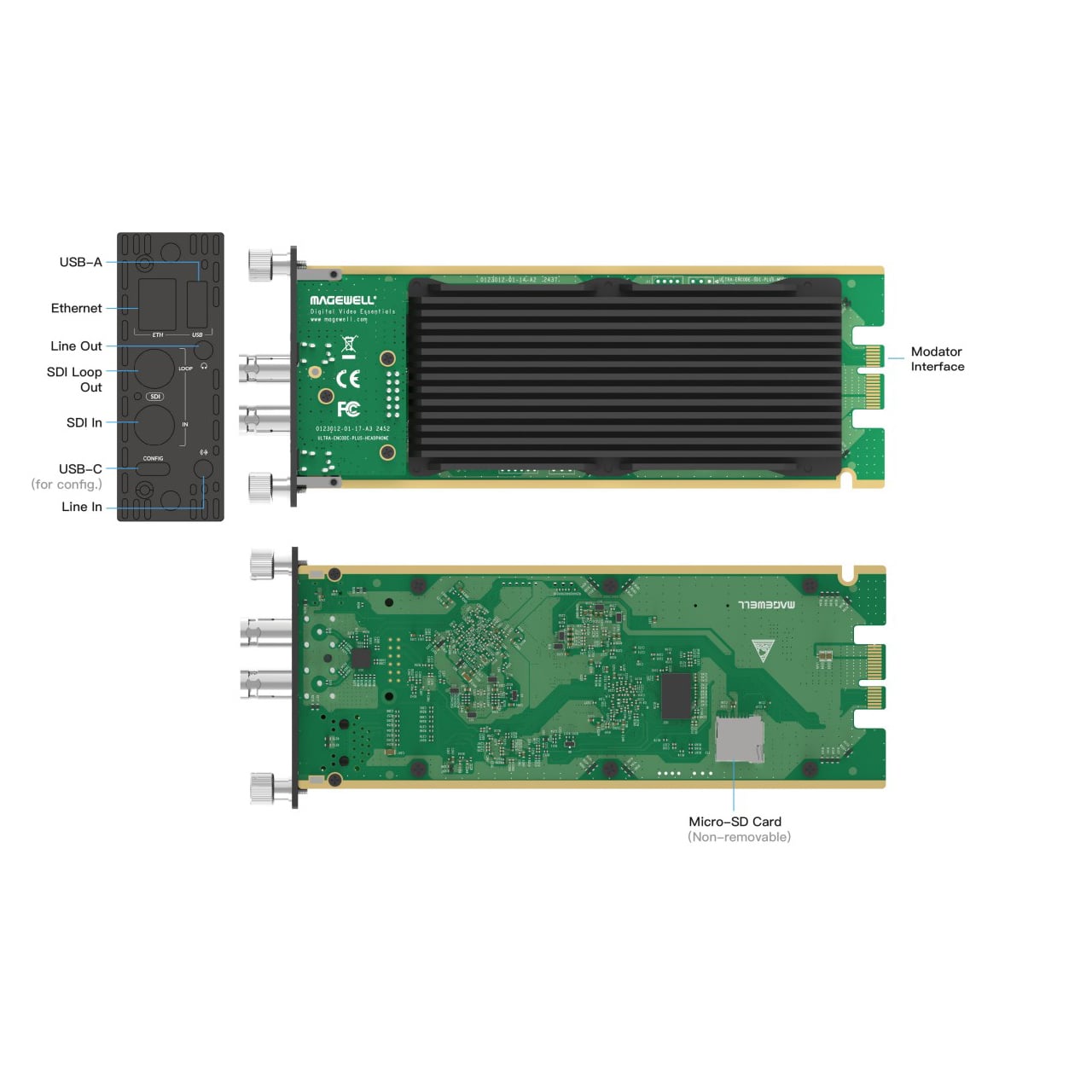

  Input/Output Ports
  • 1x RJ45 1000Mbps Ethernet port
  • 1x USB Type-C port for configuration
  • 2x SD/HD/3G/6G BNC ports
  • 1x Input
  • 1x Loop-through
  • 1x 3.5mm LINE IN
  • 1x 3.5mm LINE OUT
  • 1x USB Type-A
  • 1x Micro-SD card slot
  • 1x Modator interface for connecting to Modator 2U (hot-swappable)

    Input & Loop-through
  • Video Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS (ST 425)/6G (ST 2081) standards
  • Typical resolution/frame rate of SDI input/loop-through signal:
    - 4096x2160p/3840x2160p 23.98/24/25/29.97/30
    - 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    - 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    - 1280x720p 25/29.97/30/50/59.94/60
    - 720x576 25p/50i (PAL SD)
    - 720x480 29.97p/59.94i (NTSC SD)
  • Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4
  • Audio:
    - SDI embedded audio input/output: 16Ch, 24-bit, 192kHz sample rate
    - 3.5mm LINE IN audio input: 2Ch, 24-bit, 192kHz sample rate
    - 3.5mm LINE OUT audio output: 2Ch, 24-bit, 192kHz sample rate


  • Encoding Features
  • Video Bitrate:
    - NDI HX3: up to 62.0Mbps, down to 1.5Mbps
    - Others: up to 32.0Mbps, down to 256kpbs
  • Dual-stream encoding: main stream and sub stream
  • Main stream Resolution/frame rates:
    - 4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
    - 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
  • Sub stream Resolution/frame rates:
    - 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    - 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
  • H.264/H.265 (HEVC) Codecs:
    - System timecode or RP-188 standard timecode for SEI Message setting
    - H.265 (HEVC) SEI message supports carrying interlacing signal mark
    - Video aspect ratio conversion
    - Image rotation: 0°, 90°, 180°, 270°
    - Cropping
    - Output 3D video
  • Audio:
    - Encode up to 8 audio streams, including - 1x 8-channel stream and 7 x 2-channel streaming
    - Supports mapping between source channels and encoded audio channels
    - Bitrate: 256/192/128/96/64/48/32/16 kbps
    - Output source embedded audio and line in through LINE OUT

    Live stream
  • Natively supports streaming to:
    - Twitch
    - YouTube (HLS/RTMP)
    - Facebook
    - WOWZA over RTMP
    - WOWZA over SRT, setting AES encryption (AES-128/192/256)
  • Supports streaming protocols:
    - RTSP
    - RTMP/RTMPS
    - SRT Caller/SRT Listener
    - NDI HX2/NDI HX3
    - HLS
    - TS over UDP/TS over RTP
    - TVU ISSP

    Record
  • Supports setting and managing recording function and tasks
  • Supports recording to local storage (supplied SD card of 128 GB)
  • Supports format and perform


• Warranty:

  • 2-year
