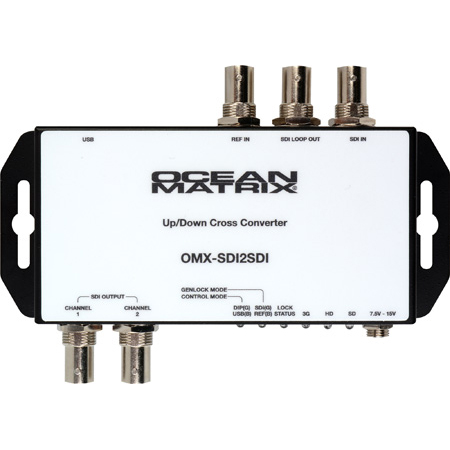

Ocean Matrix OMX-SDI2SDI SDI to SDI Reclocking Up Down Scaling Converter with Frame Synchronization

Manufacturer: Ocean Matrix

Item #: OMX-SDI2SDI   •   MFG #: OMX-SDI2SDI



List Price:$449.95
Our Price:$429.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    Deliver a video signal that's always device compatible with the Ocean Matrix SDI2SDI multiformat SDI Up/Down/Cross converter. The OMX-SDI2SDI provides simple conversion between multiple SD & HD formats. For example, convert 720p to 1080i, 1080i to 1080p or 720p to 1080p. The unit features a full scaling & standards conversion engine and even includes a Genlock input for easy device synchronization.

    The OMX-SDI2SDI has a reclocked and amplified SDI output for sending signals over long distance coax including 3G-SDI up to 100 meters over RG6. Multi-channel audio is also supported with an automatic delay to sync with any video processing delays. In addition, the unit has a test pattern generator to assist in camera setups and troubleshooting. Built-in automatic input detection circuitry seamlessly recognizes the input format and adjusts accordingly.

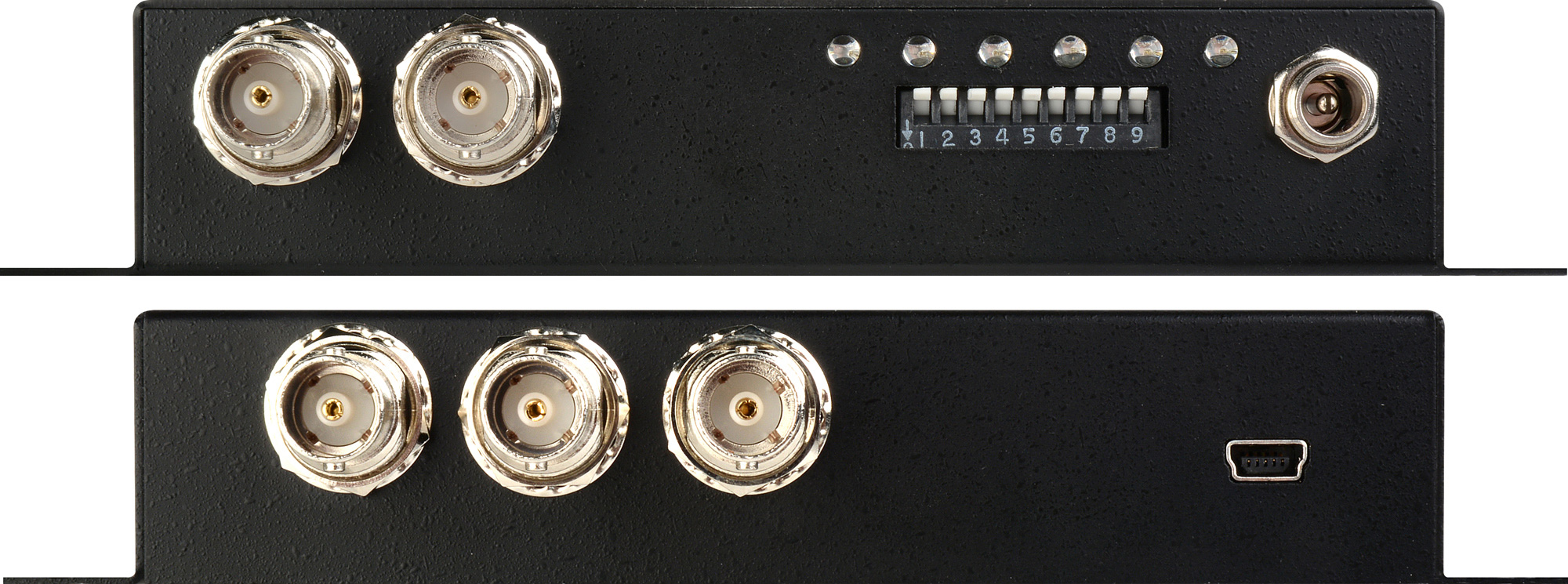

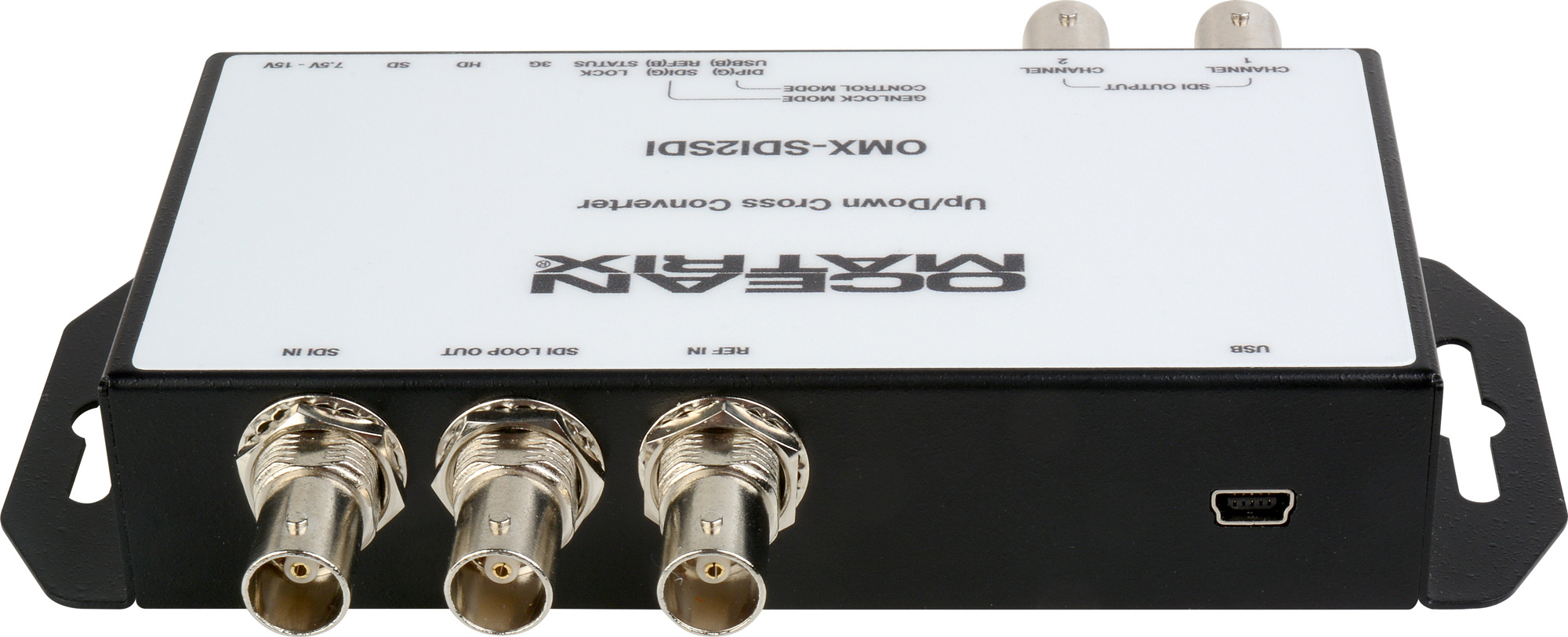

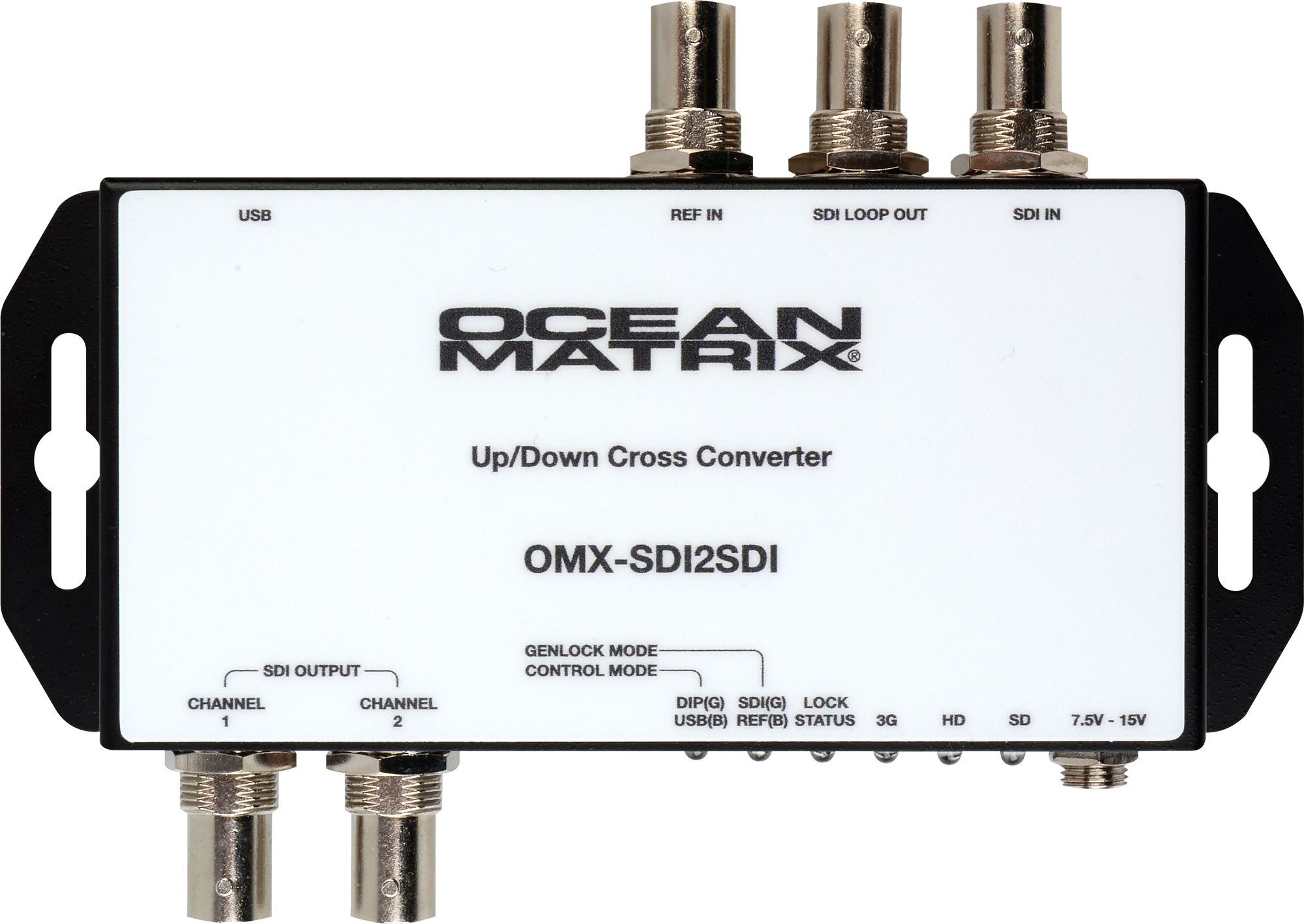

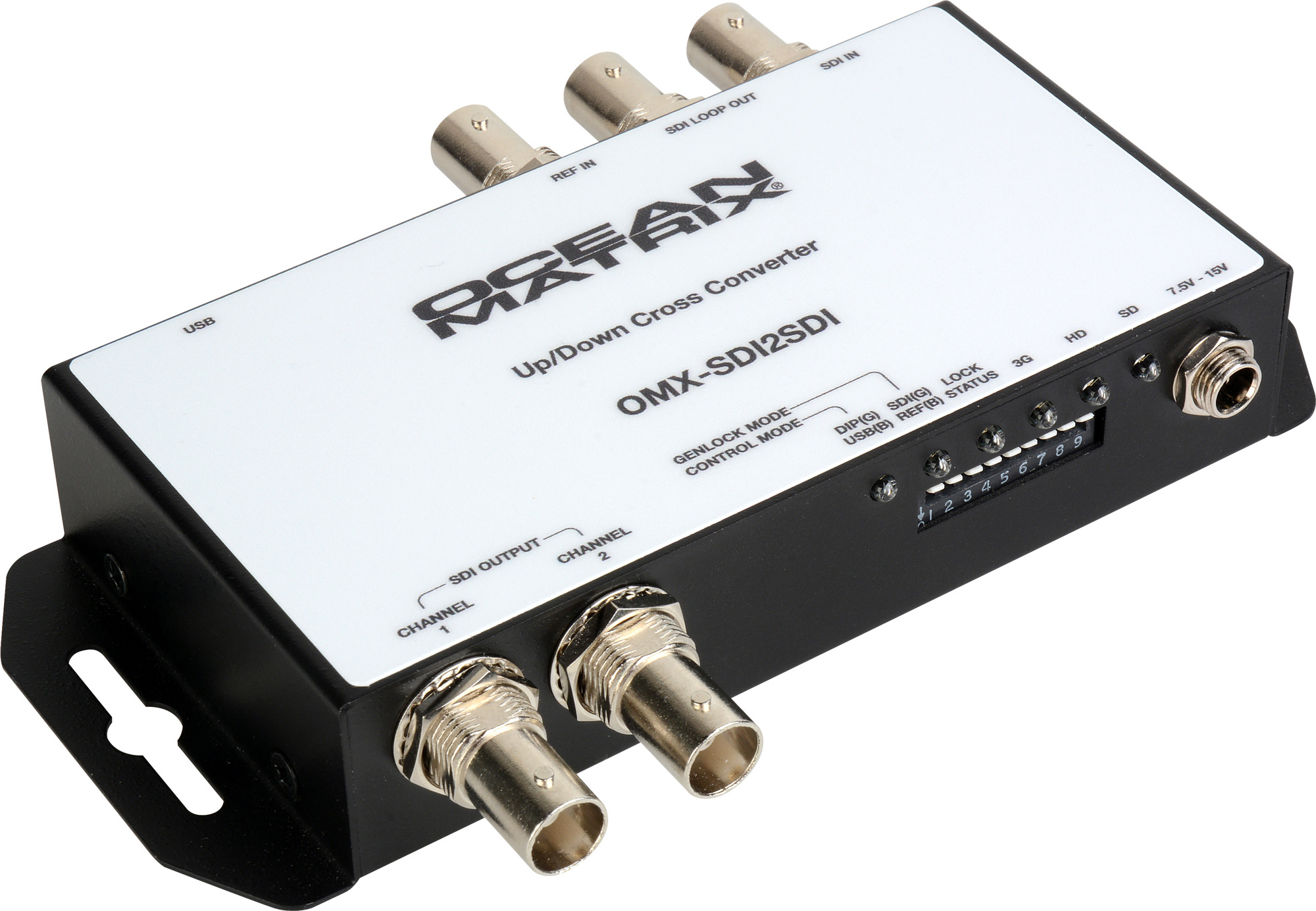

    I/O's include SDI Input, SDI Looping Output, Reference Input (Genlock). The Dipswitches have a Control Mode, Genlock Mode, Aspect Ratio and Output Format (see manual for settings)

    Please Note: USB Port is for Factory Use Only!


    • Features

      • Built-In Up/Down Conversion
      • Adjust Aspect Ratio from Full to 16:9 to 4:3 or Pixel to Pixel
      • Auto 3G/HD/SD/SDI Detection
      • External Dipswitch for Video Mode and Device Configurations
      • Reference Input for Genlock
      • SDI Reclock up to 3G-SDI
      • Test Pattern Generator
      • Universal Mounting Flanges

    • Specifications

      • SDI Supports HD formats: 720p50 & 60, 1080i50 & 60, 1080p24, 25, 30, 50 & 60
      • SDI Support 525i & 625i SD D1 format
      • SDI support RGB/YUV 4:4:4 Sampled
      • Audio Formats: up to 8 Channels, 24bit, 48KHz
      • Frame Rate Conversion (1.000/1.001)
      • Input: 1- SDI (BNC), 1-Ref (BNC)
      • Output: 2-SDI (BNC), 1-Pass Through (BNC)
      • Voltage Input: 7.5-15VDC
      • Dimensions (LxWxH) 6.15x2.5x1in/ 156x63.5x25.4mm
      • Weight 1 lb / 0.45 kg

    • Item Includes

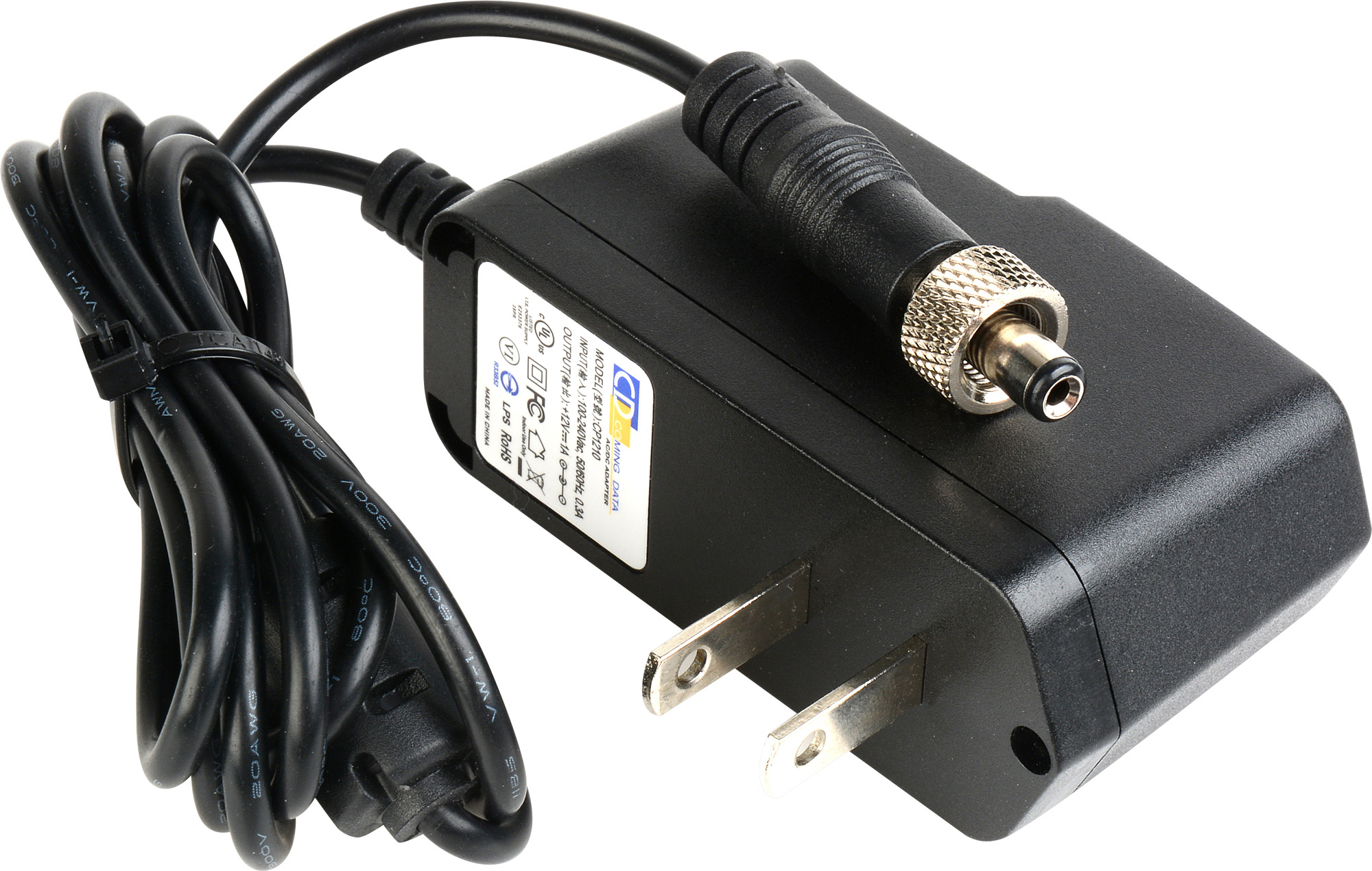

      • US 2-Prong 12VDC/1A Power Adapter
