    OMCC - Overview

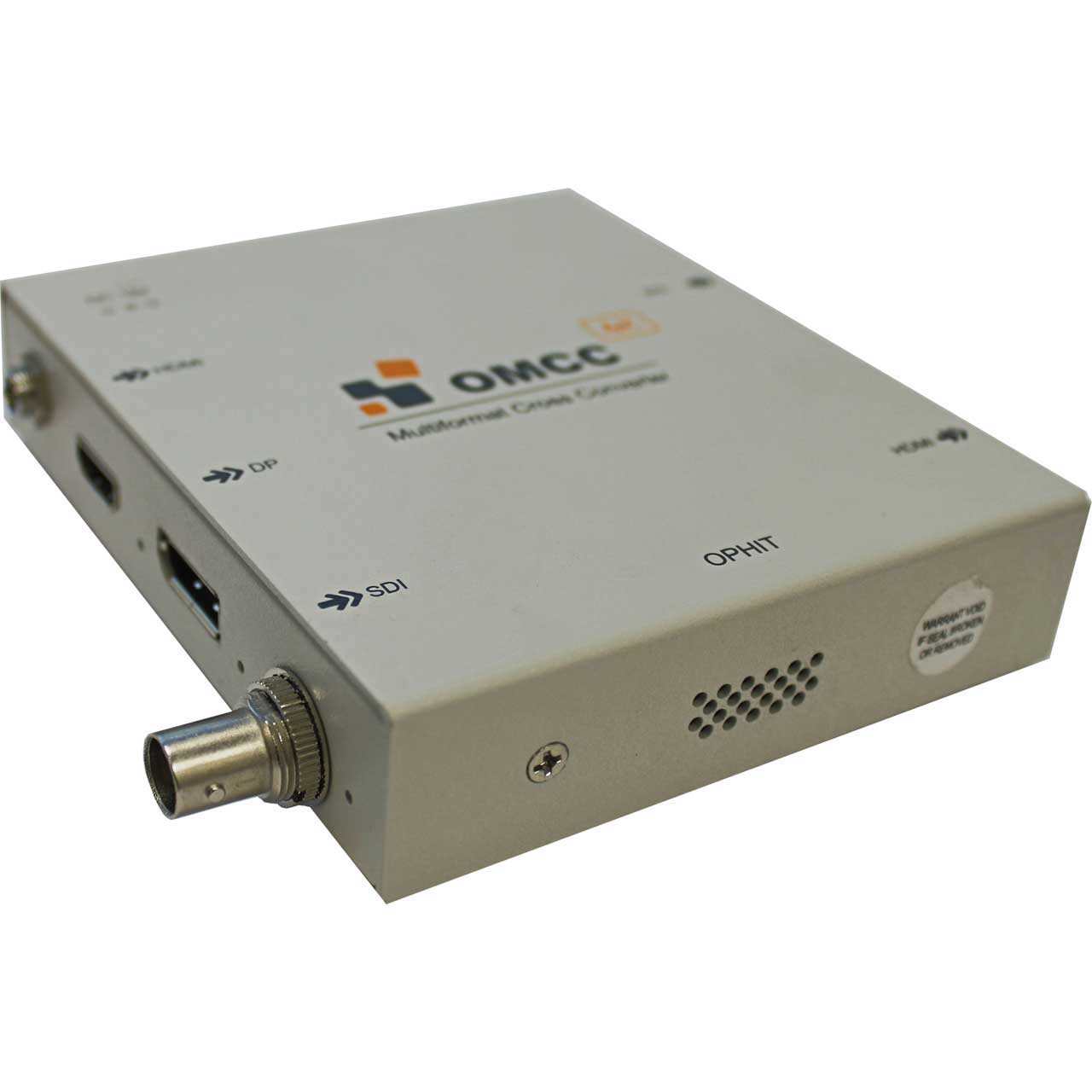

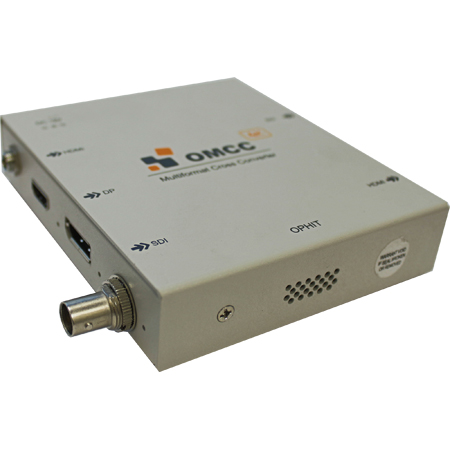

    Ophit's OMCC is a compact and lightweight 4K multi-format cross-converter capable of converting HDMI or DisplayPort into SDI 12G, 6G, and 3G signals, transmitting high-definition signals through the SDI bypass function without compromising video signal quality. This distinctively constructed cross-converter converts DisplayPort and SDI signals into HDMI output and HDMI and DisplayPort into SDI output, delivering a maximum resolution of up to 4K@60Hz. Additionally, one of the unique feature characteristics of the OMCC is the option of selecting the input video format using the Tact switch and the output video format using the Slide switch. This feature is compatible with various professional broadcast equipment, allowing easy integration into existing installation setups.

    • Features:

      • Maximum resolution up to 4K@60Hz

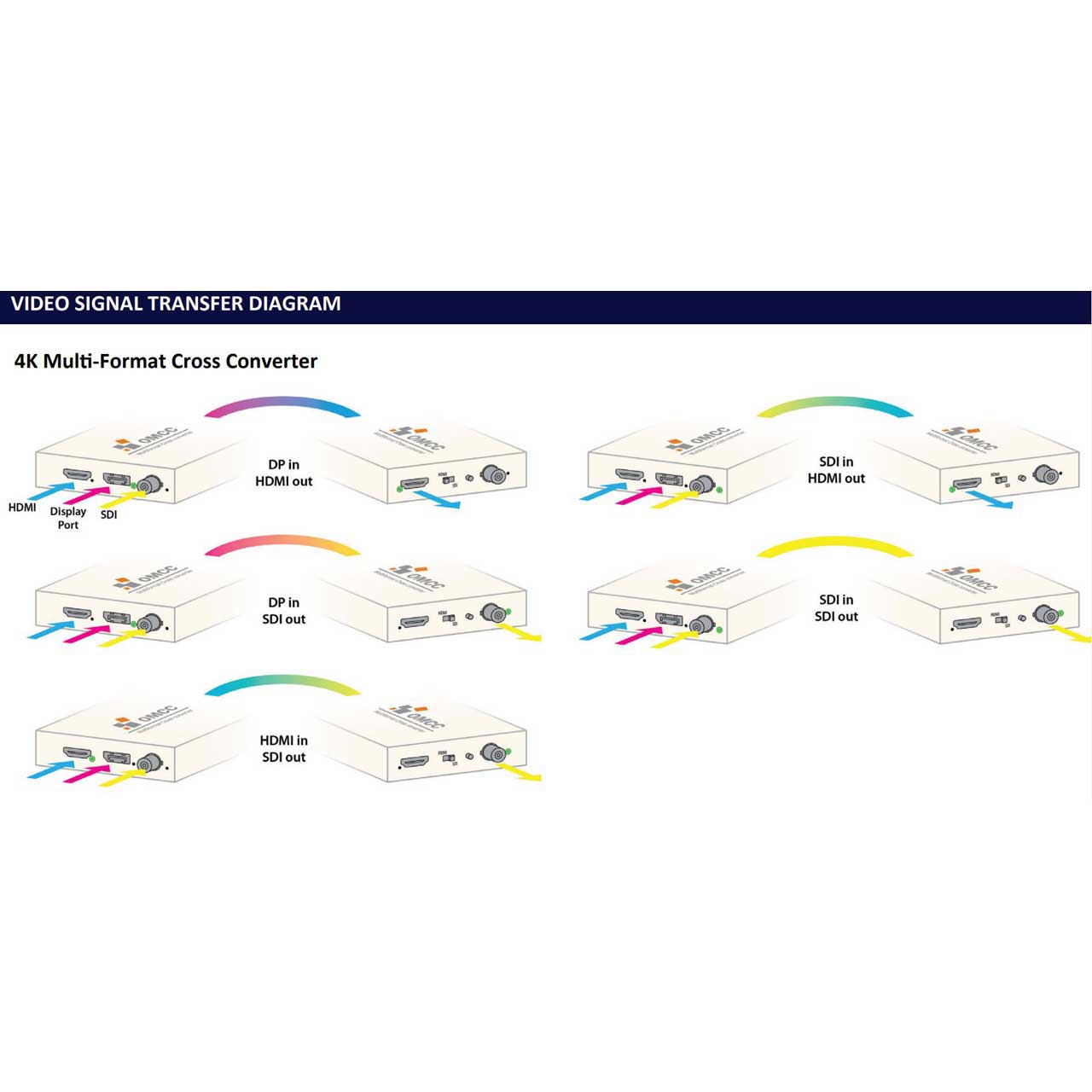

      • Convert HDMI or DisplayPort to SDI format in 12G, 6G, 3G, and HD
      • DisplayPort input and SDI input can be converted to HDMI output
      • Supports SDI input/output Level A
      • Select the input video format using the tactile (push-button) switch
      • Select the output video format using the SDI (right) / HDMI (left) switch
      • 12G-SDI output automatically detects the input video rate and matches the SDI output with YCbCr 4:2:2-10bit video rate
      • Supports firmware updates via USB port


    • Specifications:

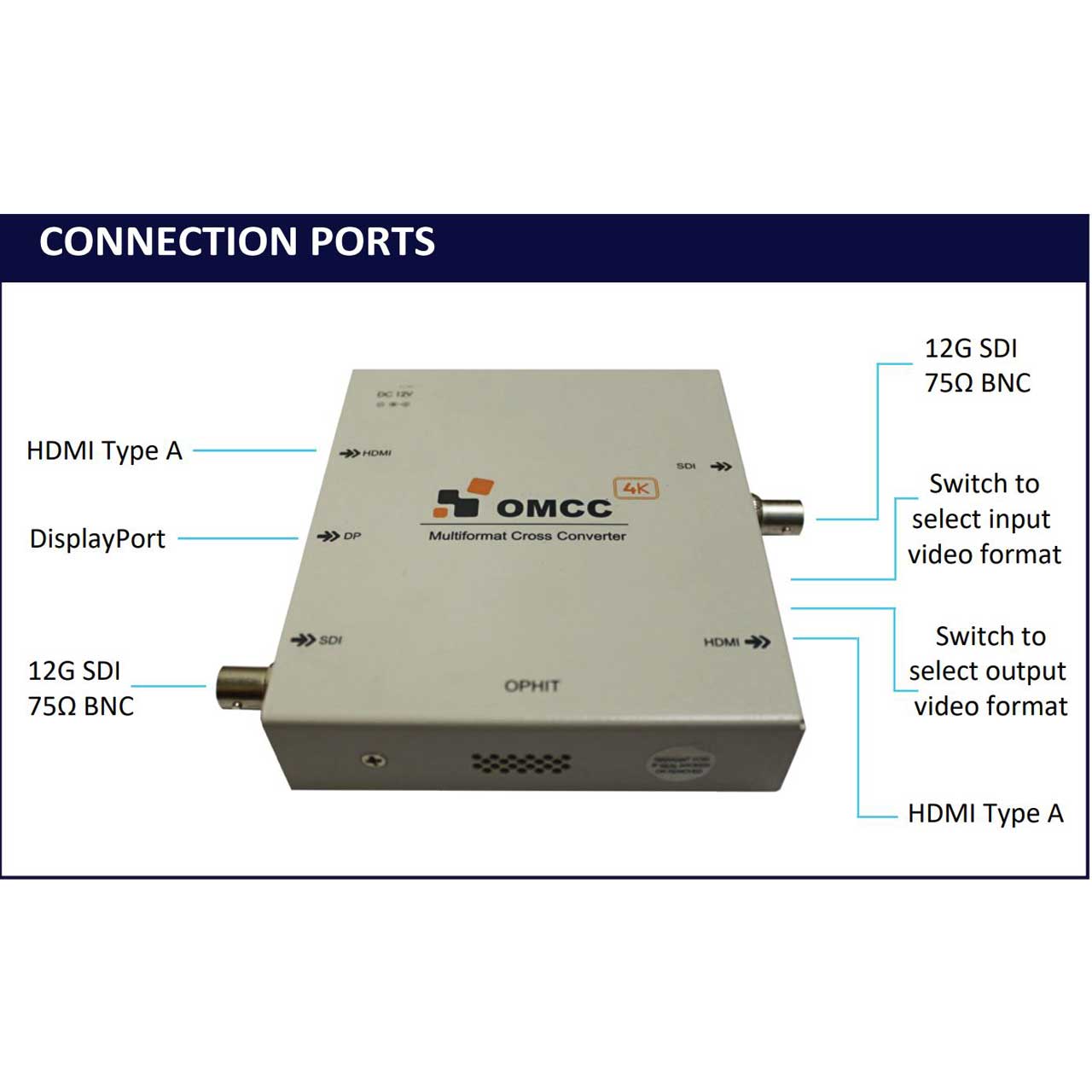

      • Input Signal / Connector: 1x HDMI via Type-A Female Connector, 1x DisplayPort via 20P Female Connector, 1x SDI via BNC Female Connector
      • Output Signal / Connector: 1x SDI via BNC Female Connector, 1x HDMI via Type-A Female Connector
      • USB Connector: 1x mini USB-B Female Connector
      • Input Data Rate: HDMI: Up to 18Gbps (HDMI 2.0) DisplayPort: Up to 21.6Gbps (DisplayPort1.2) 12G-SDI: Up to 11.88 Gbps (ST-2082-1)
      • Output Data Rates 12G-SDI: Up to 11.88 Gbps (ST-2082-1) HDMI: Up to 18Gbps (HDMI 2.0)
      • Video Resolution: Up to 4K@60Hz

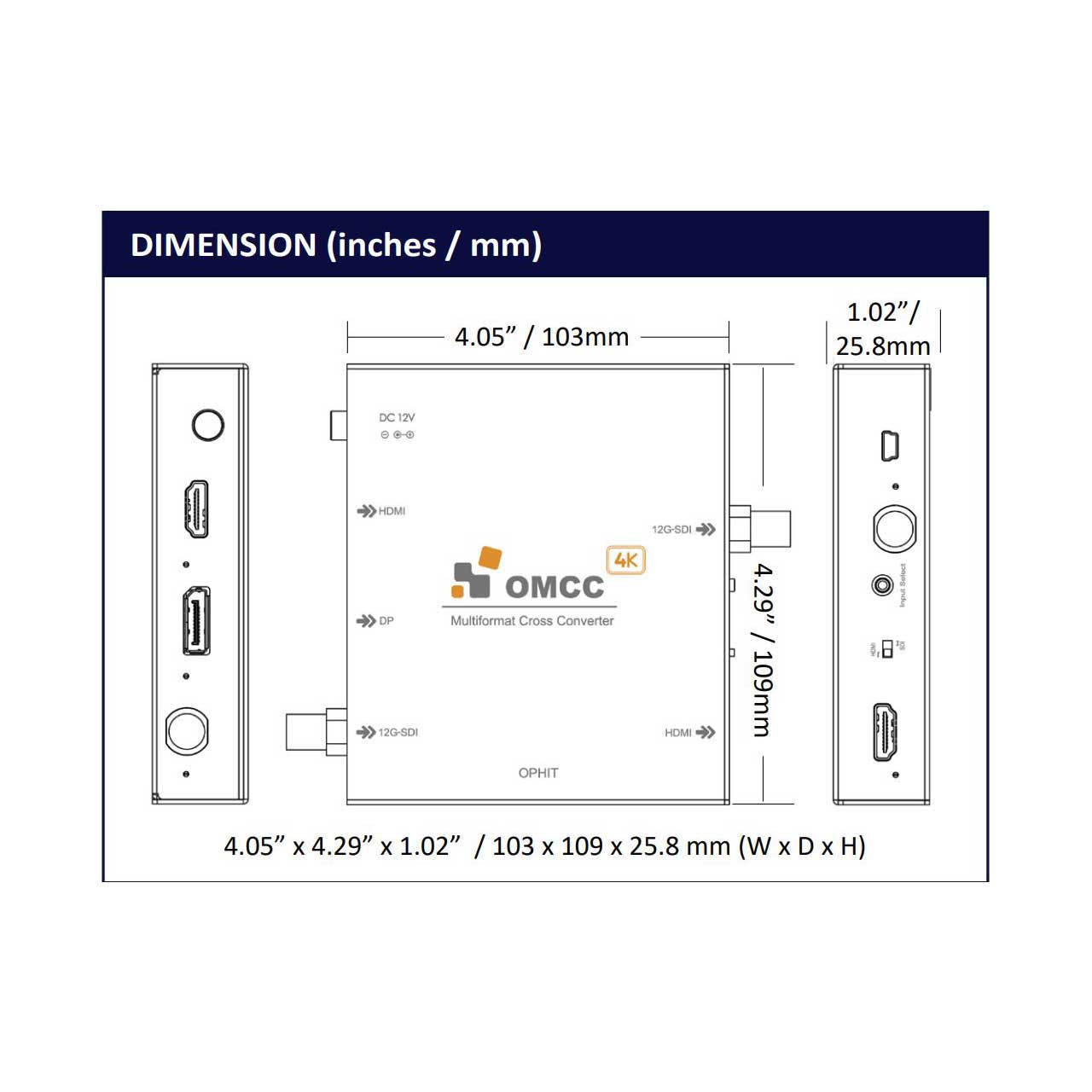

      • Module Dimension (WxDxH): 4.05" x 4.29" x 1.01" (103mm x 109mm x 25.8mm)
      • Module Weight: 1.05
      • Enclosure Color: White
      • Power Supply: DC +12 V


    • Item Includes:

      • 1x Ophit OMCC Multi-Format Cross Converter


    • Warranty:

      • 1-Year Limited Warranty
