Phabrix PHRX500A Rx 1U 9.5 Inch Rack Mount Chassis - HD/SD-SDI Base Unit with CPU module Includes Analyzer Module

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

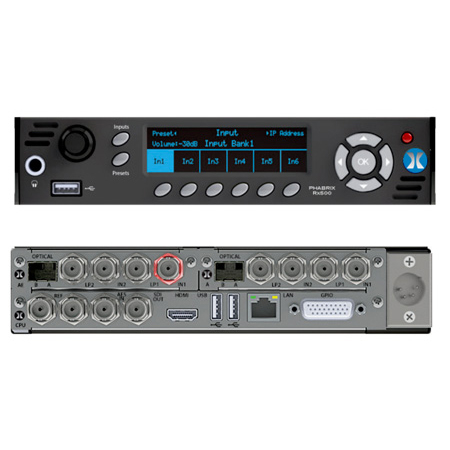

    Phabrix PHRX500A Rx 1U 9.5 Inch Rack Mount Chassis - HD/SD-SDI Base Unit with CPU module Includes Analyzer Module

    Manufacturer: Phabrix

    Item #: PHRX500A   •   MFG #: PHRX500A




    Our Price:$5,794.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Ideal for quality control applications, the Rx 500A is an ultra-compact 2 channel 2K/3G/HD/SD-SDI video/audio analyzer and monitoring solution (dual inputs per analyzer). The 1/2 1RU frame can also provide signal generation for video and audio. Up to 16 instruments can be displayed per channel for video analysis and physical layer testing via an external monitor. With multiple advanced diagnostics tools, including Real-time Eye and Jitter physical layer analysis instruments plus closed caption, loudness and Dolby monitoring, Rx 500 is ideal for OB trucks, broadcast facilities and video technology manufacturers.

      Rx 500 enables faster, intermittent fault finding using video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Fault diagnosis is also quickened by the Rx 500's remote access capability, which allows engineers to monitor and analyze video via a web browser from any location.

      Workflows are optimized with ultra-flexible, user-defined instrument display layouts. Up to 16 instruments can be displayed simultaneously, at sizes ranging from full screen down to 1/16 screen. In multichannel monitoring environments, channel identification is simplified with a dedicated window color per channel. Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout pre-sets for fast turnarounds. Up to 99 presets are available to suit even the largest facility.


      • Features

        • Up to 2 channels of video and audio analysis (dual inputs per analyzer)
        • Signal generator option for video and audio
        • 2K/3G/HD/SD-SDI and Optical support with looping I/O
        • 12-bit YRGB/YUV waveform monitor with H,V zoom
        • Vectorscope for checking color bias / conformity
        • Generation of 32 test patterns, including Pathological and moving patterns
        • REF locking and timing analysis
        • Fast recall of up to 99 configuration presets
        • Flexible layouts with instruments sized from 1/16 to full screen
        • Color coding for two channels for easier monitoring
        • Faster intermittent fault diagnosis with video capture (13 frames HD, 60 frames SD) with automated triggering
        • SD/HD/3G/2K-SDI RTE (Real-time Eye) option for testing SMPTE compliance issues, including under/overshoot
        • Jitter analysis in five specified frequency bands
        • Up to 2 channels of closed captions can be displayed, with support for WTS/OP42/OP47, EIA 608 and EIA 708 formats
        • Ancillary data analyzer with support for ANC Timecode, reference VITC and LTC support
        • Up to 2 channels of loudness metering and monitoring, using selected stereo pair or 5.1 surround audio. Supports ITU or EBU Recommendation 128. Loudness logs stored automatically
        • 16 channels embedded audio monitoring with level meters, phase meters, and Dolby E / AES support
        • TCP/IP interface for remote control and automated testing
        • Compact 1/2 1RU design, just 17cm deep and weighing 1.3kg
        • Low power consumption (24W typical, 40W max) for cool operation

      • Specifications

        • Video inputs/outputs
        • 2-4 x SDI for 2K/3G/HD/SD, 75 Ohm terminated BNC Inputs
        • RTE Real-time Eye input (2K/3G/HD/SD-SDI)
        • SFP+ MSA/NON-MSA 12 Gbps copper or fiber SDI, 10G Ethernet

          Audio inputs/outputs
        • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
        • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
        • Stereo analogue audio output, (via 26 pin high density `D' Type socket)
        • Calibrated stereo balanced analogue audio output (option module)
        • LTC input (via 26 pin high density `D' Type socket)

          User Interface/Networking & control
        • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
        • SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
        • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
        • IP sockets based remote control as standard
        • 8 x GPI I/O (via 26 pin high density `D' Type socket)
        • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
        • FPGA firmware/software upgrade via Ethernet/USB

          Monitoring
        • Front panel headphone connector 6.3mm (1/4 inch) stereo jack
        • Internal loudspeaker (beeper)
        • Front panel volume/gain control

          General
        • Reference: Reference/VITC input, passive loop through, BNC 75 Ohm compensated
        • Formats supported (generation, analysis & monitoring): SD-SDI, HD-SDI, 3G-SDI, 2K-SDI
        • Dimensions (W x H x D): 8.26 x 1.73 x 6.69 Inch excluding ears & projections; ½ 1RU 19" rack mount
        • Weight: 2.86 lbs
        • Power consumption: 24W typical 40W max (variable on modules inserted), 4 Pin XLR power connector, 12V nominal (9V-18V)
        • AC Power adaptor (included): 90-264VAC, 120W
        • Whisper: quiet temperature controlled fan (1 x 40mm internal)
        • Warranty: 1 year standard increased to 3 or 5 years with Extended Warranty package
