Platinum Tools 90188 ezEX-RJ45 90188 Starter Termination Kit for Cat5/5e - Cat6 - Cat6A - Speeds up to 10Gb

ITEM #: PLAT-90188 MFG #: 90188

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$107.09

Availability: In Stock
iAvailability Description Popup


    90188 - Overview

    The Platinum Tools 90188 ezEX-RJ45 Starter Kit includes everything needed to start terminating with the industries most advanced and versatile RJ45 connectors. EXO Crimp Frame with EX die will crimp and flush trim conductors on the entire family of ez-EXRJ45 connectors. Three one piece connector models included. Terminate Cat5e, Cat6 and Cat6A cables with OD to .290" and conductor range of .033" - .048". Connector speed compatibility to 10Gb and are certified for Poe and PoE+ applications. Kit includes Clear, White, Blue Strain reliefs.

    • Features:

      • EXO Crimper crimps all ezEX-RJ45 unshielded and shielded connectors.
      • EXO Crimper accepts interchangeable dies available separately.
      • Three connector models included handle cable OD of .290" and overall conductor OD range of .033" thru .048".
      • Conductors pass through connectors to allow verification of wire order before crimping/triming.
      • Interchangeable crimp die available separately for all EZ-RJ45 connectors #100072C.

    • Specifications:

      • ezEX38 connectors typically for small Cat5e,Cat 6, accept cable OD .290", conductor OD range .033" thru .038"

      • ezEX44 connectors typically for Cat6, Cat 6A, accept cable OD .290" conductor OD range .039" thru .044"

      • ezEX48 connectors typically for large Cat6, Cat6A, accept cable OD .290" conductor OD range .043" thru .048"

      • Connectors accommodate speeds up to 10Gb and certified for PoE and PoE+ applications.

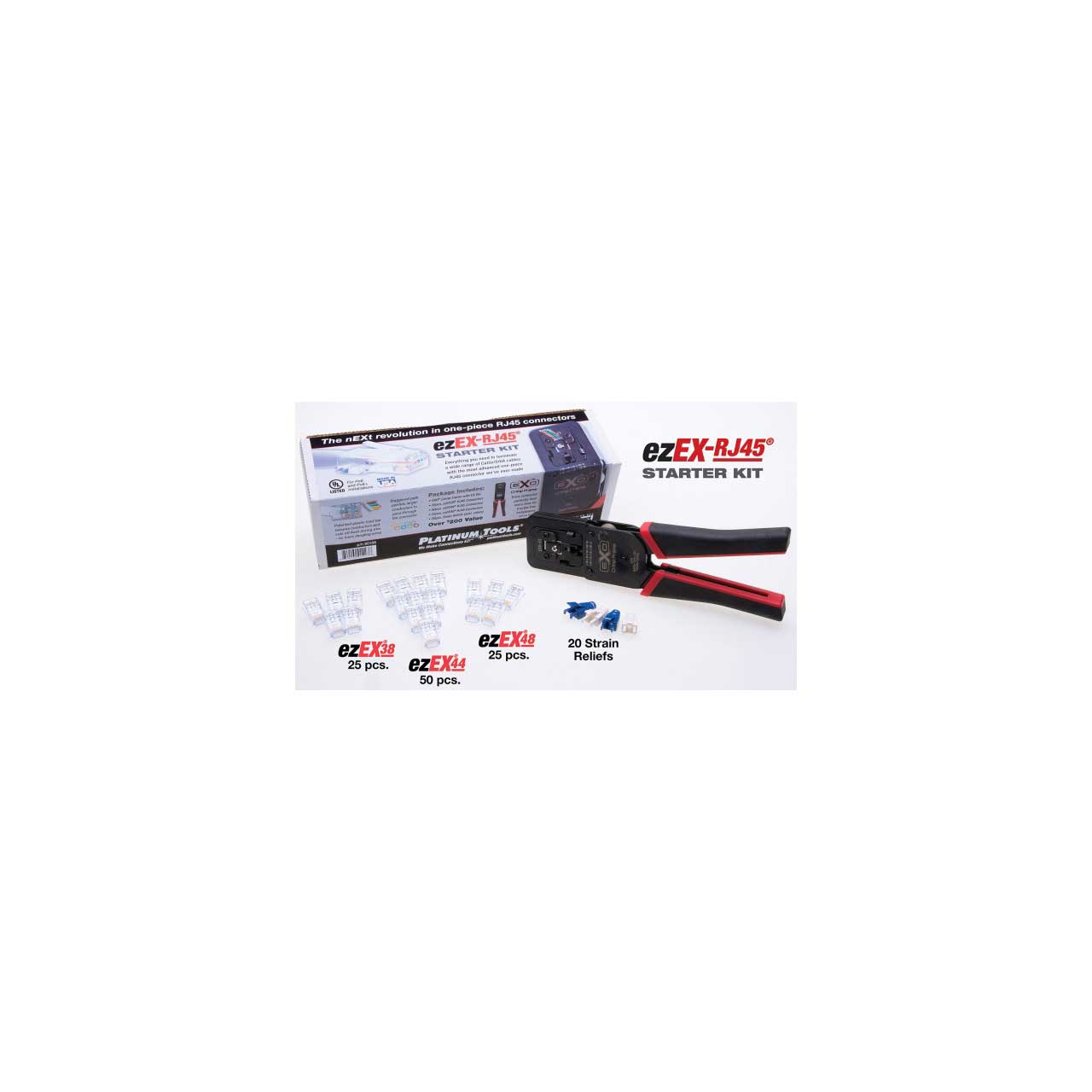

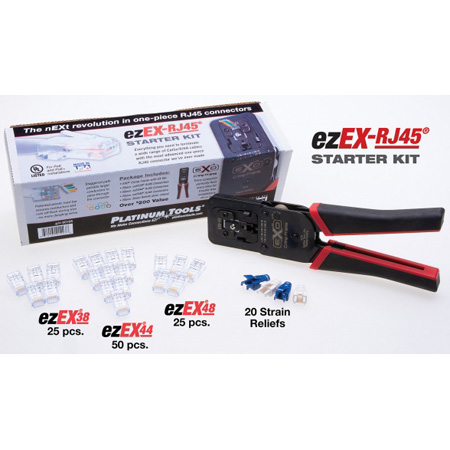

    • Item Includes:

      • 1x 100061 EXO Crimp Tool
      • 25x ezEX38 Connectors
      • 50x ezEX44 Connectors
      • 25x ezEX48 Connectors
      • 20x Strain Reliefs in assorted colors

    • Warranty:

      • 1 Year Warranty on EXO Crimp Tool

    • GTIN:

      0849160012276
