Platinum Tools TNP700 Net Prowler Tester
  • Platinum Tools TNP700 Net Prowler Tester
  • Platinum Tools TNP700 Net Prowler Tester

Questions? Ask a Markertek Expert:
800-522-2025 Email

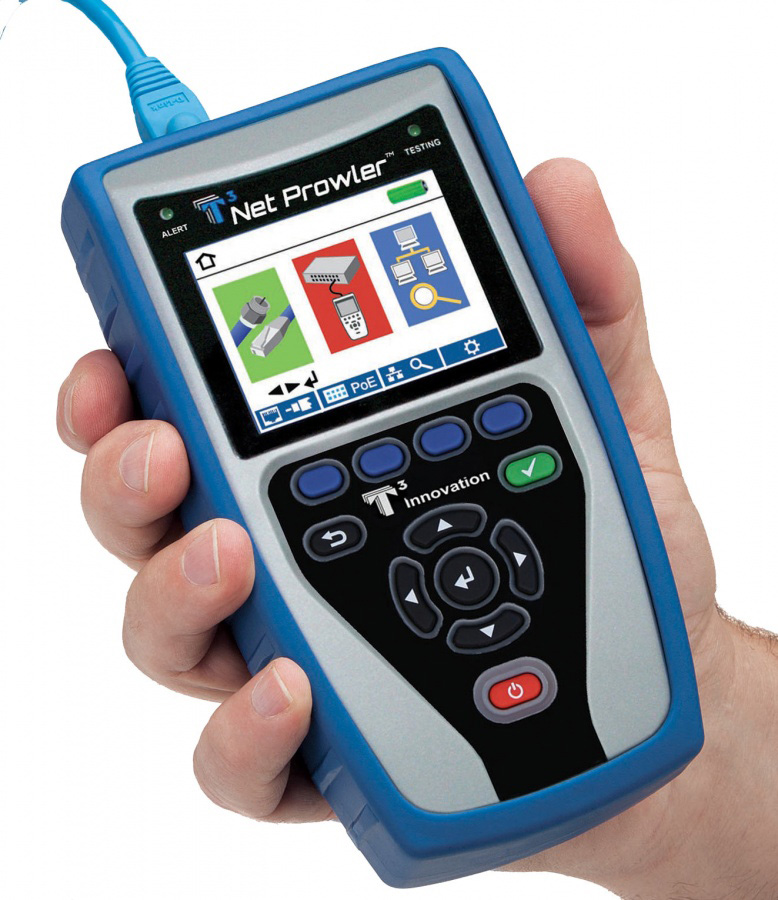

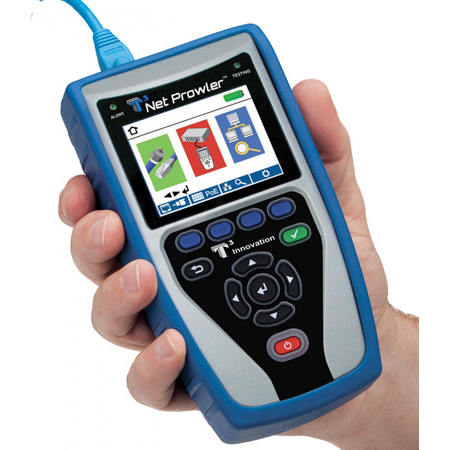

Platinum Tools TNP700 Net Prowler Tester

Manufacturer: Platinum Tools, Inc.

Item #: PLAT-TNP700   •   MFG #: TNP700



List Price:$799.95
Our Price:$693.45

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Net Prowler combines network testing (physical layer and link), cable verification, cable troubleshooting and PoE voltage testing in a handheld tester with a full-color display; all with the capability of saving and printing tests results from a personal computer.

    Network Testing

    Ping both IPV4 and IPV6 addresses
    Test TCP/UDP throughput
    Detects and reports advertised link speed and link duplex capability
    Tests the presence of VLANs
    CDP/LLDP/NDP and VLAN identification provides network configuration information
    Ping specific URL to verify WAN connectivity
    Blinks link light to identify location on a hub/switch/router port
    Display network devices & associated IP Addresses

    Cable Verification & Troubleshooting

    The Net Prowler provides full cable testing on any category network, coax, or telephone cable. It will display wire map, numbered ID remotes, and any faults, including shorts, opens, miswires, split pairs, and reverses. The full-featured Net Prowler measures cable length (using TDR technology) and generates tone levels for signal tracing and cable identification on all pairs, a selected pair or a selected pin.

    PoE Voltage Testing

    The Net Prowler enables quick identification of a network drops link capability and current link status. Net Prowler also Tests the presence of PoE on the network drop and what class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping and printing.


    • Features

      • Display network devices & associated IP Addresses
      • Test TCP/UDP throughput
      • Ping both IPV4 and IPV6 addresses
      • Tests the presence of VLANs
      • CDP/LLDP/NDP and VLAN identification provides network configuration information
      • Ping specific URL to verify WAN connectivity
      • Blinks link light to identify location on a hub/switch/router port
      • Tests and reports advertised and current link speed

    • Specifications

      • Measurement Technology: Time Domain Reflectometry (TDR)
      • Cable Measurements:
      • - Cable Testing and ID: up to 1000 ft (305 m)
      • - Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
      • - Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1 ft)
      • - Supports 8 continuity and ID number remotes (RJ45)
      • - Supports 20 RJ45 and 20 F connector ID only remotes
      • Power over Ethernet:
      • - Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
      • - Tests for classes and loads cable up to 25.5 watts
      • - (at class 4) Identifi es Mode A or B (pairs with PoE)
      • Active Ethernet: Indicates advertised speeds of 10/100/1000base-T half or full duplex. Can link to network at 10/100base-T
      • Maximum Voltage:
      • - RJ Jack: 66 VDC or 55 VAC
      • - F Connector: 50 VDC or VAC
      • - Refers to the max voltage that can be applied to any 2 connector pins without damaging the tester
      • Save Test Results: Stores up to 250 cable or network tests with user defined names
      • Tone Generation: Tone Frequencies: 730 Hz and 1440 Hz
      • Languages: English, French, Spanish
      • Battery Life:
      • - For 6 x AA, 9VDC, 2,200 mA-hr (typical) alkaline battery:
      • - Operating - 20 hours typically
      • - Standby - 1.5 years typically
      • - (200uA max standby current) Batteries are included
      • Altitude: 10,000 ft (3048 m) operating
      • Temperature:
      • - Operating: 32 to 122°F (0 to 50°C)
      • - Storage: -22 to +140°F (-30 to 60°C)
      • Humidity: 10 to 90% non-condensing
      • Enclosure:
      • - High-strength PC/ABS plastic with V0 rating with boot
      • - Withstands 4 foot drops onto concrete
      • Size: 1.85"H x 3.6"W x 6.8"L (4.7 x 9.15 x 17.3 cm)
      • Weight With batteries: 1 lb 2 oz (510 g)
      • Safety Compliances: CE
      • Warranty: 1 Year

    • Item Includes

      • Net Prowler Main Unit
      • #1-5 Coax ID and Test Remote Set
      • #1-5 Data ID-only Remote Set
      • F Female to F Female Adapter F81
      • Network/Tel Test and ID Smart Remote #1
      • No-Fault Cables - Qty 2
      • Micro USB Cable
      • Hanging Pouch
      • Quick Start Guide
      • User Manual (Online)
      • Warranty Activation Card
      • 6x Alkaline AA batteries

    • Warranty

      • 1 Year
