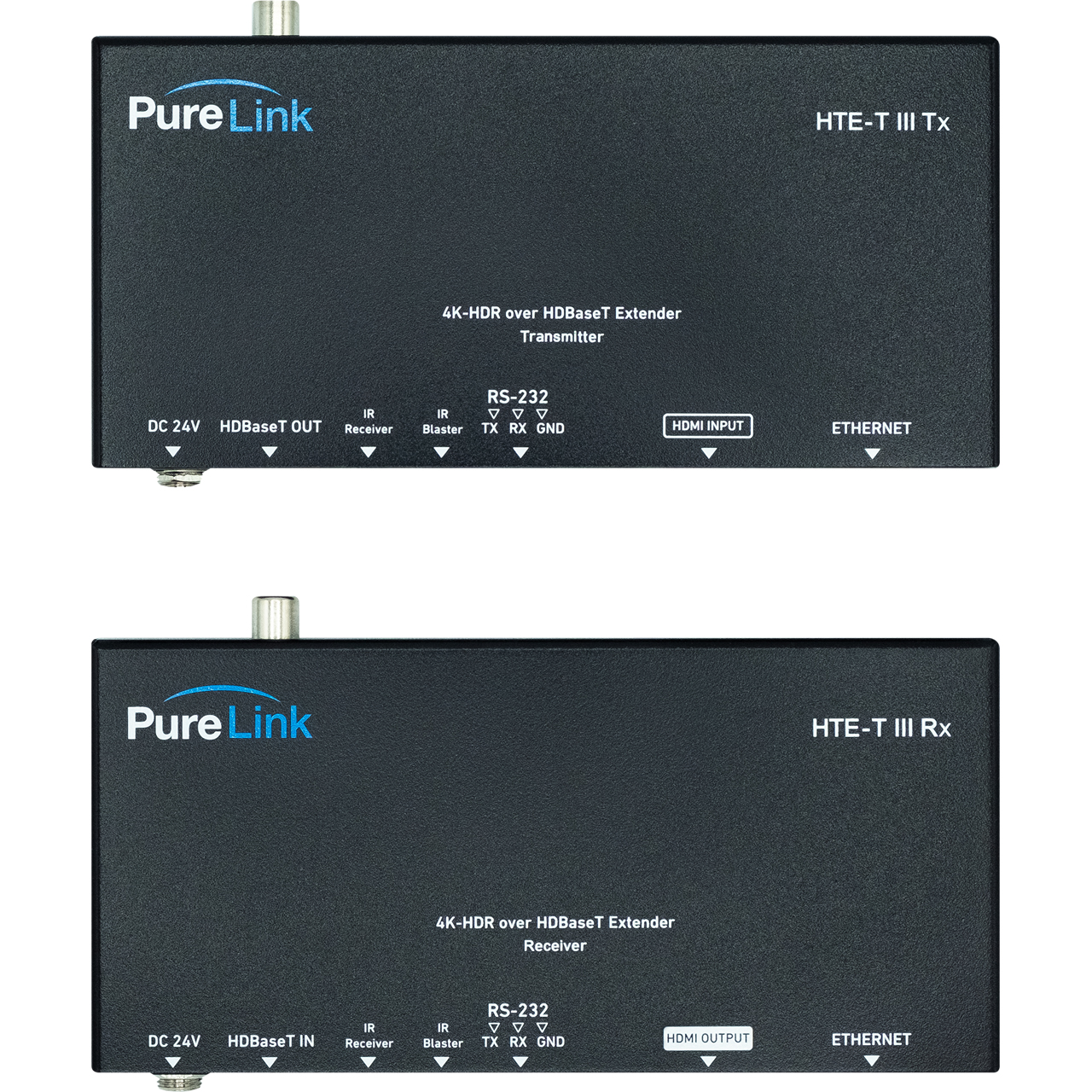

PureLink HTE-T III-TX/RX 4K-HDR HDMI 2.0 over HDBaseT Extension System - 330 feet / 100m - TAA Compliant

HTE-T III-TX/RX - Overview

• Features:

  • HDMI 2.0a compliant
  • 4K2K@60 4:4:4 8bits
  • HDR 4K2K@60 4:2:0 10bits

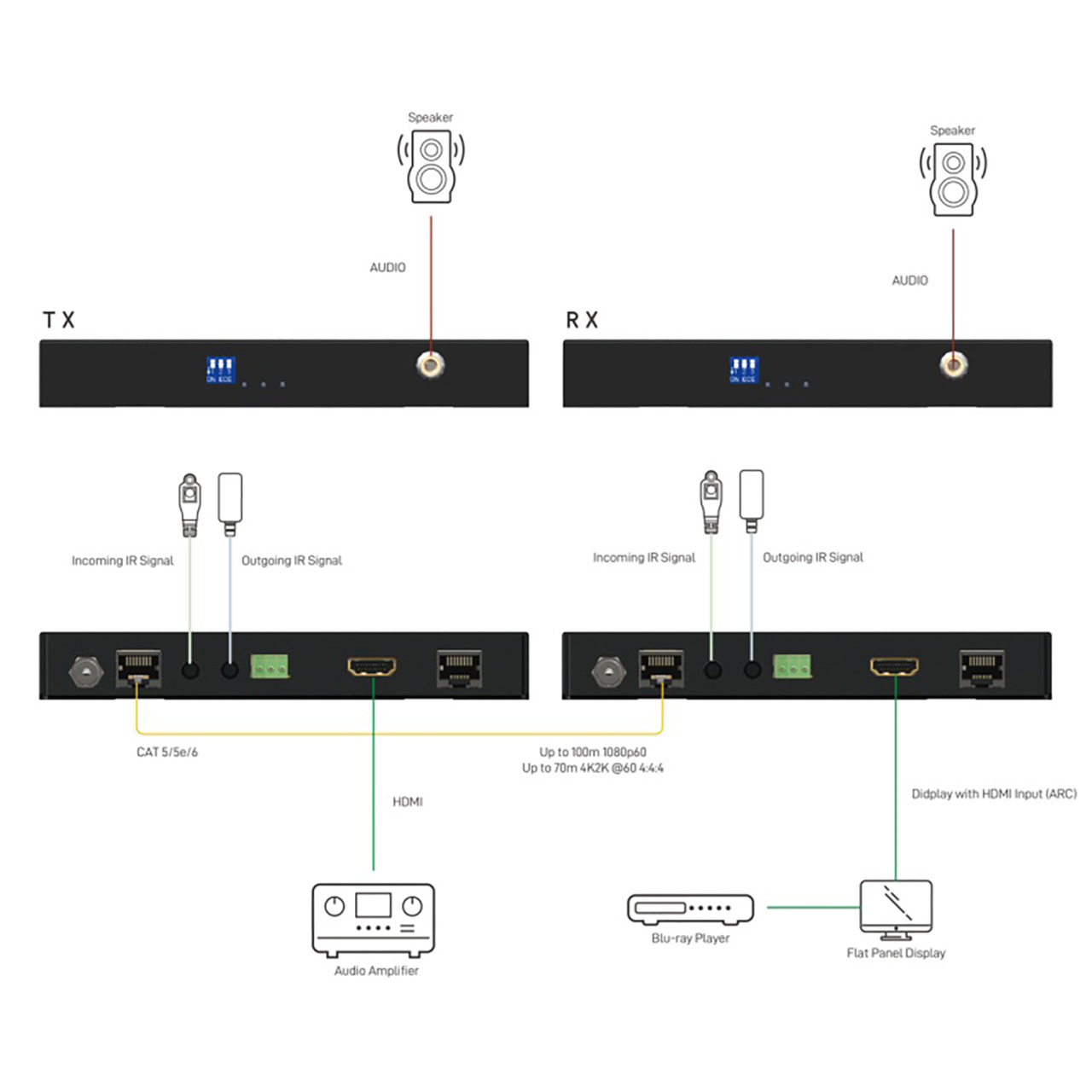

  • Extends HDMI signal up to 330ft (100m) from the HDMI source at Full HD 1080p 36-bit, 230ft (70m) at 4K2K@60 444 (4K-HDR Technology)
  • PoC (Power over Cable) which can power both units from TX or RX side with power supply
  • ARC on transmitter & receiver unit
  • CEC support
  • Auto equalization
  • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Full frequency IR signal from 20kHz to 60kHz
  • Bi-directional IR path-through
  • Integrated port for LAN/network device
  • Full Duplex RS-232 control up to 115,200 bps through connector
  • Wall mounting housing design for easy and robust installation
  • Video latency less than 20ms


• Specifications:

  • Input Signal Types:
    - TX:
     • 1x HDMI
     • 1x 3.5mm
    - RX:
     • 1x RJ-45
     • 1x 3.5mm
  • In/Out:
    - TX:
     • 1x RS-232
     • 1x RJ-45 (Ethernet)
    - RX:
     • 1x RS-232
     • 1x RJ-45 (Ethernet)
  • Video Support: HDR 4K2K@60 (4:2:0 10bits)/4K2K@60 (4:4:4 8bits)
  • Supported Audio Formats: Surround sound (Up to 7.1ch) or stereo digital audio
  • HDCP Compliance: Yes
  • Compliance: HDMI 2.0a
  • Video Bandwidth: Single-link 600MHz (18Gbps)
  • Equalization: Auto
  • HDMI Over UTP: 1080p@60 330ft (100m)(CAT5e)
  • Input TMDS Signal: 1.2 Volts (Peak-to-peak)
  • PCB Stack-Up: 6-layer board (impedance control - differential 100Ω; single 50Ω)
  • IR Pass Thru: Bi-directional
  • RS-232: Yes
  • PoC Support: Yes
  • HDMI Source Control: Controllable via IR pass-through from RX to TX with IR extenders
  • Power Consumption:
    - TX: 15W (Max)
    - RX: 15W (Max)
  • Power Supply: 24V 1A DC
  • Relative Humidity: 0% - 90% non-condensing
  • MTBF: 50,000 hours
  • Input DDC Signal: 5 Volts (Peak-to-peak, TTL)
  • Rotary Control Switch: None
  • ESD Protection: Human body model - ±15kV (air-gap discharge) & ±8kV (contact discharge)
  • Connector Types:
    - HDMI Connector: Type A (19-pin female)
    - MIN DIN Connector: DIN-9
    - RJ-45 Connector: WE/SS 8P8C (Reverse Mode)
    - 3.5mm Connector: IR receiver/IR blaster (TX & RX)
  • Dimensions: 12.21" x 7.09" x 2.76" (310mm x 180mm x 70mm)
  • Weight:
    - TX: 160g (5.6oz)
    - RX: 188g (6.6oz)
  • Enclosure Type: Metal enclosure


• Item Includes:

  • 1x IR Blaster (TX)
  • 1x IR Receiver (RX)
  • 1x DC 24V 1A In-Line with C7 Power Cord
  • 2x 3-Pin Terminal Block Connector


• Warranty:

  • 5 Year Limited Warranty
